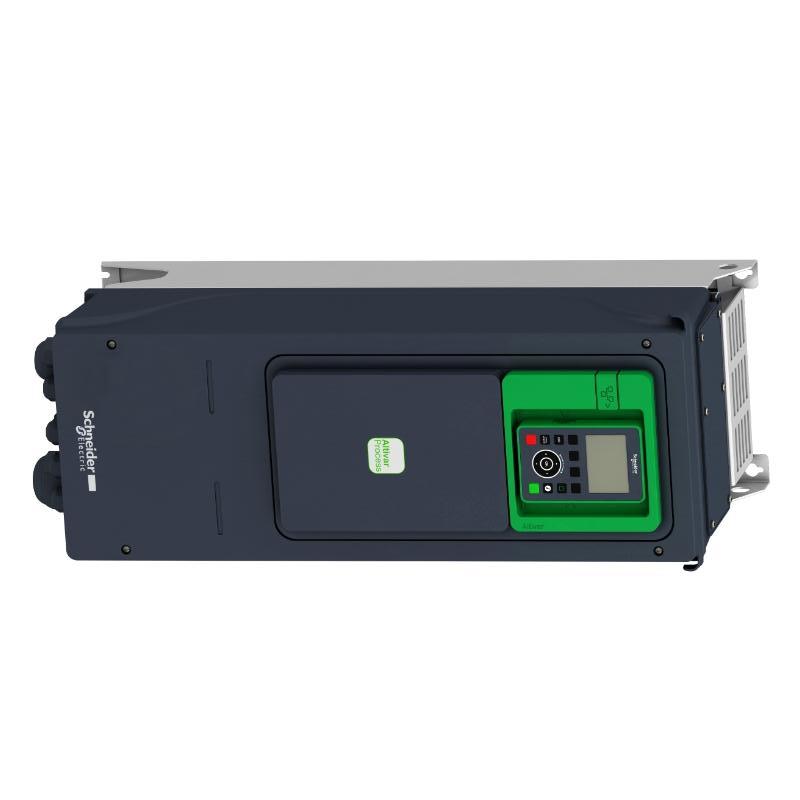

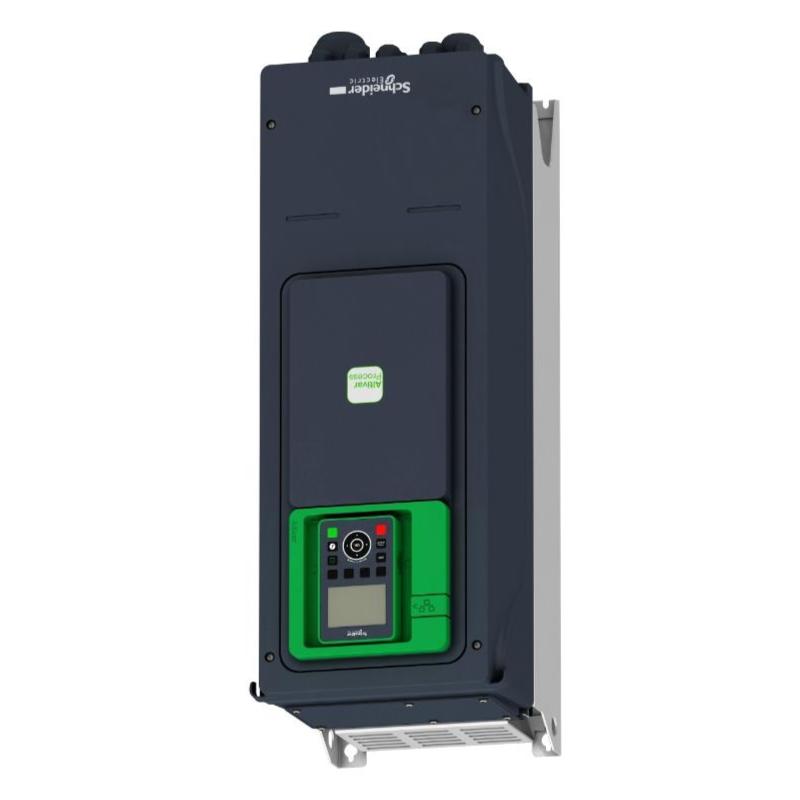

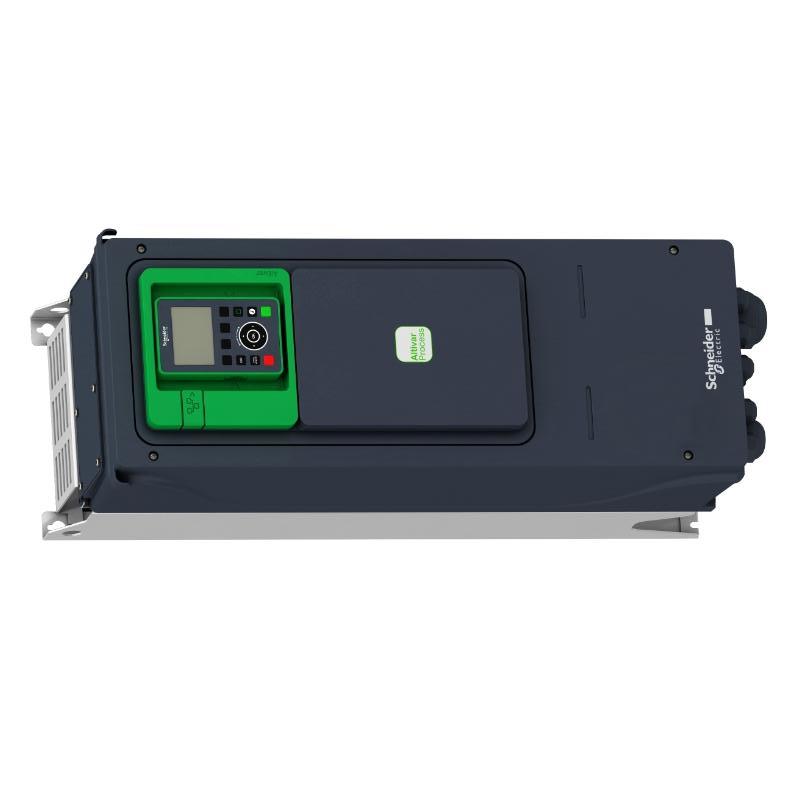

Schneider ATV950U40N4 Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U40N4 |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Drive Series | Altivar 950 |
| Application | Industrial process control and automation |
| Compatible Motors | Asynchronous motors and synchronous motors |
| Motor Power | 4 kW for normal duty; 3 kW for heavy duty |
| Motor Power | 5 HP for normal duty |
| Rated Input Voltage | 380–480 VAC, 3-phase |
| Input Voltage Tolerance | -15% to +10% |
| Input Frequency | 50–60 Hz |
| Maximum Input Current | 7.6 A at 380 V; 6.7 A at 480 V |
| Rated Output Current | 9.3 A for normal duty; 7.2 A for heavy duty |
| Continuous Output Current | 9.3 A at 4 kHz for normal duty; 7.2 A at 4 kHz for heavy duty |
| Maximum Transient Output Current | 11.2 A for normal duty |
| Maximum Output Frequency | 599 Hz |
| Switching Frequency | 2–12 kHz adjustable, with derating applicable above the nominal switching frequency |
| Nominal Switching Frequency | 4 kHz |
| Motor Control Modes | Constant torque, optimized torque, variable torque, permanent-magnet motor and synchronous reluctance motor control |
| Braking Function | Integrated braking chopper |
| EMC Filter | Integrated EMC filter |
| Preset Speeds | 16 preset speeds |
| Analog Inputs | 3 |
| Analog Outputs | 2 |
| Digital Inputs | 8 |
| Digital Outputs | 1 |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication Modules | PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink |
| Encoder Options | 5/12 V digital encoder, analog encoder and resolver interface |
| Safety Function | Safe Torque Off (STO) |
| Mounting Method | Wall mounting |
| Cooling Method | Forced-air cooling |
| Protection Rating | IP55 |
| UL Protection | UL Type 1 |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation |
| Operating Temperature | -15°C to +50°C, with derating under applicable conditions |
| Dimensions | 678 × 264 × 272 mm |
| Weight | 10.6 kg |
FAQ
1. What is the Schneider ATV950U40N4 mainly used for?
The ATV950U40N4 is a 4 kW variable-speed drive in the Altivar Process ATV900 series. It is designed for industrial process control and motor speed regulation in applications such as pumps, fans, compressors, conveyors and process machinery.
2. What motor power does the ATV950U40N4 support?
The drive supports a 4 kW motor under normal-duty operation and a 3 kW motor under heavy-duty operation. Motor selection should also take the motor rated current, load characteristics and required overload capacity into account.
3. What power supply is required for the ATV950U40N4?
The ATV950U40N4 requires a three-phase 380–480 VAC power supply at 50–60 Hz. The permitted supply voltage tolerance is -15% to +10%.
4. What is the output current of the ATV950U40N4?
The rated output current is 9.3 A for normal-duty operation and 7.2 A for heavy-duty operation. At a 4 kHz switching frequency, these values correspond to the continuous output current ratings. The maximum transient current for normal-duty operation is 11.2 A.
5. Which communication protocols are supported?
The ATV950U40N4 supports Modbus Serial, Modbus TCP and EtherNet/IP as standard communication protocols. Optional modules can provide PROFIBUS DP V1, PROFINET, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink connectivity.
6. Does the ATV950U40N4 have an integrated braking function?
Yes. The ATV950U40N4 includes an integrated braking chopper. An external braking resistor can be used when the application requires rapid deceleration or controlled dissipation of regenerative braking energy.
7. Which motor control modes are available?
The drive supports asynchronous and synchronous motors. Control functions include constant torque, variable torque and optimized torque control, as well as permanent-magnet motor and synchronous reluctance motor control.
8. What should be checked if the ATV950U40N4 develops an overcurrent, overvoltage or overheating fault?
For an overcurrent fault, check the motor wiring, motor parameters, mechanical load and acceleration settings. For overvoltage, check the deceleration ramp and braking system. For overheating, inspect cooling fans, cabinet ventilation, ambient temperature, switching frequency and actual load. The drive fault history should also be reviewed to identify recurring operating conditions.
Schneider ATV950U40N4 Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
