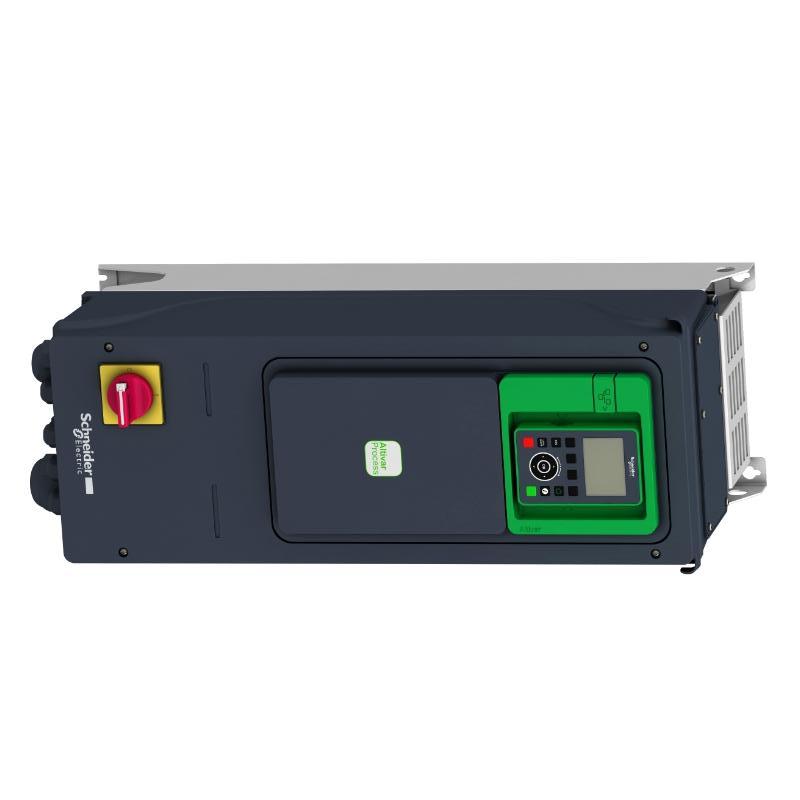

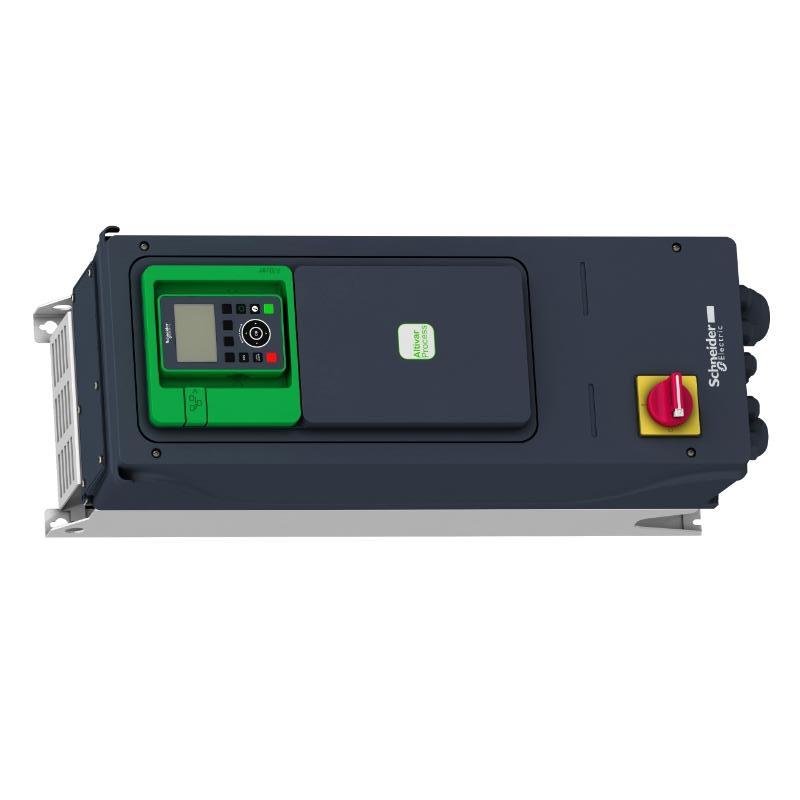

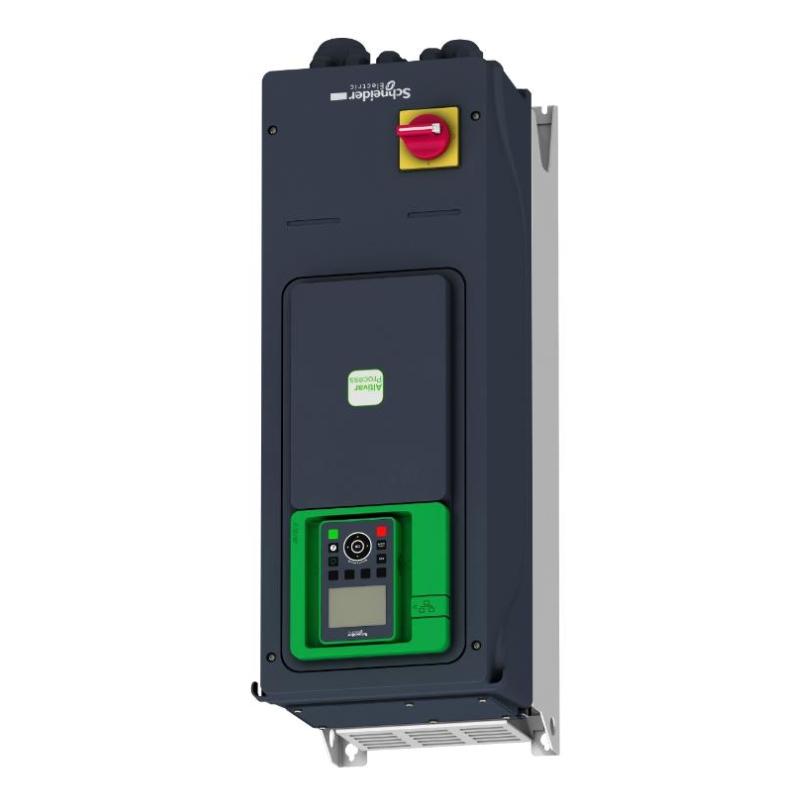

Schneider ATV950U40N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | ATV950U40N4E |
| Product Type | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Drive Series | Altivar 950 |
| Application | Industrial process control and automation |
| Compatible Motors | Three-phase asynchronous and synchronous motors |
| Motor Power | 4 kW for normal duty; 3 kW for heavy duty |
| Motor Rating | 5 HP for normal duty; 4 HP for heavy duty |
| Rated Input Voltage | 380–480 VAC, 3-phase |
| Input Voltage Tolerance | -15% to +10% |
| Input Frequency | 50–60 Hz |
| Line Current | 7.6 A at 380 V / 6.7 A at 480 V for normal duty; 6.0 A at 380 V / 5.4 A at 480 V for heavy duty |
| Continuous Output Current | 9.3 A at 4 kHz for normal duty; 7.2 A at 4 kHz for heavy duty |
| Maximum Transient Current | 11.2 A for 60 s for normal duty; 10.8 A for 60 s for heavy duty |
| Output Frequency | 0.1–599 Hz |
| Switching Frequency | 2–16 kHz adjustable; 4–16 kHz with applicable derating |
| Motor Control | Constant torque, variable torque, optimized torque, permanent-magnet motor and synchronous reluctance motor control |
| Braking Function | Integrated braking chopper |
| Load Switch | Integrated load disconnect switch |
| EMC Filter | Integrated EMC filter, supporting Category C2/C3 installation conditions |
| Preset Speeds | 16 preset speeds |
| Communication Protocols | Modbus Serial, Modbus TCP, EtherNet/IP |
| Optional Communication | PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink |
| Encoder Options | 5/12 V digital encoder, analog encoder and resolver interface options |
| Safety Function | Safe Torque Off (STO) |
| Mounting Method | Wall mounting |
| Cooling Method | Forced convection |
| Protection Rating | IP55 |
| UL Protection | UL Type 12 |
| Operating Temperature | -15°C to +50°C |
| Typical Applications | Pumps, fans, compressors, conveyors, process machinery and industrial automation |
| Dimensions | 678 × 264 × 300 mm |
| Weight | 10.6 kg |
FAQ
1. What is the Schneider ATV950U40N4E mainly used for?
The ATV950U40N4E is a 4 kW variable-speed drive in the Altivar Process ATV900 series. It is designed for industrial process control and motor speed regulation in applications such as pumps, fans, compressors, conveyors and process machinery.
2. What motor power does the ATV950U40N4E support?
The drive supports 4 kW motors under normal-duty conditions and 3 kW motors under heavy-duty conditions. Motor selection should also consider rated motor current, load characteristics and the required overload capacity.
3. What power supply does the ATV950U40N4E require?
The ATV950U40N4E requires a three-phase 380–480 VAC supply with an input frequency of 50–60 Hz. The allowable supply voltage tolerance is -15% to +10%.
4. What is the continuous output current of the ATV950U40N4E?
The continuous output current is 9.3 A at 4 kHz for normal-duty operation and 7.2 A at 4 kHz for heavy-duty operation. The maximum transient current is 11.2 A for 60 seconds under normal-duty conditions and 10.8 A for 60 seconds under heavy-duty conditions.
5. Which communication protocols are supported by the ATV950U40N4E?
The drive supports Modbus Serial, Modbus TCP and EtherNet/IP as standard communication protocols. Optional communication modules can provide PROFINET, PROFIBUS DP V1, DeviceNet, EtherCAT, CANopen and Ethernet Powerlink connectivity.
6. Does the ATV950U40N4E have an integrated braking function?
Yes. The ATV950U40N4E includes an integrated braking chopper and load disconnect switch. An external braking resistor can be used when the application requires rapid deceleration or controlled dissipation of regenerative braking energy.
7. Which motor control modes are available?
The drive supports three-phase asynchronous and synchronous motors. Available control functions include constant torque, variable torque and optimized torque control, as well as permanent-magnet motor and synchronous reluctance motor control.
8. What should be checked if the ATV950U40N4E develops an overcurrent, overvoltage or overheating fault?
For an overcurrent fault, check the motor wiring, motor parameters, mechanical load and acceleration settings. For an overvoltage fault, check the deceleration ramp and braking system. For overheating, inspect the cooling system, cabinet ventilation, ambient temperature, switching frequency and actual load. The drive fault history should also be reviewed to identify recurring operating conditions.
Schneider ATV950U40N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
