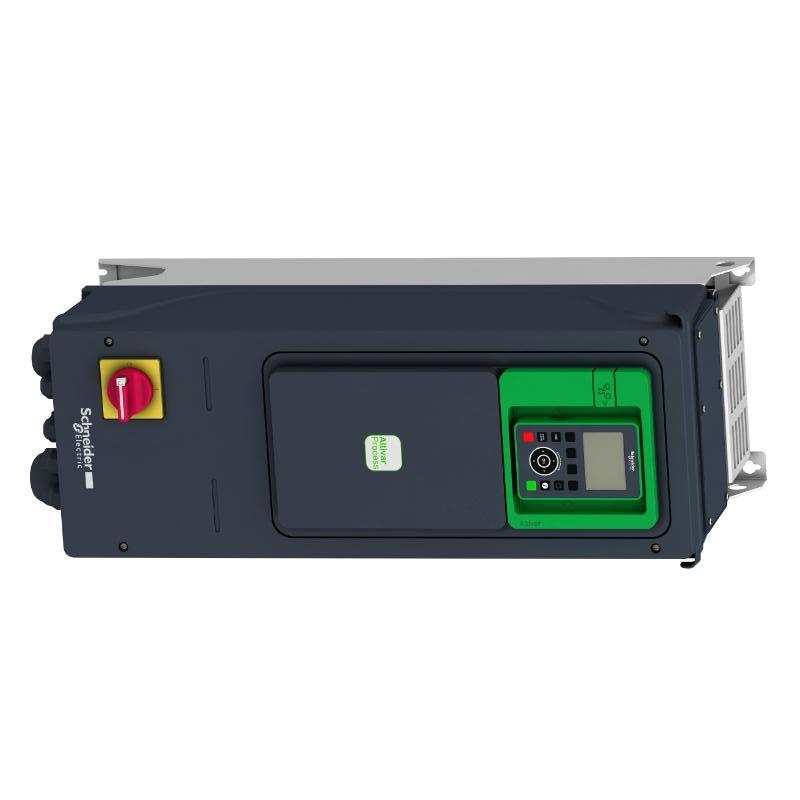

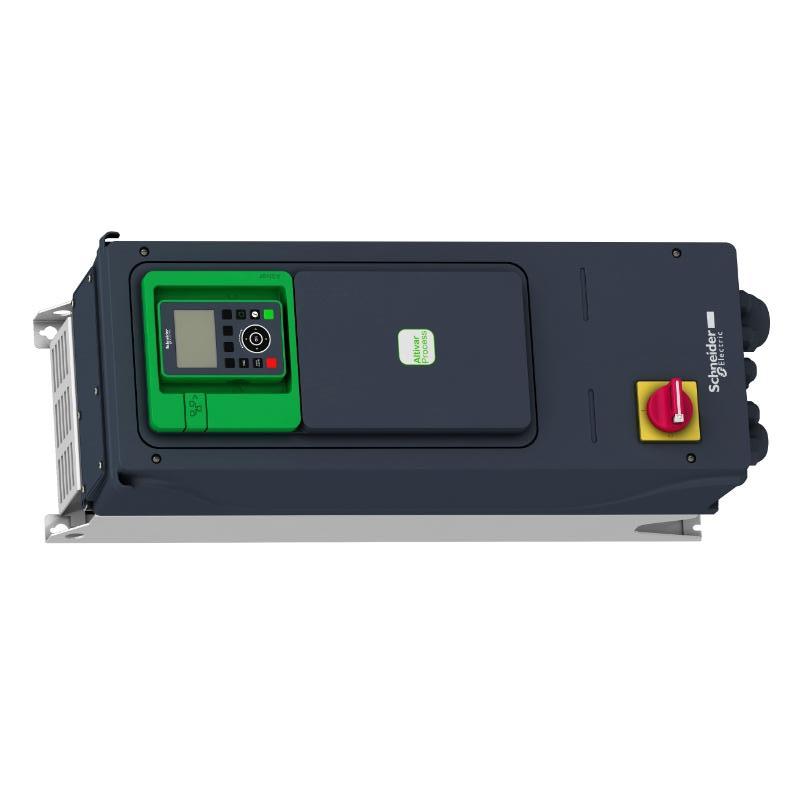

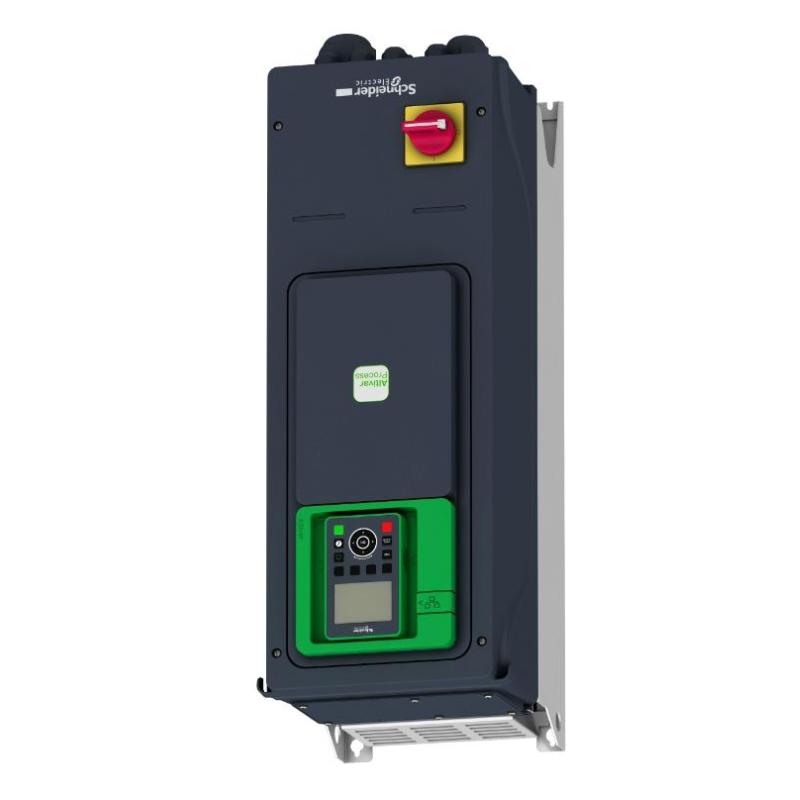

Schneider ATV950U75N4E Variable-Speed Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Variable-Speed Drive |
| Product Range | Altivar Process ATV900 |
| Product Series | ATV950 |
| Model | ATV950U75N4E |
| Product Type | Variable-Speed Drive |
| Application | Industrial applications |
| Motor Type | Asynchronous motors and synchronous motors |
| Rated Motor Power | 7.5 kW, normal duty |
| Heavy-Duty Motor Power | 5.5 kW |
| Rated Supply Voltage | 380–480 VAC, 3-phase |
| Continuous Output Current | 16.5 A at 4 kHz, normal duty |
| Heavy-Duty Output Current | 12.7 A at 4 kHz |
| Switching Frequency | 2–16 kHz adjustable |
| Maximum Output Frequency | 599 Hz |
| Braking Function | Integrated braking chopper |
| Main Switch | Integrated load-break switch |
| EMC Filter | Integrated |
| Enclosure Rating | IP55 |
| Mounting | Wall mounting |
| Motor Control | Asynchronous motor control, permanent-magnet synchronous motor control and synchronous reluctance motor control |
| Analog Inputs | 3, software-configurable 0–10 VDC inputs |
| Digital Inputs | 10 programmable 24 VDC inputs |
| Communication Interfaces | Modbus Serial, Modbus TCP and EtherNet/IP |
| Serial Communication | RS-485, Modbus RTU |
| Ethernet Communication | 10/100 Mbit/s |
| Communication Expansion | Optional communication and I/O modules available |
| Integrated Functions | Process monitoring, energy measurement, asset monitoring and drive diagnostics |
| Typical Applications | Pumps, fans, compressors, conveyors and process machinery |
| Dimensions | 678 × 264 × 330 mm |
| Weight | 13.7 kg |
FAQ
1. What is the main function of the Schneider Electric ATV950U75N4E?
The ATV950U75N4E is an Altivar Process ATV950 variable-speed drive designed to control industrial motors. It regulates motor speed, torque and operating parameters according to the configured control mode and application requirements. The drive supports both asynchronous and synchronous motor applications.
2. What motor power is supported by the ATV950U75N4E?
The ATV950U75N4E is rated for a 7.5 kW motor under normal-duty operation. For heavy-duty applications, the corresponding motor power rating is 5.5 kW. The correct rating should be selected according to the motor’s operating current, load characteristics and duty cycle rather than motor power alone.
3. What supply voltage does the ATV950U75N4E require?
The drive is designed for a three-phase AC supply in the 380–480 V range. Before commissioning, the incoming voltage, phase configuration, protective devices and motor connection should be checked against the drive and motor nameplate data.
4. What communication protocols are supported by the ATV950U75N4E?
The drive provides Modbus Serial and Ethernet-based Modbus TCP and EtherNet/IP communication. The serial interface uses RS-485 with Modbus RTU. Optional communication modules can also be used for additional industrial networks such as PROFINET, PROFIBUS DP, CANopen and EtherCAT, depending on the required system architecture.
5. Does the ATV950U75N4E have a built-in braking function?
Yes. This model includes an integrated braking chopper. The braking circuit allows a compatible braking resistor to be used when the application requires controlled dissipation of regenerative energy during deceleration. Braking resistor selection should follow the drive’s electrical and thermal requirements.
6. What protection level does the ATV950U75N4E provide?
The drive has an IP55 enclosure rating, making it suitable for industrial environments where protection against dust and water jets is required. Correct installation is still necessary, including suitable cable entry, grounding, ventilation and environmental conditions.
7. How should an ATV950U75N4E communication fault be diagnosed?
Check the communication cable, connector condition, network configuration and communication parameters first. For Modbus Serial, verify RS-485 wiring, slave address, baud rate, parity and termination. For Ethernet communication, check the IP configuration, network link status and PLC or controller communication settings. The drive’s diagnostic information should then be reviewed to identify configuration or communication errors.
8. What should be checked before commissioning the ATV950U75N4E?
Verify the three-phase supply voltage, motor nameplate data, motor wiring, grounding, protective devices and application duty. Configure the motor parameters, control mode, acceleration/deceleration ramps and required protection functions. If a braking resistor or communication module is installed, verify its configuration as well. Perform a controlled test run at low speed before applying the full operating load.
Schneider ATV950U75N4E Variable-Speed Drive is in stock. Please contact us for a quick quote and competitive pricing.
