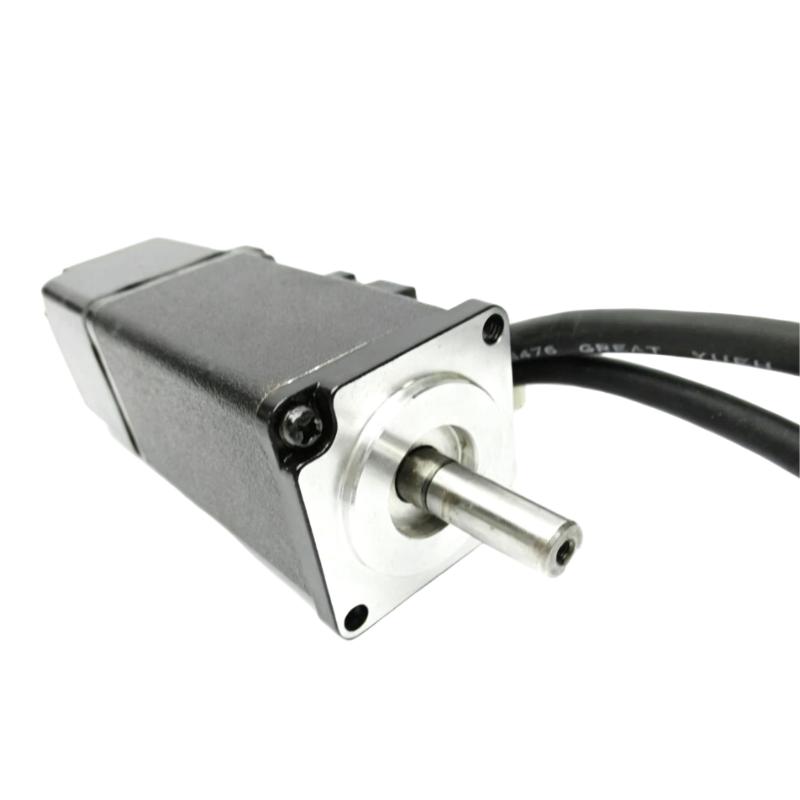

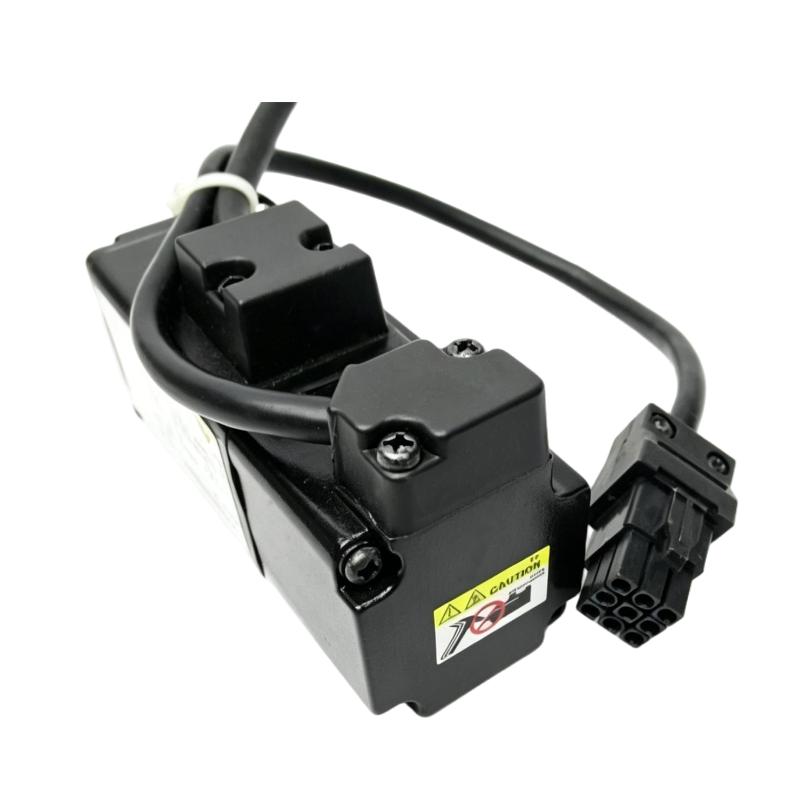

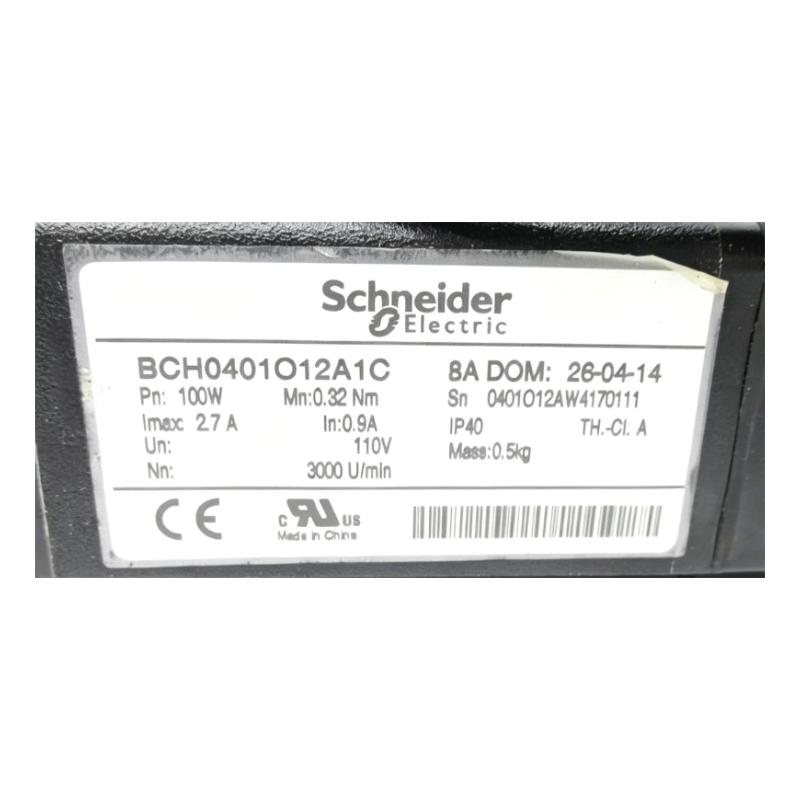

Schneider BCH0401O12A1C Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Servo Motor |
| Product Series | Lexium 23 Plus |
| Model | BCH0401O12A1C |
| Product Type | AC Servo Motor |
| Flange Size | 40 mm |
| Rated Power | 0.1 kW |
| Rated Torque | 0.32 N·m |
| Peak Torque | 0.96 N·m |
| Rated Speed | 3000 rpm |
| Maximum Mechanical Speed | 5000 rpm |
| Rated Supply Voltage | 220 VAC |
| Phase | Single-phase |
| Continuous Stall Current | 0.9 A |
| Maximum Current | 2.7 A |
| Rotor Inertia | 0.037 kg·cm² |
| Torque Constant | 0.36 N·m/A |
| Feedback Type | 20-bit incremental encoder |
| Shaft Type | Keyed shaft |
| Shaft Diameter | 8 mm |
| Shaft Length | 20 mm |
| Key Width | 3 mm |
| Holding Brake | Without brake |
| Oil Seal | Without oil seal |
| Protection | IP40 |
| Cooling Method | Natural convection |
| Electrical Connection | Flying leads |
| Mounting Type | Mechanical mounting |
| Maximum Radial Force | 78.4 N |
| Maximum Axial Force | 39.2 N |
| Stator Resistance | 18.6 Ω at 20°C |
| Stator Inductance | 48 mH at 20°C |
| Electrical Time Constant | 2.58 ms |
| Length | 100.6 mm |
| Weight | 0.5 kg |
FAQ
1. What type of servo motor is the Schneider BCH0401O12A1C?
The BCH0401O12A1C is a Schneider Electric BCH series synchronous servo motor designed for Lexium 23 Plus motion-control systems. It is a compact 0.1 kW motor with a 40 mm flange and a 20-bit incremental encoder.
2. What are the rated power and torque of the BCH0401O12A1C?
The motor has a rated power of 0.1 kW and a rated torque of 0.32 N·m. The peak torque is 0.96 N·m, providing additional torque capacity during short acceleration and positioning operations.
3. What are the rated and maximum speeds of this servo motor?
The rated speed is 3000 rpm, and the maximum mechanical speed is 5000 rpm. The actual operating speed should be configured according to the servo drive, load inertia, acceleration requirements and application duty cycle.
4. What feedback device does the BCH0401O12A1C use?
The motor is equipped with a 20-bit high-resolution incremental encoder. The encoder provides position and speed feedback to the servo drive for closed-loop motion control and accurate positioning.
5. Does the BCH0401O12A1C have an integrated holding brake?
No. This version is supplied without a holding brake. If the machine requires the shaft to remain mechanically locked when servo power is removed, an appropriate external braking or mechanical holding solution should be provided.
6. Which servo drive is suitable for the BCH0401O12A1C?
The BCH0401O12A1C is designed for use with Schneider Electric Lexium 23 Plus servo drives. The drive should be selected according to the motor’s 0.1 kW power rating, voltage, current and encoder configuration.
7. What should be checked if the servo motor generates an encoder or positioning fault?
Check the encoder cable, connector and wiring first. Then verify the motor model and feedback parameters configured in the servo drive. Cable damage, loose connections, incorrect feedback settings or excessive electrical interference can result in encoder alarms or unstable positioning.
8. What installation precautions should be followed for the BCH0401O12A1C?
Install the motor securely and ensure accurate alignment between the motor shaft and driven mechanism. Avoid exceeding the specified radial and axial shaft loads. Keep the encoder and motor cables properly routed and separated from high-power cables where necessary to reduce electrical interference.
Schneider BCH0401O12A1C Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
