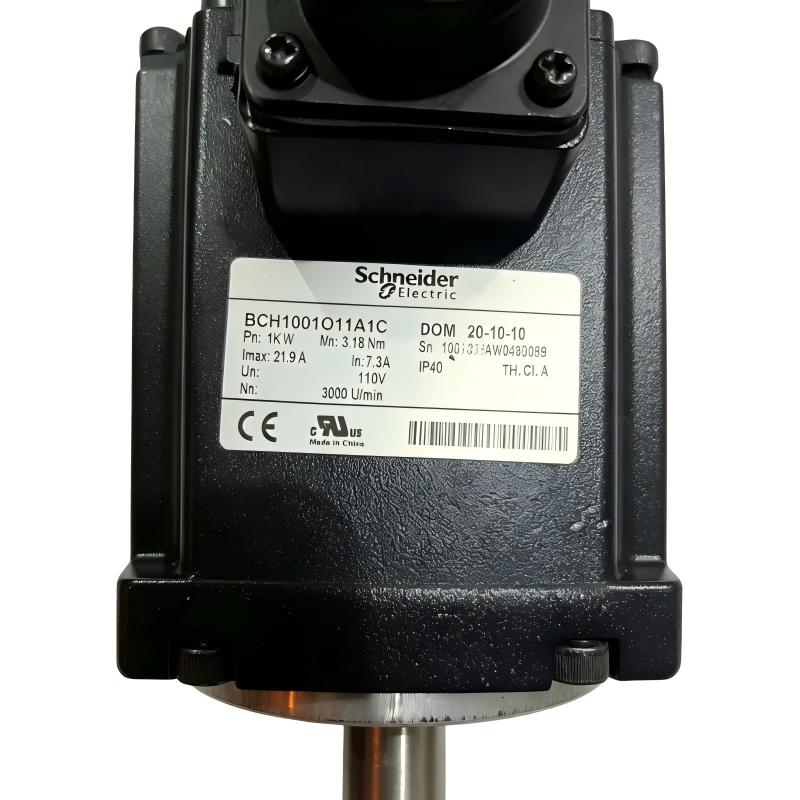

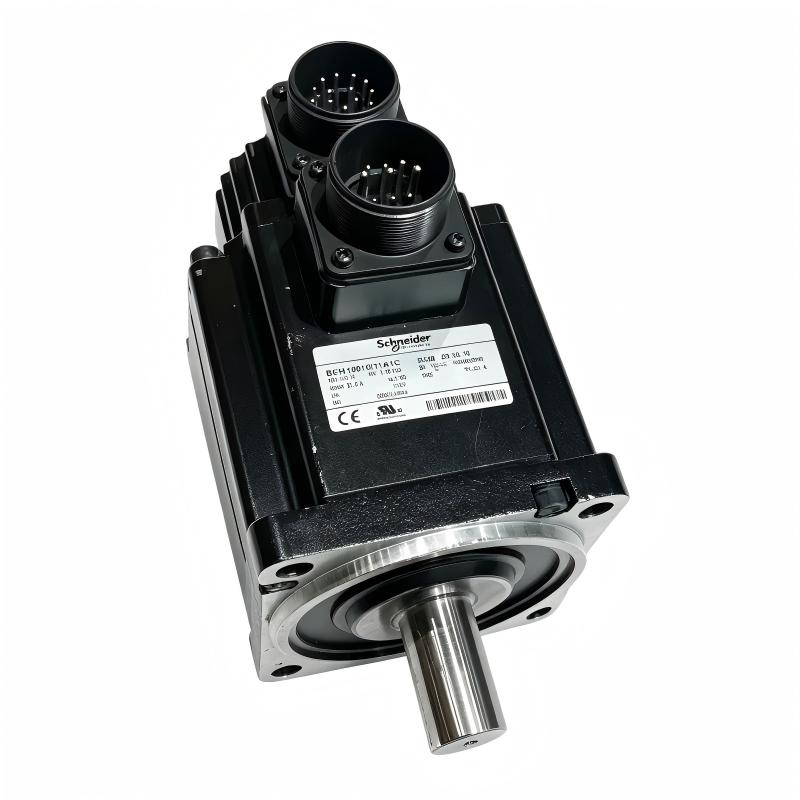

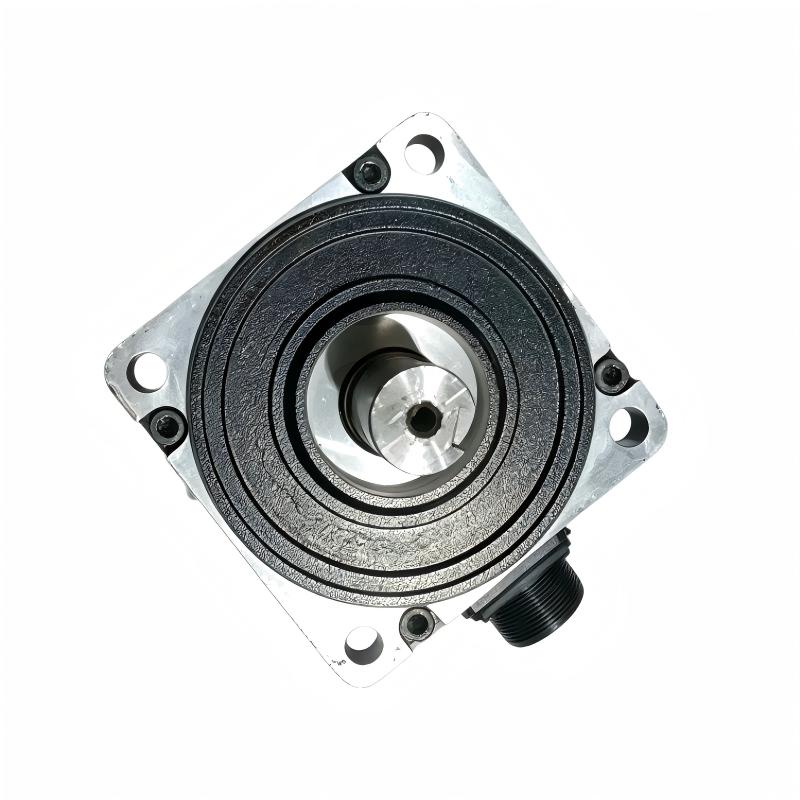

Schneider BCH1001011A1C Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Servo Motor |
| Product Series | BCH / Lexium 23 Plus |
| Model | BCH1001011A1C |
| Product Type | AC Servo Motor |
| Motor Flange Size | 100 mm |
| Continuous Power | 1 kW |
| Rated Supply Voltage | 220 VAC |
| Phase | Single-phase |
| Continuous Stall Current | Approx. 7.3 A |
| Rated Torque | 3.18 N·m |
| Peak Torque | 9.54 N·m |
| Rated Speed | 3000 rpm |
| Maximum Mechanical Speed | 5000 rpm |
| Feedback Type | 20-bit encoder |
| Shaft Type | Keyed shaft |
| Shaft Diameter | 22 mm |
| Shaft Length | 37 mm |
| Key Width | 8 mm |
| Holding Brake | Without brake |
| Mounting Support | Asian standard flange |
| Cooling Method | Natural convection |
| Rotor Inertia | Approx. 3.33 kg·cm² |
| Torque Constant | Approx. 0.43 N·m/A |
| Back EMF Constant | Approx. 16.8 V/krpm at 20°C |
| Stator Resistance | Approx. 0.4 Ω at 20°C |
| Stator Inductance | Approx. 3.62 mH at 20°C |
| Stator Electrical Time Constant | Approx. 9.3 ms |
| Maximum Radial Force | Application dependent |
| Maximum Axial Force | Application dependent |
| Typical Compatible Drive | Lexium 23 Plus servo drive |
| Typical Applications | Precision positioning, packaging machinery, material handling, machine tools and industrial automation |
| Length | 128.6 mm |
| Weight | 3.34 kg |
FAQ
1. What type of servo motor is the Schneider BCH1001011A1C?
The BCH1001011A1C is a BCH series AC servo motor intended for Schneider Electric Lexium motion-control systems. The 100 mm flange motor provides approximately 1 kW continuous power and is designed for closed-loop positioning and speed-control applications.
2. What are the rated and peak torque values of the BCH1001011A1C?
The motor has a rated torque of approximately 3.18 N·m and a peak torque of approximately 9.54 N·m. The peak torque is intended for short-duration acceleration, deceleration and dynamic positioning rather than continuous operation.
3. What are the rated and maximum speeds of this servo motor?
The rated speed is 3000 rpm and the maximum mechanical speed is 5000 rpm. The actual operating speed should be selected according to the servo drive configuration, load inertia, acceleration profile and mechanical transmission limits.
4. What type of feedback does the BCH1001011A1C use?
The BCH series configuration uses high-resolution encoder feedback for closed-loop control. The encoder provides the servo drive with motor position and speed information, which is required for accurate positioning and stable speed regulation.
5. Does the BCH1001011A1C include a holding brake?
The BCH1001011A1C configuration is supplied without a holding brake. If the application requires the shaft to remain mechanically held after servo power is removed, an external holding or braking mechanism should be considered.
6. Which servo drive should be used with the BCH1001011A1C?
The motor is associated with Schneider Electric Lexium 23 Plus servo drive systems. The drive should be selected to match the motor’s 1 kW power rating, 220 V supply, current requirements and encoder configuration.
7. What should be checked if the BCH1001011A1C produces a servo or positioning alarm?
First inspect the motor power connections and encoder wiring. Then verify the motor model, feedback parameters, electronic gearing and control settings in the servo drive. If the electrical configuration is correct, check mechanical alignment, coupling condition, load inertia and excessive shaft loading.
8. What installation precautions should be followed for the BCH1001011A1C?
The motor should be securely mounted and accurately aligned with the driven mechanism. The coupling should be installed without impact or excessive force on the keyed shaft. Check the mechanical load before commissioning and ensure adequate ventilation around the motor for natural heat dissipation.
Schneider BCH1001011A1C Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
