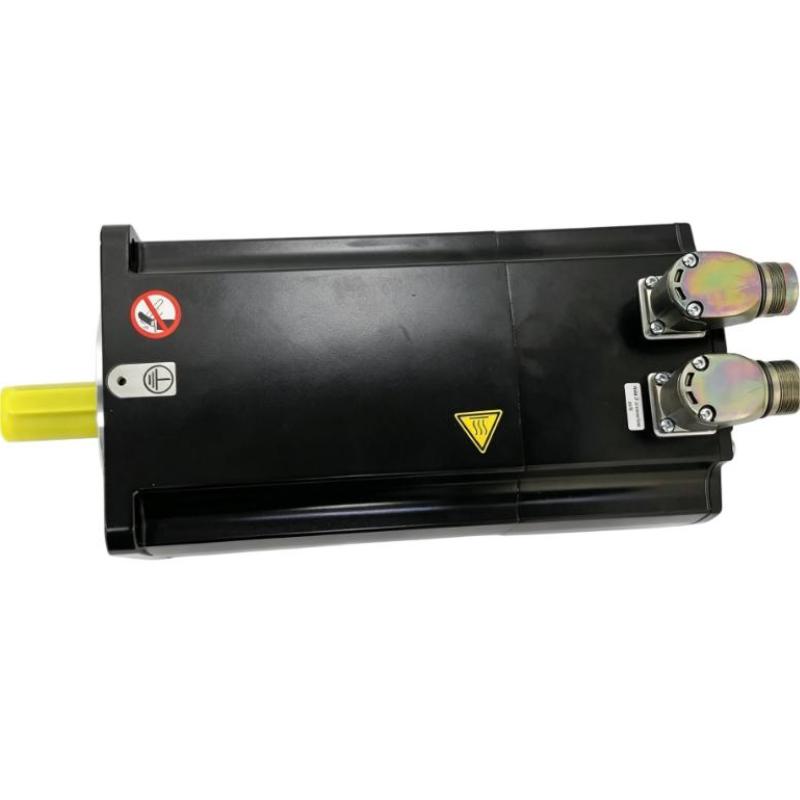

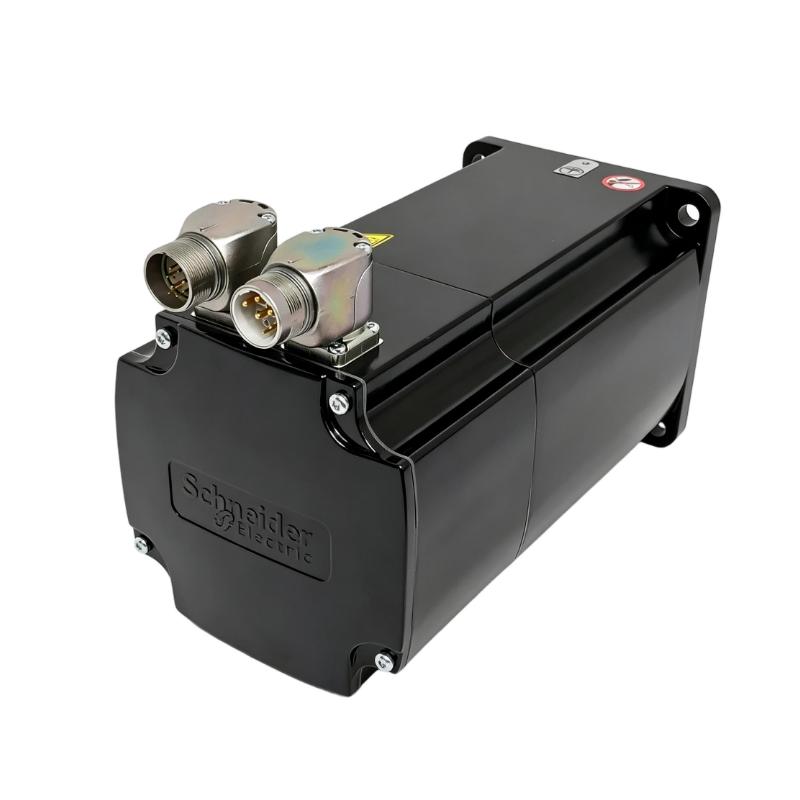

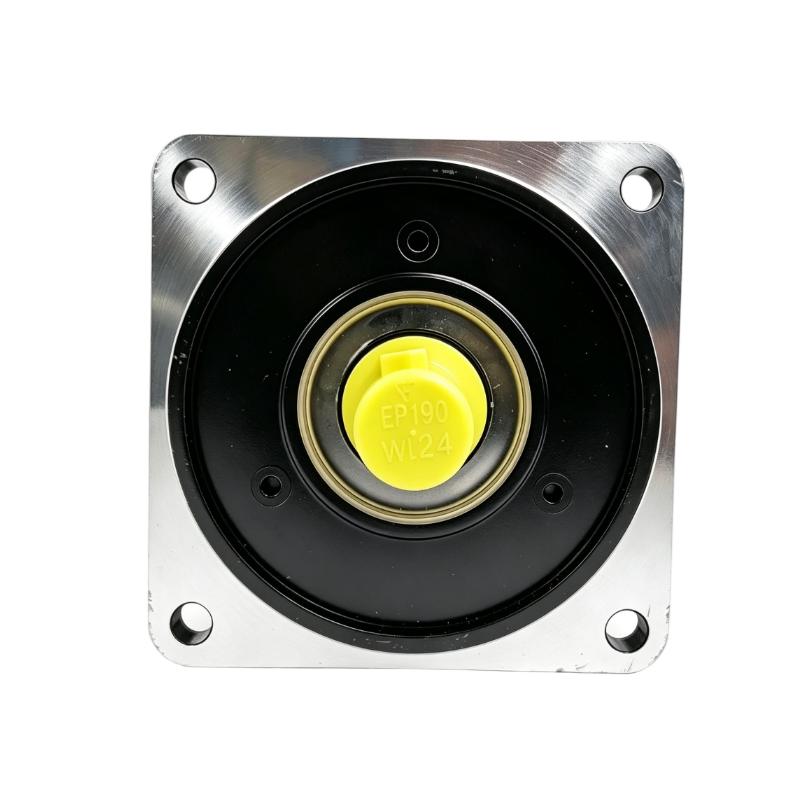

Schneider BCH1001O12A1C Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Name | Servo Motor |
| Product Series | BCH / Lexium 23 Plus |
| Model | BCH1001O12A1C |
| Product Type | AC Servo Motor |
| Motor Flange Size | 100 mm |
| Rated Power | 1 kW |
| Rated Supply Voltage | 220 VAC |
| Phase | Single-phase |
| Continuous Stall Current | Approx. 7.3 A |
| Rated Torque | Approx. 3.18 N·m |
| Peak Torque | Approx. 9.54 N·m |
| Rated Speed | 3000 rpm |
| Maximum Mechanical Speed | 5000 rpm |
| Feedback Type | 20-bit incremental encoder |
| Shaft Type | Keyed shaft |
| Shaft Diameter | 22 mm |
| Shaft Length | 37 mm |
| Key Width | 8 mm |
| Holding Brake | No |
| Oil Seal | No |
| Mounting Support | Asian standard flange |
| Cooling Method | Natural convection |
| Rotor Inertia | Approx. 2.65 kg·cm² |
| Torque Constant | Approx. 0.43 N·m/A |
| Back EMF Constant | Approx. 16.8 V/krpm at 20°C |
| Stator Resistance | Approx. 0.4 Ω at 20°C |
| Stator Inductance | Approx. 3.62 mH at 20°C |
| Stator Electrical Time Constant | Approx. 9.3 ms |
| Centering Collar Diameter | 95 mm |
| Centering Collar Depth | 5 mm |
| Mounting Holes | 4 |
| Mounting Hole Diameter | 9 mm |
| Mounting Hole Circle Diameter | 115 mm |
| Compatible Drive System | Lexium 23 Plus |
| Electrical Connection | Straight connection / flying leads |
| Length | 153.5 mm |
| Weight | 4.3 kg |
FAQ
1. What type of servo motor is the Schneider BCH1001O12A1C?
The BCH1001O12A1C is an AC servo motor from Schneider Electric’s BCH series, designed for closed-loop motion-control applications. It provides 1 kW rated power and is intended for use with compatible Lexium servo drive systems.
2. What are the rated and peak torque values of the BCH1001O12A1C?
The motor provides approximately 3.18 N·m of rated torque and approximately 9.54 N·m of peak torque. Peak torque is normally used for short-duration acceleration, deceleration and dynamic load changes.
3. What are the rated and maximum speeds?
The rated speed is 3000 rpm, while the maximum mechanical speed is 5000 rpm. The actual operating speed should be set according to the drive configuration, load inertia and mechanical transmission limits.
4. What feedback device does this motor use?
The BCH1001O12A1C uses a 20-bit incremental encoder. The feedback signal provides the servo drive with motor position and speed information for closed-loop control and positioning accuracy.
5. Does the BCH1001O12A1C have a holding brake?
No. This configuration is supplied without a holding brake. For vertical axes or applications requiring mechanical holding after power removal, an external braking mechanism or a brake-equipped motor should be considered.
6. Which servo drive is suitable for the BCH1001O12A1C?
The motor is designed for use with compatible Schneider Electric Lexium 23 Plus servo drive systems. Drive selection should match the motor’s rated power, 220 VAC supply, current requirements and encoder configuration.
7. What should be checked if the motor generates an encoder or positioning alarm?
Check the encoder connector and feedback cable first, including cable continuity, connector seating and shielding. Then verify the motor model and feedback parameters in the drive. If the electrical system is normal, inspect the coupling, mechanical alignment, load inertia and possible mechanical binding.
8. What installation precautions are required for this servo motor?
The mounting flange should be securely fixed and the motor shaft should be properly aligned with the driven mechanism. Avoid impact or excessive force during coupling installation. Mechanical loads should remain within the permitted limits, and sufficient clearance should be maintained around the motor for natural convection cooling.
Schneider BCH1001O12A1C Servo Motor is in stock. Please contact us for a quick quote and competitive pricing.
