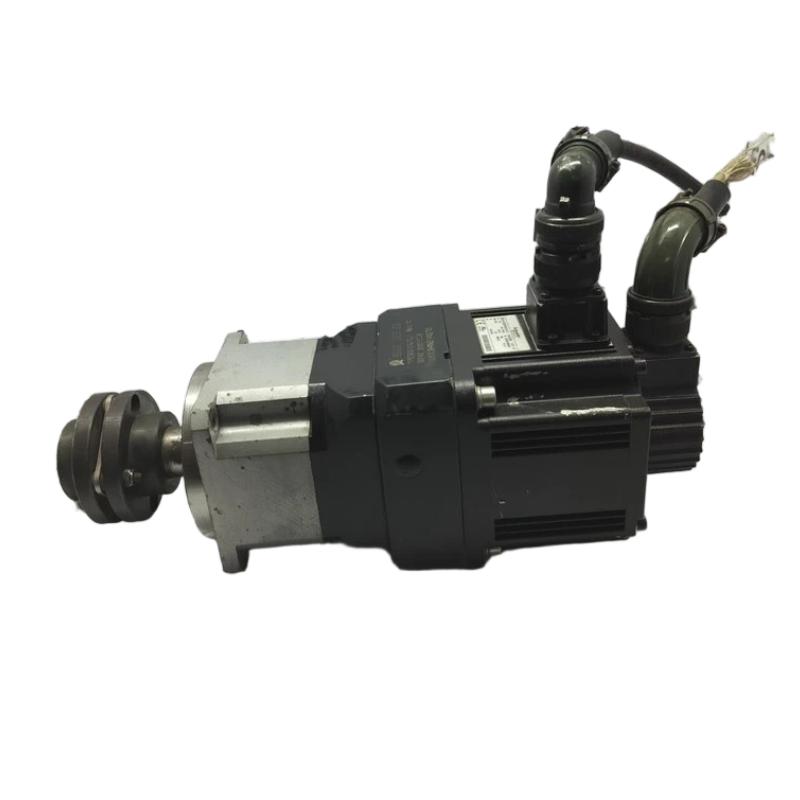

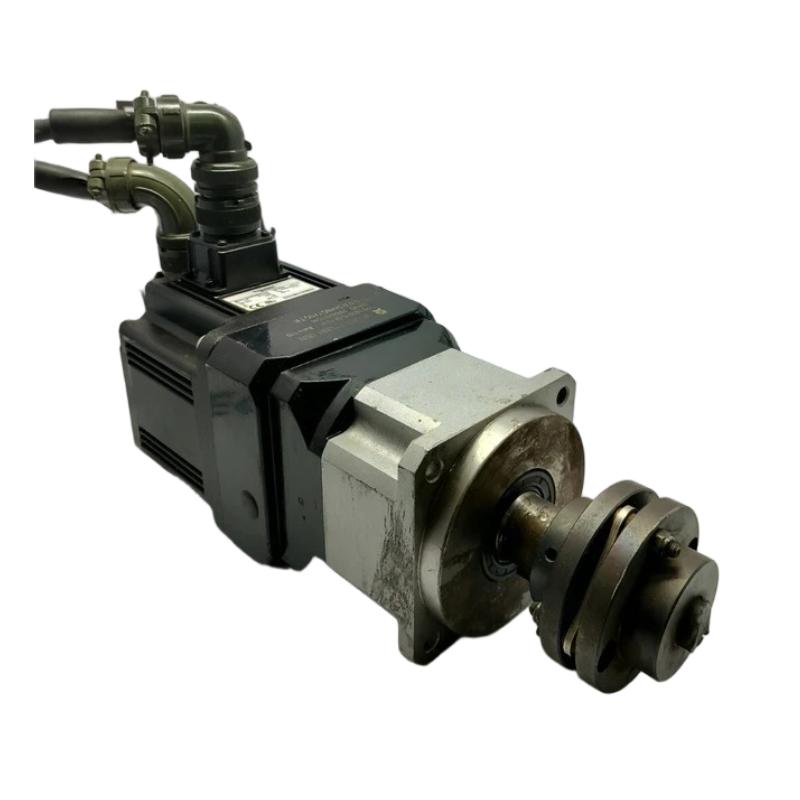

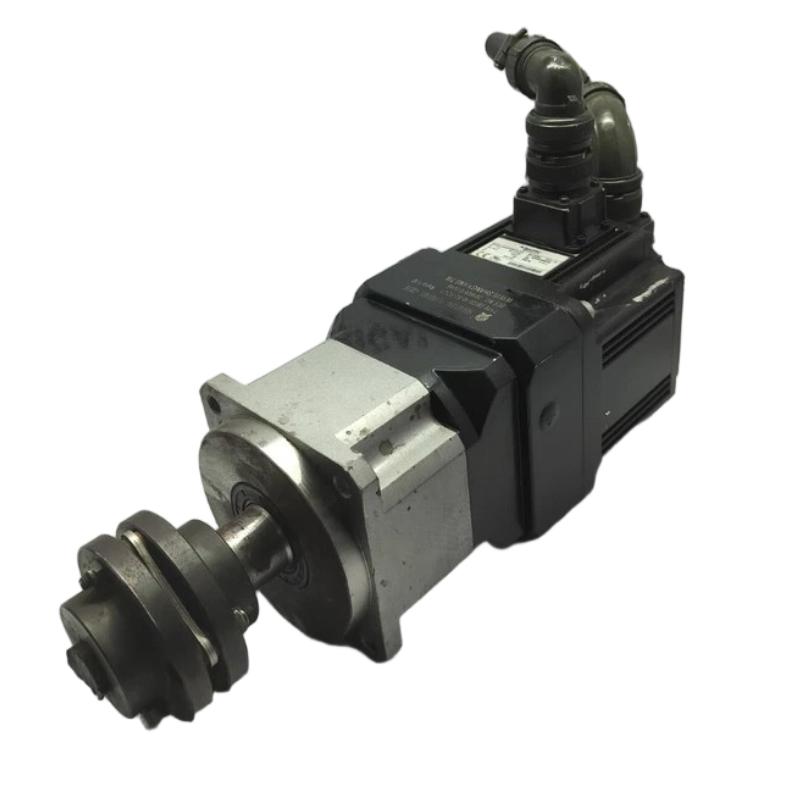

Schneider BCH1302N32A1C Servo Motor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BCH1302N32A1C |
| Product Type | AC Servo Motor |
| Product Series | BCH / Lexium 23 Plus |
| Motor Type | AC Synchronous Servo Motor |
| Rated Supply Voltage | 220 V AC |
| Number of Phases | Single Phase |
| Continuous Power | 1 kW |
| Maximum Mechanical Speed | 3,000 rpm |
| Continuous Stall Current | 5.6 A |
| Shaft End | Keyed Shaft |
| Second Shaft | None |
| Shaft Diameter | 22 mm |
| Shaft Length | 47 mm |
| Key Width | 8 mm |
| Feedback Type | 20-bit Incremental Encoder |
| Holding Brake | None |
| Oil Seal | Yes |
| Mounting Support | Asian Standard Flange |
| Motor Flange Size | 130 mm |
| Torque Constant | 0.85 N·m/A |
| Back EMF Constant | 31.9 V/krpm at 20°C |
| Rotor Inertia | 8.41 kg·cm² |
| Stator Resistance | 0.94 Ω at 20°C |
| Stator Inductance | 11.98 mH at 20°C |
| Stator Electrical Time Constant | 12.88 ms |
| Maximum Radial Force | 490 N |
| Maximum Axial Force | 98 N |
| Cooling Method | Natural Convection |
| Number of Motor Stacks | 2 |
| Mounting Holes | 4 |
| Protection Rating | IP65 |
| Ambient Operating Temperature | 0 to 40°C |
| Electrical Connection | Straight Connector |
| Length | 147.5 mm |
| Weight | 7 kg |
FAQ
1. What is the main function of the Schneider Electric BCH1302N32A1C servo motor?
The BCH1302N32A1C is a 1 kW AC synchronous servo motor designed for closed-loop motion control. It works with a compatible Lexium 23 Plus servo drive and uses encoder feedback to provide controlled speed and position. It is suitable for automated machinery requiring repeatable and accurately controlled rotary motion.
2. What are the rated power and maximum mechanical speed of the BCH1302N32A1C?
The motor has a continuous power rating of 1 kW and a maximum mechanical speed of 3,000 rpm. The continuous stall current is 5.6 A. The actual operating speed should be determined according to the servo drive configuration, load characteristics, acceleration requirements and machine duty cycle.
3. What type of encoder is used by the BCH1302N32A1C?
The BCH1302N32A1C uses a 20-bit incremental encoder. The encoder provides motor position and speed feedback to the servo drive, allowing the control system to perform closed-loop regulation. Correct encoder wiring and drive parameter configuration are important during installation and commissioning.
4. Does the BCH1302N32A1C have a holding brake?
No. This model is supplied without a holding brake. If the application requires the motor shaft to remain mechanically secured after the servo drive stops or power is removed, an external braking mechanism or another suitable brake-equipped motor should be selected according to the machine requirements.
5. What type of shaft does the BCH1302N32A1C use?
The motor uses a keyed shaft with a 22 mm shaft diameter, 47 mm shaft length and 8 mm key width. The keyed configuration provides positive torque transmission to suitable couplings, pulleys, gearboxes and other mechanical components. Proper shaft alignment is required to avoid excessive vibration and mechanical loading.
6. Which servo drive system is compatible with the BCH1302N32A1C?
The BCH1302N32A1C belongs to the BCH servo motor range designed for the Lexium 23 Plus system. The matching servo drive should be selected according to the 220 V supply, 1 kW continuous power, 5.6 A continuous stall current and 20-bit incremental encoder configuration. The motor parameters should be correctly configured before commissioning.
7. What should be checked if the BCH1302N32A1C produces vibration or unstable rotation?
Check the motor power wiring, encoder feedback connection and servo-drive parameters first. Then inspect the mechanical coupling, mounting condition, shaft alignment and load inertia. If the vibration occurs only at a particular speed, check the servo gain settings and possible mechanical resonance. Loose transmission components should also be inspected.
8. What applications are suitable for the BCH1302N32A1C servo motor?
The BCH1302N32A1C is suitable for industrial automation equipment requiring controlled speed, positioning and repeatable motion. Typical applications include packaging machinery, conveyor systems, material-handling equipment, automated production lines, assembly machines and other precision motion-control systems. The motor should be selected according to the required torque, inertia, acceleration and operating cycle.
