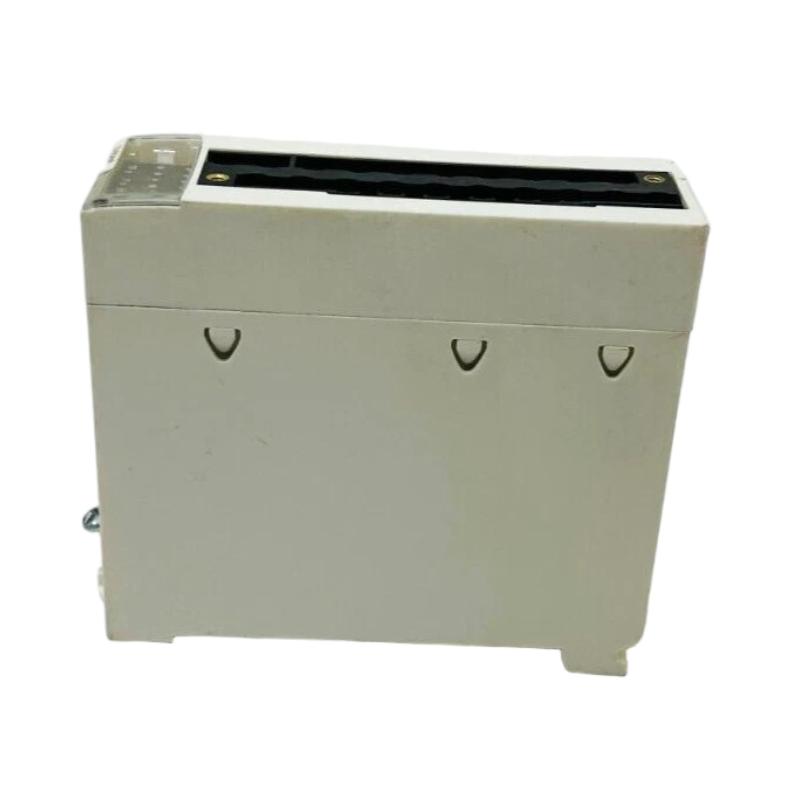

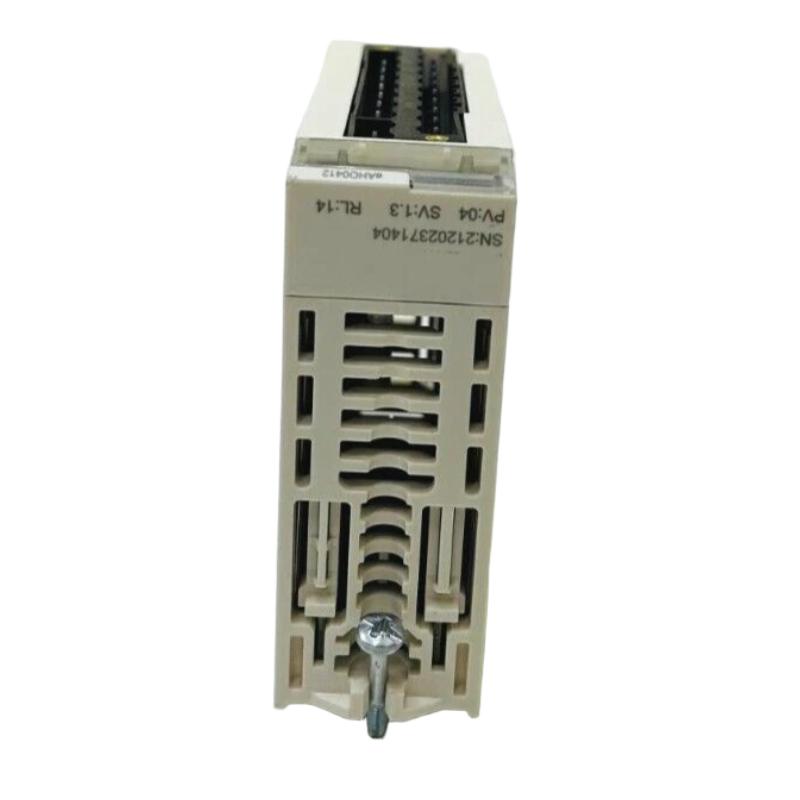

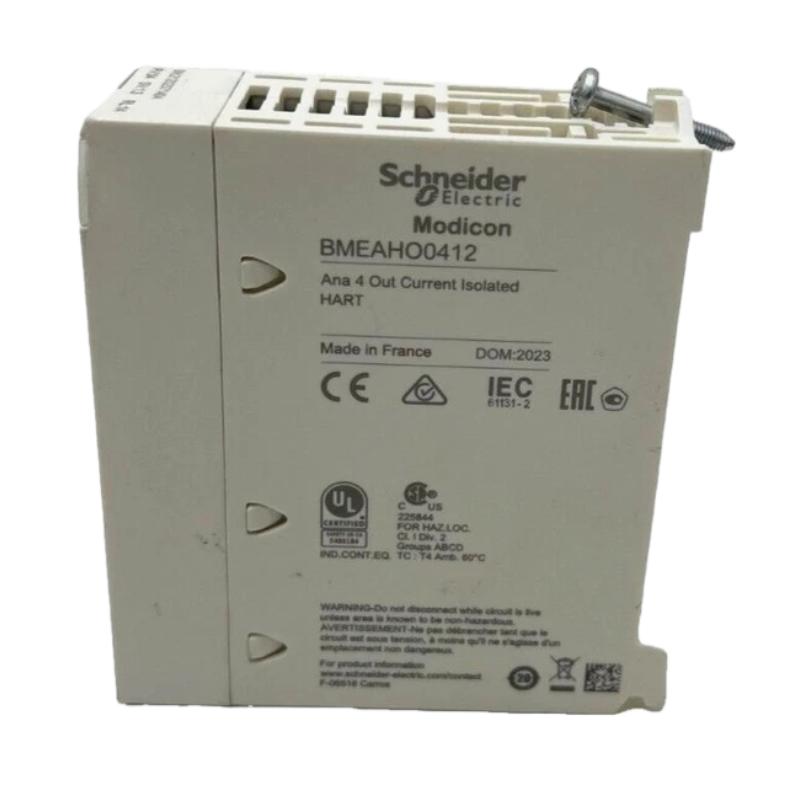

Schneider BMEAHO0412 Analog Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMEAHO0412 |
| Product Type | HART Analog Output Module |
| Product Series | Modicon X80 |
| Application | HART Process I/O |
| Number of Analog Outputs | 4 |
| Output Type | Isolated Current Output |
| Output Signal Range | 4–20 mA |
| Output Resolution | 15 bits + sign |
| Maximum Conversion Range | 0–21 mA |
| Output Topology | Point-to-Point |
| Measurement Accuracy at 25°C | ±0.1% of full scale |
| Measurement Accuracy at 0–60°C | ±0.2% of full scale |
| Temperature Drift | 45 ppm/°C |
| Maximum Load Impedance | 600 Ω at 0–20 mA; 570 Ω at 0–21 mA |
| Channel-to-Channel Isolation | 1000 V DC for 60 s |
| Channel-to-Ground Isolation | 1400 V DC for 60 s |
| Channel-to-Bus Isolation | 1400 V DC for 60 s |
| Broken-Wire Detection | Yes |
| HART Communication | Supported |
| Field Device Support | 2-wire / 4-wire |
| Electrical Connection | 20-way removable terminal block / Telefast |
| Compatible Processor | BMEP58 series |
| Compatible Backplane | BMEXBP series |
| Remote I/O Head Module | BMECRA31210 |
| I/O Mapping | Supported |
| Hot-Swap Support | Yes |
| Operating Temperature | 0–60°C |
| Power Consumption at 3.3 V | 380 mA |
| Power Consumption at 24 V | 137 mA |
| Protection Rating | IP20 |
| Dimensions | 100 × 32 × 86 mm |
| Weight | 0.223 kg |
FAQ
1. What is the main function of the Schneider BMEAHO0412 module?
The BMEAHO0412 is a four-channel isolated analog output module for the Modicon X80 platform. It converts control data from the PLC into 4–20 mA current signals for field devices such as control valves, actuators, positioners and other process instruments. HART communication also provides access to additional field-device information.
2. How many analog output channels does the BMEAHO0412 provide?
The module provides four isolated analog current output channels. Each channel can be configured for a 4–20 mA output signal and operates independently, making the module suitable for multi-loop process control applications.
3. Does the BMEAHO0412 support HART communication?
Yes. The BMEAHO0412 supports HART communication in addition to the conventional 4–20 mA analog output. This allows compatible field instruments to exchange digital diagnostic, configuration and status information without requiring a separate communication channel.
4. What is the output resolution of the BMEAHO0412?
The analog output resolution is 15 bits plus a sign bit. The nominal output range is 4–20 mA, with a maximum conversion range of 0–21 mA. This resolution allows the module to generate relatively fine control signals for process instrumentation.
5. What load impedance can the BMEAHO0412 drive?
The specified load impedance is up to 600 Ω for the 0–20 mA range and up to 570 Ω for the 0–21 mA range. The actual permissible load should be evaluated together with the field wiring resistance and the requirements of the connected instrument.
6. What level of electrical isolation does the BMEAHO0412 provide?
The four output channels are electrically isolated. The specified isolation is 1000 V DC between channels, while isolation between channels and the bus or ground is 1400 V DC for 60 seconds. This isolation helps reduce the effects of potential differences and electrical interference in industrial installations.
7. What should be checked if a BMEAHO0412 output does not produce the expected 4–20 mA signal?
First check the PLC output value and channel configuration. Then inspect the terminal connections, loop power, field wiring and load resistance. The connected actuator or instrument should also be checked for open-circuit conditions. If several channels are affected simultaneously, verify the X80 rack power supply, backplane connection and module communication status.
8. Which systems and field devices are compatible with the BMEAHO0412?
The BMEAHO0412 is designed for Modicon X80 systems and is compatible with BMEP58 series processors, BMEXBP backplanes and supported remote I/O configurations using the BMECRA31210 head module. Its 4–20 mA outputs can be connected to compatible process-control devices such as valves, positioners and other analog actuators.
Schneider BMEAHO0412 Analog Output Module is in stock. Please contact us for a quick quote and competitive pricing.
