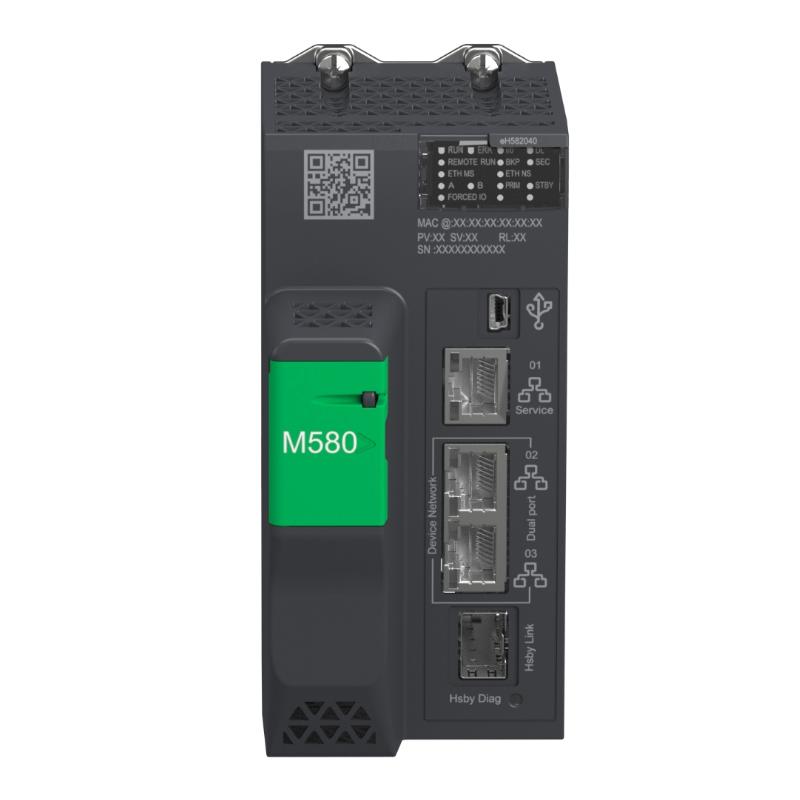

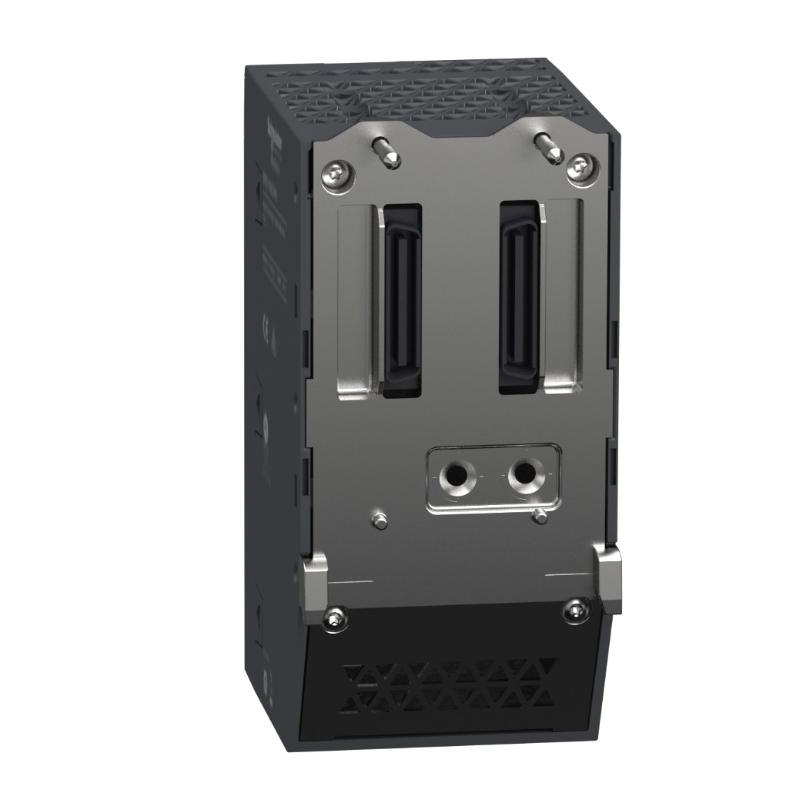

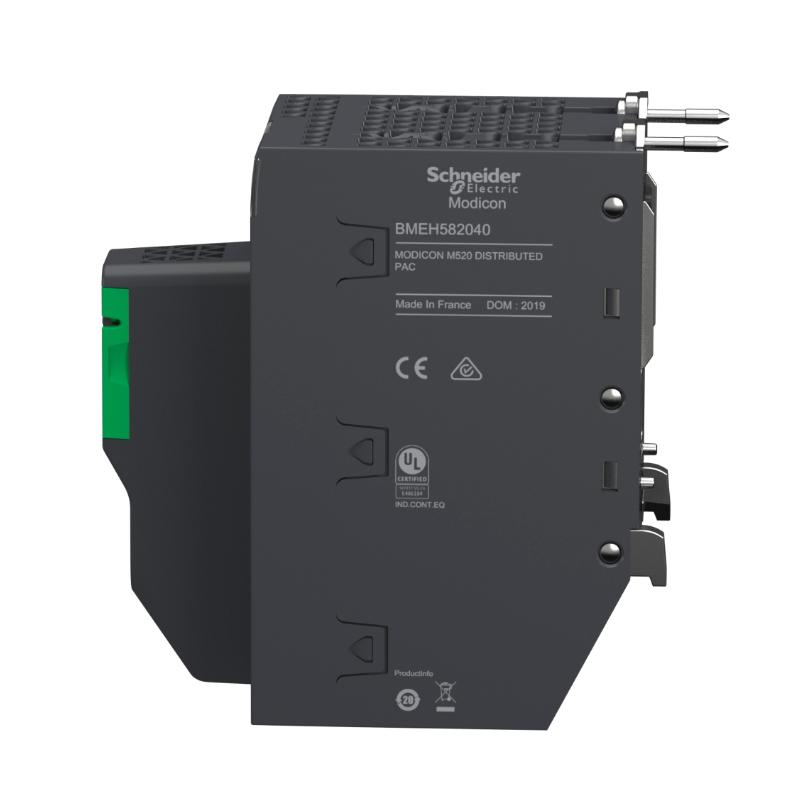

Q1: What is the main function of the Schneider BMEH582040 Redundant Processor Module?
A1: The Schneider BMEH582040 is a high-performance redundant processor module designed for the Modicon M580 automation platform. Its primary function is to execute control logic, manage process data, and ensure continuous system operation through redundancy. It acts as the central processing unit of the PLC system, handling real-time control tasks, communication management, and system coordination. In industrial automation environments where downtime is unacceptable, this module ensures uninterrupted operation even if one processor fails.

Q2: What does CPU redundancy mean in this module?
A2: CPU redundancy means that two processor modules operate in parallel, with one acting as the primary controller and the other as a hot standby. Both CPUs continuously synchronize data in real time. If the primary CPU fails, the standby unit automatically takes over without interrupting system operation. This seamless switching ensures high system availability and minimizes production downtime in critical industrial processes.

Q3: How does the redundancy switching mechanism work?
A3: The module uses a bumpless transfer mechanism, which ensures that control is transferred from the primary CPU to the standby CPU without disrupting ongoing processes. The standby CPU continuously mirrors the state of the active CPU, including program execution and process data. When a fault is detected, the system switches control within milliseconds, maintaining process continuity and preventing system restart.

Q4: What types of applications is this module suitable for?
A4: The BMEH582040 is designed for high-availability industrial applications such as oil and gas processing, chemical production, power generation, water treatment, and large-scale manufacturing systems. These environments require continuous control and high reliability, making redundant CPU systems essential for safe and efficient operations.

Q5: How does this module handle data synchronization?
A5: The module continuously synchronizes application memory and process data between the primary and standby CPUs using high-speed internal communication channels. This real-time synchronization ensures that both processors maintain identical system states, allowing instant failover without data loss or control interruption when redundancy switching occurs.

Q6: What communication capabilities does the module support?
A6: The module supports industrial Ethernet-based communication, including protocols such as Modbus TCP/IP and Ethernet/IP depending on system configuration. These communication capabilities allow seamless integration with distributed I/O systems, SCADA platforms, HMIs, and other industrial control devices within a unified automation architecture.

Q7: How does the module improve system reliability?
A7: The redundancy architecture eliminates single points of failure at the CPU level. Combined with continuous diagnostics, real-time synchronization, and automatic failover, the system ensures maximum uptime and operational stability. This makes it highly suitable for mission-critical processes where system interruption could lead to safety risks or production losses.

Q8: How can long-term operational stability be maintained?
A8: Long-term stability can be achieved through proper system configuration, regular monitoring of redundancy status, and periodic inspection of system diagnostics. Maintaining stable power supply, ensuring proper cabinet ventilation, and applying firmware updates when necessary also contribute to sustained performance. Routine testing of redundancy switching functionality helps ensure the system remains fully prepared for fault conditions.
