Technical Specifications

FAQ

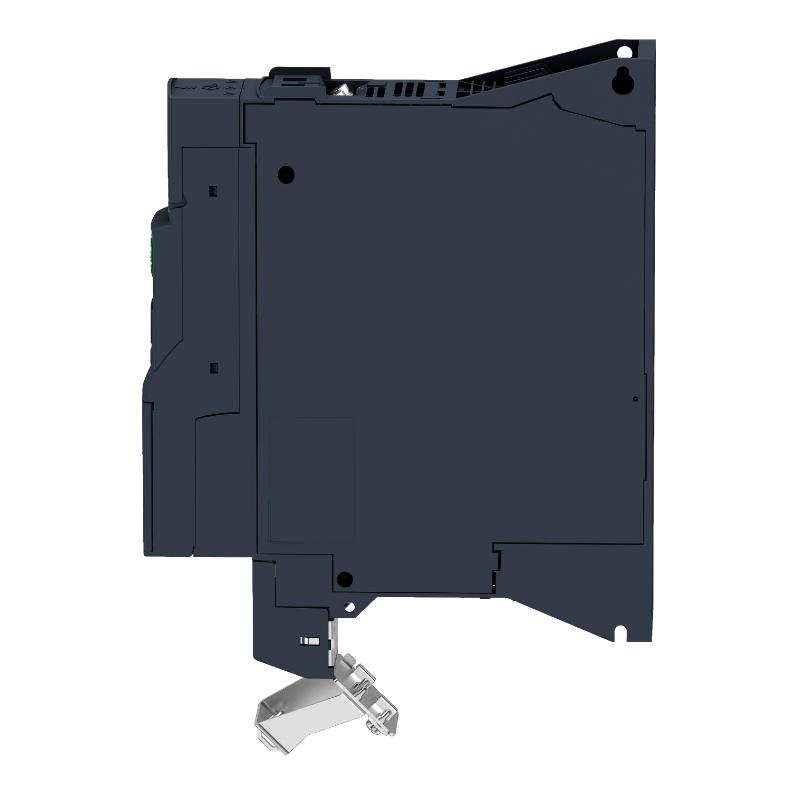

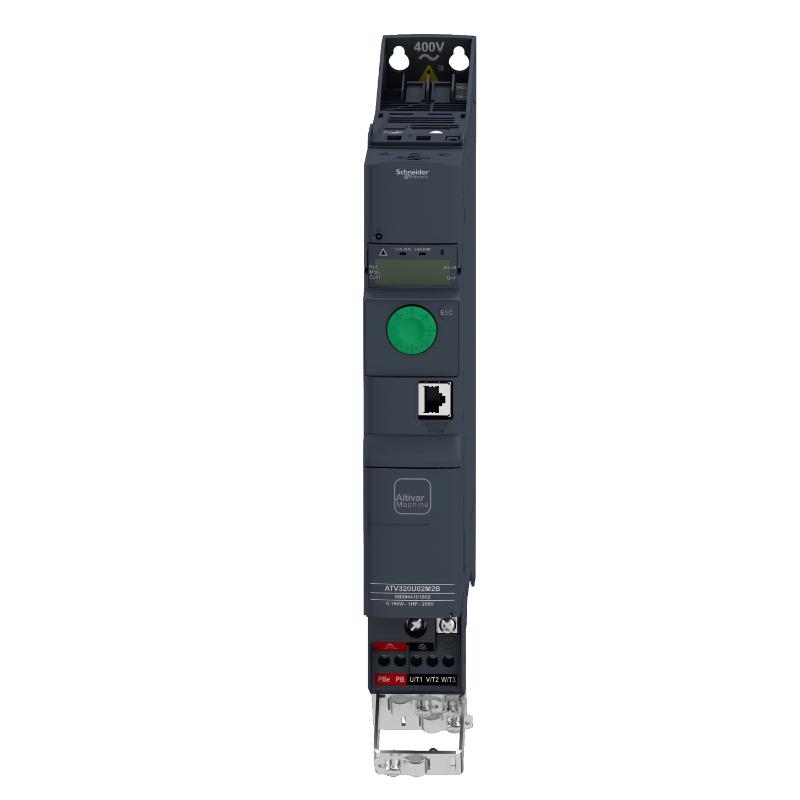

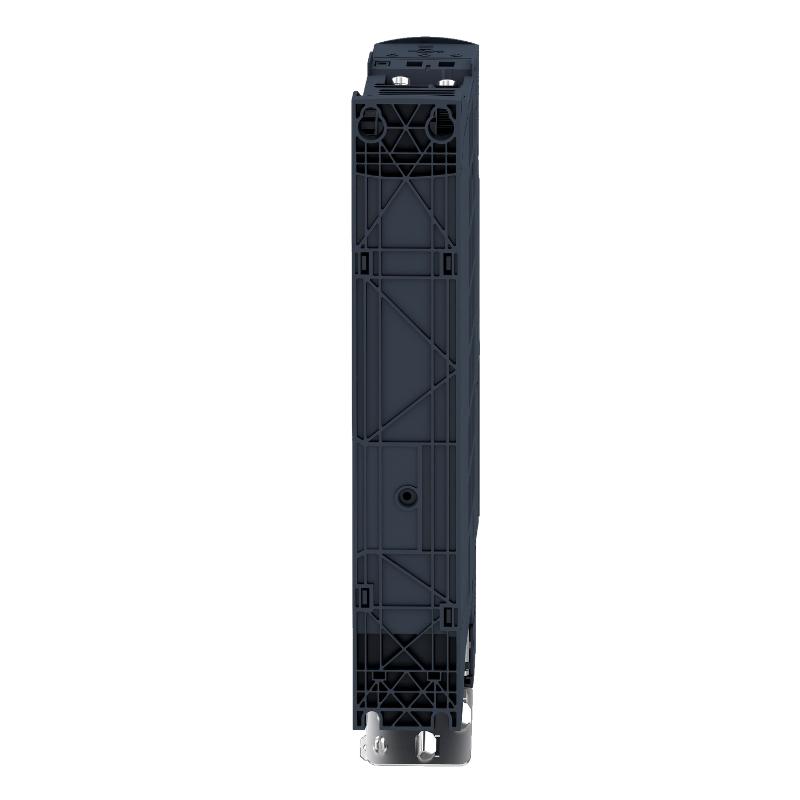

Q1: What is the main function of the Schneider ATV320U06N4B Variable Speed Drive?
A1: The Schneider ATV320U06N4B is designed to control the speed and torque of three-phase AC motors by adjusting the frequency and voltage supplied to the motor. This allows precise regulation of motor performance based on process requirements. It is widely used in industrial automation systems where energy efficiency, smooth motor control, and process optimization are required. By enabling variable speed operation, it helps reduce mechanical stress on equipment and improves overall system efficiency.

Q2: What types of motors can be controlled by this drive?
A2: The ATV320U06N4B supports both asynchronous (induction) motors and synchronous motors. It can operate motors in open-loop vector control or V/F control mode depending on application requirements. This flexibility makes it suitable for a wide range of industrial equipment, including conveyors, pumps, fans, mixers, and light-duty machinery.

Q3: What are the main control modes available in this drive?
A3: The drive supports V/F control for simple applications and sensorless vector control for more demanding torque and speed accuracy requirements. Sensorless vector control allows improved low-speed performance without requiring external feedback devices such as encoders, making it cost-effective while maintaining good dynamic response.

Q4: How does the ATV320 improve energy efficiency?
A4: By adjusting motor speed according to actual load demand, the drive significantly reduces energy consumption compared to traditional fixed-speed motor operation. In applications such as pumps and fans, even small reductions in speed can lead to substantial energy savings. The drive also optimizes motor operation to minimize losses during partial load conditions.

Q5: What protection functions are included in the drive?
A5: The ATV320U06N4B includes multiple built-in protection features such as overload protection, overvoltage protection, undervoltage protection, short-circuit protection, and thermal protection. These functions safeguard both the drive and the connected motor from abnormal operating conditions, ensuring long-term reliability and safe operation.

Q6: Can this drive be integrated into industrial communication systems?
A6: Yes, the drive supports Modbus communication as standard and can be extended with additional fieldbus options such as CANopen. This allows seamless integration into industrial automation systems, enabling remote monitoring, parameter configuration, and real-time control from PLCs or SCADA systems.

Q7: What kind of applications is this drive best suited for?
A7: The ATV320U06N4B is commonly used in small to medium industrial applications such as conveyor systems, packaging machinery, material handling equipment, pumps, fans, and light manufacturing equipment. Its compact design and flexible control capabilities make it suitable for both standalone machines and integrated automation systems.

Q8: How can long-term reliability of the drive be maintained?
A8: Long-term reliability can be ensured through proper installation, adequate ventilation, and regular maintenance. It is important to keep the cooling system clean, avoid excessive dust accumulation, and ensure stable supply voltage conditions. Periodic inspection of wiring connections and monitoring of fault logs can help detect early signs of issues, ensuring continuous and stable operation.
