Technical Specifications

FAQ

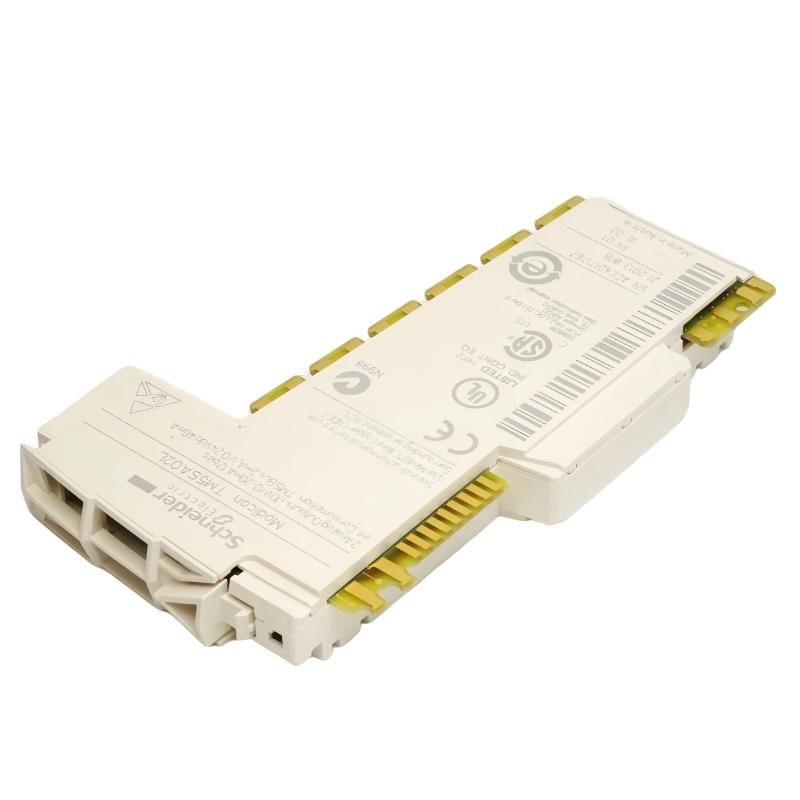

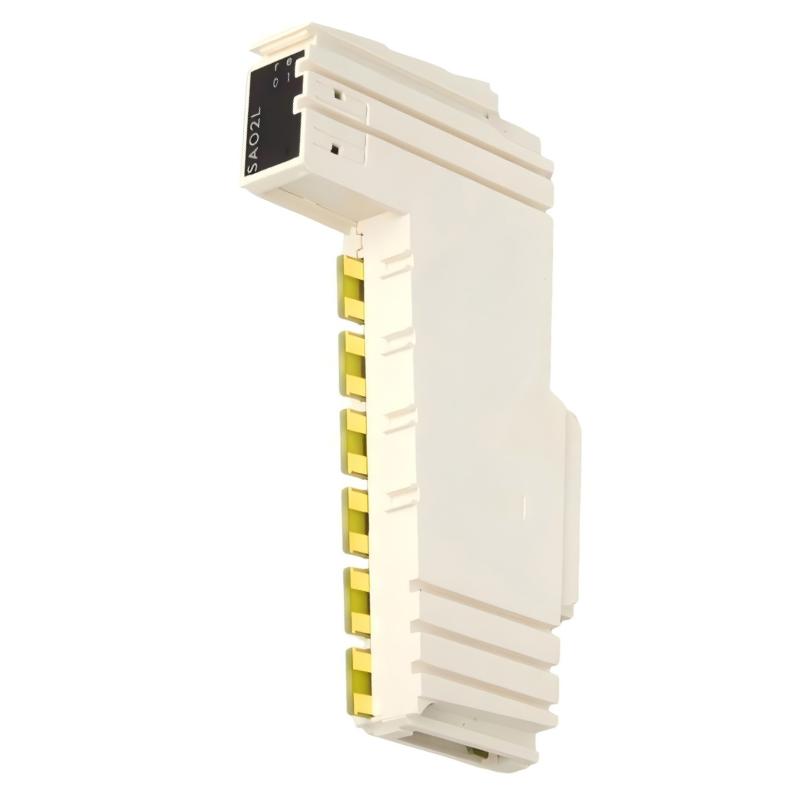

Q1: What is the main function of the Schneider TM5SAO2L Analog Output Module?
A1: The TM5SAO2L is designed to convert digital control signals from a PLC or logic controller into precise analog output signals. These analog outputs are used to control field devices such as valves, variable speed drives, actuators, and process instrumentation. By providing continuous control signals instead of simple ON/OFF commands, the module enables smooth and accurate regulation of industrial processes, improving overall system performance and stability.

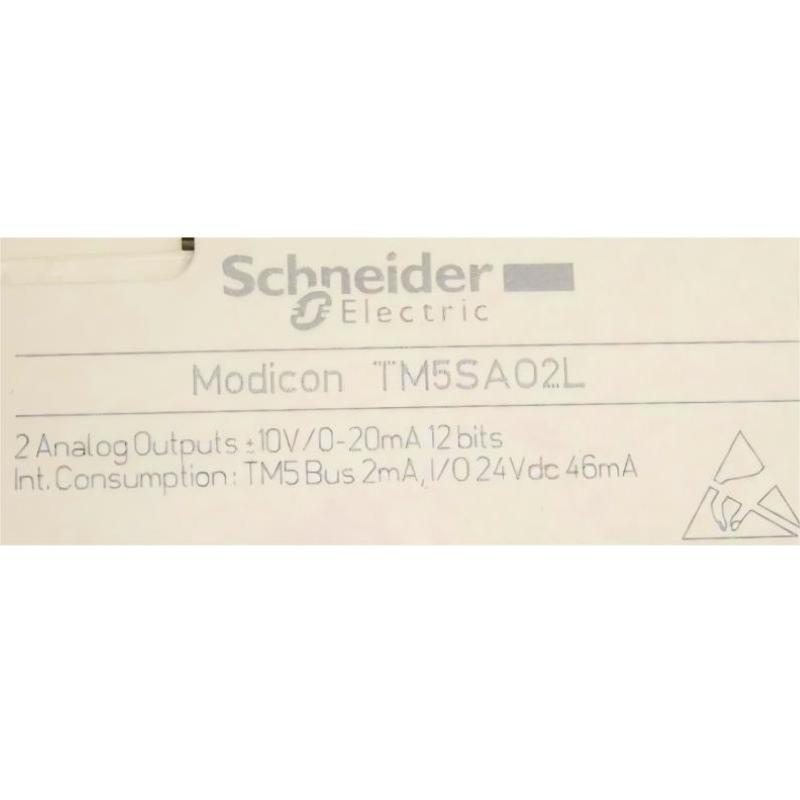

Q2: What types of analog outputs does this module support?
A2: This module supports standard industrial analog output signals, typically including voltage outputs such as 0–10 V and current outputs such as 4–20 mA, depending on system configuration. These output types are widely used in industrial automation because they are compatible with most process control devices and provide reliable signal transmission over long distances.

Q3: How does the digital-to-analog conversion process work in this module?
A3: The module receives digital values from the controller via the TM5 system bus and converts them into corresponding analog signals using internal digital-to-analog conversion circuitry. The output signal is continuously updated based on control logic, allowing real-time adjustment of process variables such as speed, pressure, or flow.

Q4: What role does this module play in process control applications?
A4: In process control systems, the TM5SAO2L acts as the interface between the controller and analog field devices. It allows the controller to regulate physical variables continuously rather than in discrete steps. For example, it can adjust valve opening levels or motor speeds smoothly, enabling more precise control of industrial processes and improving system efficiency.

Q5: How is the module configured and integrated into a system?
A5: The module is configured using Schneider Electric engineering software compatible with the TM5 system. Engineers can assign output ranges, scaling parameters, and signal behavior according to application requirements. Once configured, it integrates seamlessly into Modicon PLC systems via the TM5 expansion bus, allowing synchronized operation with other I/O modules.

Q6: What diagnostic features are available in this module?
A6: The TM5SAO2L provides channel-level diagnostics that monitor output status, signal integrity, and fault conditions. It can detect issues such as overload, wiring faults, or abnormal output behavior. Diagnostic information is sent to the controller, enabling operators to quickly identify and resolve problems in the control loop.

Q7: Where is this module commonly used in industrial systems?
A7: This analog output module is commonly used in HVAC systems, machine automation, process industries, and conveyor control systems. It is especially useful in applications where precise analog control signals are required to regulate actuators or maintain stable process conditions.

Q8: Why are analog output modules important in automation systems?
A8: Analog output modules are essential because they enable continuous and precise control of industrial processes. Unlike discrete outputs that only provide ON/OFF signals, analog outputs allow fine adjustments of process variables. This results in smoother operation, improved efficiency, reduced mechanical stress on equipment, and better overall system performance in automated environments.
