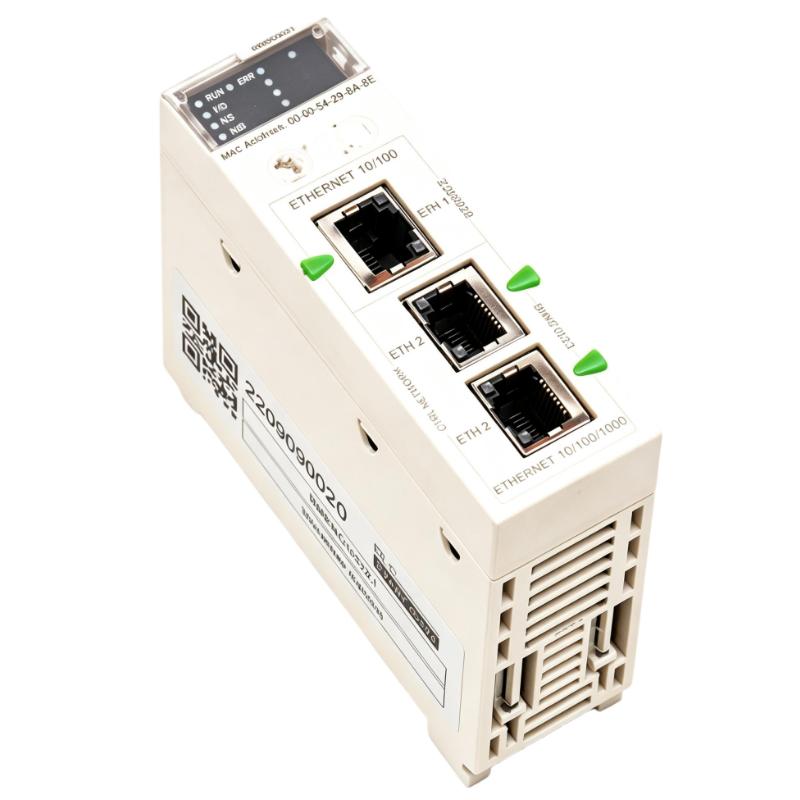

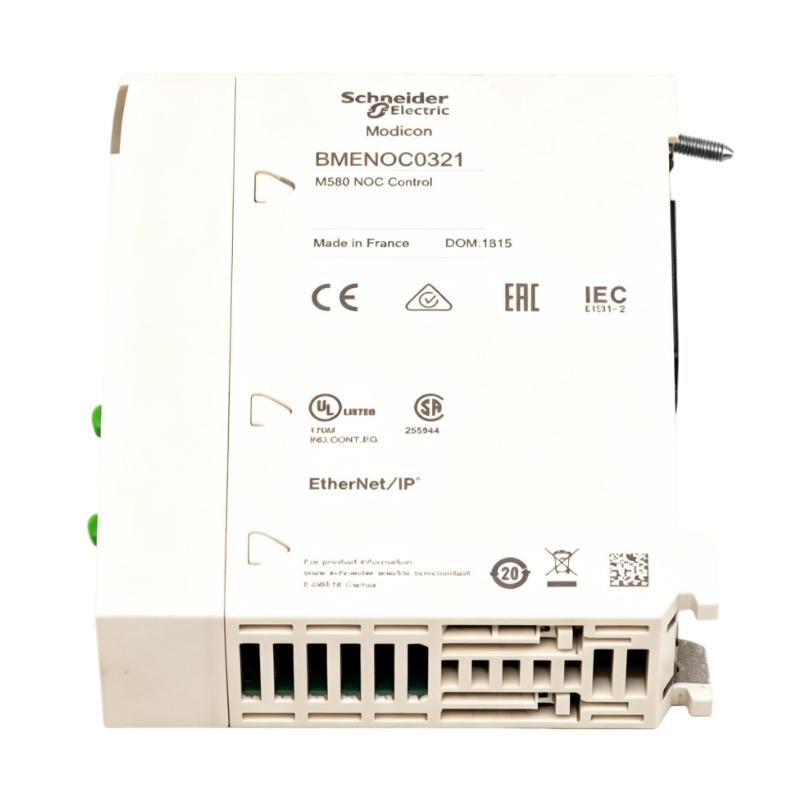

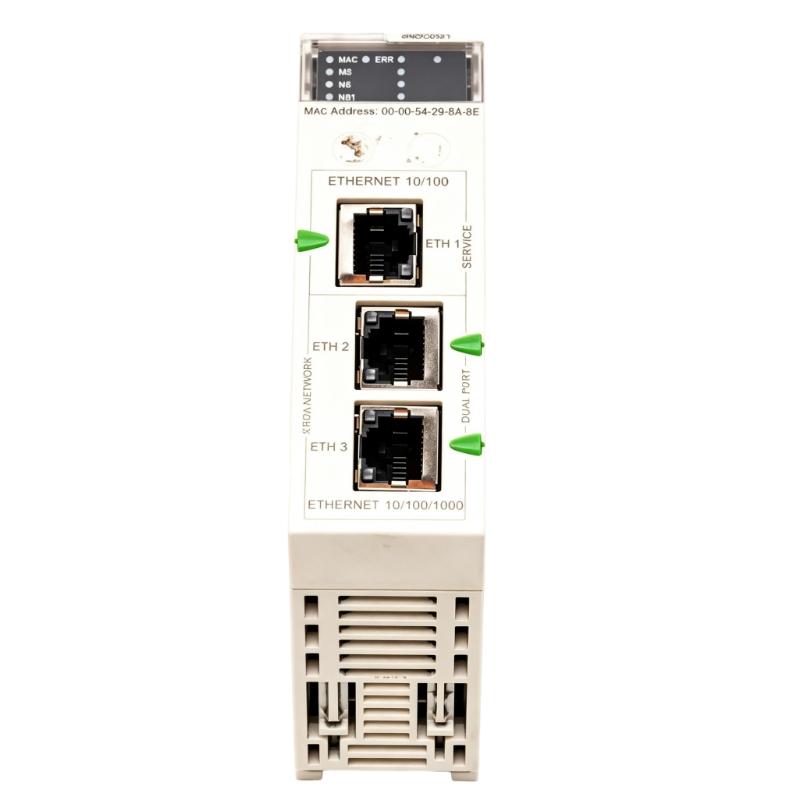

Schneider BMENOC0321 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMENOC0321 |
| Product Type | Ethernet Communication Module |
| Product Series | Modicon M580 |
| Main Function | Control network communication and Ethernet data exchange |
| System Compatibility | Modicon M580 with BMEXBP… Ethernet + X-Bus rack |
| Ethernet Ports | 3 × RJ45 |
| Ethernet Speed | 10/100/1000 Mbps |
| Ethernet Standard | 10BASE-T / 100BASE-TX / 1 Gb |
| Communication Protocols | Modbus TCP, EtherNet/IP |
| Network Functions | IP Forwarding, bandwidth management, FDR server |
| Switching Function | Embedded 4-port Ethernet switch |
| Network Redundancy | RSTP support |
| I/O Scanning | EtherNet/IP I/O Scanner and Modbus TCP I/O Scanner |
| Messaging | EtherNet/IP and Modbus TCP explicit messaging |
| Maximum EtherNet/IP Scanner Devices | 128 devices |
| Maximum Modbus TCP Scanner Devices | 128 devices, shared with EtherNet/IP |
| Maximum I/O Scanning Capacity | 5,500 packets/s |
| Web Services | Advanced Web Server, FactoryCast configurable |
| Power Supply | Internal power supply via rack |
| Current Consumption | 1800 mA at 3.3 V DC |
| Protective Treatment | TC conformal coating |
| Protection Rating | IP20 |
| Installation | Modicon M580 Ethernet + X-Bus rack |
| Operating Temperature | 0 to 60 °C |
| Certification | CE, UL |
| Dimensions | 32 × 100 × 87.5 mm |
| Weight | 0.2 kg |
FAQ
1. What is the main function of the Schneider BMENOC0321?
The BMENOC0321 is an Ethernet communication module for Modicon M580 systems. It provides communication between the control network and device-level Ethernet networks, supporting industrial protocols such as EtherNet/IP and Modbus TCP.
2. How many Ethernet ports does the BMENOC0321 have?
The module provides three RJ45 Ethernet ports with 10/100/1000 Mbps communication capability. These ports support the Ethernet networking functions required for M580 control and device-network communication.
3. What communication protocols are supported by the BMENOC0321?
The BMENOC0321 supports EtherNet/IP and Modbus TCP for I/O scanning and messaging. It also provides network services including IP forwarding, bandwidth management, FDR server functionality, and RSTP support.
4. What is the IP forwarding function used for?
IP forwarding allows communication between different Ethernet subnets through the BMENOC0321. In an M580 architecture, this can provide a communication path between the control network and device network while maintaining separation between the network segments.
5. How many devices can the BMENOC0321 manage?
For EtherNet/IP scanning, the module supports up to 128 EtherNet/IP devices and local slaves. Modbus TCP scanning also supports up to 128 devices, with the device capacity shared between the two scanning functions according to the configured system architecture.
6. What should be checked before installing a BMENOC0321?
Verify that the PLC architecture uses a compatible BMEXBP Ethernet + X-Bus rack and that the module is intended for the specific M580 configuration. Ethernet cables, IP addresses, subnet settings, network topology, and the required communication protocols should also be checked before commissioning.
7. How should communication faults on the BMENOC0321 be diagnosed?
Start by checking the module’s RUN and ERR indicators, followed by the Ethernet link and network-status indicators. Then verify Ethernet cables, port connections, IP configuration, subnet settings, communication services, and device status. If multiple devices lose communication simultaneously, inspect the common network path and BMENOC0321 configuration first.
8. What should be checked when commissioning the BMENOC0321?
After installing the module in the M580 rack, verify the backplane connection and Ethernet wiring. Configure the required IP parameters and communication services, then test EtherNet/IP or Modbus TCP data exchange. For networks using IP forwarding or RSTP, verify the subnet routing and network topology before placing the system into normal operation.
Schneider BMENOC0321 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
