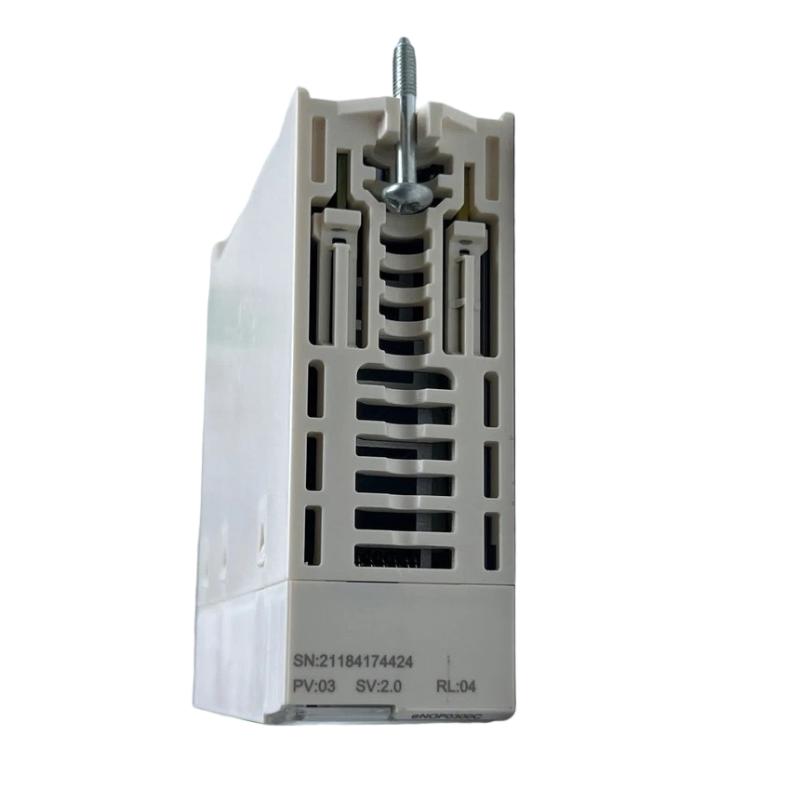

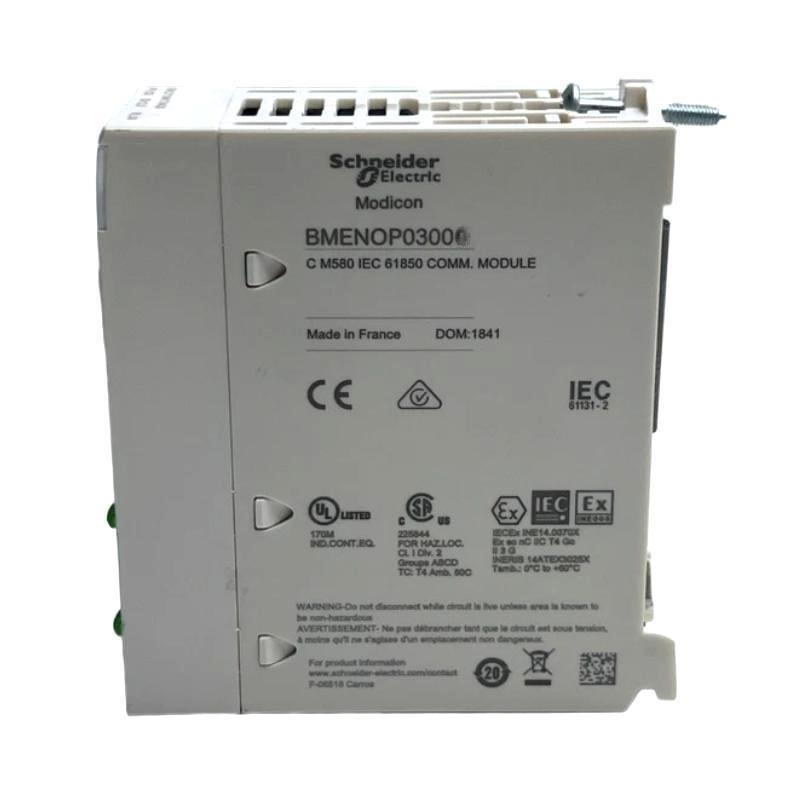

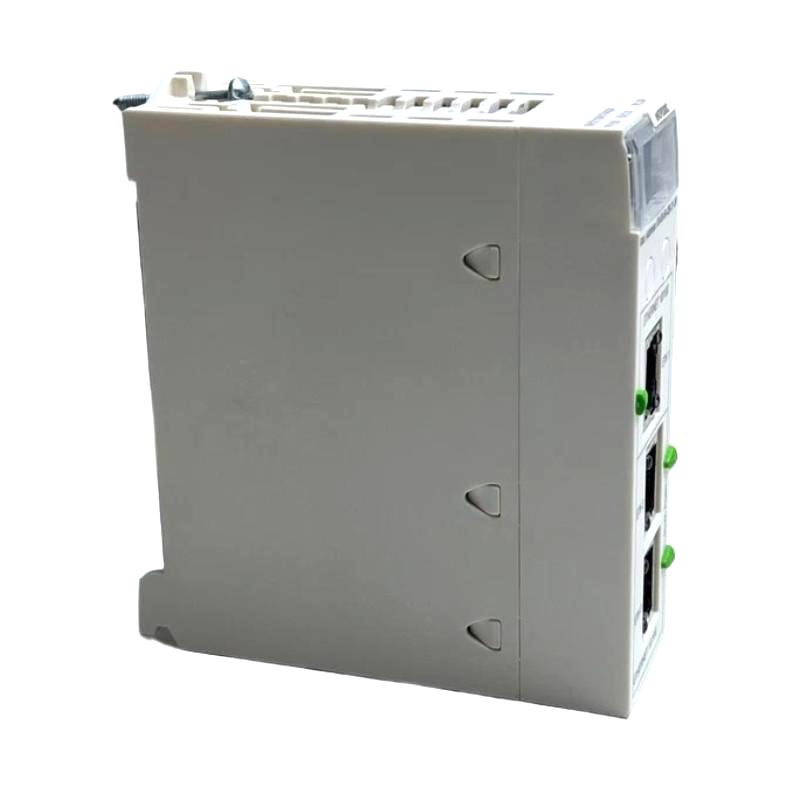

Schneider BMENOP0300 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMENOP0300 |
| Product Type | IEC 61850 Communication Module |
| Product Series | Modicon M580 |
| System Compatibility | M580 PAC |
| Main Function | IEC 61850 communication between the M580 system, SCADA systems and IEDs |
| Physical Interface | 3 × Ethernet 10/100BASE-TX |
| Transmission Rate | 10 Mbit/s / 100 Mbit/s |
| Communication Services | IEC 61850 MMS Client, MMS Server, GOOSE Publisher/Subscriber, Modbus TCP Messaging |
| IEC 61850 Compatibility | Edition 1.0 and Edition 2.0 |
| Network Redundancy | RSTP |
| Network Function | IP Forwarding |
| Network Management | SNMP, SNTP and Syslog |
| Hot Standby | Supported |
| MMS Client Connections | Up to 32 concurrent IED connections |
| MMS Server Connections | Up to 16 simultaneous client connections |
| Logical Devices | Up to 16 |
| Data Sets | Up to 68 |
| Data Attributes per Data Set | Up to 256 |
| Report Control Blocks | Up to 64 |
| GOOSE Publishing | Up to 4 control blocks |
| GOOSE Subscribing | Up to 32 control blocks |
| Modbus TCP | Server and Client, limited functionality |
| Configuration Tool | IED Configuration Tool |
| Backplane | M580 local Ethernet backplane |
| Power Supply | Internal 3.3 V DC via rack |
| Current Consumption | 1250 mA |
| Module Format | Standard |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 85 °C |
| Operating Altitude | Up to 2000 m |
| Installation | Modicon M580 local rack |
| Dimensions | 120 × 35 × 118 mm |
| Weight | 0.24 kg |
FAQ
1. What is the main function of the Schneider BMENOP0300?
The BMENOP0300 is an IEC 61850 communication module for the Modicon M580 platform. It provides communication between the M580 controller and intelligent electronic devices (IEDs), SCADA systems, and other equipment using IEC 61850-based communication services.
2. Which IEC 61850 services does the BMENOP0300 support?
The module supports IEC 61850 MMS client and server functions as well as GOOSE publishing and subscribing. These services allow the module to exchange operational data, reports, control commands, and high-speed event information with compatible IEDs.
3. How many Ethernet ports are available on the BMENOP0300?
The BMENOP0300 has three Ethernet 10/100BASE-TX ports. ETH 2 and ETH 3 can be used for network topologies such as ring, loop, or mesh and support RSTP for improved network availability.
4. Does the BMENOP0300 support redundant network configurations?
Yes. The module supports RSTP and IP forwarding for network redundancy and segmented network architectures. It also supports M580 redundant controller configurations, making it suitable for applications where communication availability is important.
5. How many IED connections can the BMENOP0300 handle?
The IEC 61850 MMS client supports up to 32 concurrent IED connections. The MMS server supports up to 16 simultaneous client connections. The actual communication capacity should also be considered together with data volume, report configuration, and network traffic.
6. Can the BMENOP0300 communicate with Modbus TCP devices?
Yes. The BMENOP0300 supports Modbus TCP client and server communication. However, its Modbus TCP functionality is limited and does not provide I/O scanning, so the communication architecture should be designed according to the required data exchange method.
7. What should be checked if IEC 61850 communication fails?
Check the Ethernet link first, followed by IP addressing, network topology, RSTP status, and the configuration of the connected IEDs. For MMS communication, verify client/server parameters and report settings. For GOOSE problems, check the publisher, subscriber, dataset, control block, and network configuration.
8. What commissioning checks are required after installing a BMENOP0300?
After installation, verify that the M580 controller recognizes the module and that the Ethernet connections are operating correctly. Check the IEC 61850 configuration, IED communication, MMS services, GOOSE publishing/subscription, time synchronization, and network redundancy. The front-panel RUN, ERR, MS, NS, NS1, and NS2 LEDs should also be checked during commissioning.
Schneider BMENOP0300 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
