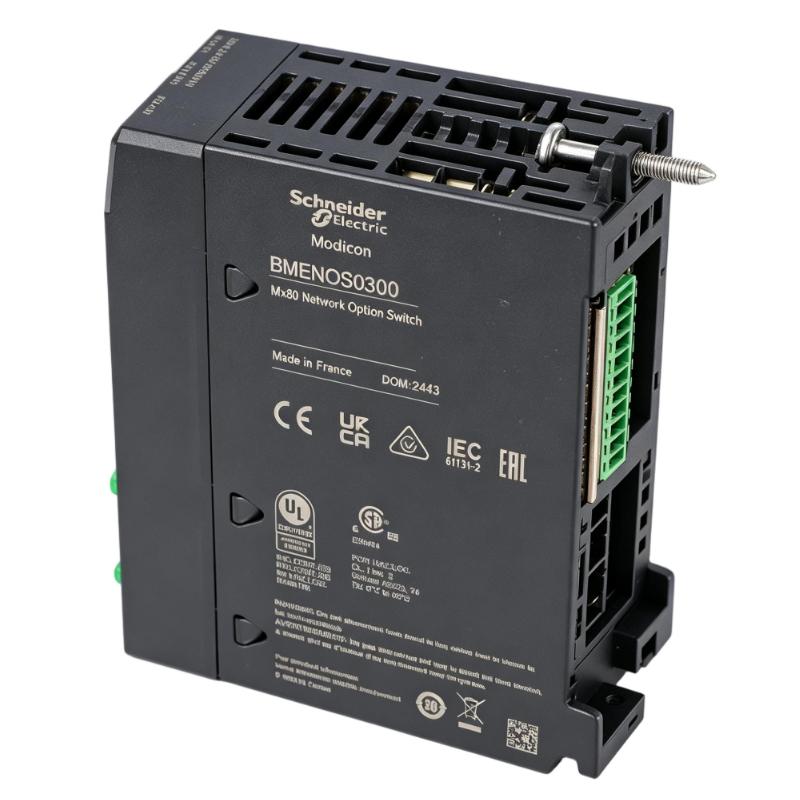

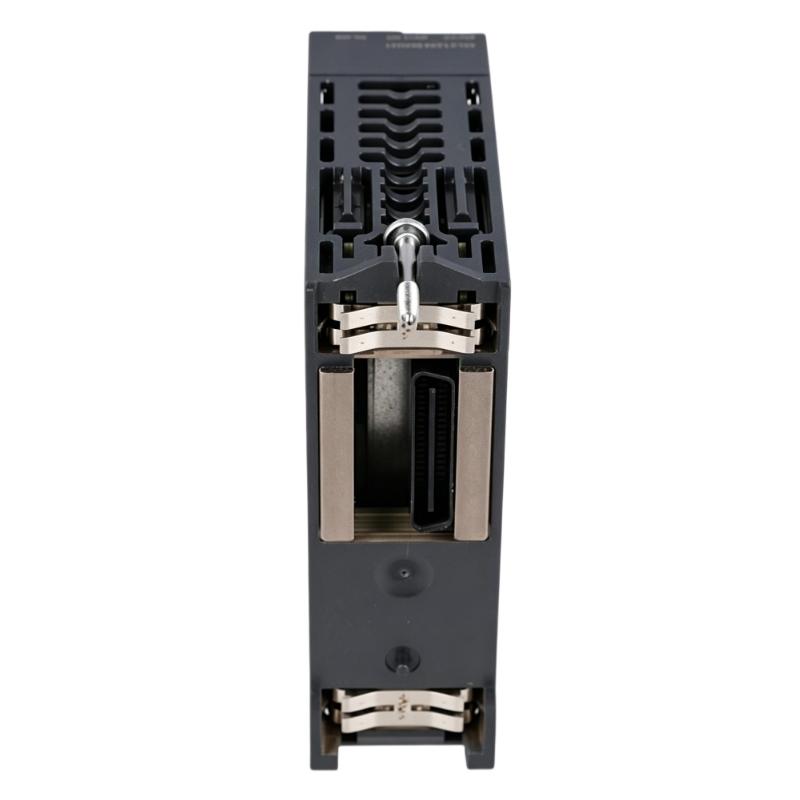

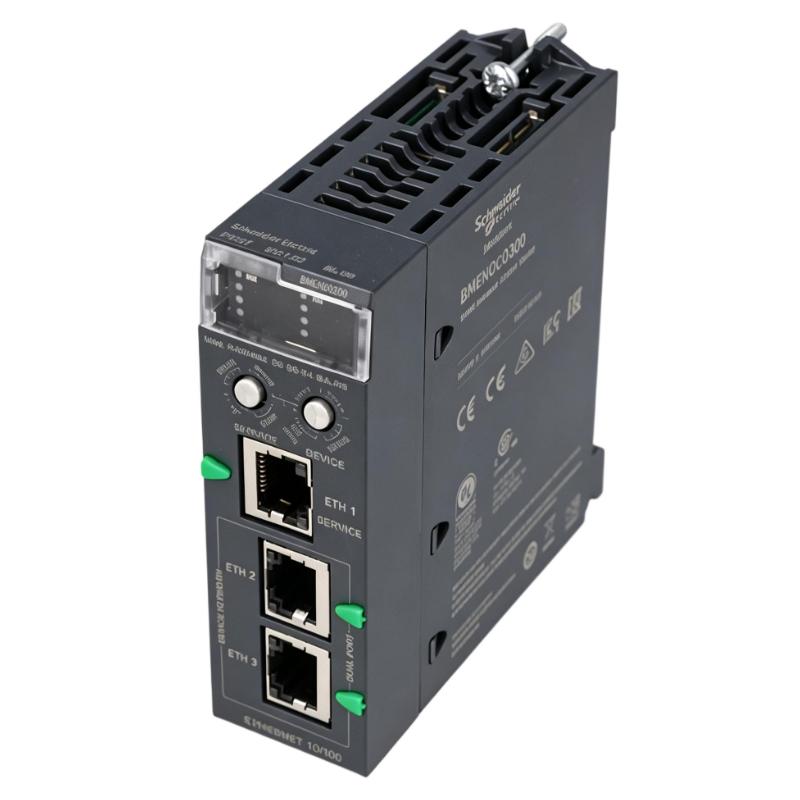

Schneider BMENOS0300 Switch Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMENOS0300 |
| Product Type | Ethernet Network Option Switch Module |
| Product Series | Modicon X80 |
| Product Compatibility | BMEXBP… backplane |
| Main Function | Ethernet switching and device-network communication for Modicon X80 systems |
| Rated Supply Voltage | 24 VDC via backplane |
| Number of Ethernet Ports | 3 |
| Service Port | 1 × Ethernet service port |
| Device Network Ports | 2 × Ethernet device network ports |
| Communication Protocol | EtherNet/IP |
| Network Configuration | RIO Ring, DIO Ring, or DIO Ports |
| Network Application | Ethernet RIO and DIO systems |
| Power Consumption | 3.3 W at 25 °C; 4.5 W at 60 °C |
| Current Consumption | 135 mA at 25 °C; 185 mA at 60 °C |
| Status Indicators | RUN, ERR, Mod Status, Net Status LEDs |
| Module Format | Standard |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | −40 to 85 °C |
| Relative Humidity | Up to 95%, non-condensing |
| Operating Altitude | ≤2000 m |
| Maximum Transport Altitude | 3000 m |
| Overvoltage Category | II |
| Certification / Marking | CE |
| Installation | Modicon X80 local rack or remote drop |
| Dimensions | 32 × 100 × 87.5 mm |
| Weight | 0.45 kg |
FAQ
1. What is the main function of the Schneider BMENOS0300?
The BMENOS0300 is an Ethernet network option switch module for Modicon X80 systems. It provides an economical solution for copper Ethernet communication over short distances and is designed for Ethernet-based RIO and DIO architectures.
2. How many Ethernet ports does the BMENOS0300 provide?
The module provides three Ethernet ports. One port is used as the service port, while the other two are device-network ports. The two device-network ports can be configured according to the required RIO or DIO network architecture.
3. What network configurations are supported by the BMENOS0300?
The two device-network ports can be configured for an RIO ring, DIO ring, or DIO port configuration. The required mode is selected using the rotary switches on the front of the module.
4. Which backplane is compatible with the BMENOS0300?
The BMENOS0300 is designed for use with BMEXBP… backplanes in the Modicon X80 platform. Before installation, the rack and backplane configuration should be checked to ensure compatibility with the intended M580 or X80 architecture.
5. How is the BMENOS0300 powered?
The module receives its operating power through the backplane. The rated backplane supply is 24 VDC. Power consumption is approximately 3.3 W at 25 °C and can reach 4.5 W at 60 °C.
6. What do the BMENOS0300 status LEDs indicate?
The module provides RUN, ERR, Mod Status, and Net Status indicators. These LEDs can be used to determine whether the module is operating normally, whether an internal error is present, and whether the network communication and module status are correct.
7. What should be checked if the BMENOS0300 has an Ethernet communication fault?
Check the Ethernet cables and connectors first, then verify the selected rotary-switch configuration and the network topology. The status LEDs should also be checked for module or network errors. If the module is used in an RIO or DIO ring, verify that both device-network ports are connected according to the configured architecture.
8. Can the BMENOS0300 be installed in a remote I/O drop?
Yes. Depending on the system architecture, the BMENOS0300 can be installed in the local main rack or in remote drops to provide Ethernet communication with distributed I/O. The selected network mode and port configuration should match the overall RIO or DIO network design.
Schneider BMENOS0300 Switch Module is in stock. Please contact us for a quick quote and competitive pricing.
