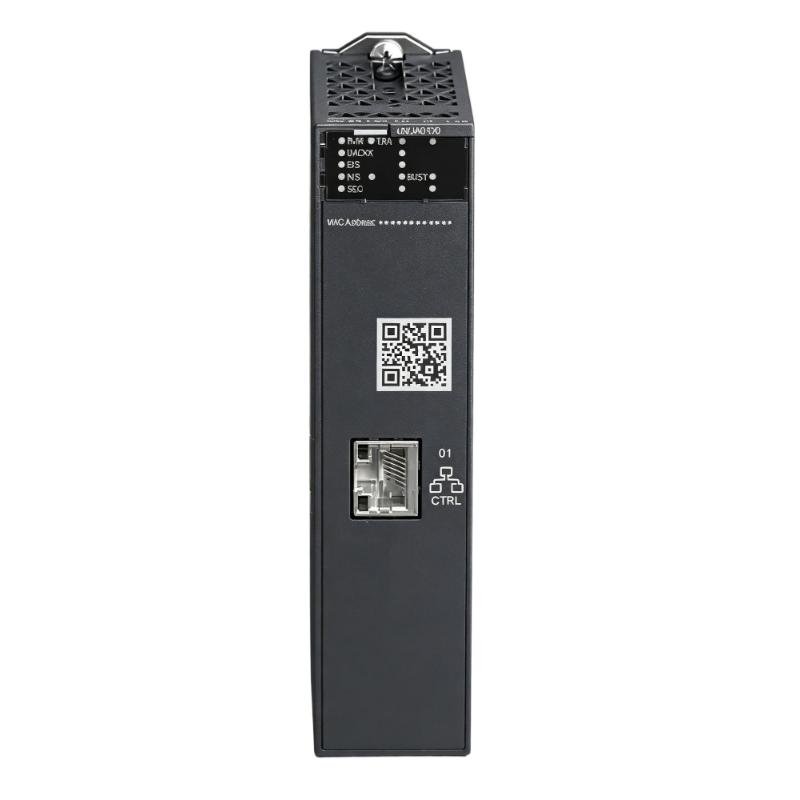

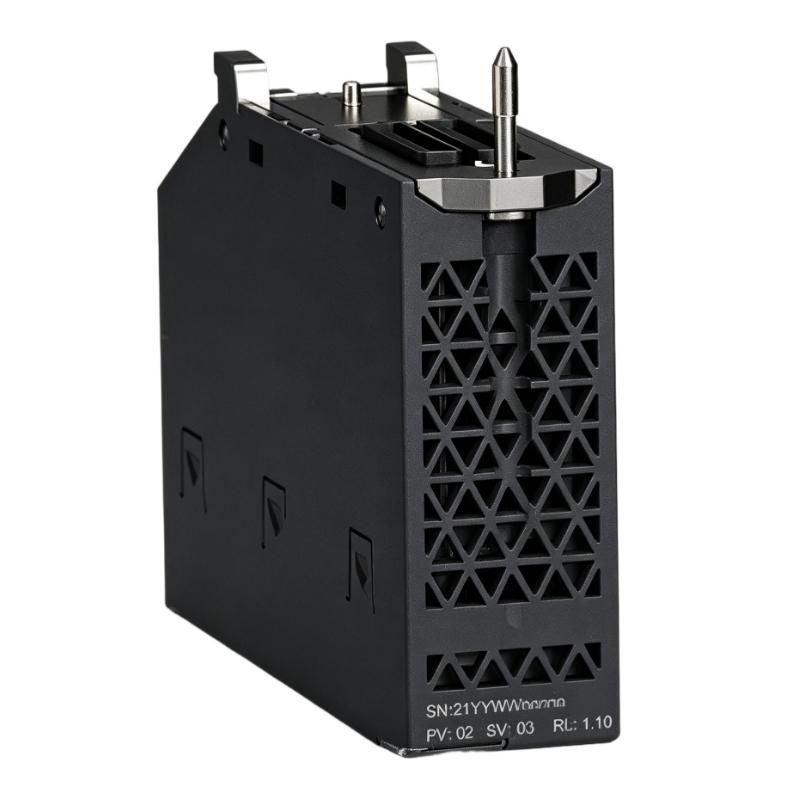

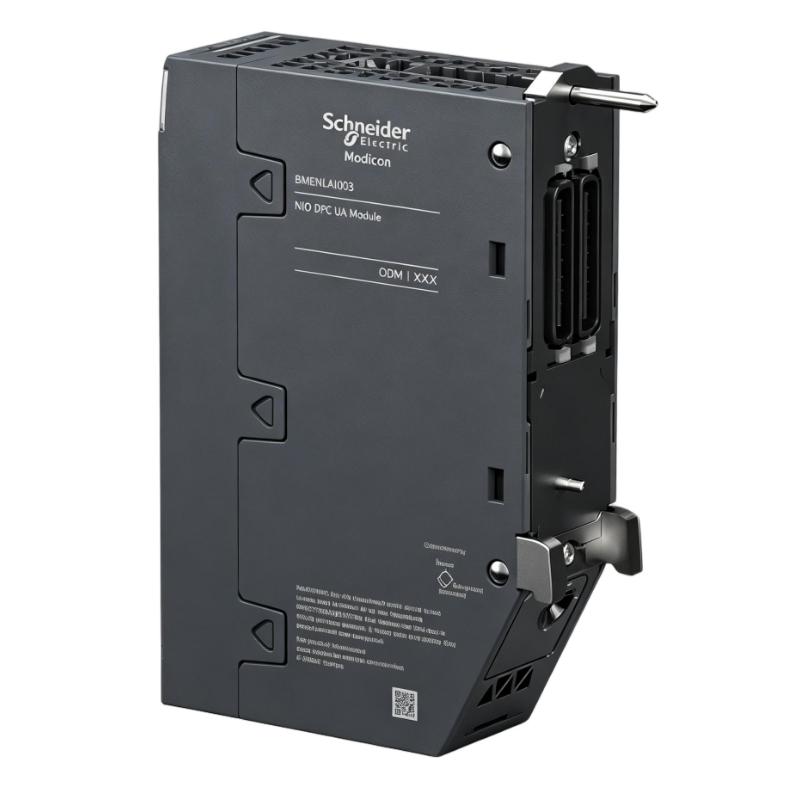

Schneider BMENUA0100 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMENUA0100 |
| Product Type | OPC UA Communication Module |
| Product Series | Modicon M580 |
| Device Application | OPC UA Server and IT Control Network |
| System Compatibility | Modicon M580 standalone, redundant and compatible safety CPUs |
| Rack Compatibility | Modicon X80 rack with Ethernet backplane |
| Mounting Location | Main rack, Ethernet + X-bus slot |
| Maximum Modules per Rack | 2 |
| Ethernet Interface | 1 × RJ45 Ethernet, 10/100/1000 Mbit/s |
| Additional Ethernet Interface | 1 × Ethernet, 100 Mbit/s |
| Ethernet Standard | 10/100/1000 BASE-TX |
| Transmission Mode | Half-duplex / Full-duplex |
| Transmission Medium | Double-shielded twisted-pair Ethernet |
| Main Communication Service | OPC UA Server |
| OPC UA Client Connections | Up to 10 clients |
| Monitored Items | Up to 50,000 in standard sampling mode; up to 2,000 in fast sampling mode |
| OPC UA Subscriptions | Up to 40 subscriptions per session |
| Minimum Publishing Interval | 250 ms standard mode; 20 ms fast mode |
| Minimum Sampling Interval | 20 ms fast mode |
| Maximum Data Dictionary Nodes | 100,000 |
| Other Communication Services | Modbus TCP, SNMP, NTP |
| Network Functions | IPv6, IP forwarding, service forwarding, network segmentation |
| Web Server | Integrated web server for configuration |
| Cybersecurity | Role-based access control, system hardening, HTTPS, TLS, Syslog |
| Time Synchronization | NTP V4 Client / Server |
| Hot Standby | Supported |
| Power Supply | Internal power supply via rack |
| Current Consumption | ≤140 mA at 24 V DC |
| Protective Treatment | Standard version |
| Protection Rating | IP20 |
| Operating Temperature | 0 to 60 °C |
| Relative Humidity | 5–95% at 55 °C |
| Certifications / Marking | CE, CSA, UL 61010-2-201, RCM |
| Installation | Modicon M580 main Ethernet rack |
| Dimensions | 32 × 131 × 86.05 mm |
| Weight | 0.4 kg |
FAQ
1. What is the main function of the Schneider BMENUA0100?
The BMENUA0100 is an OPC UA communication module for the Modicon M580 platform. It provides a direct communication interface between M580 controllers and OPC UA clients such as SCADA systems, industrial software platforms and IT-level applications.
2. Which M580 systems are compatible with the BMENUA0100?
The module is designed for Modicon M580 systems and can be used with compatible standalone, redundant and supported safety CPUs. It is installed in an Ethernet + X-bus slot on an Ethernet-capable X80 rack.
3. How many OPC UA client connections does the BMENUA0100 support?
The BMENUA0100 supports up to 10 OPC UA client connections. The actual communication load depends on the number of monitored variables, sampling intervals, subscriptions and the amount of data exchanged with connected clients.
4. How many monitored items can the BMENUA0100 handle?
The module supports up to 50,000 monitored items in standard sampling mode and up to 2,000 monitored items in fast sampling mode. Fast sampling should be used selectively for applications that require shorter data acquisition intervals.
5. Does the BMENUA0100 support Modbus TCP and SNMP?
Yes. In addition to OPC UA, the module supports Modbus TCP services for module diagnostics and SNMP network management. NTP is also supported for time synchronization, allowing the communication environment to maintain consistent system time.
6. What cybersecurity functions are available on the BMENUA0100?
The module provides several cybersecurity functions, including role-based access control, system hardening, HTTPS, TLS and Syslog support. These functions can be used to control access and improve the security of communication between the automation network and connected IT systems.
7. What should be checked if OPC UA communication is interrupted?
Check the Ethernet connection, IP configuration, OPC UA client settings and server status first. The OPC UA endpoint, security settings, certificates, user permissions and subscription configuration should then be verified. Network segmentation and IP forwarding settings should also be checked when communication passes between different network segments.
8. What should be checked when commissioning a BMENUA0100?
Confirm that the module is installed in the correct Ethernet + X-bus slot and is recognized by the M580 configuration. Check the Ethernet parameters, OPC UA server configuration, client connection, security settings and NTP synchronization. After configuration, verify that the connected OPC UA client can correctly browse nodes, establish subscriptions and receive real-time data.
Schneider BMENUA0100 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
