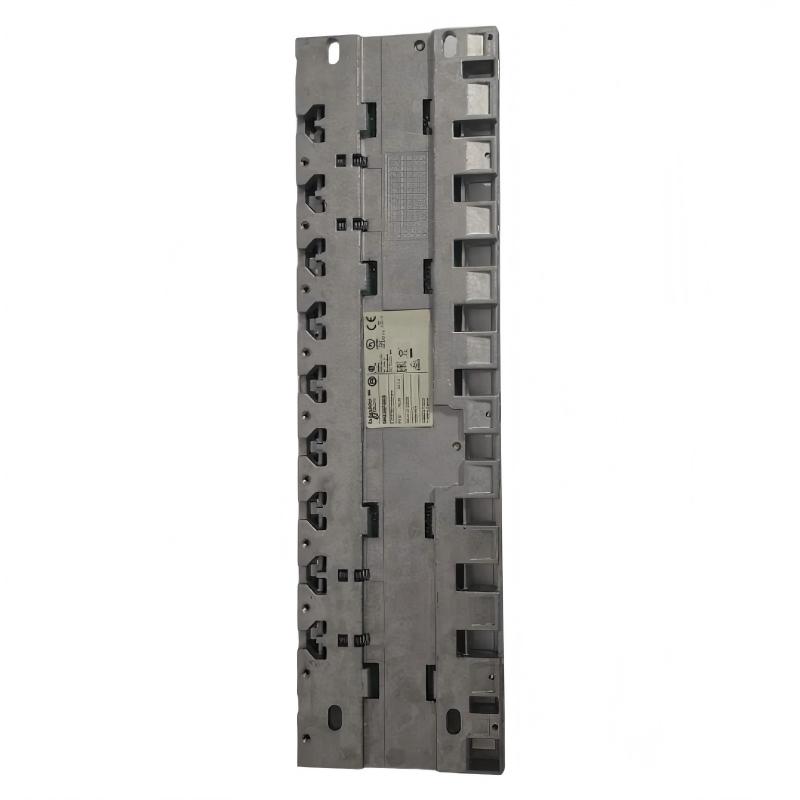

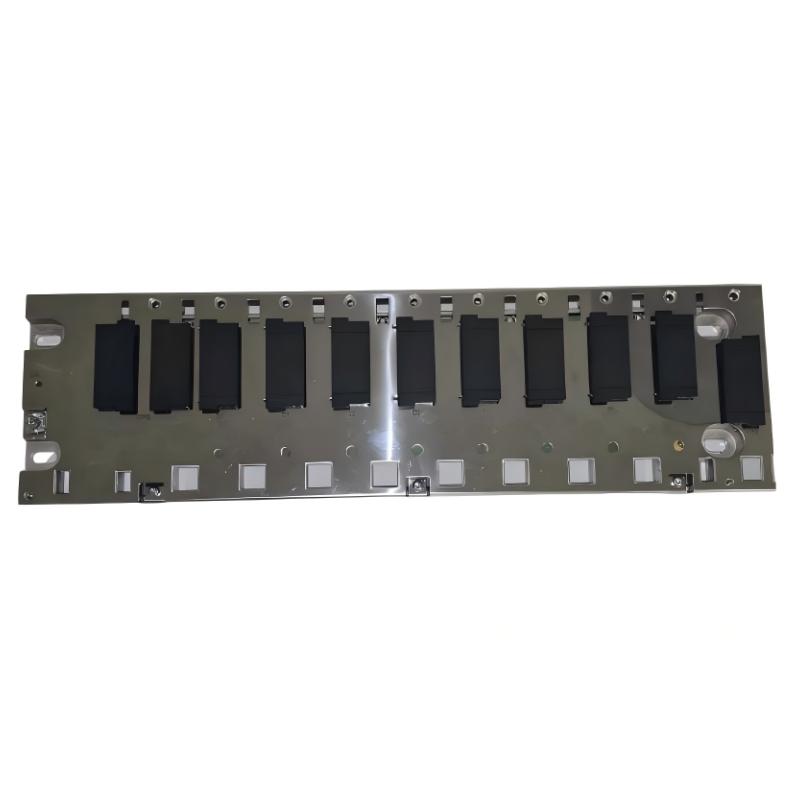

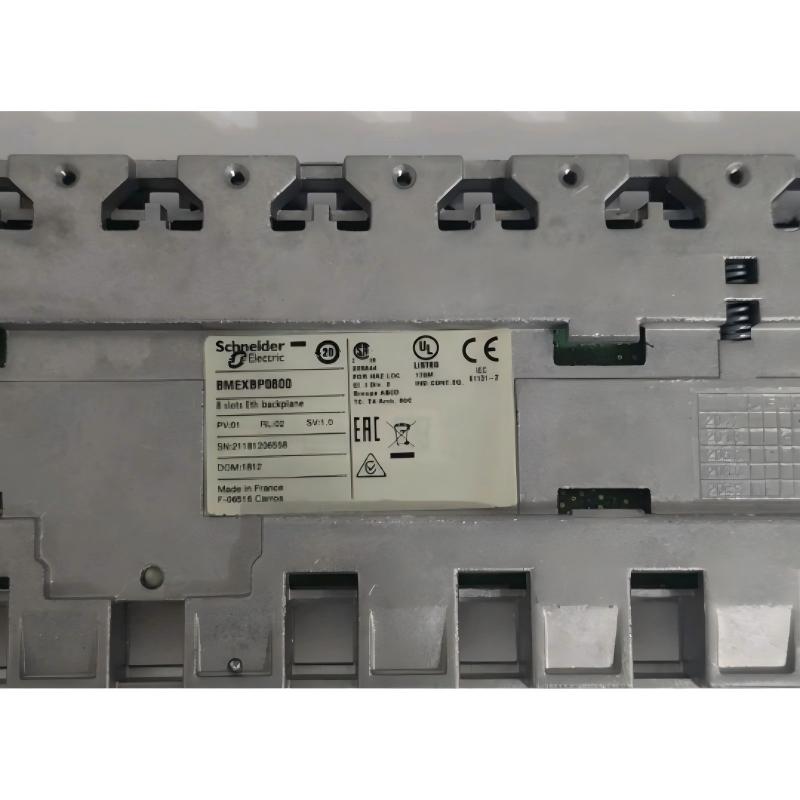

Schneider BMEXBP0800 8-Slot Ethernet Backplane
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | 8-Slot Ethernet Backplane |
| Manufacturer | Schneider Electric |
| Model | BMEXBP0800 |
| Product Series | Modicon X80 |
| Backplane Type | Ethernet + X Bus Backplane |
| Number of Module Slots | 8 |
| Ethernet Interfaces | 8 |
| X Bus Interfaces | 8 |
| Expansion Interface | 1 XBE expansion connector |
| Compatible Modules | I/O modules, BME processors, communication modules, application-specific modules, BMXCPS power supplies and other compatible X80 modules |
| Backplane Power Consumption | Approx. 3.9 W |
| Current Consumption | 64 mA at 3.3 VDC; 164 mA at 24 VDC |
| Mounting Method | 35 mm symmetrical DIN rail, panel mounting or mounting plate |
| Panel Mounting | 4 screws with 4.32–6.35 mm diameter |
| Mounting Plate Fixing | 4 M6 screws |
| Protection Rating | IP20 |
| Operating Temperature | 0–60°C |
| Relative Humidity | 5–95%, non-condensing |
| Reliability | MTBF approximately 1,700,000 hours |
| Hot-Swap Support | Supports hot swapping for most compatible I/O modules |
| Typical Applications | Modicon M340, Modicon M580 and Modicon X80 automation systems |
| Dimensions | 105.11 × 372.8 × 19 mm |
| Weight | 1.06 kg |
FAQ
1. What is the Schneider BMEXBP0800 mainly used for?
The BMEXBP0800 is an 8-slot Ethernet + X Bus backplane for the Modicon X80 platform. It provides the mechanical mounting structure and internal communication connections required for processors, I/O modules, communication modules and application-specific modules in an industrial automation rack.
2. How many functional modules can be installed on the BMEXBP0800?
The BMEXBP0800 provides eight module slots for compatible X80 modules. The actual module arrangement depends on the processor, power supply, communication requirements and system architecture, so the available positions should be checked against the specific hardware configuration before installation.
3. Which Schneider Electric systems are compatible with the BMEXBP0800?
The BMEXBP0800 belongs to the Modicon X80 platform and can be used in compatible Modicon M340, M580 and X80 system configurations. For an M580 application, the exact architecture should be checked against the selected processor, remote I/O arrangement, communication modules and engineering configuration.
4. What are the functions of Ethernet and X Bus on the BMEXBP0800?
Ethernet provides communication for compatible Ethernet-enabled X80 modules and connected automation devices, while X Bus provides internal communication between modules installed on the rack. Integrating both buses into the backplane allows the rack to support modular I/O and networked automation architectures without requiring separate internal communication wiring.
5. Does the BMEXBP0800 support I/O module hot swapping?
The BMEXBP0800 supports hot swapping for most compatible I/O modules, which can help reduce maintenance downtime in suitable applications. Before removing or replacing a module while the system is operating, the specific module must be confirmed as hot-swappable and the applicable maintenance and safety procedures should be followed.
6. How should the BMEXBP0800 be installed?
The backplane can be mounted on a 35 mm symmetrical DIN rail or secured directly to a panel or mounting plate using the specified fixing hardware. After mechanical installation, verify the grounding connection, ensure the backplane is firmly secured, and make sure the processor, power supply, I/O and communication modules are fully seated and locked.
7. How can communication problems on a BMEXBP0800 be diagnosed?
Start by checking the rack power supply and confirming that every installed module is correctly seated and locked. Then inspect the Ethernet and X Bus connections, processor status, hardware configuration and engineering-software configuration; if only one module is affected, checking the module and its slot can help determine whether the problem is related to the module, backplane connection or system configuration.
8. Can the BMEXBP0800 be used as an expansion rack in an M580 system?
The way an Ethernet backplane is used in an M580 architecture depends on the specific system design. The BMEXBP0800 can be used in supported Ethernet remote I/O configurations, but an M580 multi-rack system must be designed according to the applicable rack architecture, processor capabilities and engineering-software configuration rather than selecting a backplane solely by its number of slots.
Schneider BMEXBP0800 8-Slot Ethernet Backplane is in stock. Please contact us for a quick quote and competitive pricing.
