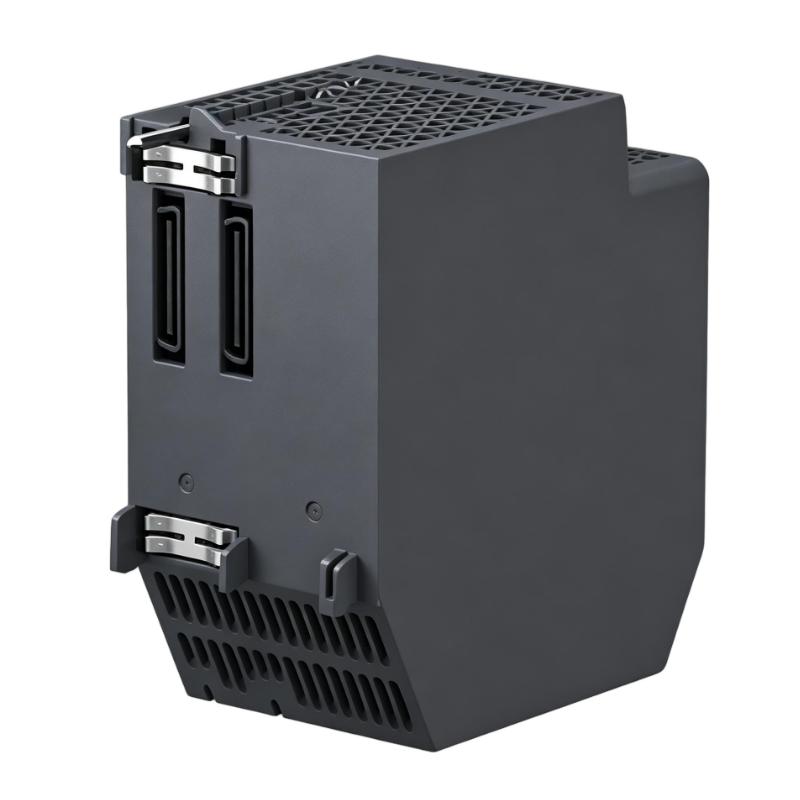

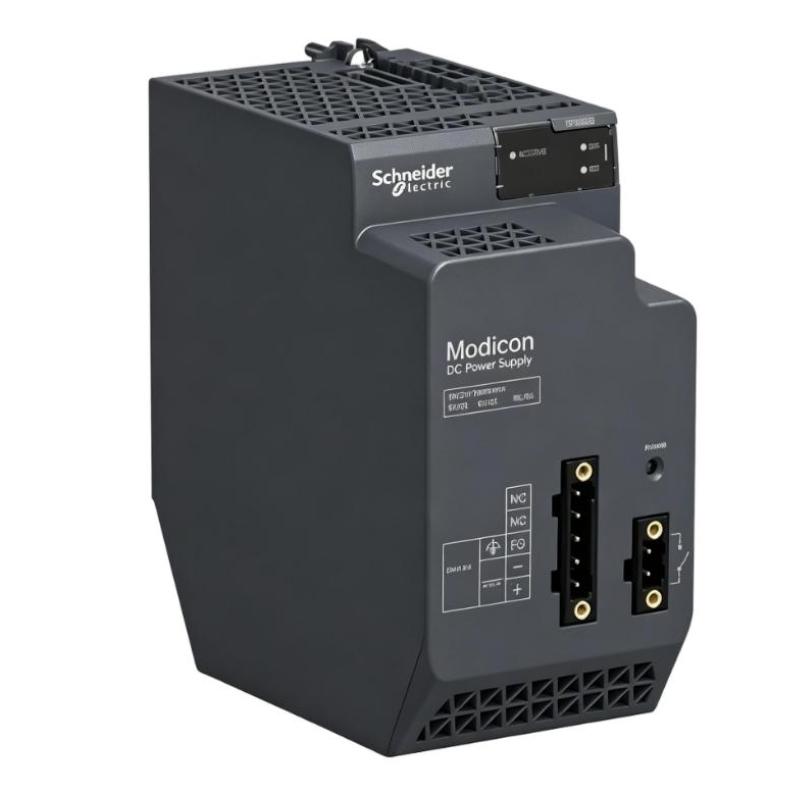

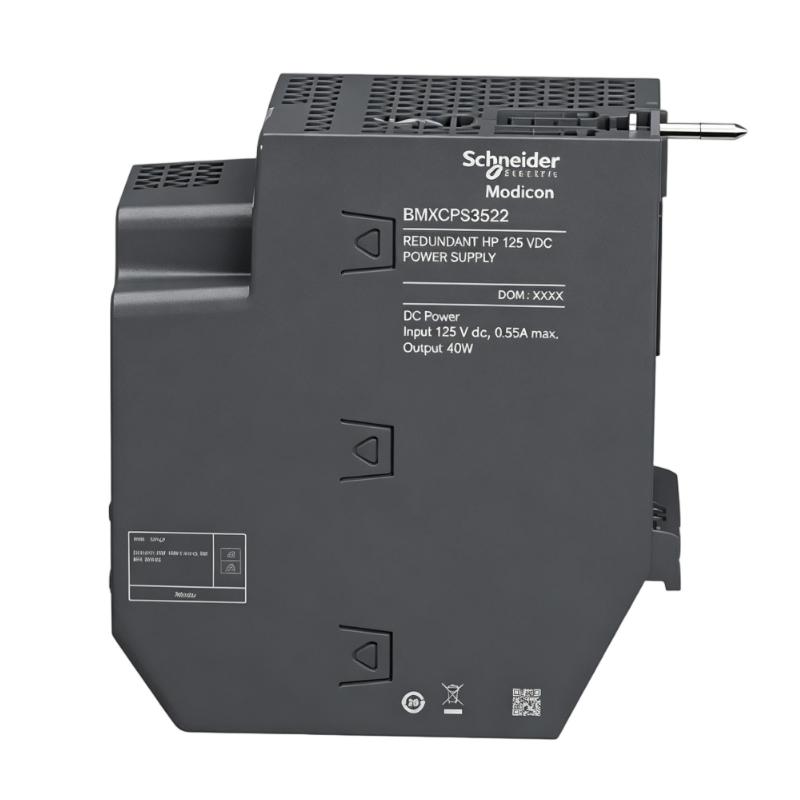

Schneider BMXCPS3522 Redundant Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Redundant Power Supply Module |
| Manufacturer | Schneider Electric |
| Model | BMXCPS3522 |
| Product Series | Modicon X80 |
| Power Supply Type | Redundant DC Power Supply |
| Primary Voltage | 125 VDC |
| Input Voltage Range | 100–150 VDC |
| Rated Power | 40 W |
| Nominal Input Current | 0.6 A at 125 VDC |
| Inrush Current | ≤60 A at 125 VDC |
| 3.3 VDC Output | 3.3 VDC, 5 A nominal, typically 16.5 W |
| 24 VDC Output | 24 VDC, 1.67 A nominal, up to 40 W |
| Redundancy Function | Master/standby redundant power operation |
| Rack Compatibility | Modicon X80 compatible backplanes |
| Secondary Output Protection | Overload, short-circuit and overvoltage protection |
| Primary Protection | Internal non-accessible fuse |
| Power Interruption Immunity | ≤1 ms at minimum input voltage and full load; ≤10 ms at nominal input voltage and full load |
| Status Indicators | OK, Redundancy OK and Power Supply Status LEDs |
| Reset Function | Front-panel RESET pushbutton for cold restart |
| Alarm Connection | 2-pin removable terminal block |
| Power Connection | 5-pin removable terminal block for DC input and protective earth |
| Operating Temperature | 0–60°C |
| Protection Rating | IP20 |
| Typical Application | Modicon M340/M580 control systems, industrial automation and high-availability applications |
| Dimensions | 250 × 178 × 90 mm |
| Weight | 0.61 kg |
FAQ
1. What is the Schneider BMXCPS3522 used for?
The BMXCPS3522 is a redundant 125 VDC power supply module for Modicon X80 automation systems. It provides the power required by the rack and installed modules while supporting redundant operation, making it suitable for control systems where continuity of power supply is important.
2. What is the input voltage range of the BMXCPS3522?
The BMXCPS3522 has a nominal input voltage of 125 VDC and supports an input range of 100–150 VDC. When designing the power distribution system, the available DC supply should remain within this range and the upstream protection should be selected according to the module’s input current and startup characteristics.
3. How does the redundant power supply function work?
In a redundant configuration, one power supply operates as the active or master supply while the other remains available as the standby supply. If the active supply can no longer provide the required power, the standby unit can take over, helping maintain power to the rack and reducing the risk of a complete control-system shutdown.
4. What output voltages are provided by the BMXCPS3522?
The secondary power section provides 3.3 VDC for the logic supply of compatible rack modules and 24 VDC for module and processor power requirements. The 3.3 VDC output is rated at 5 A, while the 24 VDC output is rated at 1.67 A, with the available power depending on the actual loading of the outputs.
5. Can the BMXCPS3522 be used with a standard Modicon X80 backplane?
Yes, the BMXCPS3522 is designed for Modicon X80 rack power applications and is compatible with supported X80 backplanes. When selecting the backplane and power configuration, the rack type and redundancy requirements must be checked because dual-power-supply rack configurations have specific compatibility requirements.
6. What protection features are included in the BMXCPS3522?
The module includes protection for the secondary outputs against overload, short circuits and overvoltage. The primary input circuit also uses an internal fuse, while the power supply provides monitoring and status indication to help maintenance personnel identify abnormal power conditions.
7. How can a BMXCPS3522 power supply fault be diagnosed?
Start by checking the input DC voltage and the front-panel status LEDs, including the OK, redundancy and power-supply status indicators. If the rack is not receiving the expected voltage, inspect the input wiring, protective devices, terminal connections and rack loading, then check whether the redundant supply has correctly assumed the active role.
8. What should be considered when replacing a BMXCPS3522?
Before replacement, verify that the replacement module has the same 125 VDC input specification and is suitable for the existing Modicon X80 rack and redundancy configuration. After installation, check the input wiring and protective earth, confirm that the module is correctly seated, verify the status LEDs, and test the redundant power transfer before returning the automation system to normal operation.
Schneider BMXCPS3522 Redundant Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
