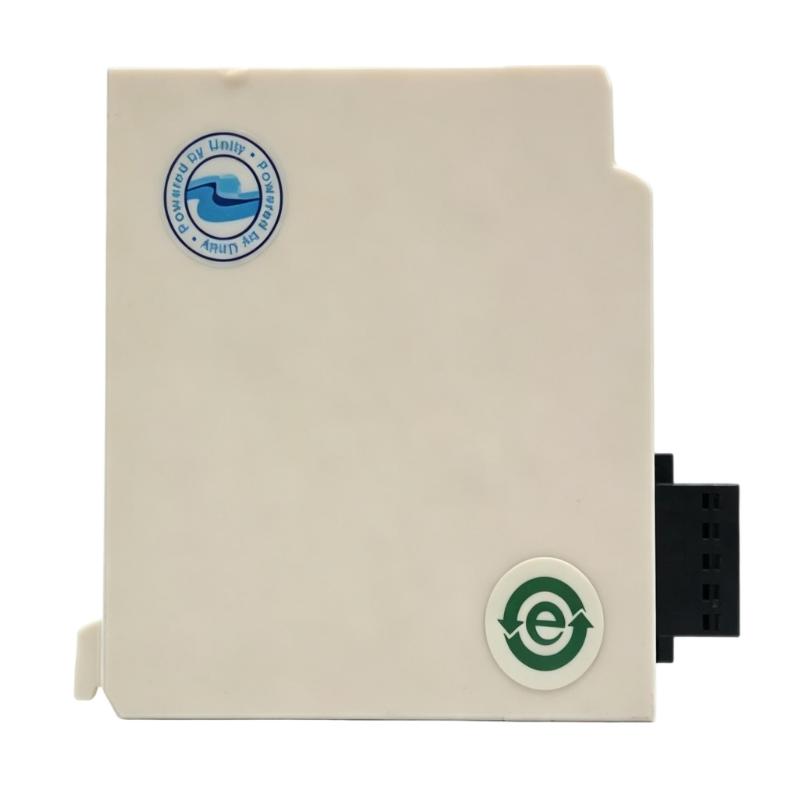

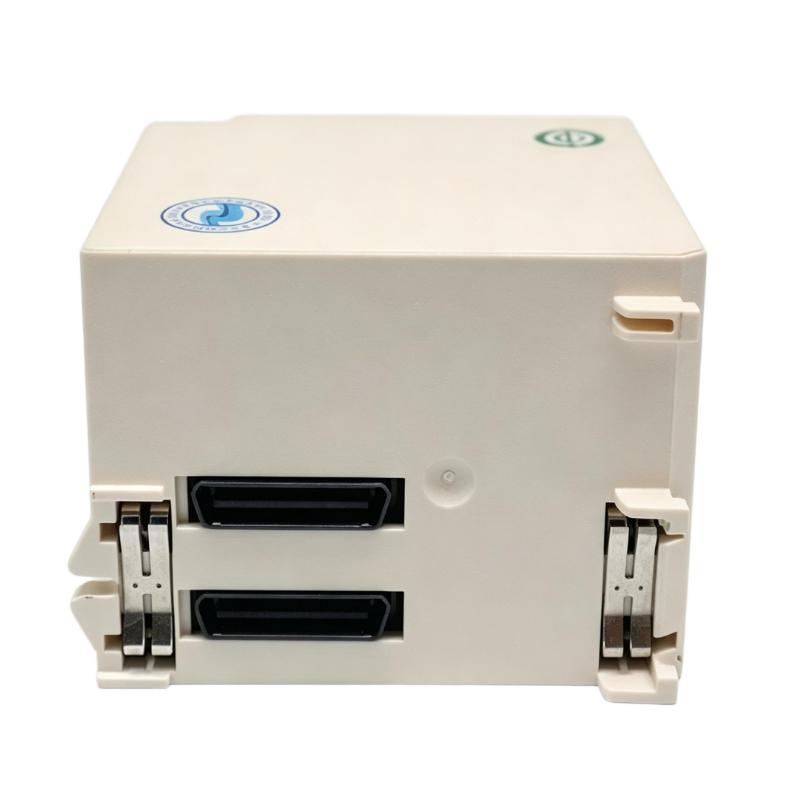

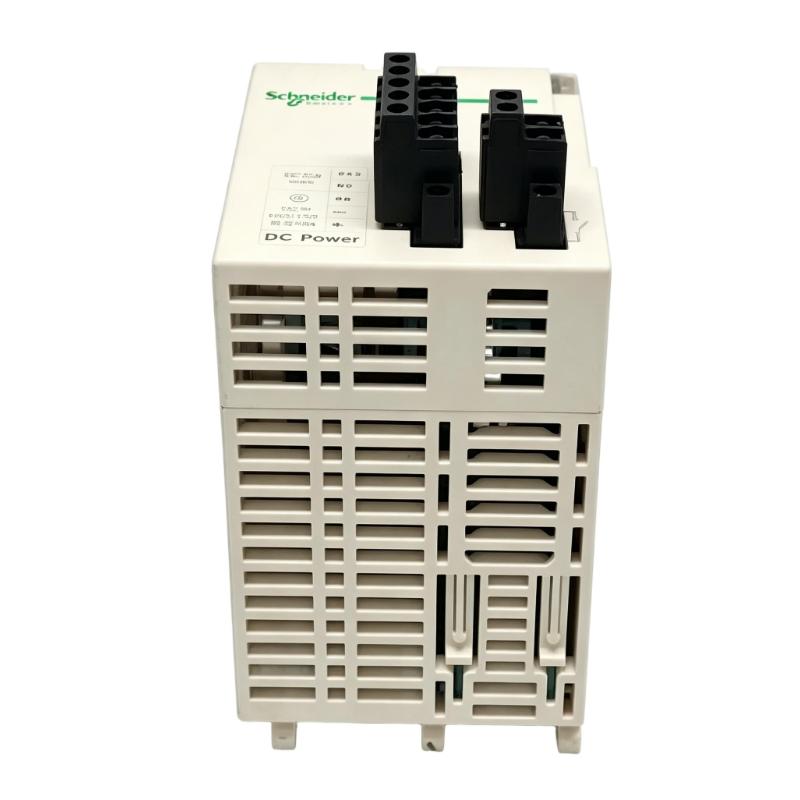

Schneider BMXCPS3540T Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Supply Module |
| Manufacturer | Schneider Electric |
| Model | BMXCPS3540T |
| Product Series | Modicon X80 |
| Power Supply Type | DC Power Supply Module for Extended Temperature |
| Nominal Input Voltage | 125 VDC |
| Input Voltage Range | 100–150 VDC |
| Primary Power | 45 W |
| Total Useful Output Power | 36 W |
| 3.3 VDC Output Power | 15 W |
| 24 VDC Output Power | 31.2 W |
| 3.3 VDC Output Current | 4.5 A |
| 24 VDC Output Current | 1.3 A |
| Input Current | 0.35 A at 125 VDC |
| Inrush Current | 30 A at 125 VDC |
| Power Interruption Immunity | ≤10 ms |
| Sensor Power Supply | Integrated 24 VDC sensor supply |
| Protection | Internal primary fuse; secondary overload, overvoltage and short-circuit protection |
| Status Indicators | Green LED for rack voltage OK and green LED for sensor voltage |
| Reset Function | Front-panel RESET pushbutton for cold restart |
| Electrical Connections | 2-pin alarm relay connector and 5-pin power/PE/sensor connector |
| Backplane Compatibility | Modicon X80 backplanes; not compatible with BMEXBP..02 |
| Operating Temperature | Extended-temperature operation, typically -25 to +70°C |
| Protection Rating | IP20 |
| Typical Applications | Modicon M340/M580 control systems, industrial automation and extended-temperature installations |
| Dimensions | 104 × 68 × 99 mm |
| Weight | 0.36 kg |
FAQ
1. What is the Schneider BMXCPS3540T used for?
The BMXCPS3540T is a DC power supply module for the Modicon X80 platform. It converts a 125 VDC input into the internal power required by compatible I/O modules and processors, while also providing a dedicated 24 VDC supply for sensors. Its extended-temperature design makes it suitable for industrial installations where the normal operating temperature range of standard power supplies may not be sufficient.
2. What input voltage does the BMXCPS3540T require?
The module has a nominal input voltage of 125 VDC and accepts an input range of 100–150 VDC. When designing the control-system power distribution, the DC source should remain within this range, and the upstream protection should be selected with consideration for the module’s normal input current and approximately 30 A inrush current.
3. What output power does the BMXCPS3540T provide?
The BMXCPS3540T provides a total useful output power of 36 W. It supplies 3.3 VDC for X80 I/O module logic and 24 VDC for I/O modules and the processor, while the integrated sensor supply provides 24 VDC for compatible field sensors. The actual available power must be considered together with the total rack load and the operating conditions.
4. What is the purpose of the integrated 24 VDC sensor power supply?
The integrated 24 VDC sensor supply is intended to provide power for compatible input sensors connected to the automation system. This can simplify cabinet wiring by eliminating the need for a separate sensor power supply in suitable applications, while the sensor output remains protected against overload, overvoltage and short circuits.
5. What protection functions are provided by the BMXCPS3540T?
The primary circuit uses an internal fuse that is not accessible during normal maintenance. The secondary circuits include protection against overload, overvoltage and short circuits, helping protect the rack power system and connected modules when abnormal electrical conditions occur.
6. Can the BMXCPS3540T be used in high-temperature industrial environments?
Yes. The BMXCPS3540T is specifically designed as an extended-temperature version of the Modicon X80 power supply family. It is intended for installations requiring a wider operating temperature range, but cabinet ventilation, ambient temperature, rack loading and applicable derating requirements should still be considered during system design.
7. How can a BMXCPS3540T power supply fault be diagnosed?
Begin by measuring the DC input voltage and confirming that it is within the 100–150 VDC operating range. Then check the rack-voltage and sensor-voltage status LEDs, inspect the input and output wiring, and verify that the connected rack load is within the available power capacity. If the input is correct but the rack remains unpowered, the power supply, backplane connection and downstream modules should be checked systematically.
8. What should be checked when replacing a BMXCPS3540T?
Before replacement, confirm the input voltage, output requirements, backplane compatibility and temperature requirements of the existing system. The BMXCPS3540T is not compatible with BMEXBP..02 backplanes, so the installed rack must be checked before fitting a replacement. After installation, verify the wiring and protective earth, confirm the status LEDs, and check the rack and sensor power outputs before returning the system to normal operation.
Schneider BMXCPS3540T Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
