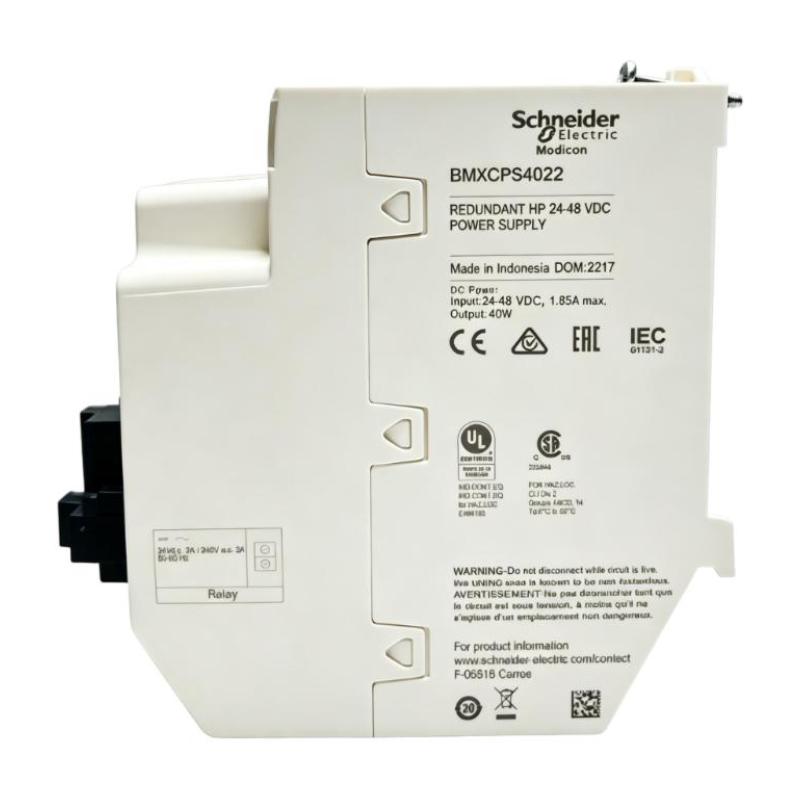

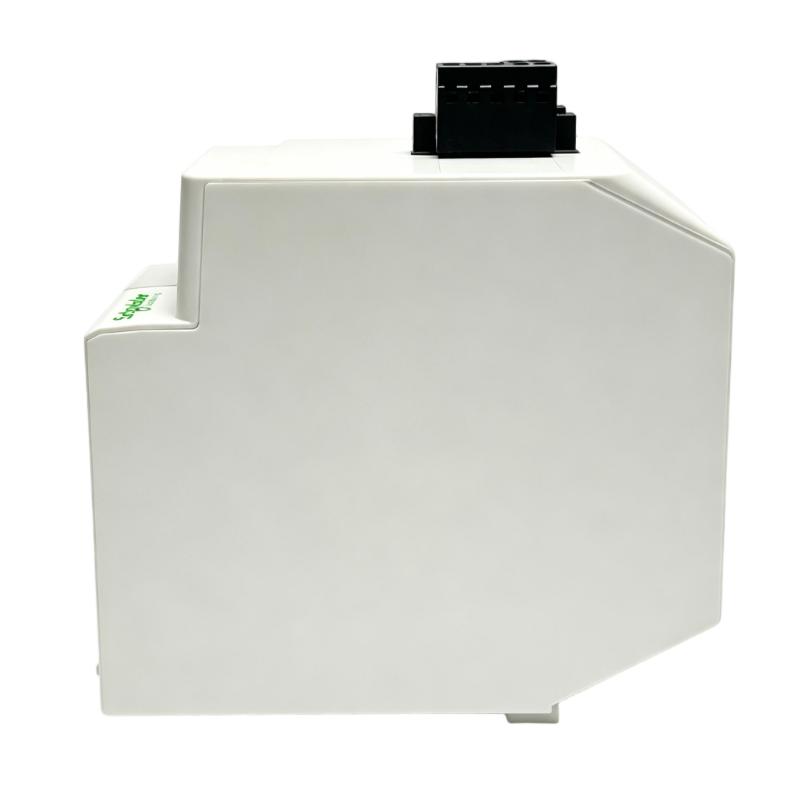

Schneider BMXCPS4022 Redundant Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Redundant Power Supply Module |
| Manufacturer | Schneider Electric |
| Model | BMXCPS4022 |
| Product Series | Modicon X80 |
| Power Supply Type | Redundant DC Power Supply Module |
| Rated Input Voltage | 24–48 VDC |
| Input Voltage Range | 19.2–62.4 VDC |
| Rated Input Current | Approx. 1.9 A at 24 VDC; 1.0 A at 48 VDC |
| Inrush Current | Up to 60 A |
| Total Usable Output Power | 40 W |
| 3.3 VDC Output | 3.3 VDC, 5 A, typically 16.5 W |
| 24 VDC Output | 24 VDC, 1.67 A, typically 40 W |
| Redundancy Function | Supports redundant power supply operation |
| Power Interruption Immunity | Approx. 1 ms |
| Primary Protection | Internal non-accessible fuse |
| Secondary Protection | Overload, short-circuit and overvoltage protection |
| Maximum Dissipated Power | 8.5 W |

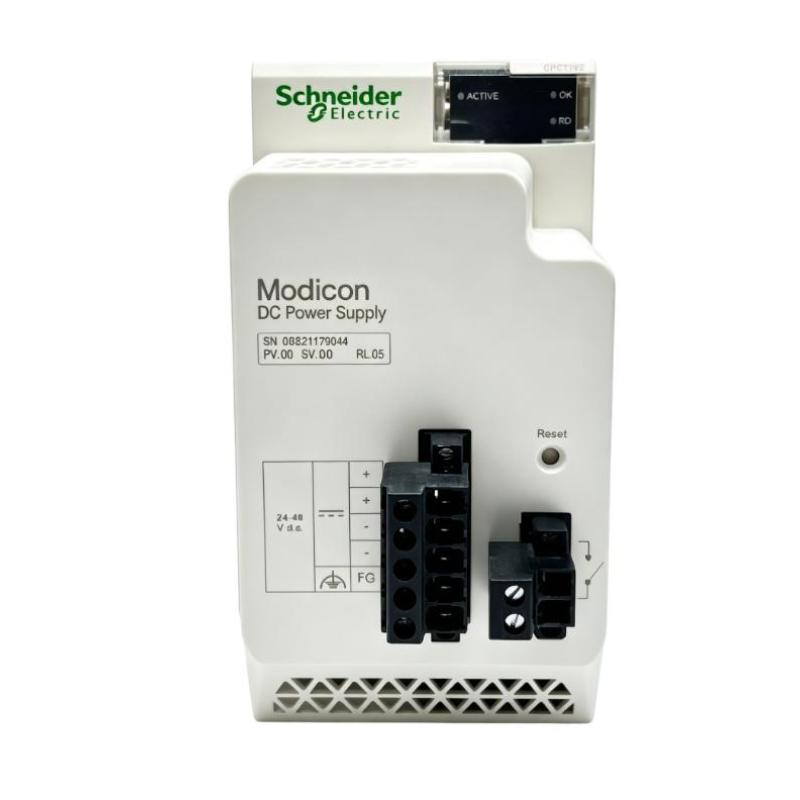

| Status Indication | Front-panel power supply status LED |
| Reset Function | Front-panel RESET pushbutton for cold restart |
| Alarm Interface | 2-pin normally open dry-contact alarm relay |
| Power Connection | 5-pin connector for input power and protective earth |
| Electrical Isolation | 1500 Vrms primary-to-secondary and primary-to-ground |
| Compatible Platform | Modicon X80 |
| Typical Applications | Modicon M340/M580 control systems, industrial automation and high-availability control systems |
| Operating Temperature | 0–60°C |
| Protection Rating | IP20 |
| Dimensions | 250 × 178 × 90 mm |
| Weight | 0.81 kg |
FAQ
1. What is the Schneider BMXCPS4022 used for?
The BMXCPS4022 is a redundant DC power supply module designed for the Modicon X80 platform. It accepts a 24–48 VDC input and supplies the internal power required by compatible rack modules, making it suitable for industrial automation and control applications where continuity of power is important.
2. What input voltage range does the BMXCPS4022 support?
The BMXCPS4022 has a nominal input range of 24–48 VDC, with an operating input range of approximately 19.2–62.4 VDC. When designing the control cabinet power distribution, the DC supply should remain within the specified range, and the upstream protection should be selected with the module’s operating current and inrush current taken into account.
3. What outputs are provided by the BMXCPS4022?
The module provides 3.3 VDC and 24 VDC outputs for the rack power system. The 3.3 VDC output is rated at 5 A, while the 24 VDC output is rated at 1.67 A, with a total usable output power of up to 40 W. Actual system loading should be calculated according to the processor, I/O modules and other devices installed in the rack.
4. How does the redundancy function of the BMXCPS4022 work?
The BMXCPS4022 is designed to operate in a redundant power supply arrangement with a compatible second power supply. The redundant configuration helps maintain rack power if one supply becomes unavailable, reducing the possibility that a single power-supply failure will interrupt the entire control system.
5. What protection functions are included in the BMXCPS4022?
The primary circuit includes an internal fuse, while the secondary outputs are protected against overload, short circuits and overvoltage. The module also provides electrical isolation between the primary circuit, secondary circuit and protective ground, helping improve the electrical robustness of the control system.
6. Can the BMXCPS4022 be used in Modicon M580 systems?
Yes. The BMXCPS4022 is part of the Modicon X80 power supply family and is listed by Schneider Electric among the DC power supplies available for M580 architectures. The complete system configuration should still be checked to ensure that the selected processor, backplane, power supply and redundancy arrangement are compatible.
7. How should a BMXCPS4022 power supply fault be diagnosed?
Start by measuring the input voltage and confirming that the supply is within the permitted DC input range. Then check the front-panel status indication, power connections, protective devices, rack connections and total load. If multiple power supplies are installed in a redundant configuration, verify whether the second supply has correctly maintained the rack power and whether the alarm relay indicates an abnormal condition.
8. What should be checked when replacing a BMXCPS4022?
Before replacement, verify the exact model, input voltage requirements, output capacity, backplane compatibility and redundancy configuration. The replacement should be installed with the correct power and protective-earth connections, followed by a check of the front-panel status indication and rack operation. In systems using multiple power supplies, the redundant transfer function should also be verified before the equipment is returned to normal service.
Schneider BMXCPS4022 Redundant Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
