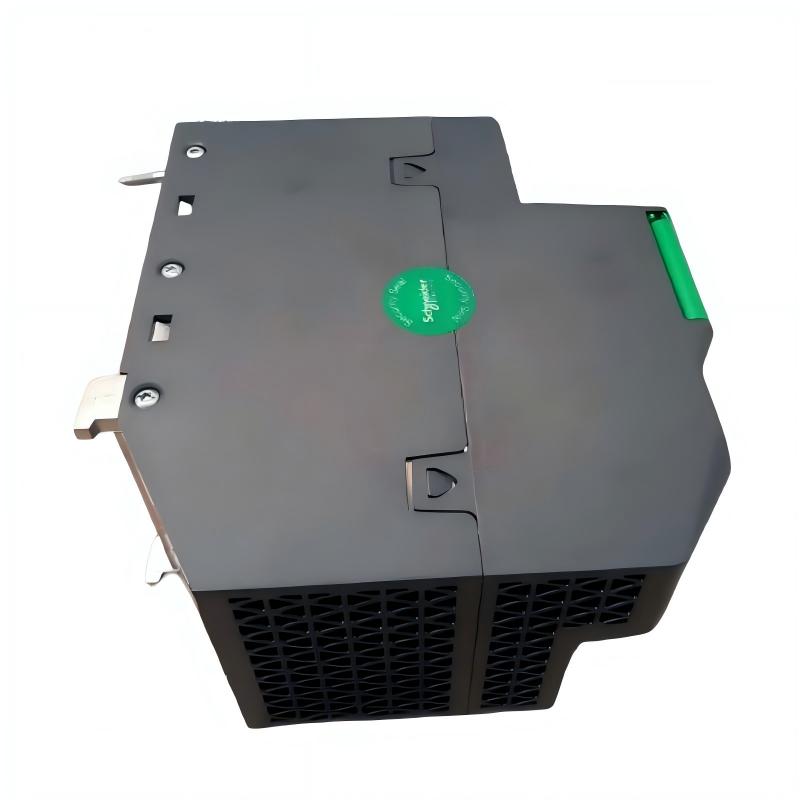

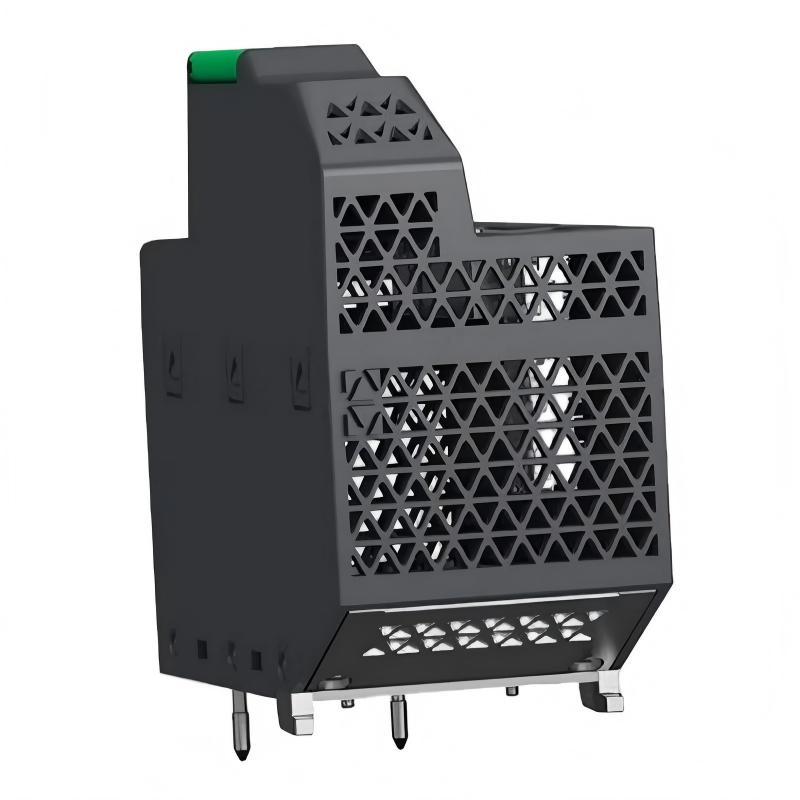

Schneider BMEP583040 Dedicated Processor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMEP583040 |
| Product Type | Dedicated Processor Module |
| Product Series | Modicon M580 |
| Processor Level | Level 3, Remote |
| Maximum Number of Racks | 8 |
| Local Discrete I/O Capacity | 3072 I/O |
| Local Analog I/O Capacity | 768 I/O |
| Application-Specific Channels | 108 |
| Application Functions | Serial Link, Motion Control, Counter, SSI Encoder, HART, Accurate Time Stamping |
| Process Control | Supported |
| Programmable Loops | Supported |
| Ethernet Service Port | 1 × Ethernet TCP/IP |
| Ethernet Device Network Ports | 2 × Ethernet TCP/IP |
| USB Interface | 1 × Mini-B USB |
| Remote I/O Stations | Up to 16 |
| Racks per Remote Drop | Up to 2 |
| Distributed Equipment | Up to 64 devices |
| Communication Module Capacity | Up to 8 AS-Interface modules and 3 Ethernet communication modules |
| Communication Services | RIO Scanner, DIO Scanner |
| Program Memory | 12 MB integrated RAM |
| Data Memory | 1024 KB integrated RAM |
| System Memory | 10 KB integrated RAM |
| Flash Storage | 4 GB expandable Flash for data storage |
| Application Structure | 2 auxiliary tasks, 1 cyclic/periodic master task, 128 event tasks |
| Processing Performance | 15 Kinst/ms for 65% Boolean + 35% fixed arithmetic; 20 Kinst/ms for 100% Boolean |
| Current Consumption | 295 mA at 24 V DC |
| Power Supply | Supplied through the rack backplane |
| Mounting | Modicon M580 Ethernet + X-Bus rack |
| Status Indicators | RUN, ERR, I/O and communication status LEDs |
| Operating Temperature | 0 to 60 °C |
| Protection Rating | IP20 |
| Certifications / Markings | CE |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
FAQ
1. What is the main function of the Schneider BMEP583040?
The BMEP583040 is a Level 3 Remote processor module for the Modicon M580 platform. It executes the control application, manages local I/O, communicates with distributed Ethernet devices, and provides RIO and DIO scanning for remote and distributed I/O architectures.
2. How many local I/O points can the BMEP583040 support?
The processor supports up to 3072 discrete local I/O points and 768 analog local I/O points. The system can be configured across up to eight racks, depending on the selected rack and I/O architecture.
3. How many remote I/O stations can the BMEP583040 manage?
The BMEP583040 supports up to 16 remote I/O stations, with up to two racks per remote drop. It can also manage up to 64 distributed devices on the Ethernet device network.
4. What communication interfaces are available on the BMEP583040?
The processor provides one Ethernet TCP/IP service port, two Ethernet TCP/IP device-network ports, and one Mini-B USB interface. The device-network ports are used for Ethernet I/O and distributed-device communication, while the service port is intended for engineering and maintenance access.
5. What memory is available in the BMEP583040?
The BMEP583040 provides 12 MB of integrated RAM for program storage, 1024 KB of RAM for data, and 10 KB of system memory. It also includes 4 GB of expandable Flash storage for data.
6. Which automation functions are supported by the BMEP583040?
The processor supports serial communication, motion control, counting, SSI encoder functions, HART communication, accurate time stamping, process control, and programmable control loops. These functions allow it to be used in both machine automation and process-control applications.
7. What is the difference between the RIO Scanner and DIO Scanner functions?
The RIO Scanner manages Ethernet Remote I/O drops within the M580 architecture, while the DIO Scanner manages distributed Ethernet equipment. The BMEP583040 integrates both scanning services, making it suitable for systems that combine remote I/O and distributed devices.
8. What should be checked if the BMEP583040 has an Ethernet communication fault?
Check the Ethernet cables, network connections, port status, IP addressing, subnet configuration, and device-network topology first. For RIO systems, also verify the remote drop configuration and I/O communication status. The controller project should then be checked to ensure that the configured network devices and scanner settings match the actual installation.
Schneider BMEP583040 Dedicated Processor is in stock. Please contact us for a quick quote and competitive pricing.
