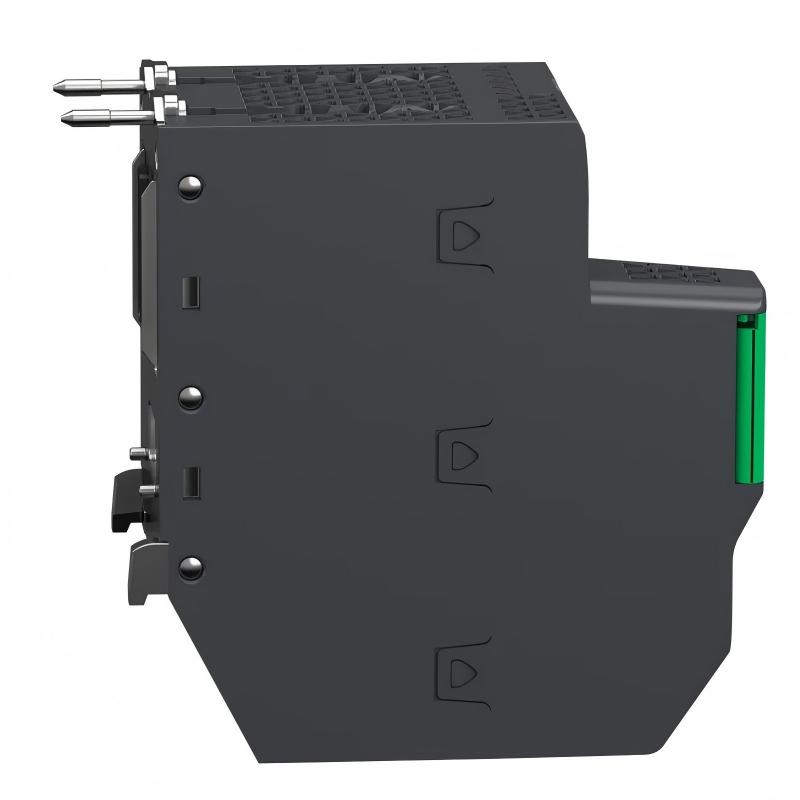

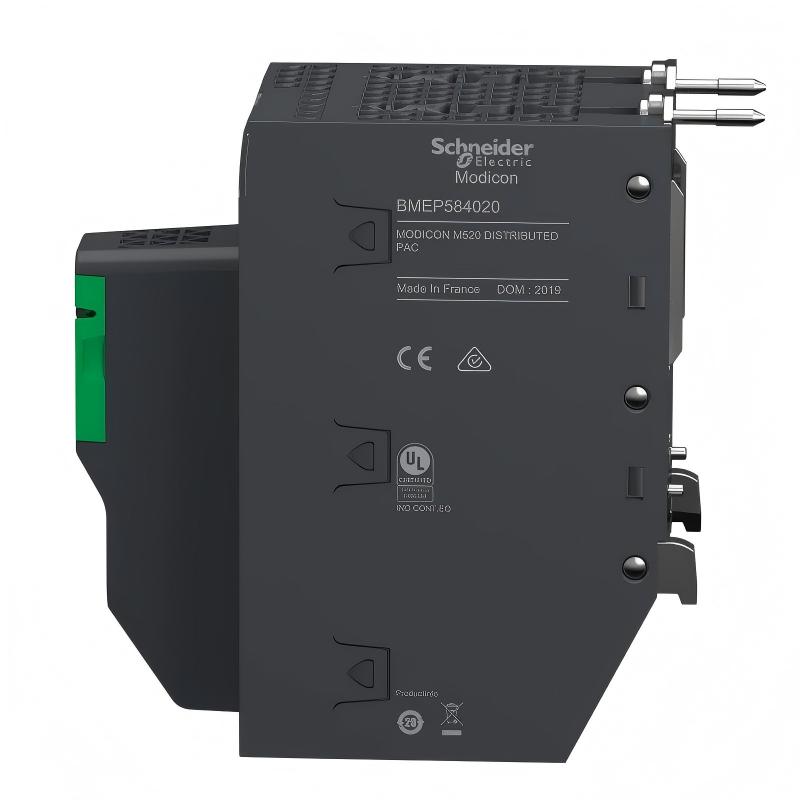

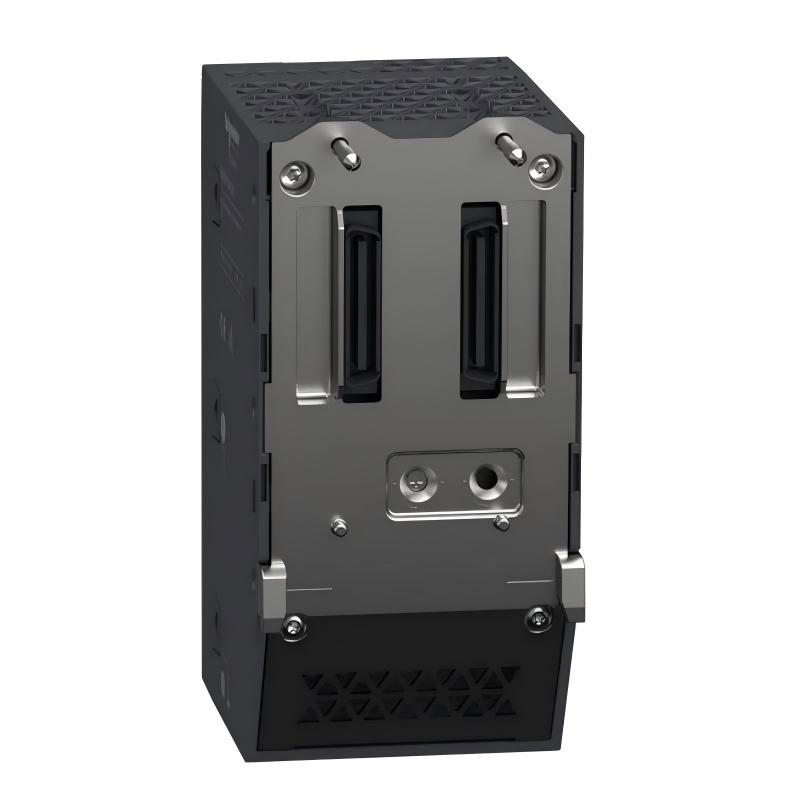

Schneider BMEP584020 Dedicated Processor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | BMEP584020 |
| Product Type | Dedicated Processor Module |
| Product Series | Modicon M580 |
| Processor Level | Level 4, Distributed |
| Maximum Number of Racks | 8 |
| Local Discrete I/O Capacity | 4096 I/O |
| Local Analog I/O Capacity | 1024 I/O |
| Application-Specific Channels | 144 |
| Application-Specific Functions | HART, Accurate Time Stamping, SSI Encoder, Serial Link, Motion Control, Counter |
| Process Control | Supported |
| Programmable Loops | Supported |
| Ethernet Service Port | 1 × Ethernet TCP/IP |
| Ethernet Device Network Ports | 2 × Ethernet TCP/IP |
| USB Interface | 1 × Mini-B USB |
| Distributed Equipment | Up to 128 devices |
| Communication Module Capacity | Up to 8 AS-Interface modules and 4 Ethernet communication modules |
| Communication Service | DIO Scanner |
| Program Memory | 16 MB integrated RAM |
| Data Memory | 2048 KB integrated RAM |
| System Memory | 10 KB integrated RAM |
| Flash Storage | 4 GB expandable Flash |
| Application Structure | 1 cyclic/periodic master task, 2 auxiliary tasks, 1 fast periodic task, 128 event tasks |
| Processing Performance | 30 Kinst/ms for 65% Boolean + 35% fixed arithmetic; 40 Kinst/ms for 100% Boolean |
| Current Consumption | 295 mA at 24 V DC |
| Power Supply | Internal power supply via rack |
| Mounting | Modicon M580 Ethernet + X-Bus rack |
| Operating Temperature | 0 to 60 °C |
| Storage Temperature | -40 to 85 °C |
| Operating Altitude | Up to 2000 m |
| Relative Humidity | 5–95% at 55 °C, non-condensing |
| Protection Rating | IP20 |
| Certifications / Markings | CE, UL, CSA, RCM, EAC |
| Dimensions | 134.6 × 64.6 × 130.3 mm |
| Weight | 0.849 kg |
FAQ
1. What is the main function of the Schneider BMEP584020?
The BMEP584020 is a Level 4 processor module for the Modicon M580 platform. It executes the PLC application, manages local I/O, handles Ethernet device communication, and provides DIO scanning for distributed automation systems.
2. How many local I/O points does the BMEP584020 support?
The processor supports up to 4096 discrete local I/O points and 1024 analog I/O points. The configuration can use up to eight racks, depending on the overall M580 system architecture.
3. How many distributed devices can the BMEP584020 manage?
The BMEP584020 supports up to 128 distributed devices. It is designed for larger M580 control architectures where a high number of Ethernet-based devices and I/O points need to be managed by a single processor.
4. What communication interfaces are available on the BMEP584020?
The processor provides one Ethernet TCP/IP service port, two Ethernet TCP/IP device-network ports, and one Mini-B USB interface. The Ethernet interfaces support engineering access and device-network communication within the M580 architecture.
5. What memory capacity does the BMEP584020 provide?
The BMEP584020 provides 16 MB of integrated RAM for program memory, 2048 KB for data memory, and 10 KB for system memory. A 4 GB expandable Flash area is also available for data storage.
6. Which advanced automation functions are supported?
The processor supports HART, accurate time stamping, SSI encoder processing, serial communication, motion control, counting, process control, and programmable loops. These functions allow the processor to handle complex machine and process automation applications.
7. What is the processing performance of the BMEP584020?
The processor can execute up to 40 Kinst/ms for a 100% Boolean workload and up to 30 Kinst/ms for a workload consisting of 65% Boolean operations and 35% fixed arithmetic operations. Actual application performance depends on the program structure and system configuration.
8. What should be checked if the BMEP584020 has a communication fault?
Check the Ethernet cables, port connections, IP configuration, network topology, and device addressing first. Then verify the DIO Scanner configuration and the status of the connected devices. The processor’s RUN, ERR, I/O, and Ethernet status indicators can also help identify whether the problem is related to the CPU, I/O system, or network.
Schneider BMEP584020 Dedicated Processor is in stock. Please contact us for a quick quote and competitive pricing.
