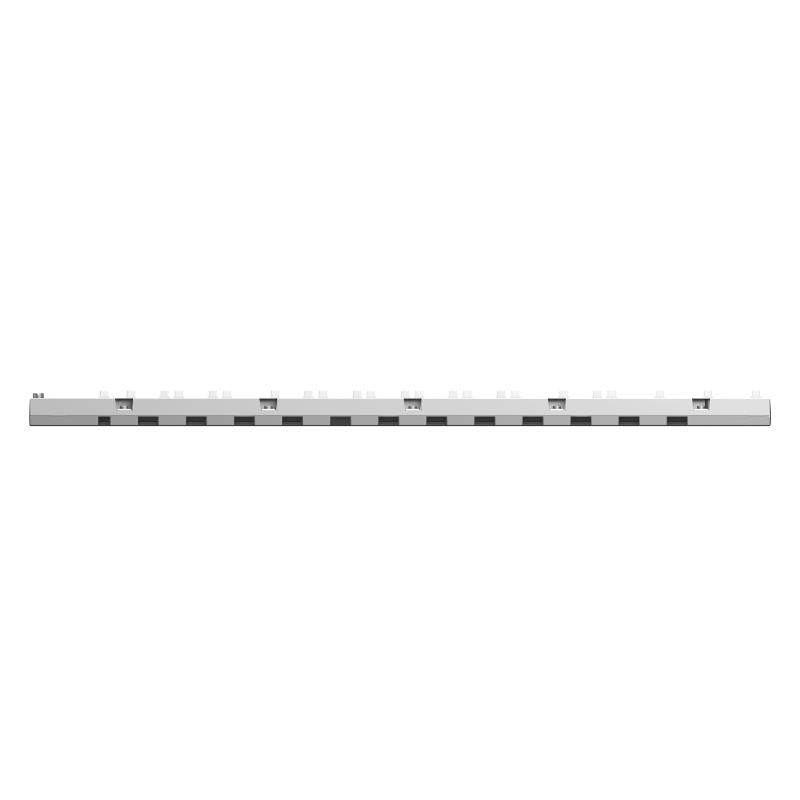

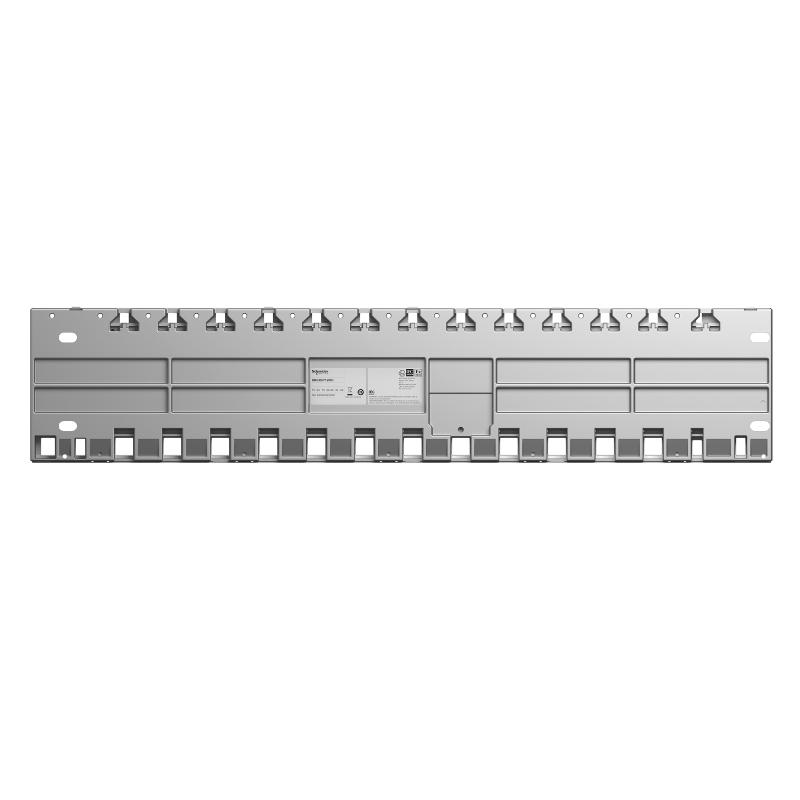

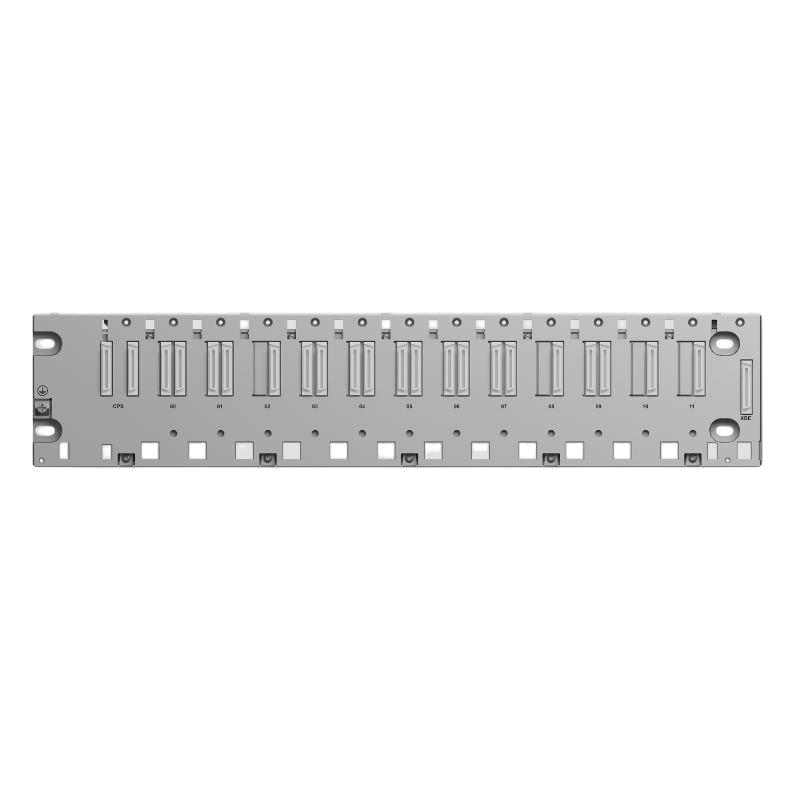

Q1: What is the main function of the Schneider BMEXBP1200H Ethernet Backplane?
A1: The BMEXBP1200H serves as the core communication and mounting backbone of the Modicon M580 automation platform. Its primary function is to physically and logically connect CPU modules, I/O modules, communication modules, and power modules into a unified system. Beyond providing structural support, it enables high-speed Ethernet-based data exchange between all modules, ensuring synchronized and deterministic operation across the entire PLC system. It essentially acts as the foundation that allows distributed automation components to function as a single integrated control system.

Q2: Why does this backplane use Ethernet-based communication?
A2: Ethernet-based communication is used because it offers high speed, scalability, and standardized industrial networking capabilities. Compared to traditional proprietary backplane buses, Ethernet allows faster data exchange, easier system integration, and improved interoperability with higher-level systems such as SCADA, MES, and cloud platforms. It also supports future expansion and aligns with modern industrial automation architectures.

Q3: What types of modules can be installed on this backplane?
A3: The BMEXBP1200H supports a wide range of Modicon M580 system modules, including CPU processor modules, digital and analog I/O modules, communication modules, and power supply modules. This flexibility allows users to build customized automation systems based on specific application requirements, from small machine control setups to large-scale distributed control systems.

Q4: What role does the backplane play in system communication?
A4: The backplane acts as the central communication highway for the entire automation system. It transmits input signals, output commands, diagnostic information, and synchronization data between modules. By ensuring deterministic and low-latency communication, it allows the PLC system to execute real-time control tasks reliably and consistently.

Q5: Can the system be expanded using this backplane?
A5: Yes, the BMEXBP1200H is designed for modular expansion. Additional I/O and communication modules can be added as system requirements grow. This scalability allows users to start with a basic configuration and gradually expand to more complex distributed control systems without changing the core infrastructure.

Q6: How does the backplane ensure communication reliability?
A6: The backplane ensures communication reliability through industrial-grade Ethernet architecture, deterministic data handling, and robust system synchronization mechanisms. It is designed to minimize latency, reduce communication errors, and maintain data integrity even in demanding industrial environments. When used within redundant system configurations, reliability is further enhanced.

Q7: What industries typically use this backplane?
A7: The BMEXBP1200H is widely used in industries such as oil and gas, power generation, water and wastewater treatment, chemical processing, manufacturing automation, and large-scale industrial production systems. It is especially suitable for environments requiring high system availability, scalability, and real-time control performance.

Q8: How can long-term reliability of the backplane be maintained?
A8: Long-term reliability can be ensured by maintaining proper installation conditions, including adequate ventilation, clean cabinet environments, and stable electrical grounding. Regular inspection of module connections and system diagnostics is also important. Avoiding excessive vibration, heat buildup, and electromagnetic interference will help ensure stable operation over the system’s lifecycle.
