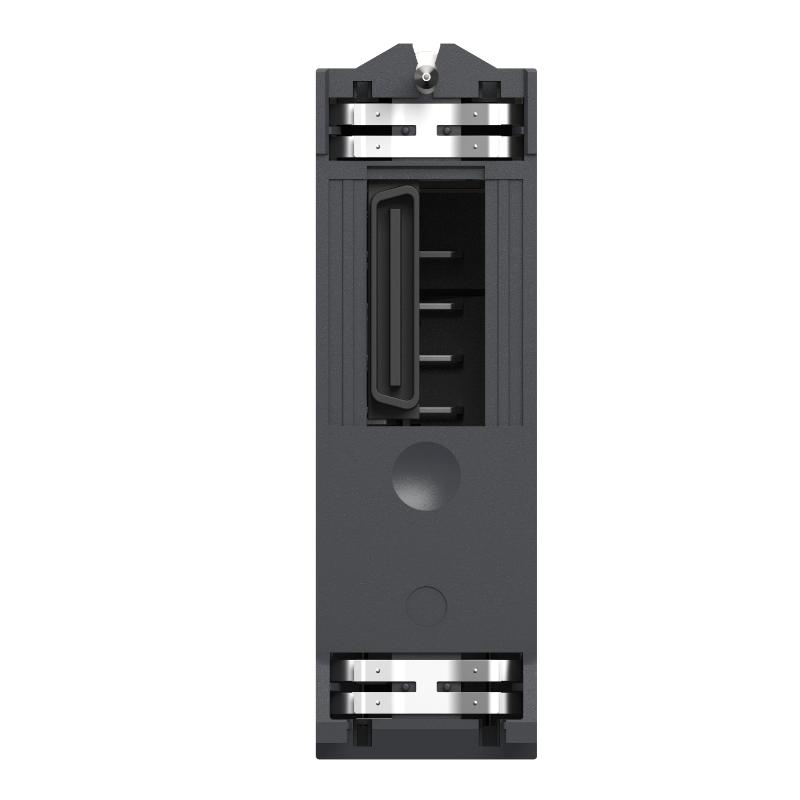

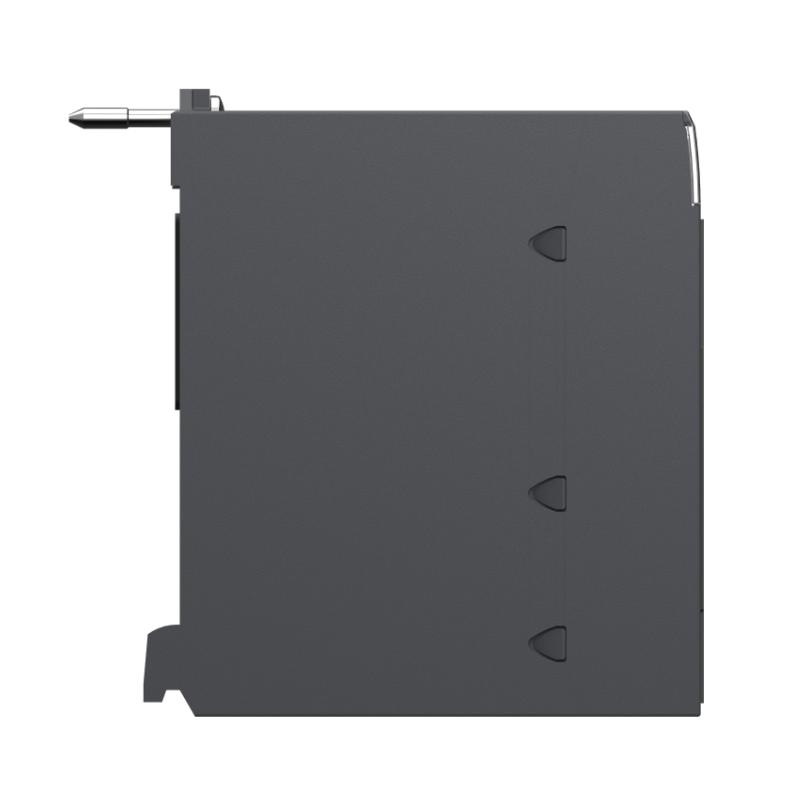

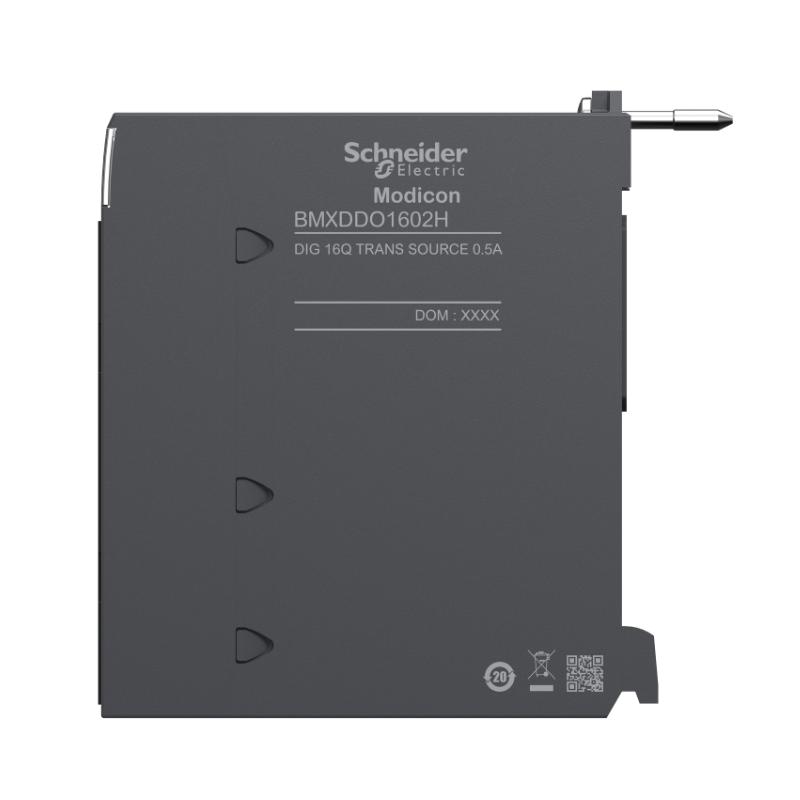

Q1: What is the primary function of the Schneider BMXDDO1602H Discrete Output Module?
A1: The BMXDDO1602H is designed to convert digital control signals from a PLC system into physical ON/OFF switching actions in industrial equipment. It serves as the final execution layer in an automation system, enabling the PLC to control field devices such as solenoids, relays, contactors, indicator lights, and alarms. By translating logical decisions into real-world electrical actions, it plays a critical role in ensuring that automation sequences are properly executed in industrial environments.

Q2: What does “16-channel output” mean in this module?
A2: The 16-channel configuration means that the module can independently control 16 separate output points. Each channel functions as an individual relay contact, allowing the system to manage multiple devices simultaneously or sequentially. This structure is suitable for medium-scale control applications where multiple discrete devices need reliable switching control within a compact system design.

Q3: Why does this module use relay output instead of transistor output?
A3: Relay output is used because it provides electrical isolation and can handle both AC and DC loads. This makes it highly versatile in industrial applications where different types of loads are present. Unlike transistor outputs, relay outputs are not polarity-sensitive and can directly control inductive devices such as contactors or solenoids. Although relay switching is slower and has mechanical wear, it offers greater flexibility in mixed-load environments.

Q4: What industrial applications is this module commonly used in?
A4: This module is widely applied in manufacturing automation, packaging machinery, conveyor systems, water treatment plants, HVAC systems, and general industrial process control. It is particularly suitable for controlling discrete devices such as valves, motor starters, alarms, and signaling systems where reliable ON/OFF operation is required.

Q5: How does the module communicate with the PLC system?
A5: The module communicates with the PLC CPU through the system backplane bus. It does not process logic independently but receives output commands directly from the controller. The CPU determines output states based on the control program and transmits signals to the module, ensuring synchronized and deterministic operation within the automation system.

Q6: What diagnostic features does the module provide?
A6: The module includes channel-level diagnostics that monitor the status of each output point. It can detect abnormal conditions such as output faults or switching inconsistencies. These diagnostic signals are reported back to the PLC system, allowing maintenance personnel to quickly identify and isolate issues at the channel level, improving troubleshooting efficiency.

Q7: How does the module ensure reliable operation in industrial environments?
A7: The module is designed with industrial-grade relay components, robust electrical isolation, and EMC protection to ensure stable operation in electrically noisy environments. Channel isolation reduces interference between outputs, while system-level protection helps prevent damage caused by overload or short-circuit conditions. These features contribute to long-term operational stability.

Q8: What practices can help extend the service life of this module?
A8: To extend service life, it is recommended to operate the module within rated load specifications and avoid excessive switching of high-inductive loads. Ensuring proper ventilation inside the control cabinet helps reduce thermal stress on relay components. Regular inspection of wiring connections and load conditions also helps maintain stable performance. In applications with frequent switching cycles, distributing loads evenly across channels can further reduce mechanical wear and improve long-term reliability.
