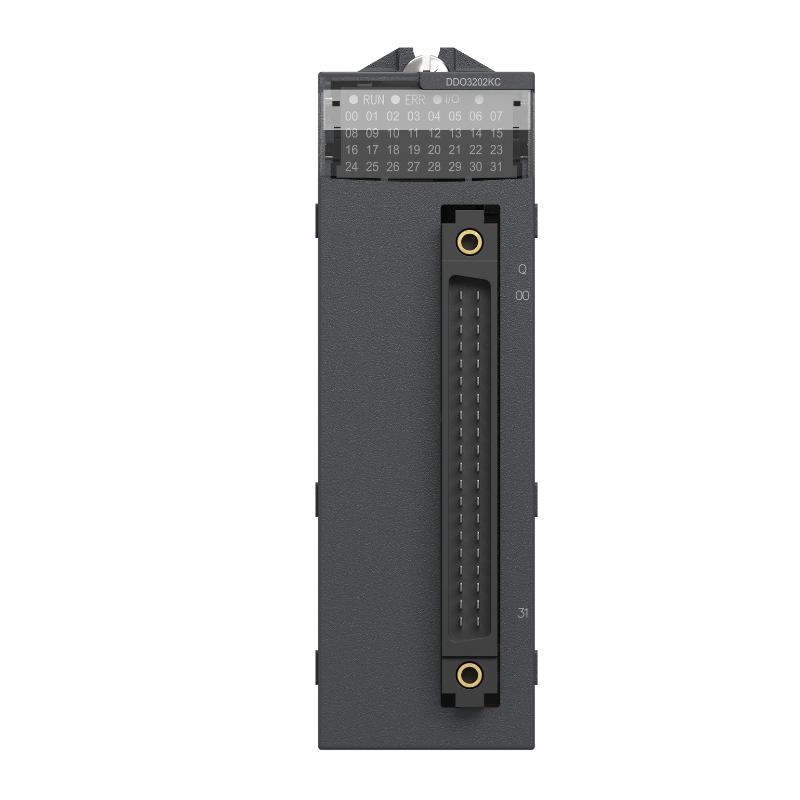

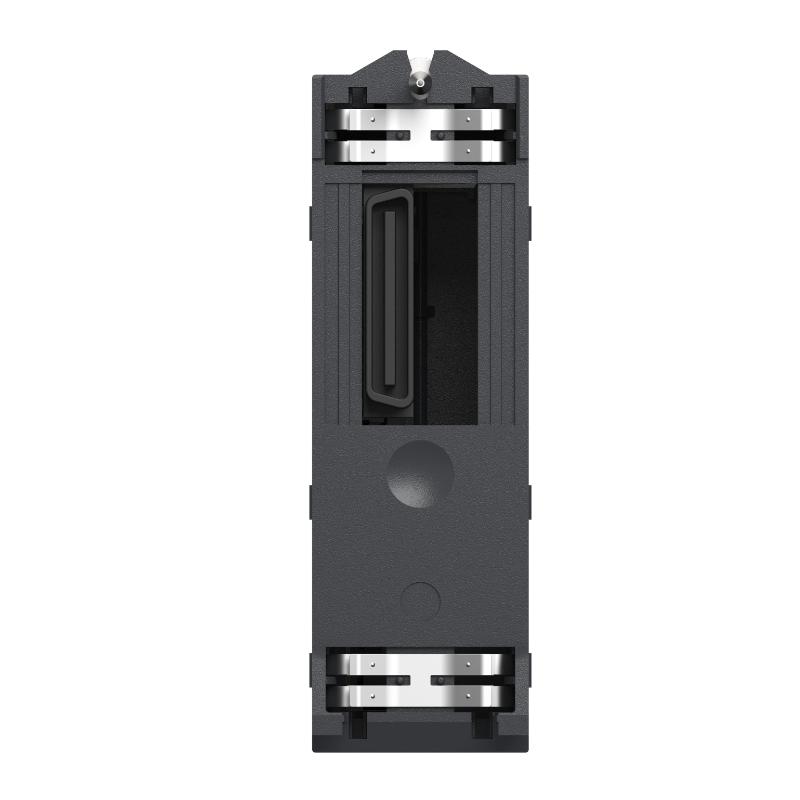

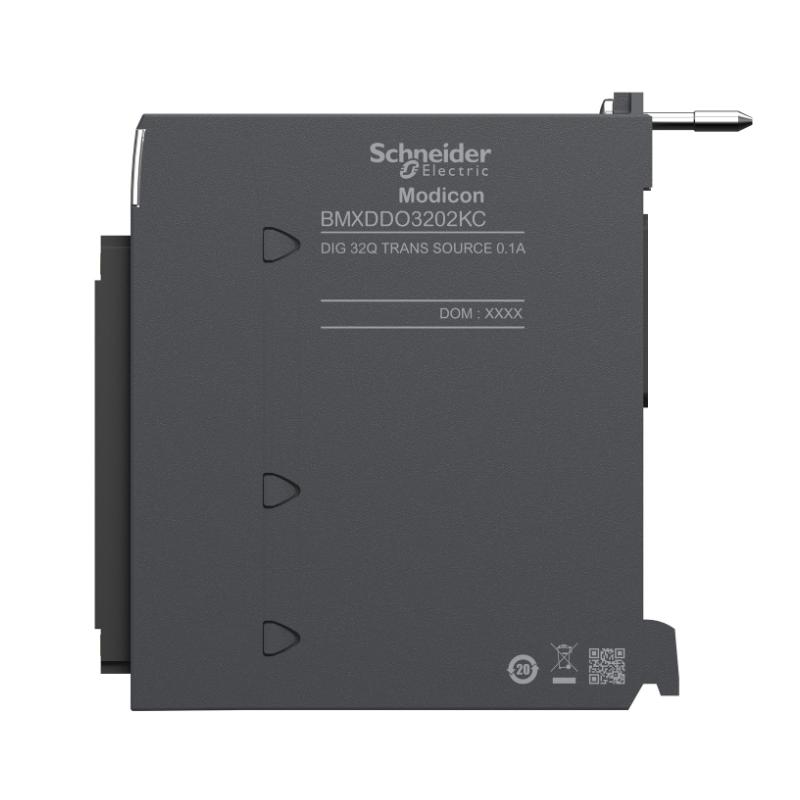

Q1: What is the main function of the Schneider BMXDDO3202KC Discrete Output Module?
A1: The BMXDDO3202KC is designed to convert digital control signals from a PLC system into physical switching actions in the field. In practical terms, it acts as the execution layer of the automation system, turning ON/OFF commands from the controller into real-world operations such as activating solenoids, switching relays, driving indicator lamps, or controlling contactors. It is a critical interface between the control logic in the CPU and the physical industrial equipment, ensuring that programmed automation sequences are properly executed in the field.

Q2: What does “32-channel output” mean in this module?
A2: The 32-channel configuration means the module can independently control 32 separate output points. Each channel operates as an individual relay contact, allowing simultaneous or sequential control of multiple devices. This high channel density makes the module suitable for complex automation systems where many discrete signals must be controlled within a compact control architecture, reducing the need for multiple smaller modules.

Q3: Why is relay output used instead of transistor output in this module?
A3: Relay output is chosen because it provides electrical isolation and compatibility with both AC and DC loads. Unlike transistor outputs, which are typically limited to DC and faster switching applications, relay outputs can handle a wider range of industrial loads, including inductive devices such as contactors and solenoids. This makes the module more versatile, especially in mixed-load industrial environments, although it trades off slightly in switching speed and mechanical lifespan.

Q4: What types of industrial applications is this module suitable for?
A4: This module is widely used in industrial automation systems such as manufacturing lines, packaging machines, conveyor systems, water treatment plants, HVAC systems, and general process control applications. It is particularly effective in systems where multiple discrete devices must be controlled reliably, such as valve banks, motor starters, alarms, and signaling devices.

Q5: How does this module communicate with the PLC system?
A5: The module communicates with the PLC CPU through the system backplane bus. It does not operate independently but relies entirely on the controller for output instructions. The CPU processes logic and sends output commands through the internal communication architecture, ensuring synchronized and deterministic control across the entire automation system.

Q6: What diagnostic capabilities does this module provide?
A6: The module includes channel-level diagnostics that allow it to detect abnormal conditions such as output faults or inconsistencies in switching behavior. These diagnostics are reported back to the PLC system, enabling maintenance engineers to quickly identify which channel is experiencing issues. This improves troubleshooting efficiency and reduces system downtime in industrial environments.

Q7: How does the module ensure operational reliability in harsh environments?
A7: The module is designed with industrial-grade relay components, electrical isolation between channels, and robust EMC protection. These design features help it withstand electrical noise, voltage fluctuations, and harsh environmental conditions commonly found in industrial control cabinets. The isolation structure also minimizes interference between channels, improving overall system stability.

Q8: What practices help extend the service life of this output module?
A8: Long-term reliability can be improved by ensuring the module operates within its rated load limits and avoiding continuous overloading of relay contacts. Proper cabinet ventilation is important to prevent thermal stress, while stable power supply conditions help reduce electrical wear. Regular inspection of wiring connections and load conditions is also recommended, especially in systems with frequent switching cycles. In high-duty applications, distributing loads evenly across channels can further extend relay lifespan and maintain consistent performance over time.
