1. What is the Schneider BMXDD0320 Digital Output Module used for?

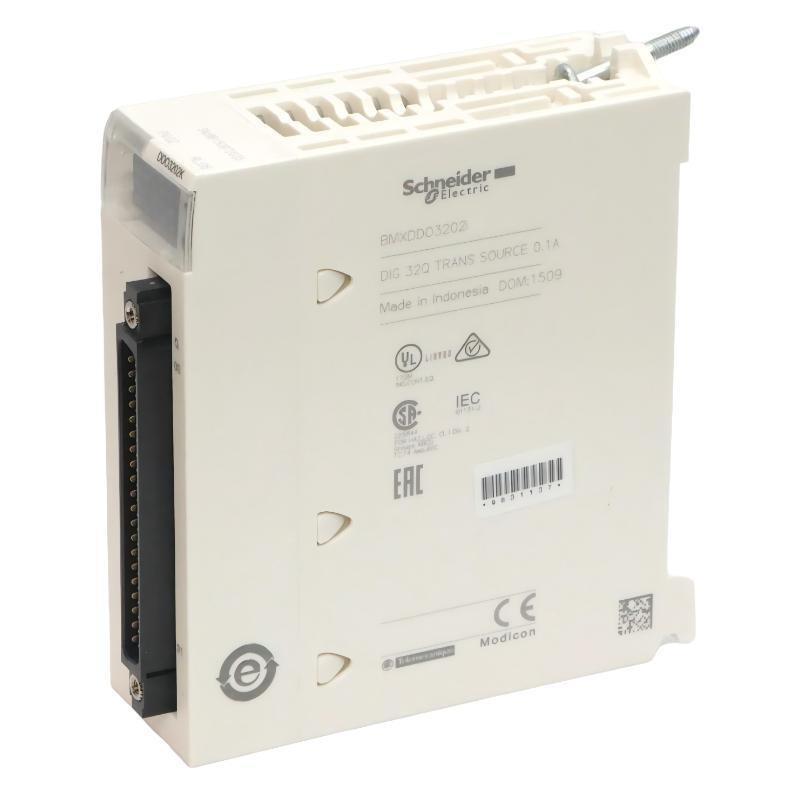

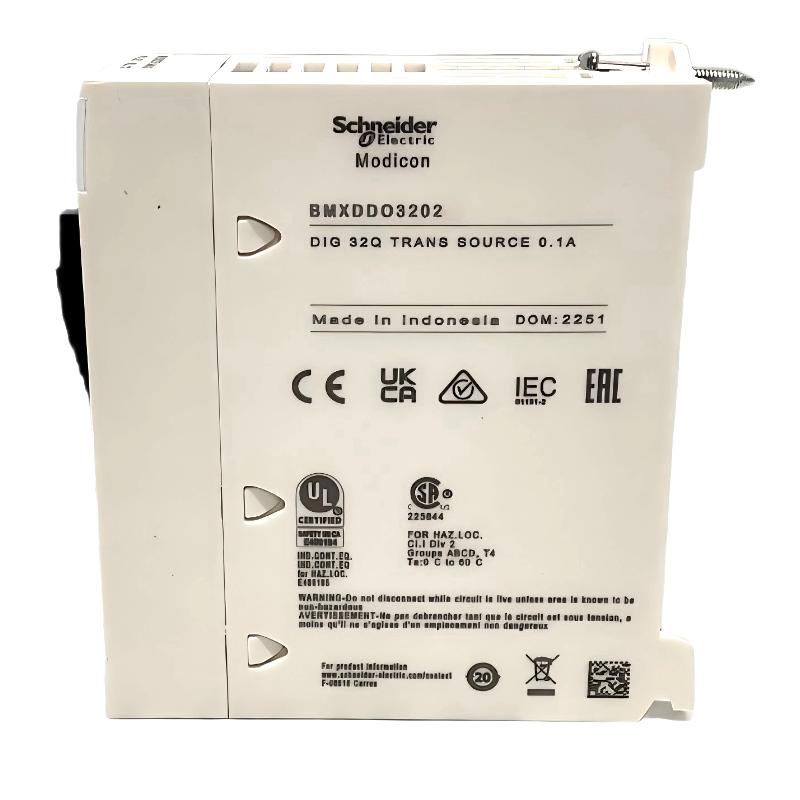

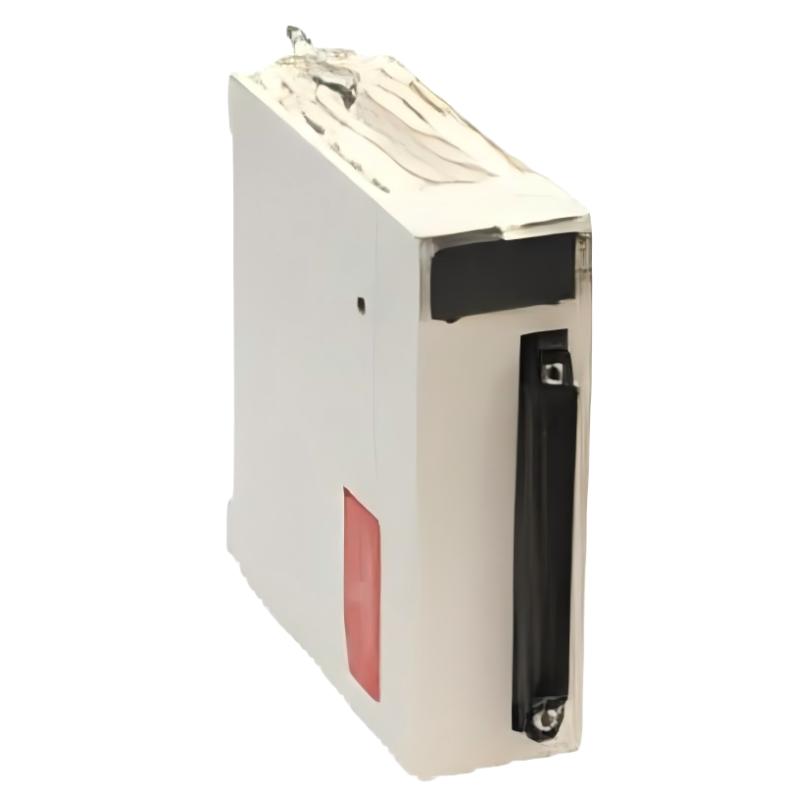

The BMXDD0320 is a 32-channel digital output module designed for controlling discrete field devices within a Schneider Electric PLC system. It receives output commands from the PLC program and converts them into switching signals for connected devices such as relays, contactors, solenoid valves, indicator lamps, and other compatible DC loads. With 32 independent output channels, the module is suitable for automation systems that need to control a relatively large number of discrete actuators from a centralized PLC platform. It can be particularly useful in machine control, material handling, packaging, assembly, and process automation applications where numerous on/off control points are required.

2. How many digital output channels does the BMXDD0320 provide?

The BMXDD0320 provides 32 digital output channels, allowing the PLC system to control up to 32 individual output points through the module. Each output can be assigned within the PLC application according to the machine control requirements. This high channel count is useful for systems with multiple solenoid valves, relays, contactors, indicator devices, and other discrete actuators. During system design, each connected load should still be evaluated individually to ensure that its voltage, current, and electrical characteristics are appropriate for the module. The total loading of the module should also remain within the applicable system requirements.

3. What type of output does the BMXDD0320 use?

The BMXDD0320 uses transistor-based digital outputs and is intended for DC switching applications. Unlike mechanical relay contacts, transistor outputs do not rely on moving mechanical contacts, making this type of output suitable for applications requiring frequent switching and relatively fast response. The PLC program determines when each output channel is activated or deactivated, allowing the module to control connected field devices according to the machine sequence. When selecting a load, engineers should consider not only its nominal voltage and current but also its electrical characteristics, particularly when connecting inductive loads such as relay coils or solenoid valves.

4. Can the BMXDD0320 directly control solenoid valves and relay coils?

The BMXDD0320 can be used to control compatible DC solenoid valves, relay coils, and other digital loads when their electrical characteristics remain within the specified output limits. However, inductive loads require particular attention because switching them off can generate a transient voltage that may affect the output circuit. Appropriate suppression components or protection measures should therefore be considered according to the load and control system design. Before connecting a field device, engineers should verify the device’s rated voltage, operating current, inrush characteristics, and wiring arrangement. Correct load selection and protection can significantly improve output reliability and reduce the risk of repeated output faults.

5. What should be checked if one BMXDD0320 output channel does not operate correctly?

When a single output channel fails to operate, the first step is to confirm through the PLC program or online monitoring function that the corresponding output address is actually being commanded. If the PLC logic is correct, the field wiring, load power supply, terminal connections, and connected device should then be inspected. The load current should also be checked to determine whether the output is being subjected to an overload or short circuit. The module’s status indicators and PLC diagnostic information can provide additional information about the condition of the output channel. By checking the control logic, module status, wiring, power supply, and field load in sequence, technicians can more effectively determine whether the problem originates from the PLC application, output module, or external equipment.

6. What should be checked when several BMXDD0320 outputs fail at the same time?

When multiple output channels stop operating simultaneously, it is important to investigate common system conditions before assuming that several independent output circuits have failed. The PLC rack power supply, module installation, common wiring, system status, and communication or backplane condition should be checked first. The module’s diagnostic indicators and PLC diagnostic information can help determine whether a module-level or rack-level fault has occurred. The external 24 V DC supply and common return circuit should also be inspected if several field devices lose power at the same time. Identifying whether the fault affects one channel, several channels, or the complete module can significantly narrow the troubleshooting scope.

7. What installation precautions should be followed when installing the BMXDD0320?

Before installation or removal, the PLC system should be handled according to the applicable electrical safety procedures, with particular attention to power isolation where required. The module should be correctly positioned in the PLC rack, and all field wiring should follow the control system’s electrical drawings and terminal assignments. Connected loads must remain within the applicable voltage and current specifications. Special consideration should be given to inductive loads because relay coils and solenoid valves can generate transient electrical energy when switched off. After installation, individual outputs should preferably be tested in a controlled manner before the complete machine is placed into automatic operation. This approach makes wiring errors, incorrect I/O addressing, and abnormal loads easier to identify.

8. How does the BMXDD0320 improve the digital output capability of a PLC system?

The BMXDD0320 expands the PLC system with 32 digital output channels, allowing a large number of discrete field devices to be controlled from a single output module. This can simplify I/O planning in machines containing numerous solenoid valves, relays, indicator devices, and other on/off actuators. The outputs can be integrated into PLC sequences, interlocks, alarm functions, and automatic machine operations, providing centralized control of multiple field devices. In larger automation systems, consistent I/O addressing, clear terminal identification, and proper field wiring are important for maintaining serviceability. When correctly configured and installed, the module provides a practical solution for high-density digital output requirements in Modicon X80-based control systems.
