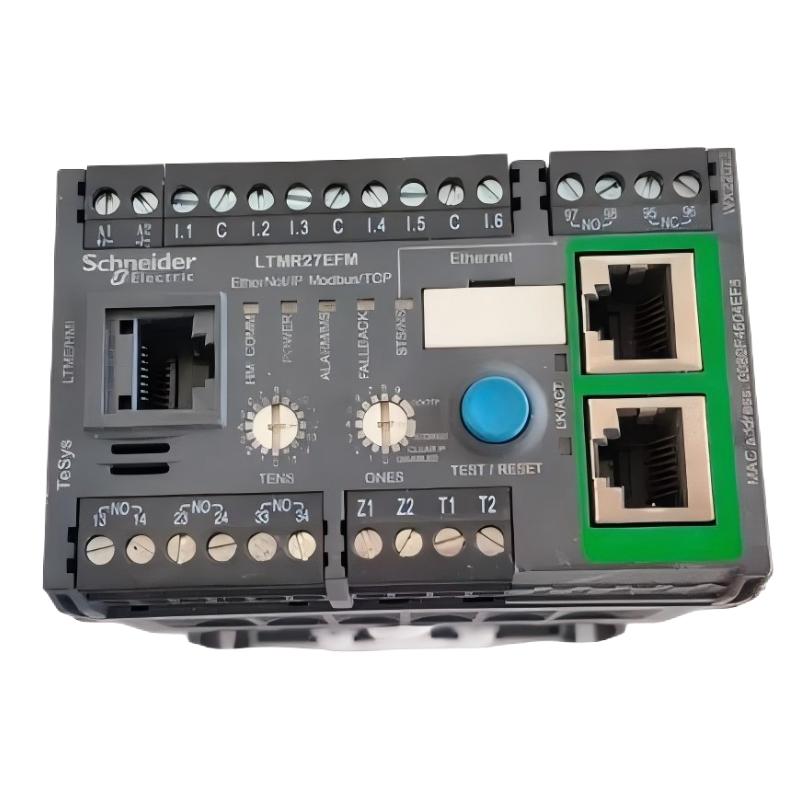

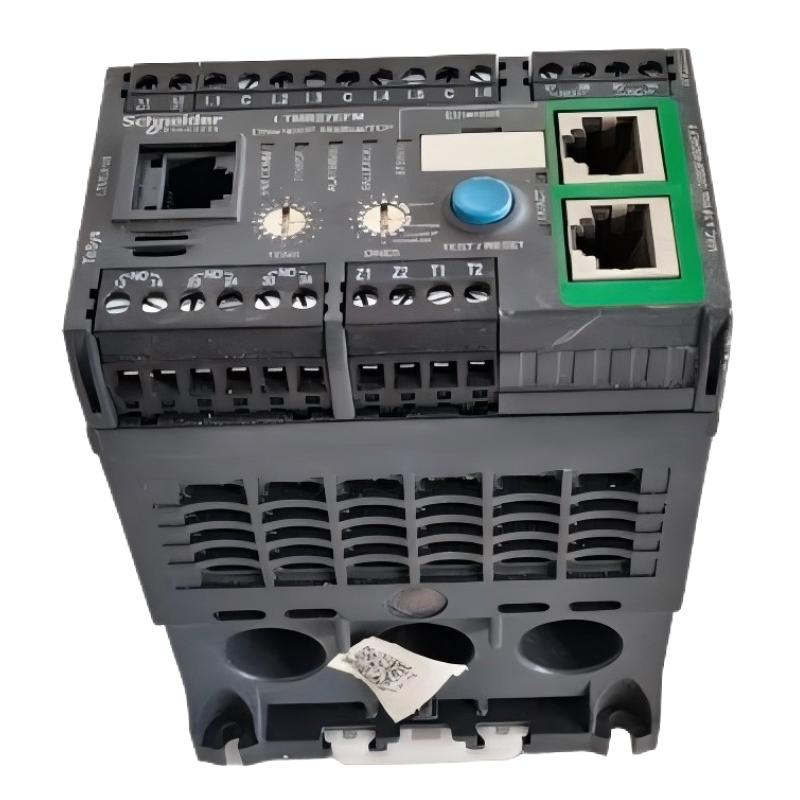

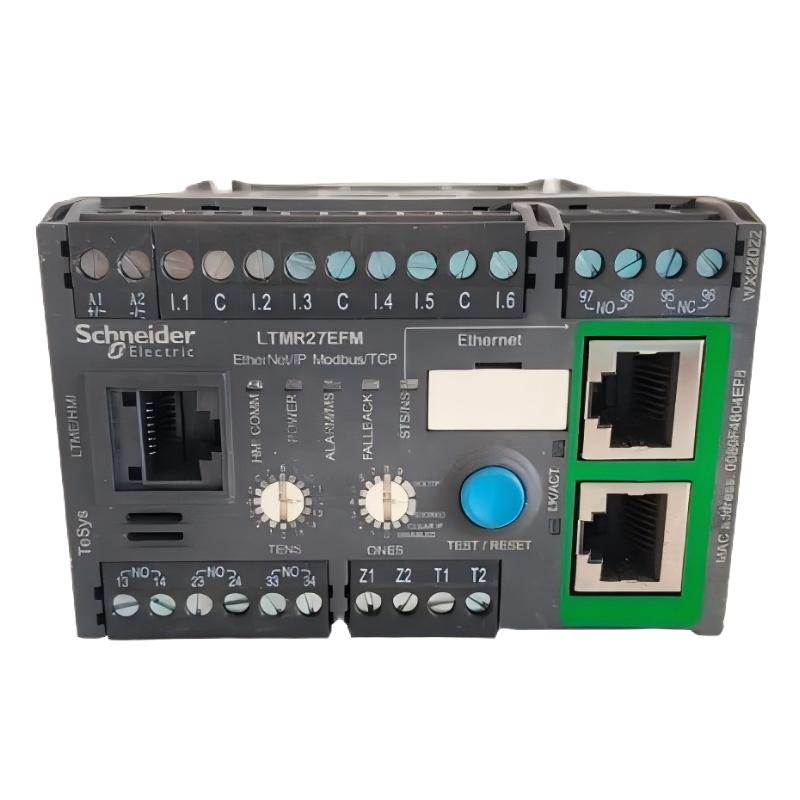

1. What is the Schneider LTMR27EFM Motor Controller used for?

The LTMR27EFM is an electronic motor controller from the Schneider Electric TeSys T family, designed to provide motor control, monitoring, and protection functions within industrial automation systems. It can continuously monitor important motor operating conditions and help protect motors against abnormal conditions such as overload, phase loss, and phase imbalance. By combining motor management functions with communication capabilities, the controller can provide operating information to a higher-level automation system. This makes it suitable for applications where motor protection and centralized monitoring are required rather than relying only on conventional electromechanical protection devices.

2. What types of motor protection functions does the LTMR27EFM provide?

The LTMR27EFM is designed to monitor motor operating conditions and provide protection against several common electrical and thermal abnormalities. Depending on the system configuration, protection functions can include motor overload, phase loss, phase imbalance, and thermal overload conditions. Continuous monitoring allows the controller to detect abnormal operating conditions and initiate the configured protective response. Proper protection settings are important because they should correspond to the actual motor characteristics and application requirements. Incorrect settings can either cause unnecessary trips or provide insufficient protection for the motor.

3. How does the LTMR27EFM communicate with an automation control system?

The LTMR27EFM supports communication through a Modbus-based interface, allowing motor operating information and diagnostic data to be exchanged with a PLC, HMI, SCADA system, or other supervisory controller. Through the communication network, the automation system can obtain information such as motor status, operating conditions, protection events, and diagnostic information. Communication parameters must be configured correctly, including the device address and other network settings required by the installation. Proper communication configuration allows motor management information to be integrated into a centralized industrial automation system.

4. What information can the LTMR27EFM monitor during motor operation?

The controller can monitor various motor operating conditions, including motor current and thermal operating state, together with protection and diagnostic conditions. This information can help maintenance personnel determine whether a motor is operating normally or approaching a condition that may require attention. When integrated into an automation network, operating information can also be made available to PLC or supervisory software for centralized monitoring. Continuous monitoring is particularly useful in industrial applications where unexpected motor shutdowns can affect production and where early identification of abnormal operating conditions can reduce downtime.

5. How should the LTMR27EFM be configured before commissioning?

Before commissioning, the controller should be configured according to the actual motor nameplate information, electrical characteristics, protection requirements, and control system architecture. Important parameters should be checked carefully so that the protection thresholds and operating settings correspond to the connected motor. The communication settings should also be configured if the controller is connected to a Modbus network. After configuration, the wiring, control circuit, communication connection, and motor operating direction should be verified before placing the equipment into normal production. A controlled commissioning procedure helps identify configuration or wiring problems before the motor is subjected to continuous operating conditions.

6. What should be checked if the LTMR27EFM frequently reports motor protection faults?

Frequent protection events should not simply be resolved by increasing protection thresholds. The actual motor operating condition should first be investigated. Technicians should check motor current, load conditions, phase balance, supply voltage, motor wiring, mechanical load, and operating temperature. If the motor is consistently operating above its intended load, the problem may be mechanical or application-related rather than caused by the controller. The controller configuration should also be compared with the motor’s actual rated characteristics. Reviewing diagnostic information and the sequence of protection events can help determine whether the issue originates from the motor, power supply, mechanical system, or controller settings.

7. Can the LTMR27EFM be integrated into a PLC-based motor control system?

Yes, the LTMR27EFM is designed for integration into industrial automation architectures where motor management information needs to be exchanged with a higher-level control system. Through its communication capabilities, the controller can provide motor status, operating data, alarms, and diagnostic information to a compatible PLC or supervisory system. This allows the PLC to coordinate motor operation while the motor controller handles dedicated monitoring and protection functions. During integration, the communication address, network parameters, data mapping, control commands, and diagnostic handling should be configured consistently between the LTMR27EFM and the PLC application.

8. What are the main advantages of using the LTMR27EFM in an industrial motor control system?

The main advantage of the LTMR27EFM is that it combines motor management, protection, monitoring, and communication functions within a dedicated electronic controller. Instead of treating motor protection and automation monitoring as completely separate functions, the controller can provide operating and diagnostic information to the wider control system. This can simplify centralized motor supervision and make it easier to identify abnormal operating conditions. In applications with multiple motors, communication-based monitoring can also help maintenance teams identify individual motor problems more quickly. Correct configuration, wiring, and integration remain essential to obtain reliable protection and stable operation.
