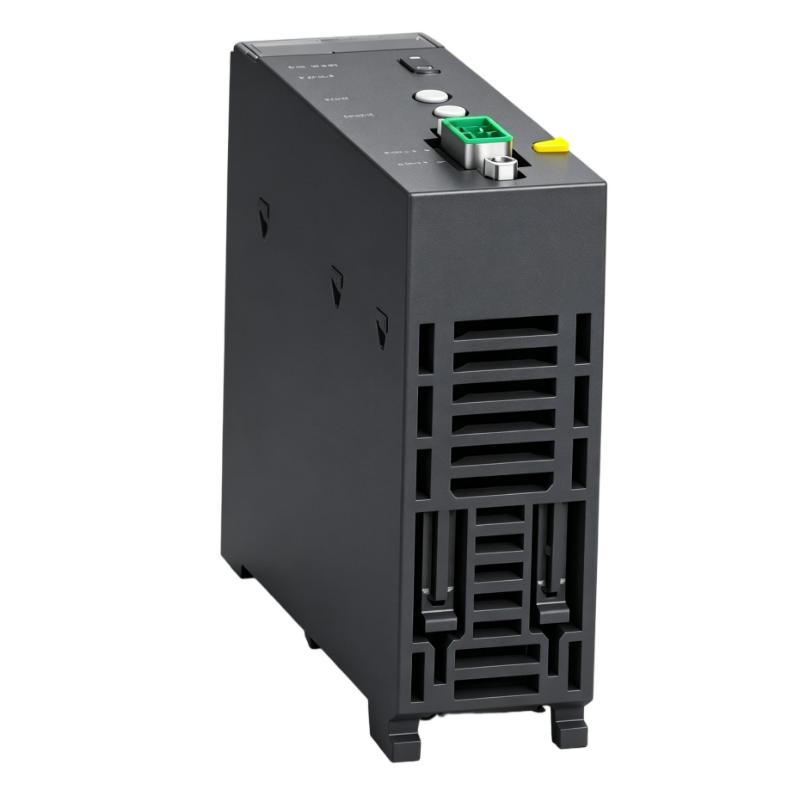

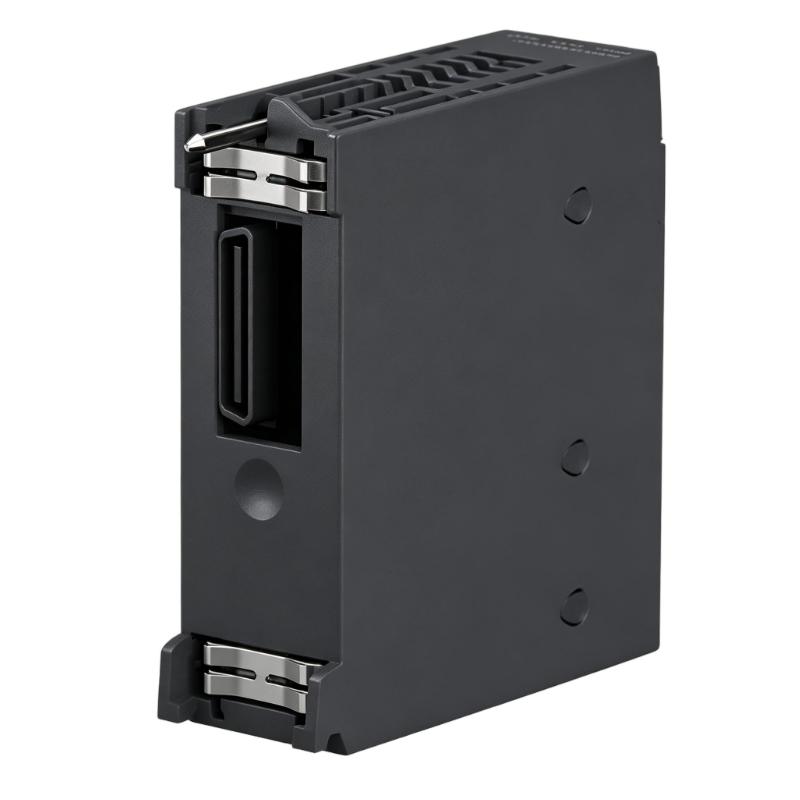

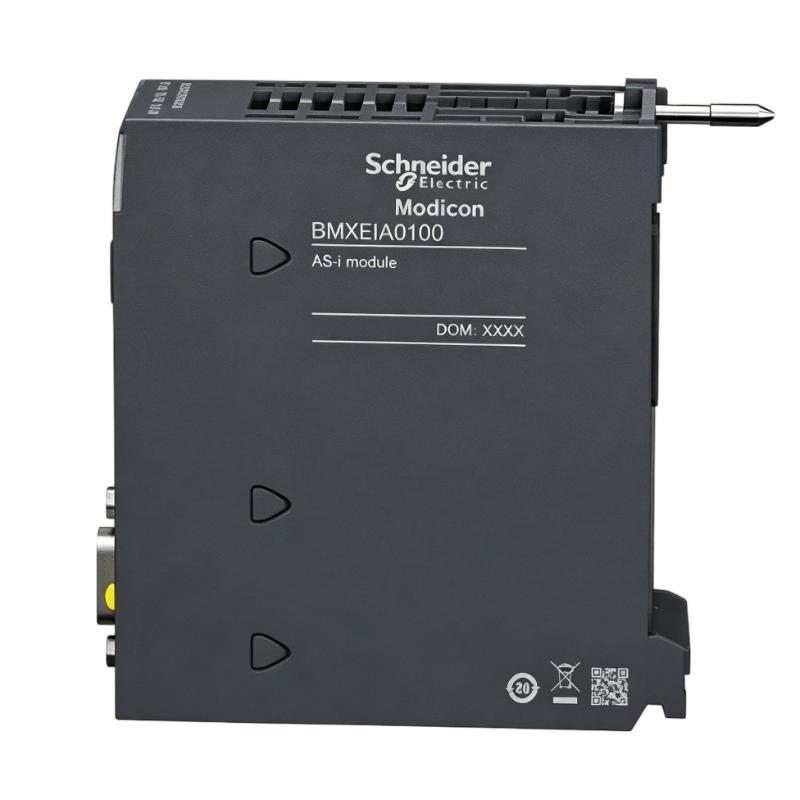

Schneider BMXEIA0100 Main Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BMXEIA0100 |
| Brand | Schneider Electric |
| Product Type | AS-Interface Master Module |
| Product Range | Modicon X80 |
| AS-Interface Version | AS-Interface V3 |
| Master Profile | M4 |
| Supported Slave Profiles | S7.3, S7.A.7, S7.A.A, S7.A.8, S7.A.9, S6.0.X |
| Addressing | Standard and Extended |
| Discrete Devices | Up to 62 devices |
| Analog Devices | Up to 31 devices |
| Safety Interfaces | Up to 31 devices |
| Discrete I/O Capacity | Up to 124 discrete inputs/outputs in standard addressing; up to 496 in extended addressing |
| Analog I/O Capacity | Up to 124 analog inputs/outputs |
| Cycle Time | 5 ms for 31 devices; 10 ms for 62 devices |
| Electrical Connection | 1 × 3-pin male SUB-D connector |
| Maximum Cable Distance | 100 m between devices |
| Line Extension | 200 m with line extension; up to 300 m with 2 repeaters; up to 500 m with 2 repeaters and master positioned in the middle |
| Local Diagnostics | RUN, ERR, A/B, I/O, ASI POWER and FAULT LEDs |
| Slave Diagnostics | 32 LEDs for AS-Interface and connected slave diagnostics |
| Power Consumption | 160 mA at 3.3 VDC |
| Protection Rating | IP20 |
| Module Format | Standard, 1 slot |
| Installation | Modicon X80 rack/backplane |
| Supported PLC Platforms | Modicon M340 and Modicon M580 configurations |
| Software Integration | EcoStruxure Control Expert |
| Operating Temperature | 0–60°C |
| Standards | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No. 61010-2-201 |
| Certifications | CE, UL, CSA, RCM, EAC, ATEX Zone 2/22, IECEx Zone 2/22 |
| Typical Applications | AS-Interface sensor/actuator networks, distributed I/O, industrial automation and machine control |
| Dimensions | 32 × 103.7 × 86 mm |
| Weight | 0.34 kg |
FAQ
1. What is the main function of the Schneider BMXEIA0100?
The BMXEIA0100 is an AS-Interface master module for the Modicon X80 platform. It manages communication between the PLC and AS-Interface slave devices connected to the AS-i network. The module collects sensor and actuator information from the connected devices and makes the data available to the PLC application.
2. How many AS-Interface devices can the BMXEIA0100 support?
The BMXEIA0100 supports up to 62 discrete AS-Interface devices using standard and extended addressing. It can also manage up to 31 analog devices and up to 31 safety interfaces in the supported configurations. This makes the module suitable for distributed sensor and actuator networks with a relatively large number of field devices.
3. Which AS-Interface profiles are supported by the BMXEIA0100?
The module supports the AS-Interface V3 management profile and can manage V1, V2 and V3 slave devices. Supported profiles include M4 for the master and S7.3, S7.A.7, S7.A.A, S7.A.8, S7.A.9 and S6.0.X for slave devices. The required slave profile should match the characteristics of the connected AS-i device.
4. What is the communication cycle time of the BMXEIA0100?
The cycle time is 5 ms when managing up to 31 devices and 10 ms when managing up to 62 devices. The actual response of the complete control system also depends on the PLC application scan time and the processing requirements of the connected field devices.
5. What is the maximum AS-Interface cable distance supported by the BMXEIA0100?
The standard maximum cable distance between devices is 100 m. With additional line extension and repeaters, the network can be extended to 200 m, 300 m or up to 500 m depending on the network arrangement. Proper AS-i power supply placement and cable installation are important for maintaining reliable communication.
6. How can AS-Interface communication faults be diagnosed on the BMXEIA0100?
The front panel provides RUN, ERR, A/B, I/O, ASI POWER and FAULT indicators for system and network diagnostics. Additional LEDs provide diagnostic information for the AS-Interface line and connected slaves. When a fault occurs, check the AS-i power supply, cable connections, slave addressing, termination and network topology before checking the PLC configuration.
7. Which PLC systems can use the BMXEIA0100?
The BMXEIA0100 is part of the Modicon X80 platform and can be used in compatible Modicon M340 and Modicon M580 configurations. The module is installed in the X80 rack and configured through EcoStruxure Control Expert. The maximum number of BMXEIA0100 modules that can be installed depends on the specific processor and system configuration.
8. What should be checked when commissioning a BMXEIA0100 AS-Interface network?
Verify the X80 backplane installation and module configuration first. Then confirm the AS-i power supply, SUB-D connection, network wiring and slave addresses. Each connected device should use a supported AS-Interface profile, and the addressing mode should match the system configuration. Finally, use the module LEDs and EcoStruxure Control Expert diagnostics to verify that all expected slaves are detected and communicating correctly.
Schneider BMXEIA0100 Main Module is in stock. Please contact us for a quick quote and competitive pricing.
