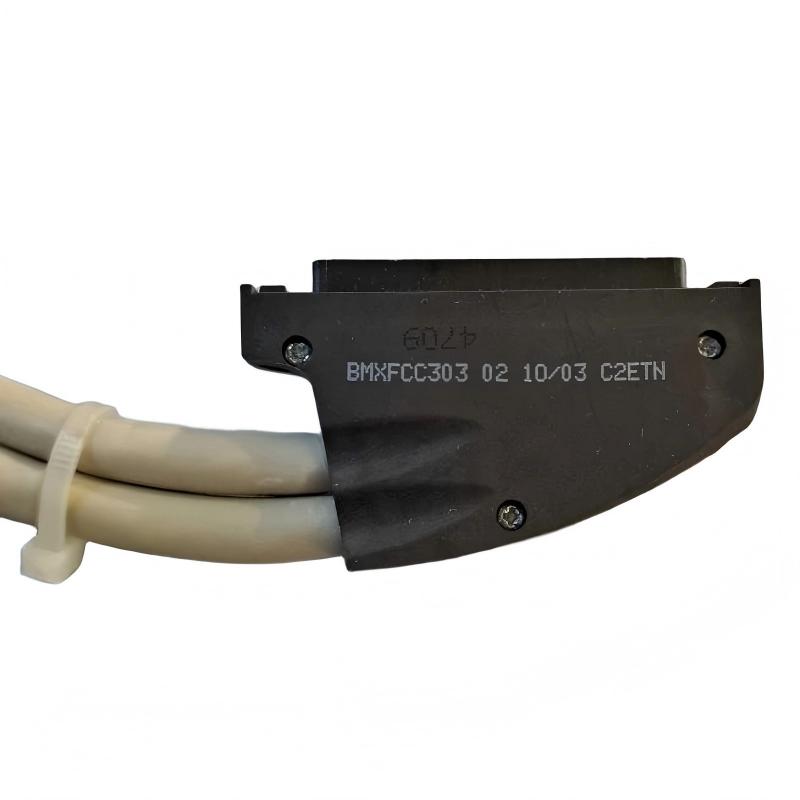

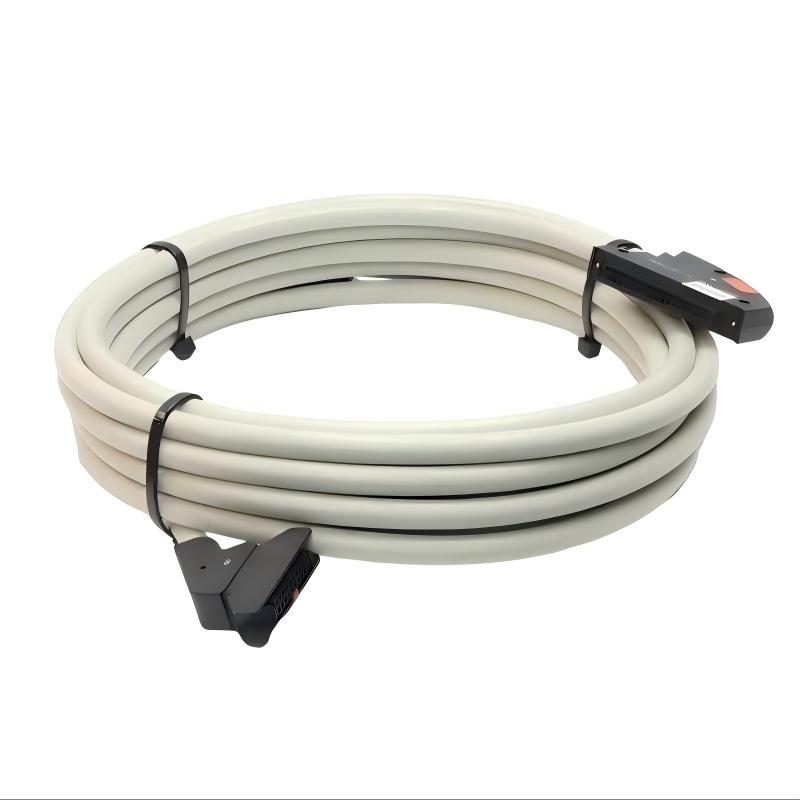

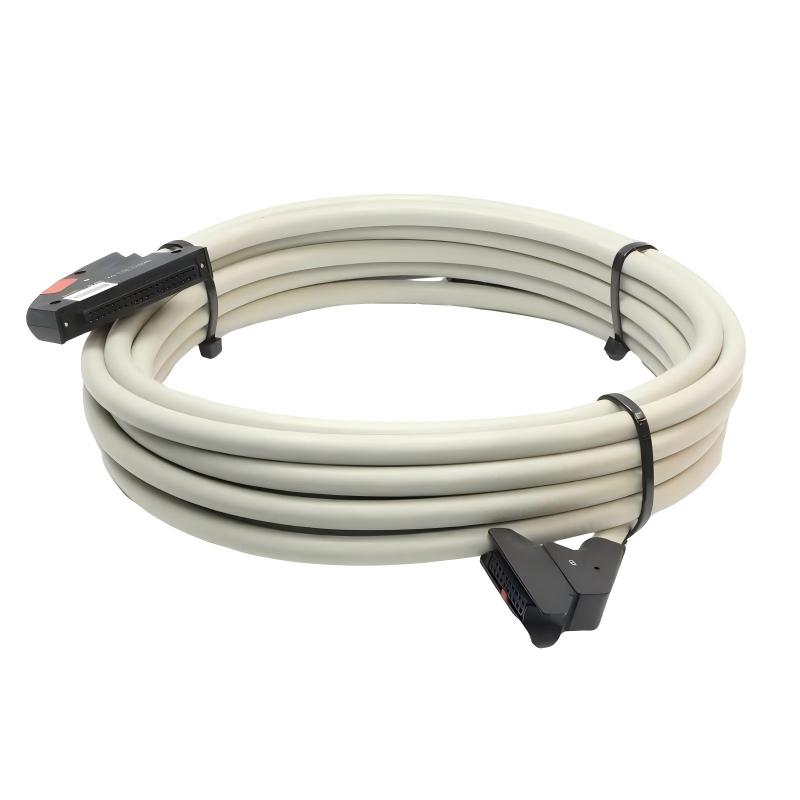

Schneider BMXFCC303 Cable Assemblies
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Cable Assembly / Preformed Cordset |
| Model | BMXFCC303 |
| Product Range | Modicon X80 |
| Application | Modicon M340 I/O System |
| Accessory Type | Preformed cordset for Telefast Advantys ABE7 sub-bases |
| Intended For | I/O modules with 40-way connectors |
| Number of Cables | 2 |
| Electrical Connection | 1 × 40-way connector + 2 × HE10 connectors |
| Total Number of Wires | 40 |
| Wire Cross-Section | 0.324 mm² |
| Cable Length | 3 m |
| Main Function | Provides a preassembled electrical connection between compatible Modicon X80 I/O modules and Telefast Advantys ABE7 sub-bases |
| Connection Type | Preassembled plug-in connection |
| Wiring Configuration | Factory-terminated cable assembly |
| Signal Application | I/O signal connection |
| Installation | Direct connection between compatible I/O modules and interface sub-bases |
| Maintenance | Inspect connectors, cable insulation, and wiring condition regularly |
| Replacement Requirement | Verify model, connector configuration, cable length, and I/O compatibility before replacement |
| Weight | 0.94 kg |
FAQ
1. What is the Schneider BMXFCC303 Cable Assembly?
The BMXFCC303 is a preformed cable assembly in the Schneider Electric Modicon X80 range. It is designed to connect compatible I/O modules with 40-way connectors to Telefast Advantys ABE7 sub-bases. The factory-terminated design simplifies control cabinet wiring and reduces the need for individual field wire termination.
2. What is the main function of the BMXFCC303?
The BMXFCC303 provides an organized electrical connection between a compatible Modicon I/O module and the corresponding Telefast ABE7 interface. It carries the required I/O signals through a predefined wiring arrangement. This makes it suitable for applications where a reliable and repeatable connection between PLC I/O and field interface equipment is required.
3. What connectors are used on the BMXFCC303?
The BMXFCC303 uses one 40-way connector and two HE10 connectors. The 40-way connector connects to the compatible I/O module, while the two HE10 connectors provide the interface-side connections. Both connector types should be correctly positioned and fully secured during installation.
4. Which Schneider Electric equipment is compatible with BMXFCC303?
The cable is designed for compatible Modicon X80 I/O modules with 40-way connectors and Telefast Advantys ABE7 sub-bases. Compatibility depends on the specific I/O module, pin assignment, and interface configuration. The module part number and ABE7 sub-base configuration should therefore be checked before installation.
5. Can BMXFCC303 be used with a standard 40-way connector system?
Not necessarily. The physical connector format alone does not determine electrical compatibility. The pin assignment, signal allocation, connector configuration, and corresponding Telefast interface must match the BMXFCC303 wiring arrangement. Using it with an unrelated 40-way system may result in incorrect signals or improper I/O operation.
6. What should be checked if an I/O channel does not work with BMXFCC303?
Start by checking that the 40-way connector and both HE10 connectors are fully inserted and properly secured. Inspect the cable for damaged insulation, excessive bending, crushed sections, or loose contacts. If the cable and connectors are in good condition, check the I/O module configuration, channel assignment, field wiring, and associated ABE7 interface.
7. Can the BMXFCC303 cable be modified or cut to suit a different installation?
Modifying the factory-terminated cable is generally not recommended because the conductors follow a predefined connection arrangement. Cutting or rewiring the assembly can change the intended pin assignment and make troubleshooting more difficult. If the installation requires a different cable length or connection arrangement, a suitable Schneider Electric cable variant should be selected.
8. How should the BMXFCC303 be maintained?
Regular inspection should focus on the connectors, cable insulation, routing, and connection points. Check for loose connectors, abrasion, excessive bending, contamination, moisture, or other physical damage that could affect signal integrity. During replacement, verify the BMXFCC303 model and connector arrangement before installation so that the original I/O wiring configuration is maintained.
Schneider BMXFCC303 Cable Assemblies is in stock. Please contact us for a quick quote and competitive pricing.
