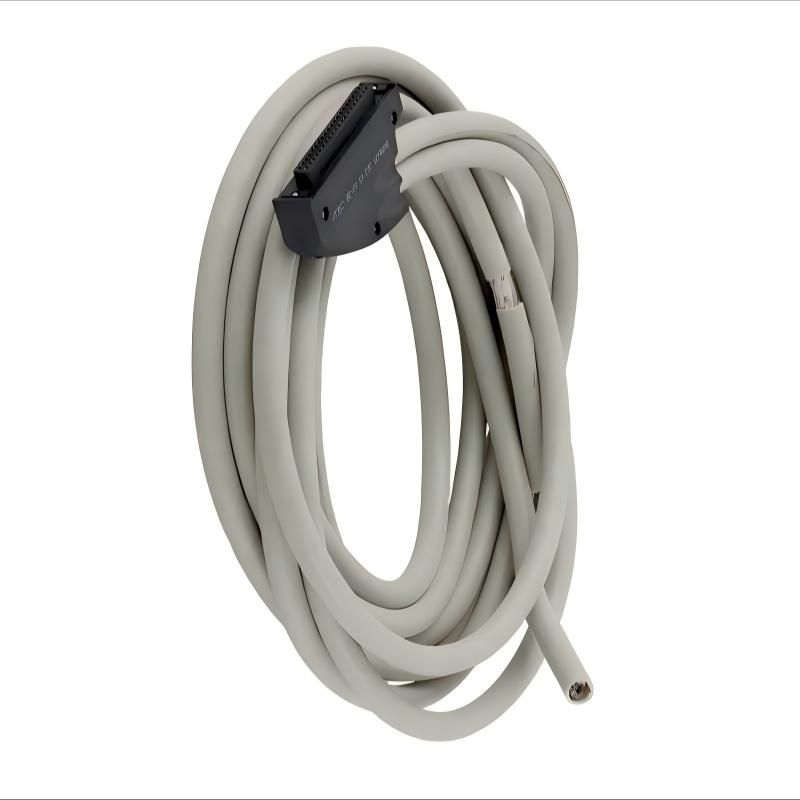

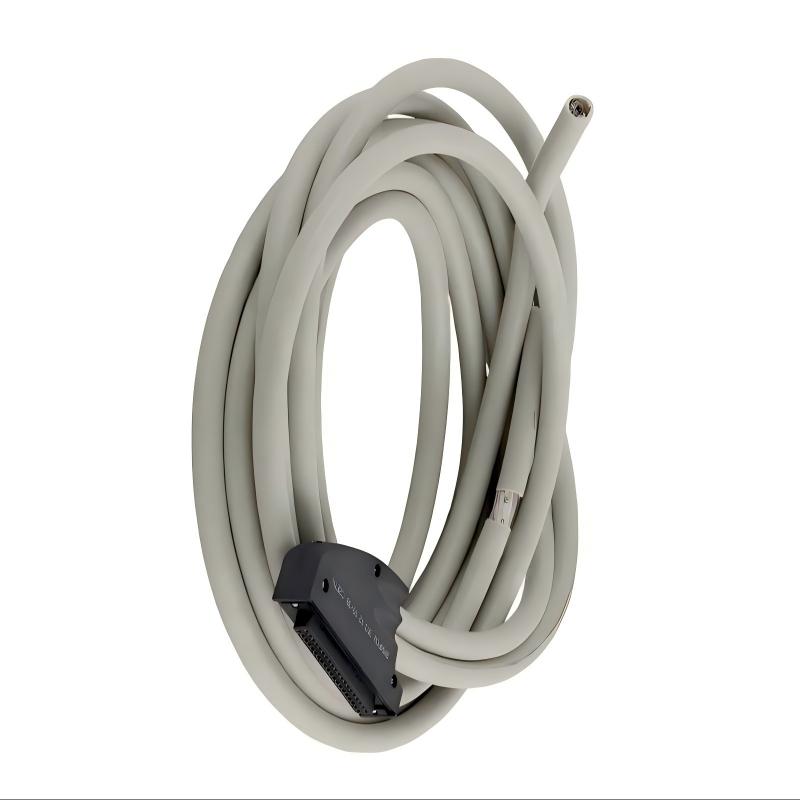

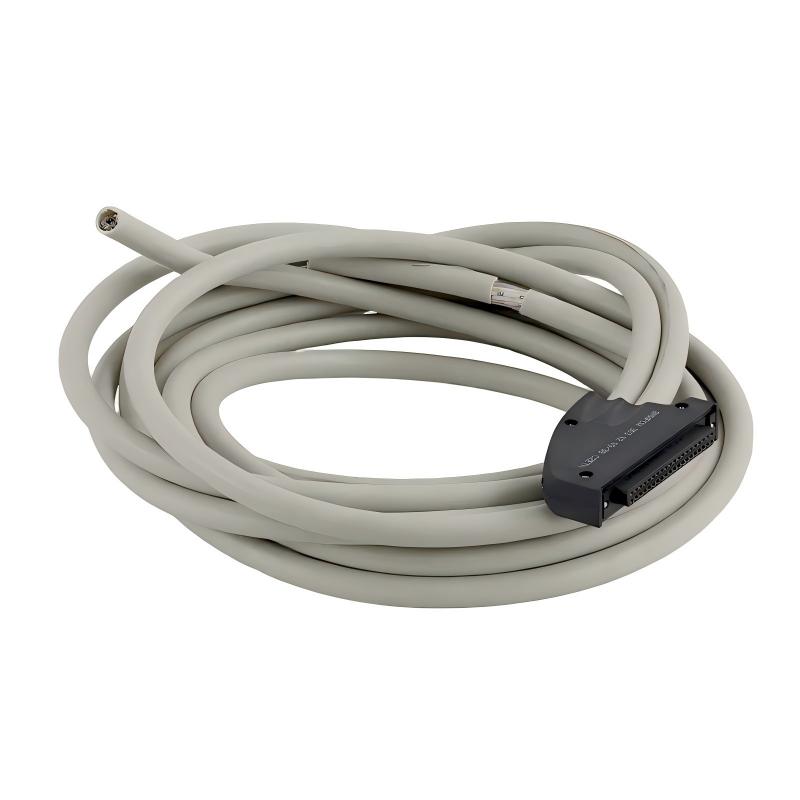

Schneider BMXFCW503 Cable Assemblies
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Cable Assembly |
| Model | BMXFCW503 |
| Product Range | Modicon X80 |
| Application | Modicon M340 I/O System |
| Accessory Type | Preformed cordset with flying leads |
| Intended For | I/O modules with 40-way connectors |
| Number of Cables | 2 |
| Electrical Connection | 1 × 40-way connector + 2 × color-coded flying-lead ends |
| Total Number of Wires | 40 |
| Wire Cross-Section | 0.324 mm² |
| AWG Gauge | AWG 22 |
| Cable Length | 5 m |
| Wire Identification | Color-coded flying leads conforming to DIN 47100 |
| Relative Impedance | 10 MΩ for ≤50 V; 100 MΩ for 50–250 V |
| Main Function | Provides a preassembled connection between compatible Modicon X80 I/O modules and field sensors or pre-actuators |
| Wiring Configuration | 2 cable sheaths, each containing 20 wires |
| Installation | Direct connection to a compatible 40-way I/O module |
| Signal Application | I/O signal connection |
| Maximum Connection Screw Torque | 0.8 N·m |
| Maintenance | Check connectors, cable sheaths, conductors, and termination points regularly |
| Replacement Requirement | Verify the model, connector configuration, cable length, and I/O compatibility before replacement |
| Weight | 1.49 kg |
FAQ
1. What is the Schneider BMXFCW503 Cable Assembly?
The BMXFCW503 is a preformed cable assembly for Schneider Electric Modicon X80 I/O systems. It has one 40-way connector on the module side and two cable ends with color-coded flying leads for field wiring.
2. What is the main function of BMXFCW503?
BMXFCW503 provides a ready-made connection between compatible Modicon X80 I/O modules and field sensors or pre-actuators. Its preassembled construction reduces individual wiring work and makes the connection process more consistent in control cabinet installations.
3. How many wires and cable sections does BMXFCW503 have?
The cable assembly contains two cable sheaths, with 20 wires in each sheath, giving a total of 40 conductors. The conductors have a cross-section of 0.324 mm² and use AWG 22 wire size.
4. What type of connector does BMXFCW503 use?
The module side uses one 40-way connector, while the opposite side has two sets of color-coded flying leads. The flying leads conform to DIN 47100 color identification, making individual conductors easier to identify during field wiring.
5. Which Schneider Electric equipment can BMXFCW503 be used with?
BMXFCW503 is designed for Modicon X80 I/O modules equipped with 40-way connectors and is used within Modicon M340 I/O installations. The specific module reference should always be checked before installation because connector compatibility alone does not confirm signal compatibility.
6. What should be checked if an I/O signal is missing when using BMXFCW503?
First check that the 40-way connector is fully inserted and secured. Then verify the corresponding flying-lead connection, conductor continuity, terminal tightness, and correct channel assignment. If the wiring is correct, check the I/O module diagnostics and the field device itself.
7. What is the maximum tightening torque for the BMXFCW503 connection screws?
The maximum tightening torque specified for BMXFCW cable connection screws is 0.8 N·m. Excessive torque should be avoided because it can damage or break conductors and may result in intermittent or unreliable connections.
8. How should BMXFCW503 be maintained?
Regular maintenance should include inspection of the 40-way connector, cable sheaths, flying leads, and field termination points. Check for loose connections, damaged insulation, conductor breakage, excessive bending, or contamination, especially when the cable is installed in an environment with vibration or frequent cabinet maintenance.
Schneider BMXFCW503 Cable Assemblies is in stock. Please contact us for a quick quote and competitive pricing.
