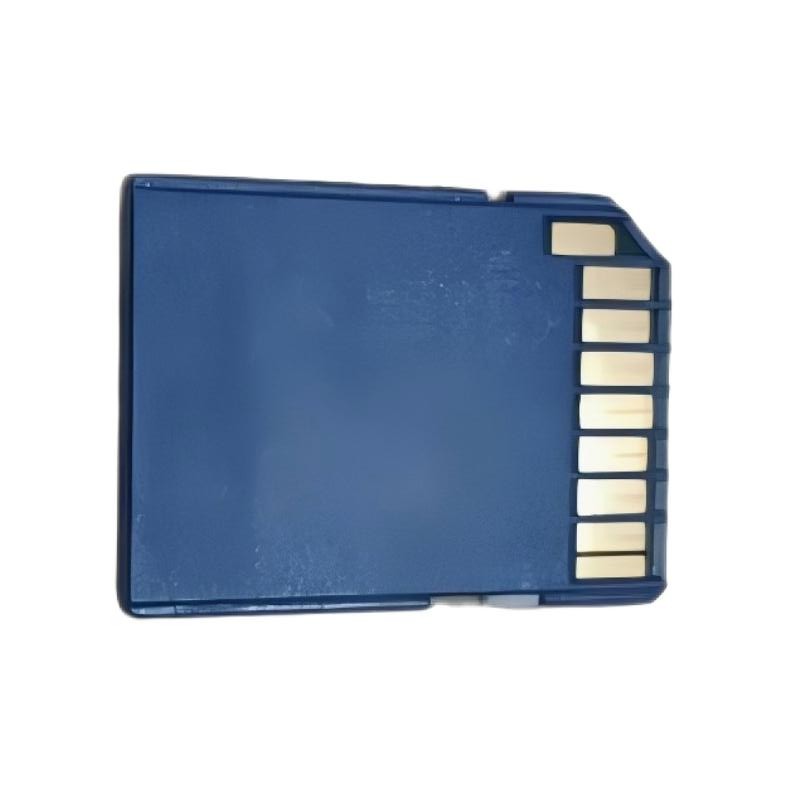

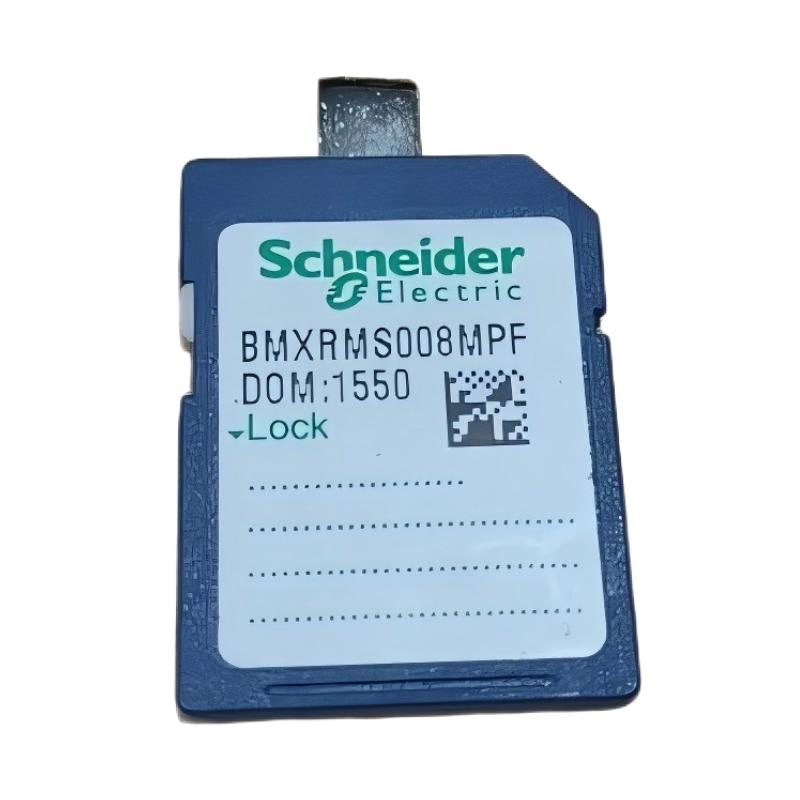

1. What is the primary function of the Schneider BMXRMS008MPF Memory Card?

The Schneider BMXRMS008MPF Memory Card is a storage component designed for Schneider Modicon M340 automation systems. It is mainly used to store PLC application programs, system configuration parameters, and project-related data.

In industrial control systems, this memory card helps engineers perform program backup, system recovery, and equipment maintenance operations. When a PLC processor requires replacement or a system failure occurs, the stored application data can be used to quickly restore the original control program and reduce equipment downtime.

The BMXRMS008MPF uses non-volatile memory technology, allowing stored information to remain available even after power loss.

This memory card is an important auxiliary component for application management and system maintenance within Modicon M340 PLC platforms.

2. Which Schneider automation systems are compatible with the BMXRMS008MPF Memory Card?

The BMXRMS008MPF is mainly designed for Schneider Modicon M340 PLC systems and provides additional storage capability for compatible processor modules.

Within the M340 automation platform, the memory card can be used to store user-developed PLC programs, system configuration files, and project backup information.

Engineers can use the card for program transfer, equipment maintenance, and control system recovery tasks.

Compared with general-purpose storage devices, dedicated industrial memory cards provide better compatibility and operational stability for automation applications.

The actual installation and usage method should follow the specifications of the PLC processor and system configuration.

3. What types of data can be stored on the BMXRMS008MPF?

The BMXRMS008MPF can store different types of data related to PLC operation, including user application programs, system configuration files, control parameters, and project backup information.

During automation project development, engineers usually save completed PLC programs to the memory card for future maintenance and recovery purposes.

When a controller failure occurs, hardware replacement is required, or the same control solution needs to be duplicated, the stored data can help restore the application quickly.

The memory card supports efficient PLC data management and reduces the risks associated with program loss or system configuration errors.

4. What are the common failure symptoms of the BMXRMS008MPF Memory Card?

When the BMXRMS008MPF experiences problems, the PLC system may show symptoms such as memory card recognition failure, program loading errors, unsuccessful backup operations, or abnormal data recovery.

These issues may be caused by several factors, including corrupted files, storage media failure, interrupted write operations, or improper removal during data transfer.

During troubleshooting, technicians should first confirm whether the PLC processor can detect the memory card correctly and review system diagnostic information.

The stored files should also be checked to ensure data integrity and compatibility with the current PLC configuration.

If the memory card is damaged, a valid backup should be used for recovery and the storage card should be replaced with a compatible unit.

5. How should the BMXRMS008MPF be used for PLC program backup?

To use the BMXRMS008MPF for PLC program backup, engineers should perform data transfer through Schneider programming and configuration software.

First, ensure that the PLC system is operating normally and establish communication between the engineering software and the controller.

Then transfer the user program, system configuration data, and required project files to the memory card.

After completing the backup process, verify that the stored files are complete and available for future recovery operations.

Regular PLC program backup using the BMXRMS008MPF helps minimize the impact of unexpected failures and improves automation system maintenance efficiency.

6. What should be considered when installing the BMXRMS008MPF Memory Card?

Before installing the BMXRMS008MPF, confirm that the PLC processor supports this memory card and that the system is ready for maintenance operations.

During installation, avoid touching the contact area of the memory card to prevent contamination or static discharge from affecting data communication.

After inserting the card, check whether the PLC system recognizes the memory card correctly and verify the operating status through diagnostic information.

The memory card should not be removed during active read/write operations because unexpected removal may damage stored program files.

Following correct installation procedures helps maintain data reliability and improves system stability.

7. How does the BMXRMS008MPF improve industrial automation system maintenance efficiency?

The BMXRMS008MPF improves automation maintenance efficiency by providing reliable program storage and backup capabilities.

During equipment repair or controller replacement, engineers can quickly restore PLC programs and system configurations using the stored data, reducing the time required for reprogramming and commissioning.

For production equipment that operates continuously, maintaining updated program backups helps reduce the impact of unexpected hardware failures.

The memory card also supports efficient program duplication and standardized deployment in automation projects, improving engineering efficiency.

Therefore, the BMXRMS008MPF is not only a storage device but also an important tool for PLC system management and maintenance.

8. How can the service life of the Schneider BMXRMS008MPF Memory Card be extended?

The service life of the BMXRMS008MPF can be extended through proper operation, environmental control, and regular maintenance.

During use, avoid unnecessary repeated write operations and ensure that all data transfer processes are completed before removing the memory card.

The installation environment should be maintained properly to reduce the effects of excessive temperature, moisture, vibration, and electromagnetic interference.

Regularly checking stored files and maintaining multiple valid backups can further improve data security.

With correct handling and preventive maintenance, the BMXRMS008MPF can provide reliable long-term storage performance in Schneider Modicon M340 automation systems.
