1. What is the primary function of the Schneider BMXRMS128MPF Memory Card?

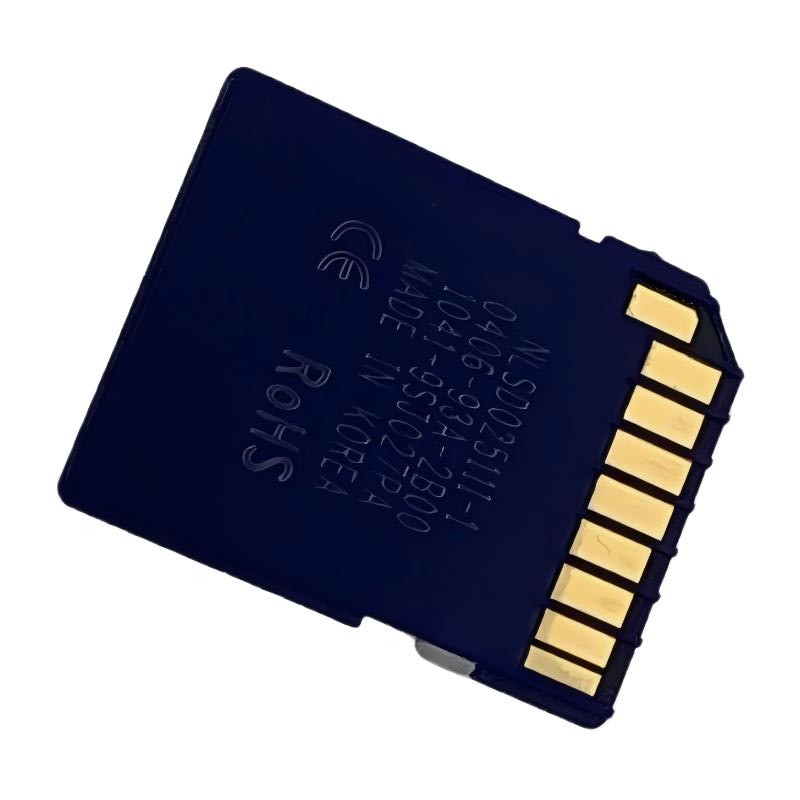

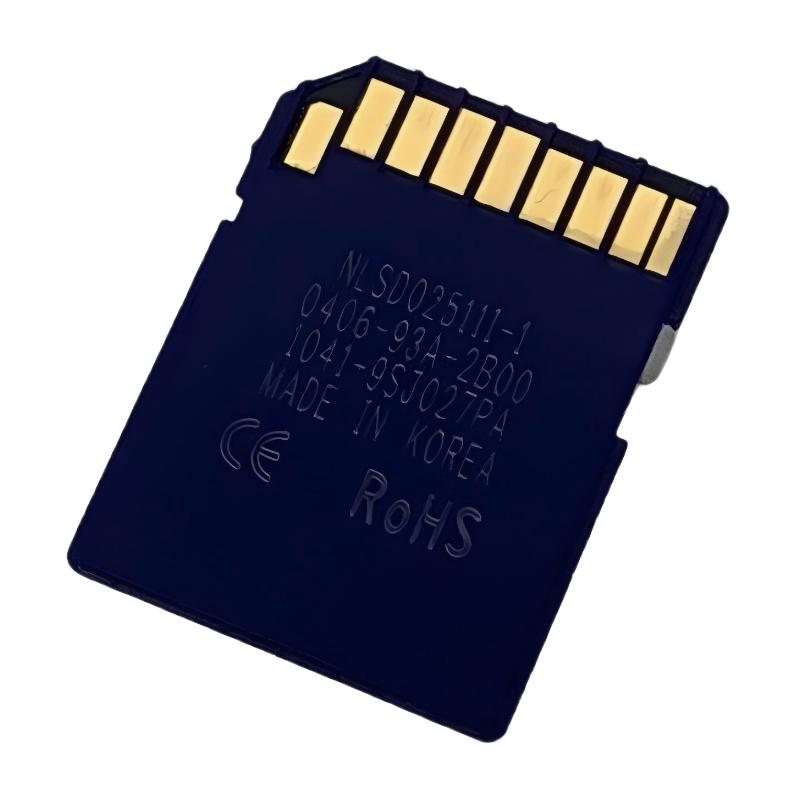

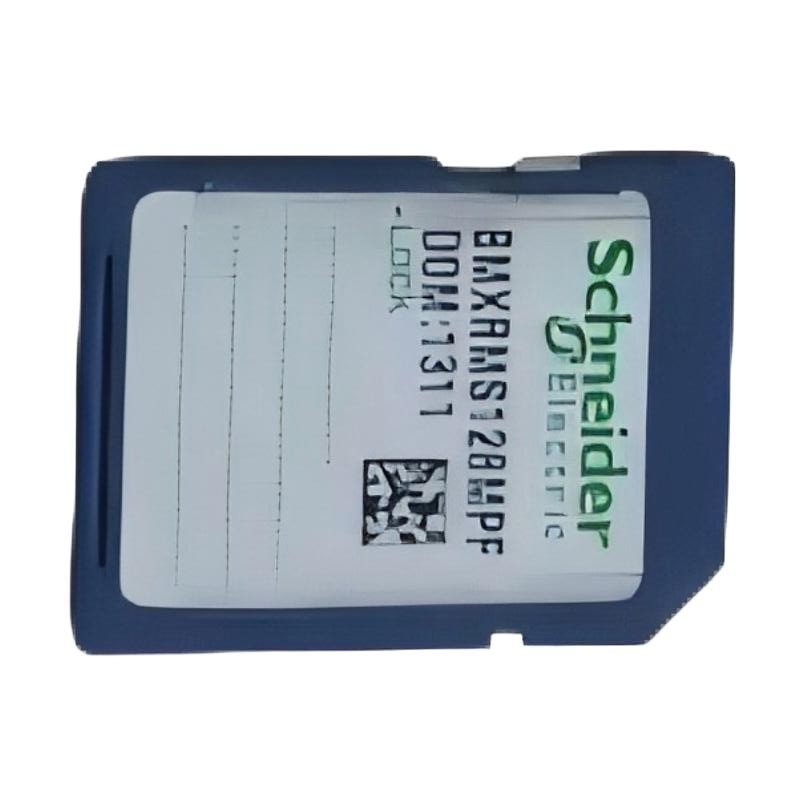

The Schneider BMXRMS128MPF Memory Card is a storage component designed for Schneider Modicon M340 PLC systems. It is mainly used for storing PLC user programs, system configuration parameters, and application-related data.

In industrial automation projects, this memory card allows engineers to perform program backup, system recovery, and equipment maintenance operations. When a PLC controller needs replacement or a system failure occurs, the stored data can be used to quickly restore the original application program and reduce equipment downtime.

The BMXRMS128MPF uses non-volatile memory technology, allowing stored information to remain available even after power interruption.

This memory card provides a reliable data management solution and plays an important role in maintaining Modicon M340 automation systems.

2. Which Schneider PLC systems are compatible with the BMXRMS128MPF Memory Card?

The BMXRMS128MPF is mainly designed for Schneider Modicon M340 PLC systems and is installed in compatible processor modules to provide additional storage capability.

Within the M340 platform, this memory card can store user-developed control programs, system configuration files, and project backup data.

Engineers can use the BMXRMS128MPF for program transfer, equipment recovery, and automation system maintenance.

Because it is designed specifically for industrial PLC applications, the memory card provides improved compatibility and operational reliability compared with standard commercial storage products.

The actual installation and configuration should follow the requirements of the selected Modicon M340 processor module.

3. What types of data can be stored on the BMXRMS128MPF?

The BMXRMS128MPF can store different types of PLC-related information, including user application programs, system configuration parameters, control logic files, and project backup data.

During automation commissioning, engineers typically save the completed PLC application to the memory card for future maintenance and recovery operations.

If a controller failure occurs, a processor module needs replacement, or the same automation solution needs to be deployed on another system, the stored data can help restore the application quickly.

By providing reliable data storage, the BMXRMS128MPF reduces the risk of program loss and improves the efficiency of automation system management.

4. What are the common failure symptoms of the BMXRMS128MPF Memory Card?

When the BMXRMS128MPF experiences problems, the PLC system may show symptoms such as memory card recognition failure, program loading errors, abnormal data recovery, or unsuccessful backup operations.

These problems may be caused by corrupted data, unexpected power interruption during writing, memory card failure, or improper removal.

During troubleshooting, technicians should first check whether the PLC processor can properly detect the memory card and review system diagnostic information.

The stored program files should also be verified to ensure they are complete and compatible with the current PLC configuration.

If the memory card is damaged, a valid backup file should be used for system recovery, and the card should be replaced with a compatible unit.

5. How should the BMXRMS128MPF be used for PLC program backup?

To use the BMXRMS128MPF for PLC program backup, engineers should perform the operation through Schneider PLC programming software.

First, confirm that the PLC system is operating normally and establish communication between the engineering software and the controller.

Then transfer the user application program, system configuration data, and required project files to the memory card.

After completing the backup process, verify that the stored data is complete and available for future recovery.

Regular PLC program backup helps reduce the impact of unexpected equipment failures and improves maintenance efficiency in industrial automation systems.

6. What should be considered when installing the BMXRMS128MPF Memory Card?

Before installing the BMXRMS128MPF, confirm that the PLC processor supports this memory card model and that the system is ready for maintenance operations.

During installation, avoid touching the memory card connection area to prevent contamination or static discharge from affecting data communication.

After inserting the card, check that the PLC system recognizes the memory device correctly and confirm the operating status through diagnostic information.

The memory card should not be removed while data read/write operations are active, as unexpected removal may damage stored application files.

Following correct installation procedures helps improve system stability and protects important PLC data.

7. How does the BMXRMS128MPF improve industrial automation system maintenance efficiency?

The BMXRMS128MPF improves automation maintenance efficiency by providing reliable program storage and backup capabilities.

During equipment repair, controller replacement, or system recovery, engineers can quickly restore PLC programs using the stored data, reducing the time required for reprogramming and commissioning.

For production equipment operating continuously, maintaining updated program backups helps minimize the impact of unexpected hardware failures.

The memory card also supports efficient program duplication and standardized deployment for automation projects, improving engineering productivity.

Therefore, the BMXRMS128MPF is not only a storage device but also an important tool for PLC system management and maintenance.

8. How can the service life of the Schneider BMXRMS128MPF Memory Card be extended?

The service life of the BMXRMS128MPF can be extended through proper operation, environmental control, and regular maintenance.

During operation, avoid unnecessary frequent write cycles and ensure that all data storage processes are completed before removing the memory card.

The installation environment should be maintained properly to reduce exposure to high temperature, humidity, vibration, and strong electromagnetic interference.

Regularly checking stored program files and maintaining multiple valid backups can further improve data security.

With correct handling and preventive maintenance, the BMXRMS128MPF can provide reliable long-term storage performance in Schneider Modicon M340 automation systems.
