Schneider BMXXSP1200 Shielded Connection Kit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXXSP1200 |
| Product Type | Shielding Connection Kit |
| Product Range | Modicon X80 |
| Application | Cable shielding and grounding for Modicon X80 control systems |
| Compatible Backplane | BMXXBP1200 / BMEXBP1200 |
| Number of Slots | 12 |
| Installation Position | Under the Modicon X80 rack |

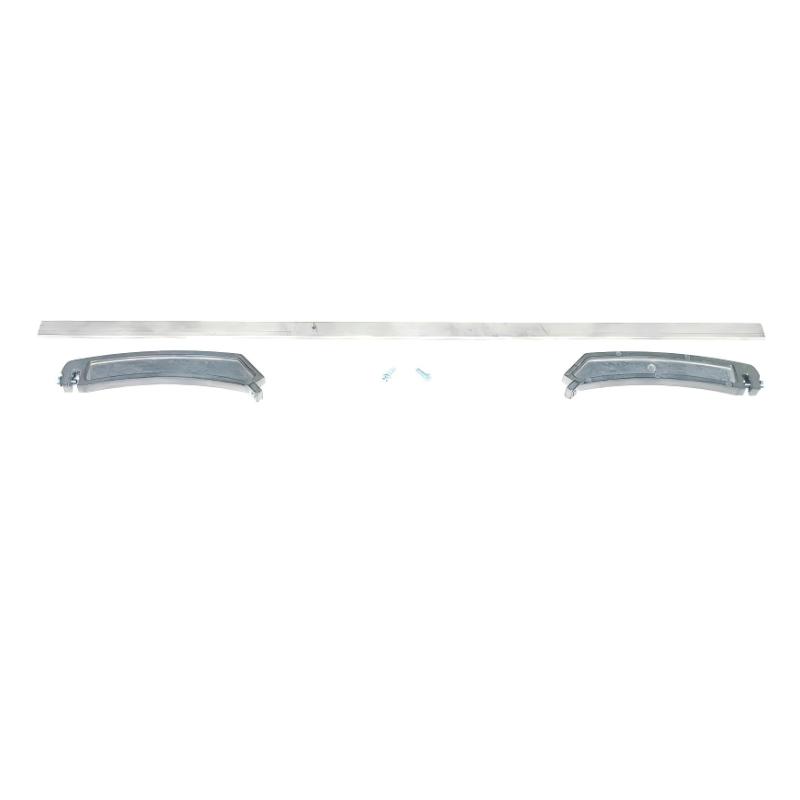

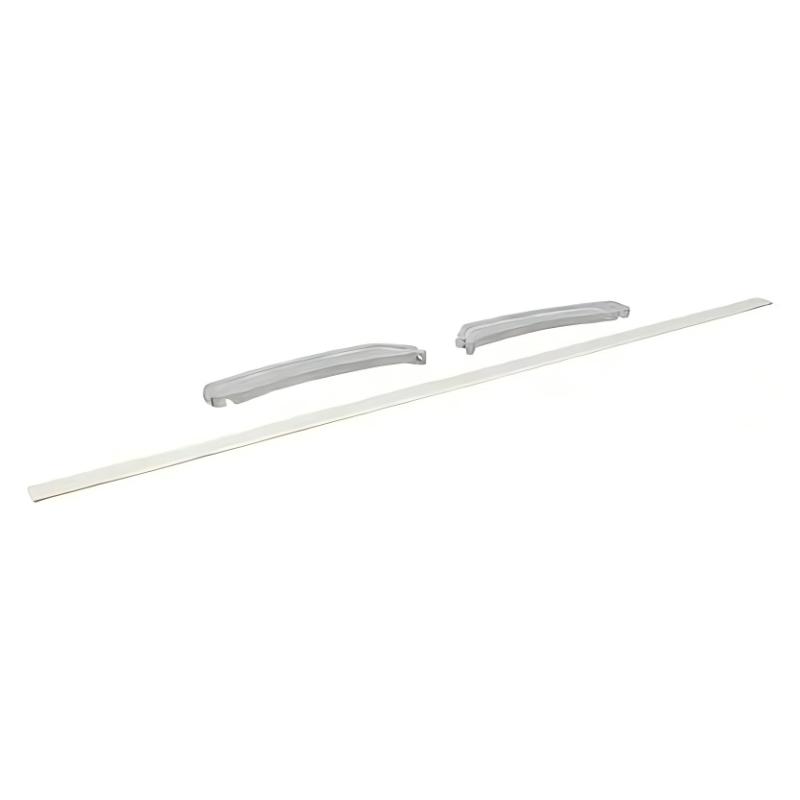

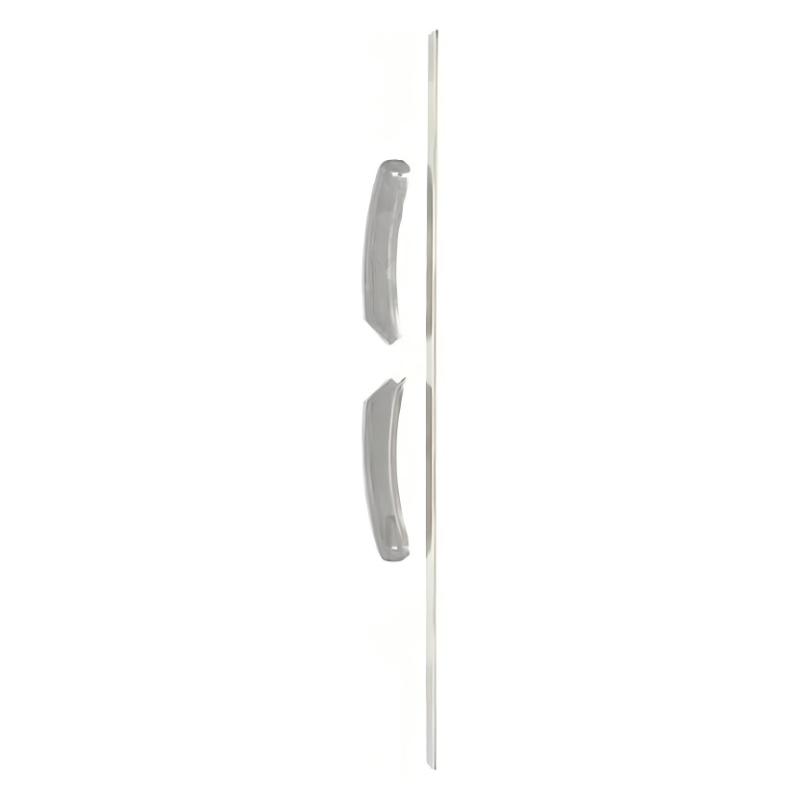

| Kit Composition | 1 metal bar and 2 sub-bases |
| Main Function | Connects cable shielding directly to ground to reduce electromagnetic interference |
| Protection Function | Helps protect the control system against electromagnetic disturbances and electrostatic discharge |
| Applicable Cables | Shielded cables for analog, counter, encoder interface, and motion control modules |
| Applicable Interface | Shielded connection between an XBT console and processor |
| Clamping Rings | STBXSP3010 / STBXSP3020, selected according to cable cross-section |
| Clamping Ring Range | STBXSP3010: 1.5–6 mm²; STBXSP3020: 5–11 mm² |
| Grounding Terminal | Not included |
| Installation Method | Mounted on the Modicon X80 rack |
| Maintenance | Check the metal bar, sub-bases, clamping rings, cable shields, and grounding connections |
| Dimensions | 520 × 90 × 45 mm |
| Weight | 0.4 kg |
FAQ
1. What is the main function of the Schneider BMXXSP1200?
The BMXXSP1200 provides a dedicated connection point for cable shields on a 12-slot Modicon X80 rack. It connects the cable shielding directly to the rack grounding structure, helping reduce electromagnetic interference and electrostatic disturbances affecting analog, counter, encoder, and motion control signals.
2. Which Modicon X80 racks are compatible with the BMXXSP1200?
The BMXXSP1200 is designed for 12-slot Modicon X80 racks, including the BMXXBP1200 and BMEXBP1200 families. It can also be used with certain redundant power supply rack configurations where Schneider specifies BMXXSP1200. The rack type should always be checked before installation.
3. What components are included in the BMXXSP1200 kit?
The standard kit consists of one metal bar and two sub-bases. The metal bar provides the mechanical and electrical connection point for cable shields, while the two sub-bases secure the assembly to the rack. Clamping rings and the grounding terminal are not included as standard components.
4. Which cables can be connected using the BMXXSP1200?
The kit is intended for shielded cables used with analog modules, counter modules, encoder interface modules, and motion control modules. It can also be used for the shielded connection between an XBT operator console and the processor. The cable shield should make reliable metallic contact with the clamping ring and metal bar.
5. Are STBXSP3010 and STBXSP3020 included with the BMXXSP1200?
No. The STBXSP3010 and STBXSP3020 clamping rings are ordered separately. STBXSP3010 is intended for cables with a cross-section of approximately 1.5–6 mm², while STBXSP3020 is intended for approximately 5–11 mm². The correct ring should be selected according to the actual cable construction and size.
6. How does the BMXXSP1200 help reduce electromagnetic interference?
The BMXXSP1200 provides a short and defined path for connecting the cable shield to ground. A properly terminated shield helps prevent electromagnetic noise from coupling into sensitive control signals. This is particularly important around variable-frequency drives, motors, contactors, power cables, and other equipment that can generate electrical interference.
7. What problems can occur if the BMXXSP1200 shielding connection is loose?
A loose or poorly grounded shielding connection can reduce the effectiveness of the cable shield. Depending on the application, this may result in unstable analog readings, encoder signal disturbances, counting errors, communication problems, or intermittent motion-control faults. The metal bar, clamping rings, and grounding connections should therefore remain mechanically secure and electrically continuous.
8. What should be checked when installing or replacing the BMXXSP1200?
First confirm that the shielding kit matches the rack configuration. During installation, ensure that the sub-bases and metal bar are correctly secured and that the cable shield has firm metallic contact through the appropriate clamping ring. The grounding connection should also be checked after installation. Schneider installation documentation specifies a maximum tightening torque of 0.5 N·m for the sub-base-to-rack screws and 0.75 N·m for the metal-bar-to-sub-base screws.
Schneider BMXXSP1200 Shielded Connection Kit is in stock. Please contact us for a quick quote and competitive pricing.
