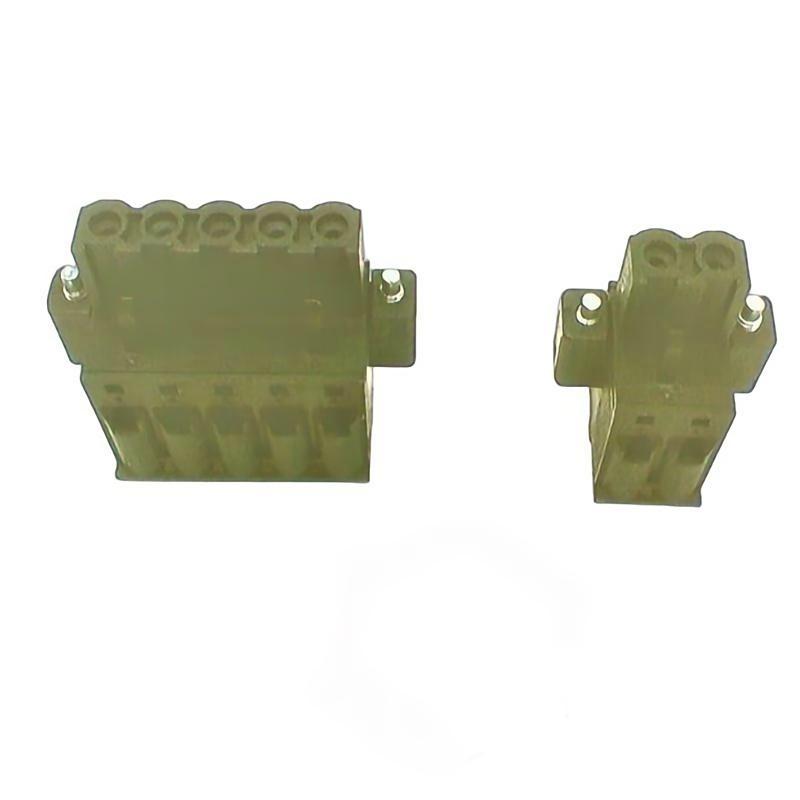

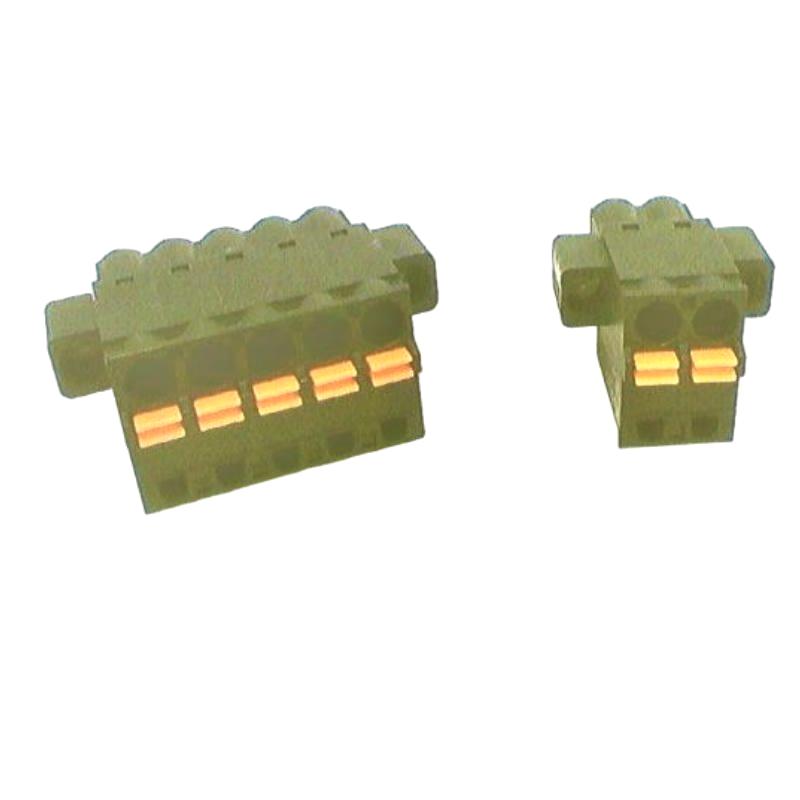

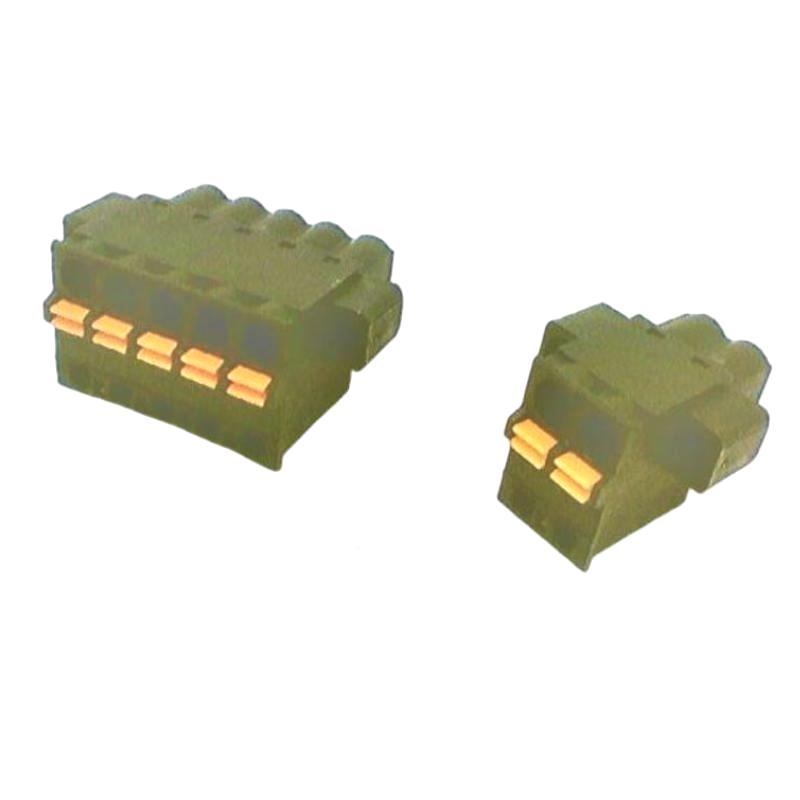

Schneider BMXXTSCPS20 Detachable Connector
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXXTSCPS20 |
| Product Type | Detachable Connector Kit |
| Product Range | Modicon M340 / Modicon X80 |
| Accessory Type | Connection Accessory |
| Application | M340 power supply modules |
| Terminal Type | Spring-type removable terminals |
| Kit Composition | One 5-way terminal block and one 2-way terminal block |
| Compatible Power Supply Modules | BMXCPS2000, BMXCPS2010, BMXCPS3020, BMXCPS3500 |
| Connection Function | Power supply and auxiliary 24 VDC sensor connections, depending on the compatible power supply module |
| Installation Type | Removable front-mounted terminal connection |
| Replacement Type | Separately ordered replacement connector kit |
| Guidance System | Included to help prevent incorrect insertion of the terminal block |
| Dimensions | 52 × 15 × 10 mm |
| Weight | 0.015 kg |
FAQ
1. What is the main function of the Schneider BMXXTSCPS20?
The BMXXTSCPS20 is a set of two removable spring-type terminal blocks used with Modicon M340 power supply modules. It provides a detachable wiring interface for connecting the power supply module to the control system while allowing the terminal blocks to be removed without disconnecting each individual field wire.
2. Which power supply modules are compatible with the BMXXTSCPS20?
The BMXXTSCPS20 is compatible with BMXCPS2000, BMXCPS2010, BMXCPS3020, and BMXCPS3500 power supply modules. The connector arrangement should be checked against the exact power supply model before replacement because the terminal functions depend on the module configuration.
3. What is included in the BMXXTSCPS20 kit?
The kit contains one 5-way spring terminal block and one 2-way spring terminal block. The two connectors provide the required removable wiring interface for the compatible M340 power supply modules. The kit is supplied as a connector accessory rather than as a complete power supply assembly.
4. What is the difference between BMXXTSCPS20 and BMXXTSCPS10?
Both references provide a set of two removable connectors for compatible M340 power supply modules, but the terminal technology is different. BMXXTSCPS20 uses spring-type terminals, while BMXXTSCPS10 uses cage-clamp terminals. The correct version should match the required wiring method and the applicable installation configuration.
5. Can the BMXXTSCPS20 terminal blocks be removed while the power supply is energized?
No. The power supply module should be disconnected from the power source before connecting or disconnecting its removable terminal blocks. Removing a terminal block under energized conditions can expose personnel and equipment to electrical hazards and may also cause unintended interruptions or damage to the installation.
6. How does the spring-type terminal connection work?
The spring mechanism maintains mechanical pressure on the conductor, providing a stable electrical connection without relying on a conventional screw-clamping arrangement. During installation, the conductor should be prepared according to the applicable wiring requirements and fully inserted into the correct terminal position.
7. What should be checked if a BMXXTSCPS20 connection becomes intermittent?
First inspect whether the conductor is correctly inserted and securely retained by the spring terminal. Check for damaged terminal openings, loose wiring, conductor deformation, oxidation, or contamination. The corresponding terminal position should also be verified against the power supply wiring diagram to rule out an incorrect connection.
8. What precautions should be taken when replacing the BMXXTSCPS20?
Before replacement, switch off and isolate the power supply module and verify that no hazardous voltage remains. Record the existing wire positions before removing the connector, then transfer the conductors to the corresponding terminals on the replacement connector. After installation, check conductor retention, terminal assignment, and connector seating before restoring power.
Schneider BMXXTSCPS20 Detachable Connector is in stock. Please contact us for a quick quote and competitive pricing.
