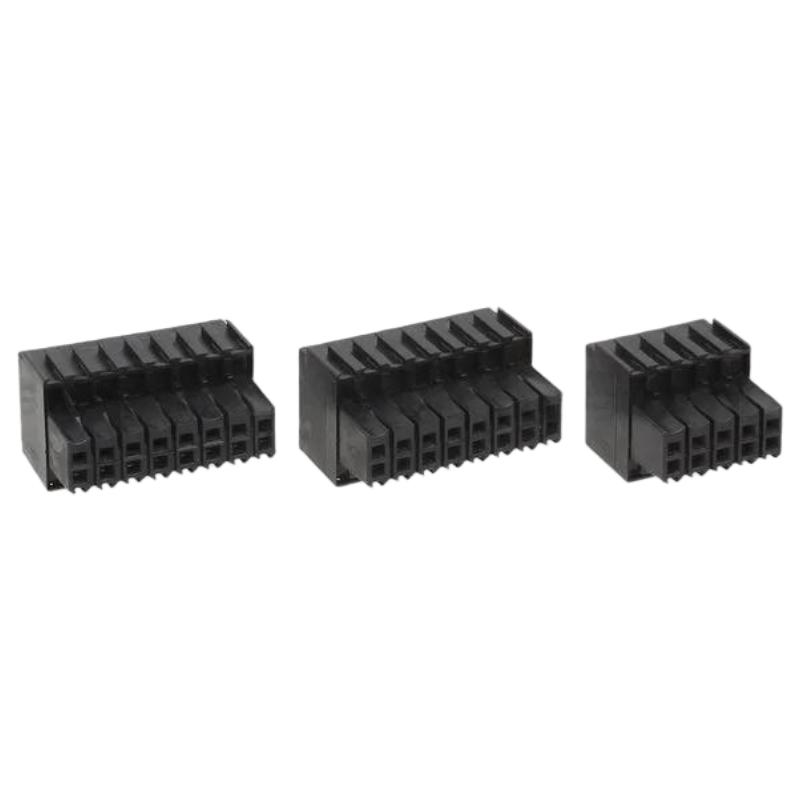

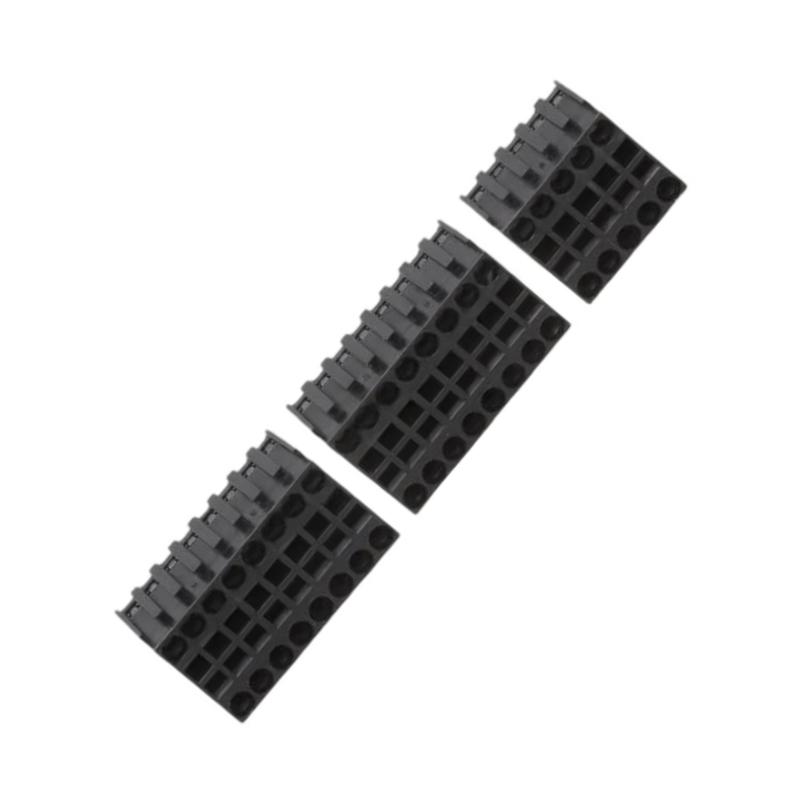

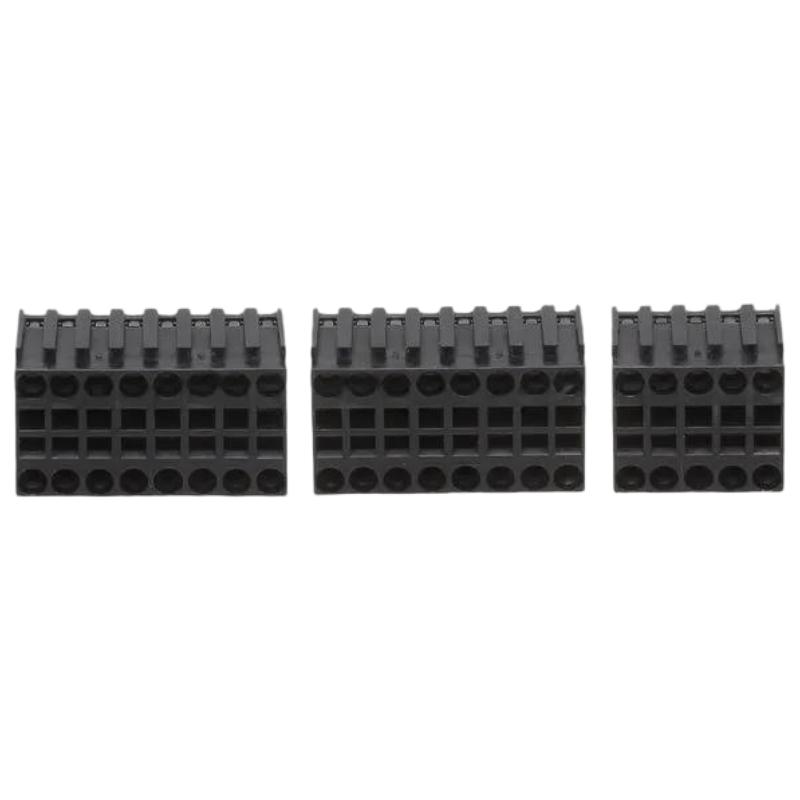

Schneider BMXXTSHSC20 Connector
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXXTSHSC20 |
| Product Type | Connector Kit |
| Product Range | Modicon M340 |
| Accessory Type | Connection Accessory |
| Application | Counter Module Connection |
| Compatible Module | BMXEHC0200 Counter Module |
| Kit Composition | 2 × 16-pin connectors + 1 × 10-pin connector |
| Terminal Type | Spring-clamp connection |
| Main Function | Provides removable wiring connections for the BMXEHC0200 counter module |
| Applicable Signals | Counter inputs, synchronization, enable, homing, capture, sensor supply and functional earth connections |
| Sensor Supply | 24 VDC sensor supply connections |
| Functional Earth | FE connection provided through the 16-pin connectors |
| Installation | Directly connected to the BMXEHC0200 counter module |
| Connection Method | Removable connector wiring |
| Weight | 0.021 kg |
| Dimensions | 52 × 20 × 12 mm |
FAQ
1. What is the main function of the Schneider BMXXTSHSC20?
The BMXXTSHSC20 is a connector kit designed for the BMXEHC0200 high-speed counter module. It provides the removable electrical interfaces required to connect external sensors, encoder signals, control inputs, sensor power, and functional earth connections to the counter module.
2. Which module is the BMXXTSHSC20 compatible with?
The BMXXTSHSC20 is specifically designed for the BMXEHC0200 counter module in the Modicon M340 platform. The connector arrangement is matched to the module’s wiring interface, so the kit should not be substituted with a connector set intended for a different X80 I/O module.
3. What connectors are included in the BMXXTSHSC20 kit?
The kit contains two 16-pin connectors and one 10-pin connector. The two 16-pin connectors handle the primary counter and sensor-related wiring, while the 10-pin connector provides the corresponding interface required by the BMXEHC0200 module.
4. What signals can be wired through the BMXXTSHSC20 connectors?
The connector interfaces support signals such as IN_A, IN_B, IN_SYNC, IN_EN, IN_REF and IN_CAP. The 16-pin connectors also provide 24 VDC sensor supply, sensor ground and functional earth connections. This allows the counter module to interface directly with sensors and encoder devices.
5. Can the BMXXTSHSC20 be used for encoder applications?
Yes. The BMXEHC0200 can be used with incremental encoder signals, and the BMXXTSHSC20 provides the connector interface required for the associated A, B and reference signal wiring. Correct terminal assignment is essential because incorrect encoder wiring can result in missing counts, incorrect direction detection or unstable position-related signals.
6. Does the BMXXTSHSC20 provide sensor power connections?
Yes. The 16-pin connector includes dedicated 24 VDC sensor supply and GND_SEN connections. These terminals can be used to provide the required sensor supply associated with the BMXEHC0200 installation. The external sensor voltage and current requirements should be checked before connecting field devices.
7. What should be checked if the counter module has an unstable or missing input signal?
Check the connector seating first, followed by the wiring at the corresponding pins. Verify the 24 VDC sensor supply, sensor ground, functional earth and signal conductors. For encoder applications, also check the A, B and reference connections. A loose connector, incorrect pin assignment, broken conductor or inadequate sensor supply can all cause unreliable counting.
8. What precautions should be taken when installing or replacing the BMXXTSHSC20?
Power should be removed from the relevant equipment before installing or removing the connectors. Record the existing wiring before replacement and transfer each conductor to the corresponding terminal. After installation, verify that all wires are securely clamped, the connectors are fully seated, and the signal assignments correspond to the BMXEHC0200 wiring diagram.
Schneider BMXXTSHSC20 Connector is in stock. Please contact us for a quick quote and competitive pricing.
