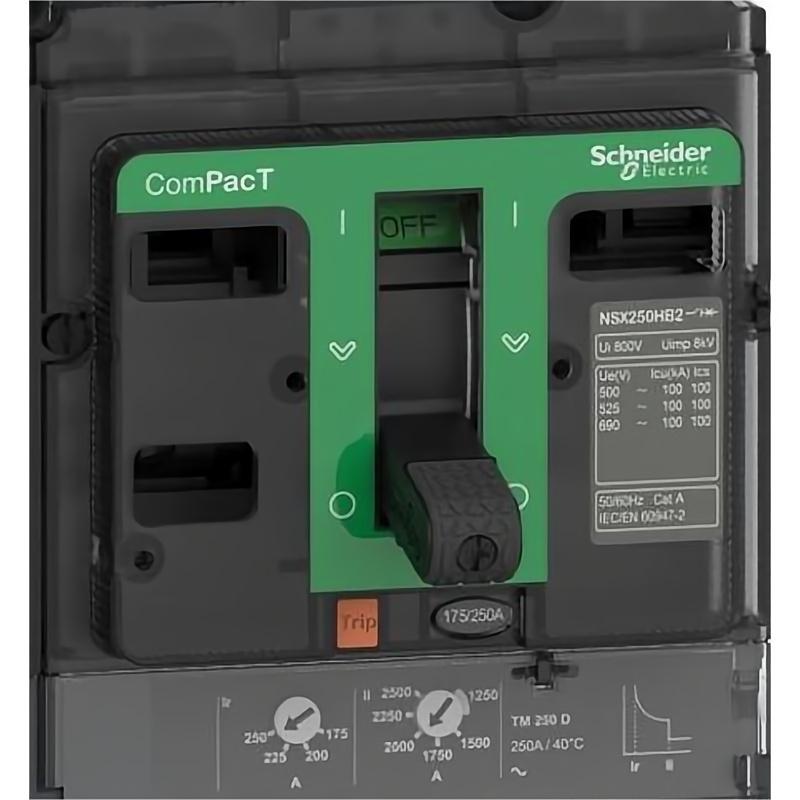

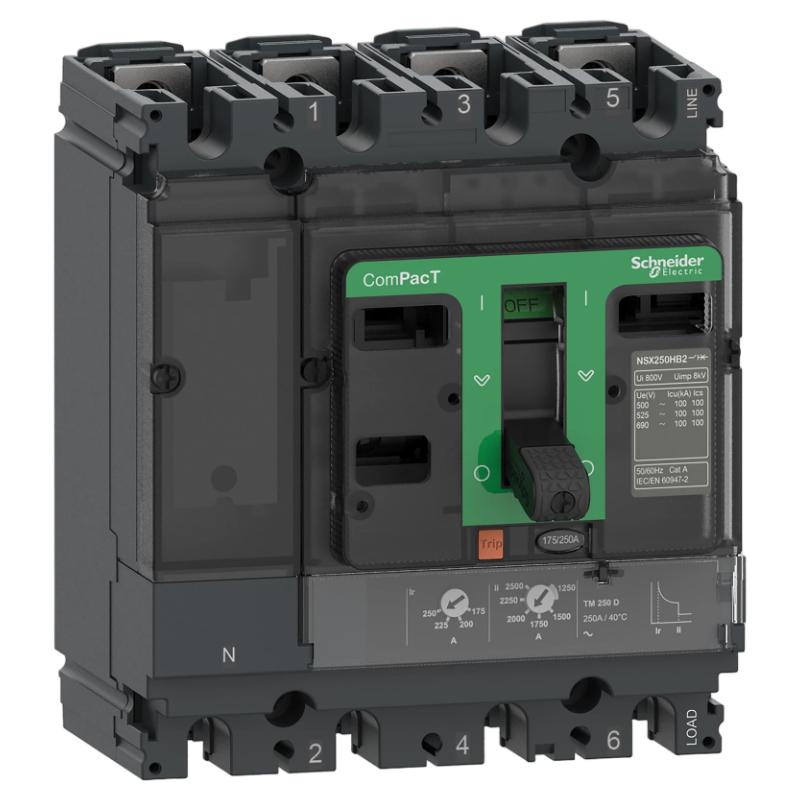

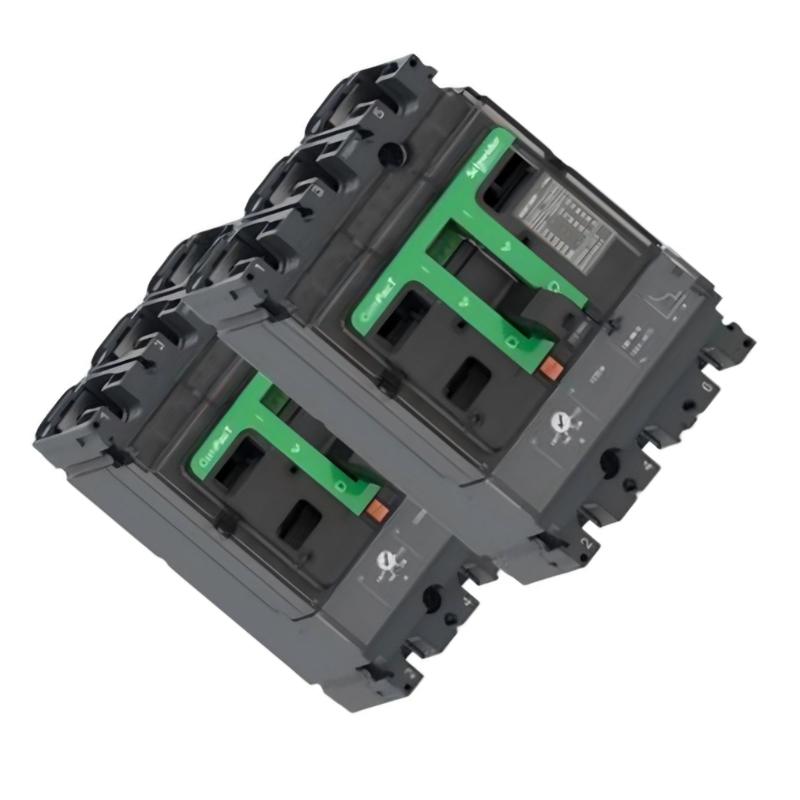

Schneider C25N6TM200 ComPacT NSX250N Circuit Breaker
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | C25N6TM200 |
| Product Type | Molded Case Circuit Breaker |
| Product Range | ComPacT NSX |
| Device Short Name | NSX250N |
| Application | Power Distribution |
| Trip Unit | TM-D |
| Trip Unit Technology | Thermal-Magnetic |
| Rated Current | 200 A at 40 °C |
| Number of Poles | 4P |
| Protected Poles | 3D |
| Neutral Protection | Neutral not protected |
| Rated Operational Voltage | 690 V AC, 50/60 Hz |
| Network Type | AC |
| Frequency | 50/60 Hz |
| Ultimate Short-Circuit Breaking Capacity | 50 kA at 380/415 V AC; 50 kA at 440 V AC |
| Breaking Capacity at 220/240 V AC | 90 kA |
| Breaking Capacity at 500 V AC | 36 kA |
| Breaking Capacity at 525 V AC | 35 kA |
| Breaking Capacity at 660/690 V AC | 10 kA |
| Protection Functions | Long-time and instantaneous protection (LI) |
| Long-Time Protection Setting | 0.7–1 × In |
| Instantaneous Protection Setting | 5–10 × In |
| Rated Insulation Voltage | 800 V AC |
| Rated Impulse Withstand Voltage | 8 kV |
| Utilisation Category | Category A |
| Suitability for Isolation | Yes, according to IEC/EN 60947-2 |
| Mounting Type | Fixed |
| Operating Mechanism | Toggle |
| Electrical Endurance | Up to 20,000 cycles depending on operating conditions |
| Mechanical Endurance | Up to 20,000 cycles |
| Dimensions | 140 × 161 × 86 mm |
| Weight | 2.8 kg |
FAQ
1. What is the main function of the Schneider C25N6TM200?
The C25N6TM200 is a 4-pole molded case circuit breaker designed for low-voltage power distribution. It provides thermal overload protection and magnetic short-circuit protection for electrical circuits. The 200 A TM-D trip unit is suitable for distribution applications where reliable protection and isolation are required.
2. What does 4P3D mean on the C25N6TM200?
4P3D means the breaker has four poles, while three poles are protected by the trip unit. The neutral pole is switched but does not have thermal-magnetic protection. This configuration is commonly used in three-phase four-wire distribution systems where the neutral conductor does not require independent overcurrent protection.
3. What type of protection does the TM-D trip unit provide?
The TM-D trip unit uses thermal-magnetic technology. The thermal function responds to sustained overcurrent conditions and provides long-time overload protection, while the magnetic function responds rapidly to high fault currents and provides instantaneous short-circuit protection. The long-time threshold can be adjusted within the specified range, while the instantaneous threshold is adjustable according to the breaker configuration.
4. What is the rated current and operating voltage of the C25N6TM200?
The breaker has a rated current of 200 A at 40 °C. Its rated operational voltage is up to 690 V AC at 50/60 Hz. The actual operating current and voltage should be selected according to the installation design, ambient conditions, conductor capacity, and applicable electrical standards.
5. What is the short-circuit breaking capacity of the C25N6TM200?
At 380/415 V AC, the C25N6TM200 provides a rated ultimate short-circuit breaking capacity of 50 kA. The available breaking capacity changes with the system voltage, reaching 90 kA at 220/240 V AC and 10 kA at 660/690 V AC. The breaker should therefore be selected according to the prospective short-circuit current at the installation point.
6. Can the C25N6TM200 be used as an isolation device?
Yes. The C25N6TM200 is suitable for isolation in accordance with IEC/EN 60947-2. When used for isolation, the installation must still comply with the applicable electrical safety requirements, and the breaker must be installed and operated within its specified ratings.
7. What should be checked if the C25N6TM200 trips repeatedly?
First determine whether the trip is caused by an overload or a short circuit. Check the actual load current against the 200 A rating, inspect downstream equipment for abnormal current consumption, and verify conductor sizing and terminal connections. If instantaneous trips occur, investigate possible short circuits or high fault currents rather than repeatedly resetting the breaker.
8. What should be considered when replacing the C25N6TM200?
The replacement breaker should have the same or an appropriately selected rated current, pole configuration, protection characteristics, voltage rating, and short-circuit breaking capacity. The 4P3D configuration is particularly important because the neutral pole is not protected. Before replacement, isolate the circuit, verify the absence of voltage, check terminal connections, and confirm that the replacement device is suitable for the actual system fault level.
Schneider C25N6TM200 ComPacT NSX250N Circuit Breaker is in stock. Please contact us for a quick quote and competitive pricing.
