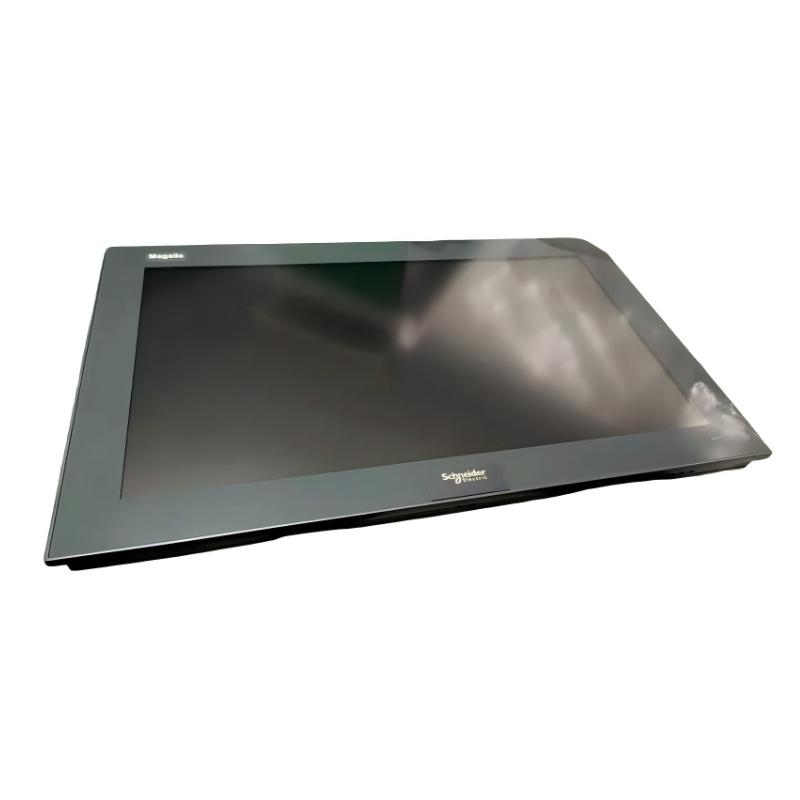

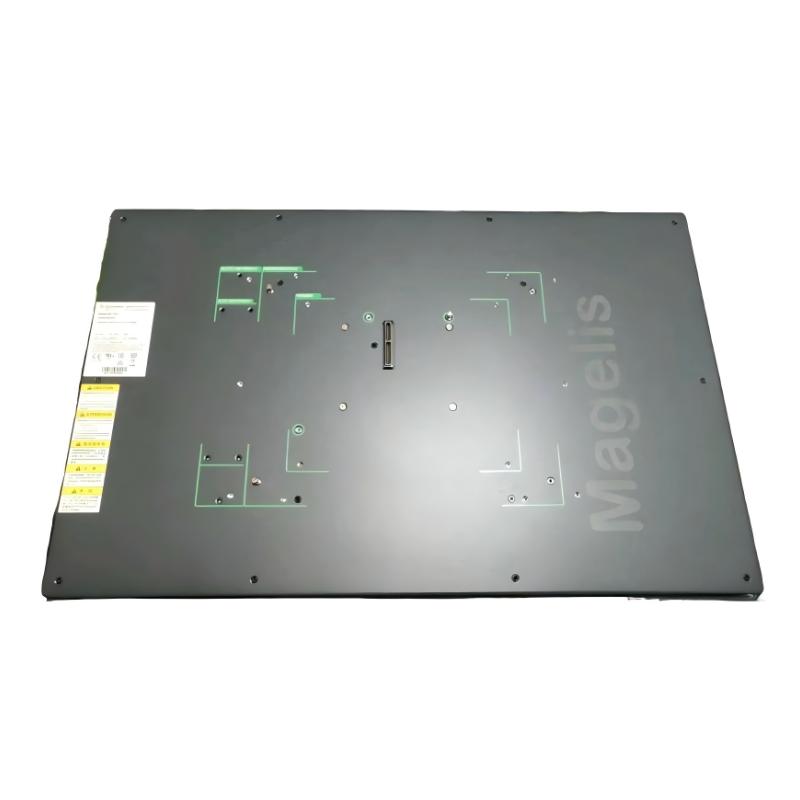

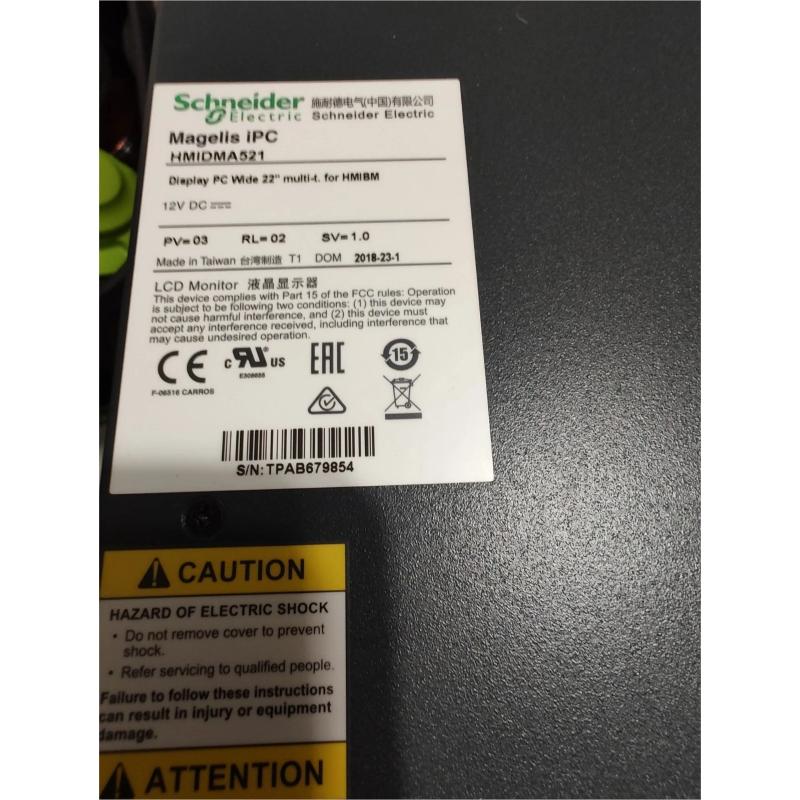

Schneider HMIDMA521 Multi-Touch Display
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIDMA521 |
| Product Type | Multi-Touch Flat Screen Display |
| Product Range | Harmony iPC |
| Terminal Type | Touchscreen Display |
| Application | Modular Box PC / Industrial Panel PC |
| Display Size | 21.5 inch |
| Display Type | LED Colour TFT LCD |
| Display Resolution | 1920 × 1080 pixels, Full HD |
| Aspect Ratio | 16:9 |
| Touch Panel | Projected Capacitive Technology (PCT) Multi-Touch |
| Touchscreen Resolution | 4096 × 4096 |
| Display Colours | 16,777,216 colors |
| Luminance | 300 cd/m² |
| Contrast Ratio | 500:1 |
| Viewing Angle | 150° horizontal × 150° vertical |
| Backlight Life | 50,000 hours at 25 °C |
| Touch Operation with Water | Supported |
| Rated Supply Voltage | 24 V DC / 100–240 V AC, 47–63 Hz |
| Supply Voltage Limits | 18–36 V DC |
| Inrush Current | 8.9 A |
| Typical Power Consumption | 45.2 W with HMIBMU / 50.7 W with HMIBMP |
| Maximum Power Consumption | 59.85 W with HMIBMU / 64.85 W with HMIBMP |
| Mounting Type | Flush Mounting |
| Installation Environment | Indoor |
| Protection Rating | IP66 / NEMA 4X |
| Status Indicator | Status LED |
| Compatible System | Harmony HMIBM Modular Box PC / HMIDAD Display Adapter |
| Communication / Display Function | Industrial display interface for Modular Box PC |
| Dimensions | 558.4 × 349.8 mm |
| Weight | 6.6 kg |
FAQ
1. What is the main function of the Schneider HMIDMA521?
The HMIDMA521 is a 21.5-inch industrial multi-touch display from the Harmony iPC range. It is designed to work with Schneider Electric Modular Box PCs and can be combined with a Harmony HMIBM Modular Box PC to form an industrial panel PC. It can also be integrated with the HMIDAD display adapter for display applications.
2. What type of touchscreen does the HMIDMA521 use?
The HMIDMA521 uses projected capacitive technology (PCT) multi-touch. The touchscreen has a resolution of 4096 × 4096 and supports operation even when water is present on the screen. This makes the display suitable for industrial environments where operators may interact with the interface frequently.
3. What is the display resolution of the HMIDMA521?
The HMIDMA521 provides a Full HD resolution of 1920 × 1080 pixels with a 16:9 aspect ratio. The LED colour TFT LCD panel supports 16,777,216 display colours and a luminance of 300 cd/m², providing a suitable visual interface for industrial monitoring, machine operation and control applications.
4. What power supply does the HMIDMA521 require?
The display supports a 24 V DC power supply and also specifies a 100–240 V AC supply option at 47–63 Hz. For DC operation, the specified supply voltage range is 18–36 V DC. The inrush current can reach 8.9 A, so the upstream power supply and protection devices should be selected accordingly.
5. Can the HMIDMA521 be used with a Schneider Harmony Modular Box PC?
Yes. The HMIDMA521 is specifically designed for integration with Harmony HMIBM Modular Box PCs. It can be combined with the Modular Box PC to create a complete industrial panel PC solution, while the HMIDAD display adapter can be used for display-only configurations.
6. Is the HMIDMA521 suitable for industrial environments?
Yes. The display is designed for indoor industrial installation and provides IP66 and NEMA 4X protection. Its front-panel protection and multi-touch PCT technology make it suitable for machine interfaces, operator stations and industrial control applications where dust, water and frequent touchscreen operation may be present.
7. What should be checked if the HMIDMA521 touchscreen does not respond correctly?
First check the display power supply and confirm that the voltage remains within the specified operating range. Then inspect the connection between the display and the associated Modular Box PC or display adapter. If the screen is wet or contaminated, clean and dry the touch surface before testing again. Persistent touch problems should be checked against the system configuration and connected hardware.
8. What should be considered when installing or replacing the HMIDMA521?
The panel cutout and mounting arrangement should be checked before installation to ensure that the display can be securely flush-mounted. The power supply must be correctly rated, and all connections should be made with the equipment safely powered down. The display should also be installed within its specified indoor environmental conditions. For replacement applications, compatibility with the existing HMIBM Modular Box PC or HMIDAD display adapter should be confirmed before commissioning.
Schneider HMIDMA521 Multi-Touch Display is in stock. Please contact us for a quick quote and competitive pricing.
