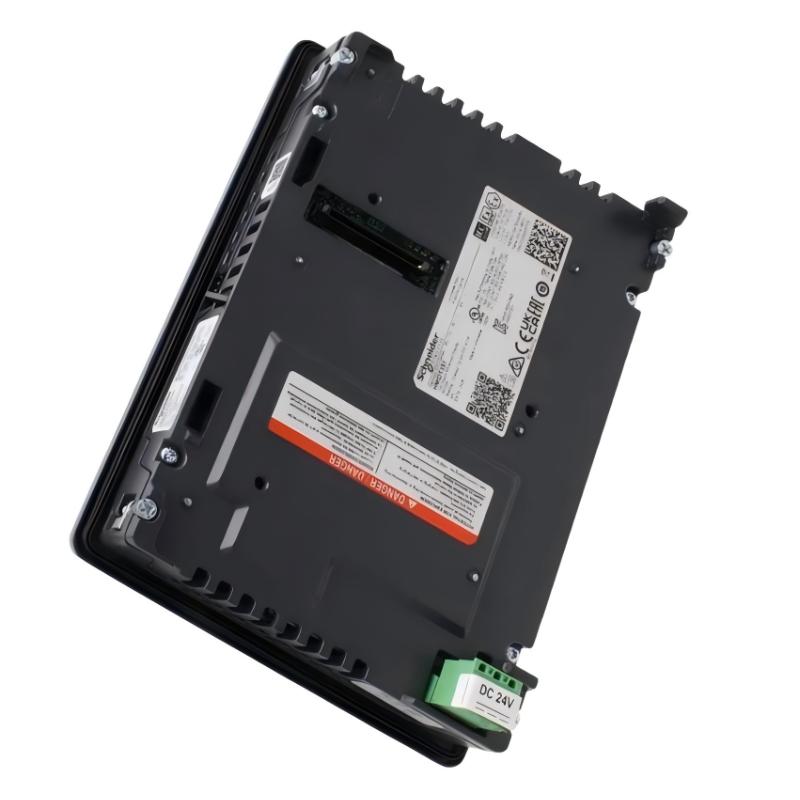

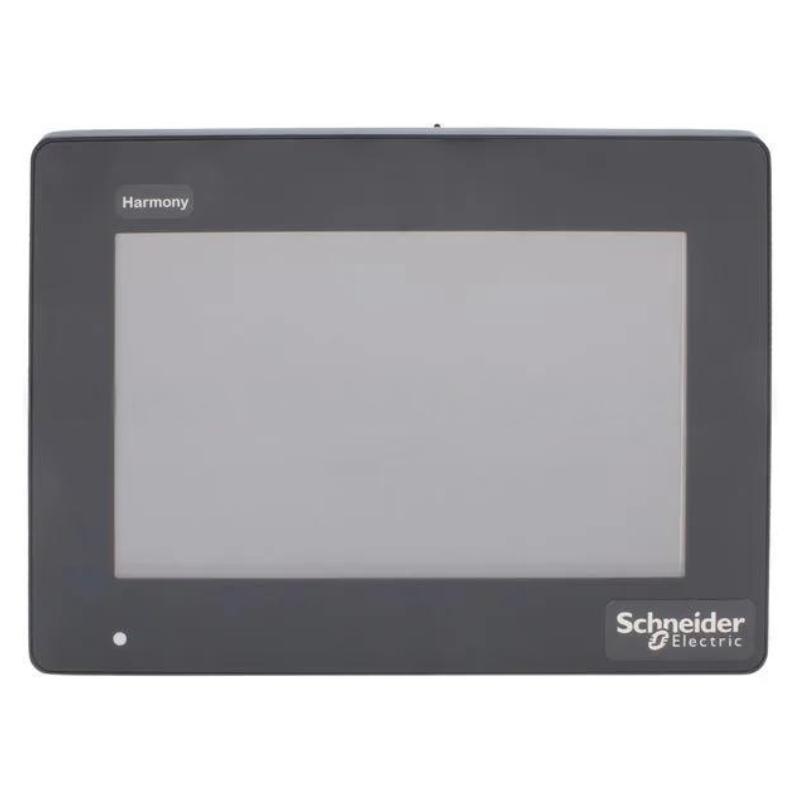

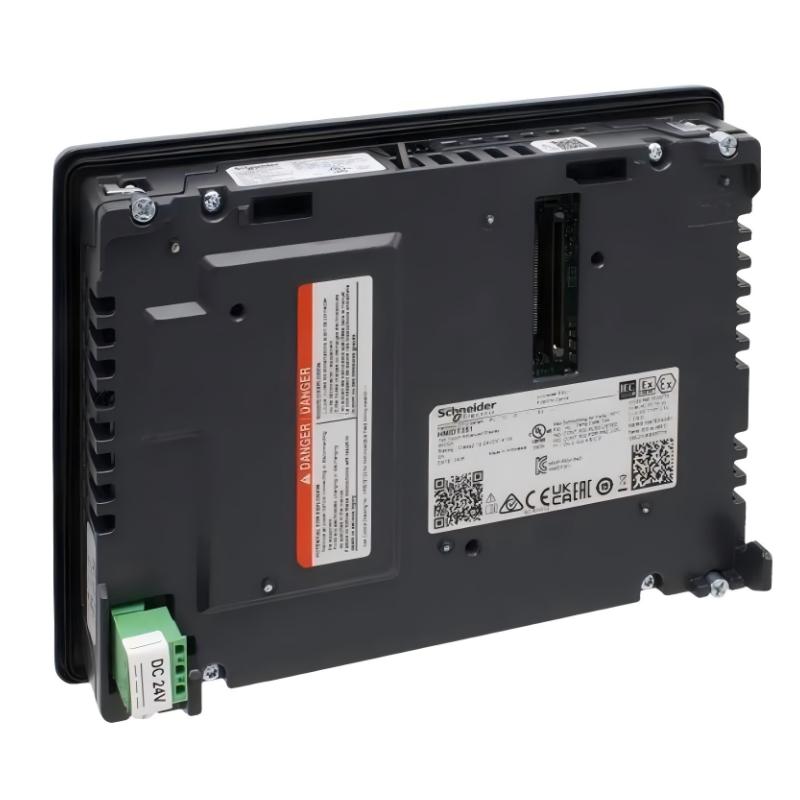

Schneider HMIDT351 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIDT351 |
| Product Type | Advanced Touchscreen Panel |
| Product Range | Harmony GTU |
| Terminal Type | Touchscreen Display |
| Display Size | 7 inch |
| Display Type | Colour TFT LCD |
| Display Resolution | 800 × 480 pixels, WVGA |
| Touchscreen Resolution | 1024 × 1024 |
| Display Colours | 262,144 colors |
| Aspect Ratio | 4:3 |
| Touch Technology | Single-touch analogue resistive |
| Backlight Lifespan | 50,000 hours |
| Rated Supply Voltage | 12–24 V DC |
| Supply Voltage Limits | 10.8–28.8 V DC |
| Power Consumption | 6.5 W |
| Inrush Current | 30 A |
| Cooling Method | Natural convection |
| Installation | Indoor installation |
| Panel Cutout | 190 (+1/-0) × 135 (+1/-0) mm |
| Front Panel Protection | IP66 / IP67 |
| NEMA Protection | NEMA 4X, front panel |
| Operating Temperature | 0–60 °C |
| Mounting Type | Panel mounting |
| Standards | UL 508, IEC 61131-2, CSA C22.2 No. 142, CSA C22.2 No. 213 |
| Certifications | cULus, RCM, CE, KCU, UKCA, UKEX |
| Dimensions | 203.6 × 148.6 × 67 mm |
| Weight | 1.2 kg |
FAQ
1. What is the main function of the Schneider HMIDT351?
The HMIDT351 is a 7-inch advanced touchscreen panel in the Harmony GTU range. It provides an operator interface for industrial automation equipment and can be used to display machine status, process information, alarms, parameters, and operator controls. It is designed as a display component within a modular HMI architecture.
2. What type of touchscreen does the HMIDT351 use?
The HMIDT351 uses a single-touch analogue resistive touchscreen with a 1024 × 1024 touch resolution. Resistive technology allows the screen to be operated using a finger or suitable stylus and is commonly used in industrial applications where reliable operation and controlled operator input are required.
3. What is the display resolution of the HMIDT351?
The HMIDT351 uses a 7-inch colour TFT LCD with an 800 × 480 pixel WVGA resolution and supports 262,144 display colours. The 4:3 display format is suitable for industrial HMI layouts where control buttons, process values, alarm information, and status indicators need to be displayed together.
4. What power supply does the HMIDT351 require?
The HMIDT351 operates from a 12–24 V DC power supply, with an allowable supply range of 10.8–28.8 V DC. Its typical power consumption is 6.5 W. The specified inrush current is 30 A, so the upstream power supply and protection components should be selected with the startup current in mind.
5. Is the HMIDT351 suitable for industrial environments?
Yes. The HMIDT351 is designed for indoor industrial installation and has IP66/IP67 protection on the front panel, with NEMA 4X front-panel protection. It is specified for an operating ambient temperature of 0–60 °C. These characteristics make it suitable for control cabinets, machine panels, production equipment, and other industrial operator stations.
6. What cooling method is used by the HMIDT351?
The HMIDT351 uses natural convection cooling rather than an integrated cooling fan. During installation, sufficient clearance should be maintained around the unit to allow heat to dissipate properly. Installation conditions should also remain within the specified ambient temperature range.
7. What should be checked if the HMIDT351 touchscreen does not respond correctly?
First check that the DC supply voltage is within the specified range and that the display is operating normally. Then inspect the touchscreen surface for dirt, liquid, or physical damage. Check the connection between the panel and the associated HMI or control system. If the problem occurs only in certain areas of the screen, the resistive touch panel itself may require further inspection or replacement.
8. What should be considered when installing or replacing the HMIDT351?
The panel cutout should be prepared according to the specified 190 (+1/-0) × 135 (+1/-0) mm dimensions, and the mounting surface should provide a proper seal for the front-panel protection rating. The 12–24 V DC supply must be correctly wired and isolated during installation. After mounting, check the power connection, communication connections, touchscreen operation, and display function before returning the HMI to service.
Schneider HMIDT351 Advanced Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
