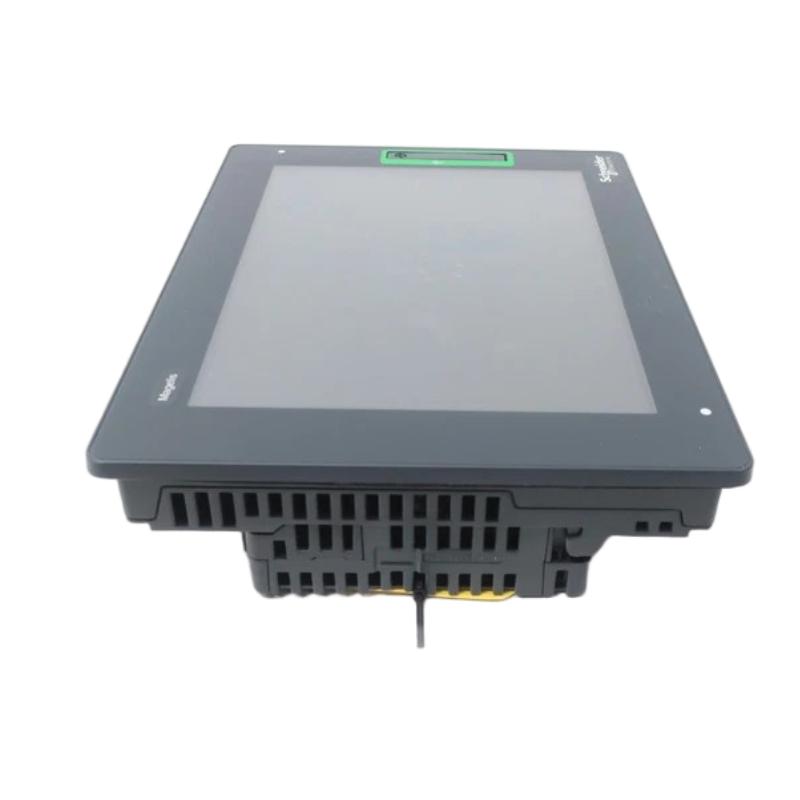

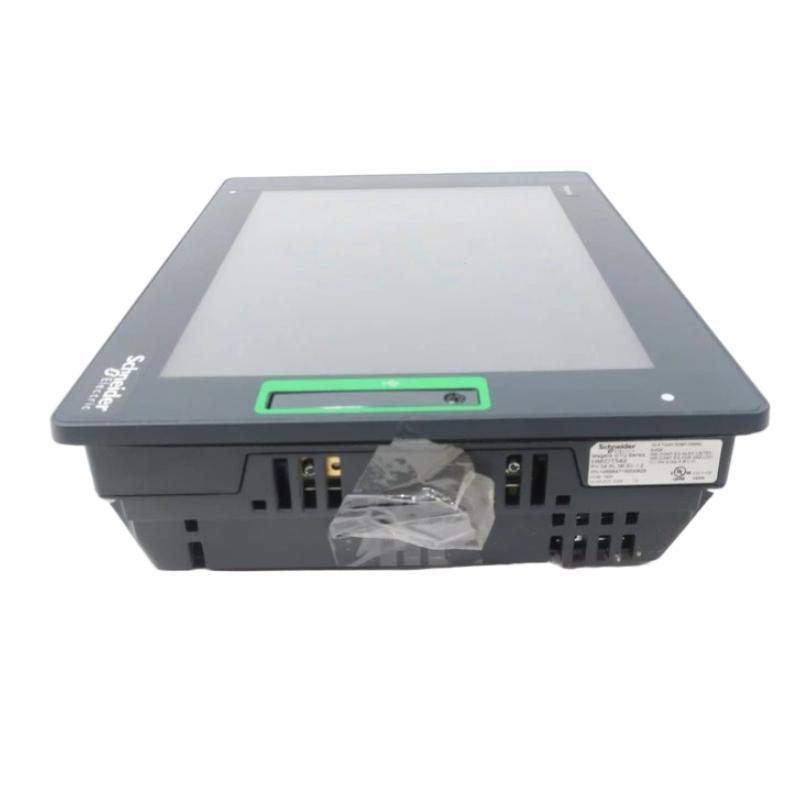

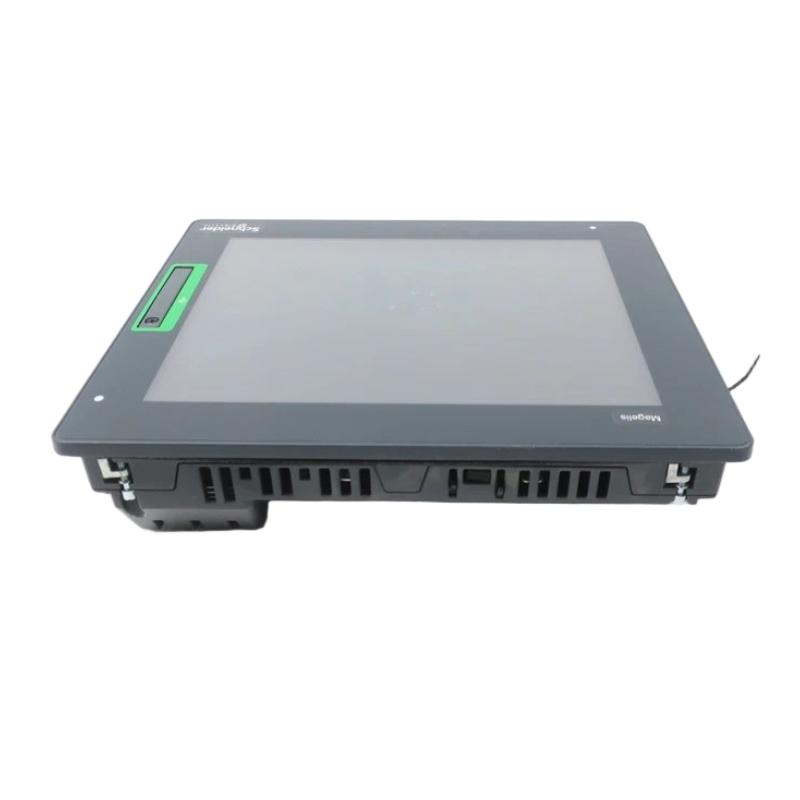

Schneider HMIDT542 Smart Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIDT542 |
| Product Type | Smart Touchscreen Panel |
| Product Range | Harmony GTU |
| Terminal Type | Touchscreen Display |
| Display Size | 10.4 inch |
| Display Type | Colour TFT LCD |
| Display Resolution | 800 × 600 pixels, SVGA |
| Touchscreen Resolution | 1024 × 1024 |
| Display Colours | 16 million colours |
| Aspect Ratio | 4:3 |
| Touch Technology | Multi-touch analogue resistive |
| Backlight Lifespan | 50,000 hours |
| Integrated Interfaces | USB 2.0 Type A, USB 2.0 Mini-B |
| Brightness Sensor | Integrated |
| Rated Supply Voltage | 12–24 V DC |
| Supply Voltage Limits | 10.8–28.8 V DC |
| Power Consumption | 15 W |
| Inrush Current | 30 A |
| Cooling Method | Natural convection |
| Installation | Indoor installation |
| Mounting Type | Panel mounting |
| Panel Cutout | 259 (+1/-0) × 201 (+1/-0) mm |
| Front Panel Protection | IP66 / IP67 |
| NEMA Protection | NEMA 4X, front panel |
| Operating Temperature | 0–60 °C |
| Storage Temperature | -20–60 °C |
| Relative Humidity | 10–90%, non-condensing |
| Maximum Operating Altitude | 2000 m |
| Standards | UL 508, ANSI/ISA 12-12-01, CSA C22.2 No. 213, CSA C22.2 No. 142, IEC 61131-2 |
| Certifications | cULus, CE, KC, RCM, UKCA, UKEX |
| Dimensions | 272.5 × 214.5 × 67 mm |
| Weight | 2.7 kg |
FAQ
1. What is the main function of the Schneider HMIDT542?
The HMIDT542 is a 10.4-inch Smart Touchscreen Panel from the Harmony GTU range. It is designed for industrial HMI applications, providing an operator interface for monitoring machine status, displaying process data and alarms, entering parameters, and controlling connected automation equipment.
2. What type of touchscreen does the HMIDT542 use?
The HMIDT542 uses a multi-touch analogue resistive touchscreen with a 1024 × 1024 touch resolution. This design provides reliable operator input for industrial applications and supports multi-touch operations where the HMI application is configured for them.
3. What display resolution does the HMIDT542 provide?
The display provides an 800 × 600 pixel SVGA resolution on a 10.4-inch colour TFT LCD. The 4:3 aspect ratio is suitable for conventional industrial HMI screens, including process graphics, alarm lists, parameter pages, and diagnostic interfaces.
4. What power supply is required for the HMIDT542?
The panel operates from a 12–24 V DC power supply, with an allowable supply range of 10.8–28.8 V DC. Its power consumption is approximately 15 W, while the specified inrush current is 30 A. A stable industrial DC supply with appropriate circuit protection should be used.
5. Which communication or service interfaces are available on the HMIDT542?
The HMIDT542 provides USB 2.0 Type A and USB 2.0 Mini-B interfaces. These interfaces can be used for supported service, maintenance, configuration, or peripheral connection functions depending on the connected Harmony GTU system and application requirements.
6. Is the HMIDT542 suitable for industrial environments?
Yes. The front panel is rated IP66/IP67 and complies with NEMA 4X front-panel protection requirements. The specified operating temperature range is 0–60 °C. The panel also uses natural convection cooling, so adequate clearance and suitable cabinet thermal conditions should be maintained during installation.
7. What should be checked if the HMIDT542 touchscreen stops responding?
First verify that the display is powered correctly and that the HMI application is operating normally. If the screen image is normal but touch input is unavailable, check the touch surface for contamination, moisture, or physical damage. The system configuration and connections should also be checked. If only certain areas fail to respond, the touchscreen hardware may require further diagnosis.
8. What should be considered when installing or replacing the HMIDT542?
The panel cutout should match the specified 259 (+1/-0) × 201 (+1/-0) mm opening, and the mounting surface should be flat and properly supported. Power should be disconnected before wiring or replacement. After installation, verify the DC supply, mounting, touchscreen operation, display function, USB interfaces, and communication with the associated control system before returning the equipment to service.
Schneider HMIDT542 Smart Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
