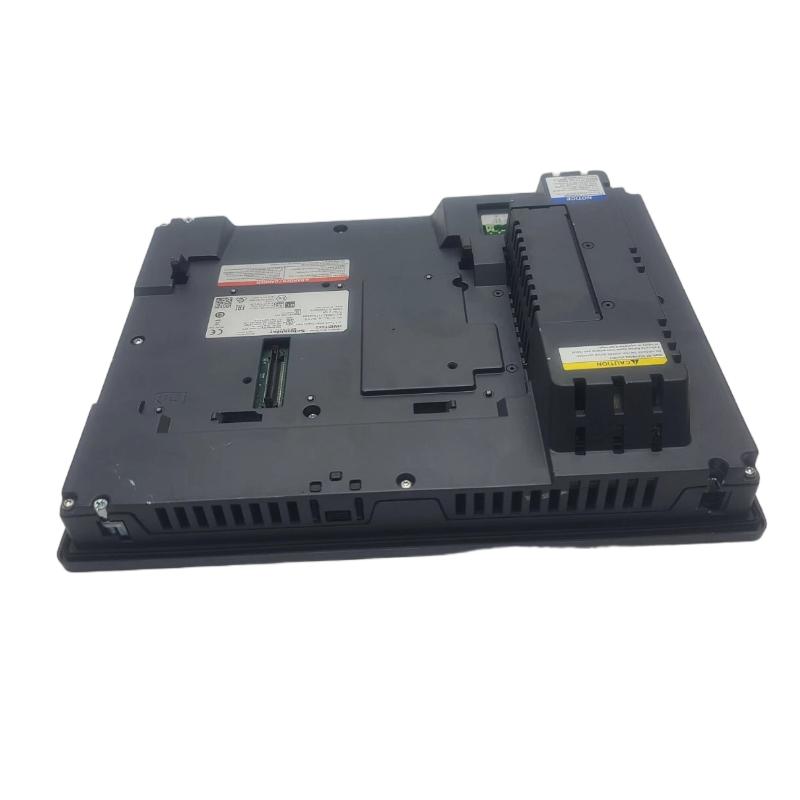

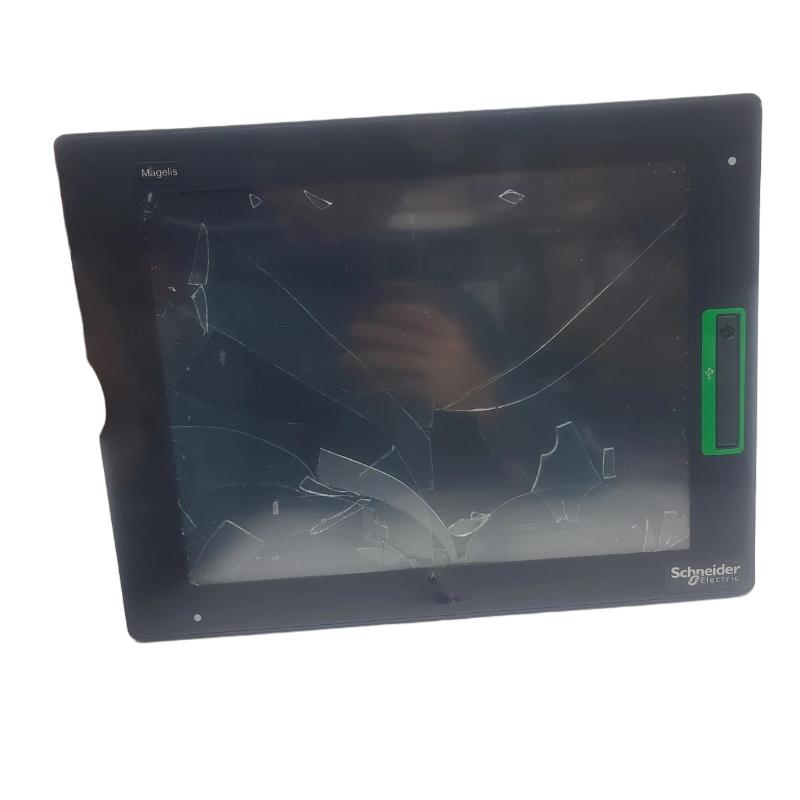

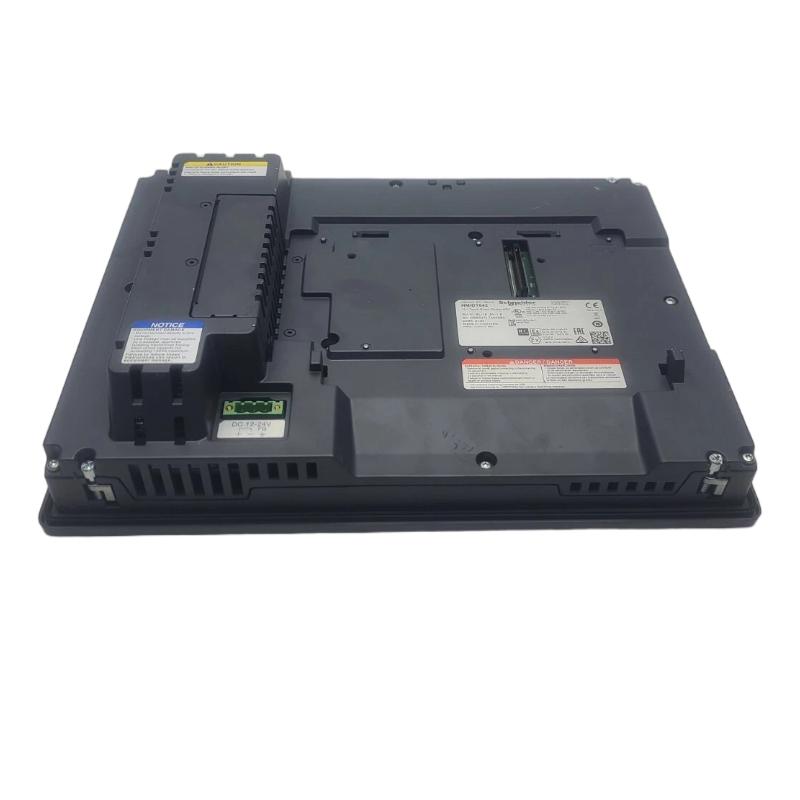

Schneider HMIDT642 Smart Touch Display
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIDT642 |
| Product Type | Smart Touch Display |
| Product Range | Harmony GTU |
| Display Size | 12.1 inch |
| Display Type | Colour TFT LCD |
| Display Resolution | 1024 × 768 pixels, XGA |
| Display Colours | 16 million colours |
| Aspect Ratio | 4:3 |
| Touch Technology | Analogue resistive, multi-touch capable |
| Touchscreen Resolution | 1024 × 1024 |
| Backlight Type | White LED |
| Backlight Lifespan | 50,000 hours |
| Brightness Control | Automatic sensor, software or touch panel |
| Brightness Sensor | Integrated |
| USB Interfaces | 1 × USB 2.0 Type A, 1 × USB 2.0 Mini-B |
| Rated Supply Voltage | 12–24 V DC |
| Supply Voltage Limits | 10.8–28.8 V DC |
| Cooling Method | Natural convection |
| Installation | Indoor panel installation |
| Panel Cutout | 301.5 (+1/-0) × 227.5 (+1/-0) mm |
| Front Panel Protection | IP66 / IP67 |
| NEMA Protection | NEMA 4X |
| Operating Temperature | 0–60 °C |
| Mounting Angle Requirement | Above 30° inclination, ambient temperature should not exceed 40 °C |
| Configuration Software | Vijeo Designer |
| Display Module Type | Smart Display Module |
| Compatible Platform | Harmony GTU |
| Dimensions | 315 × 241 × 67 mm |
| Weight | 3 kg |
FAQ
1. What is the main function of the Schneider HMIDT642?
The HMIDT642 is a 12.1-inch Smart Touch Display designed for Harmony GTU modular HMI systems. It provides the operator interface for monitoring machine conditions, viewing process data and alarms, entering parameters, and controlling connected automation equipment.
2. What display resolution does the HMIDT642 provide?
The HMIDT642 uses an XGA display with a resolution of 1024 × 768 pixels. The 4:3 colour TFT LCD provides 16 million colours, making it suitable for detailed HMI graphics, process diagrams, alarm screens, trend displays, and equipment diagnostics.
3. What type of touchscreen does the HMIDT642 use?
The display uses an analogue resistive touchscreen with a 1024 × 1024 touch-sensitive area. It is multi-touch capable, allowing compatible HMI applications to support functions such as multi-point operation, zooming, or other touch gestures.
4. What power supply is required for the HMIDT642?
The HMIDT642 is designed for a 12–24 V DC supply, with an allowable supply range of 10.8–28.8 V DC. The power source should be stable and properly protected, particularly in control cabinets where other inductive loads may introduce electrical disturbances.
5. What USB interfaces are available on the HMIDT642?
The HMIDT642 provides one USB 2.0 Type A port and one USB 2.0 Mini-B port. These interfaces can be used for supported peripheral, service, maintenance, or configuration functions depending on the Harmony GTU system and application.
6. Can the HMIDT642 be used in industrial environments?
Yes. The display is designed for indoor industrial HMI applications and provides IP66/IP67 front-panel protection with NEMA 4X protection. Its normal operating temperature range is 0–60 °C. Proper cabinet ventilation and environmental conditions should still be maintained during operation.
7. What should be checked if the HMIDT642 touchscreen becomes unresponsive?
First check whether the display and HMI application are operating normally. If the image is displayed correctly but touch input is unavailable, inspect the touchscreen surface for contamination, moisture, or physical damage. The HMI configuration, connections, and associated Harmony GTU box module should also be checked. If only specific touch areas fail, the resistive touch hardware may require further diagnosis.
8. What should be considered when installing the HMIDT642?
The panel opening should match the specified 301.5 (+1/-0) × 227.5 (+1/-0) mm cutout, and the mounting surface should be flat and secure. When installed at an inclination greater than 30°, the ambient temperature should not exceed 40 °C, and additional forced-air cooling may be required. Power should be disconnected during wiring or replacement, followed by functional testing of the display, touchscreen, USB interfaces, and HMI system.
Schneider HMIDT642 Smart Touch Display is in stock. Please contact us for a quick quote and competitive pricing.
