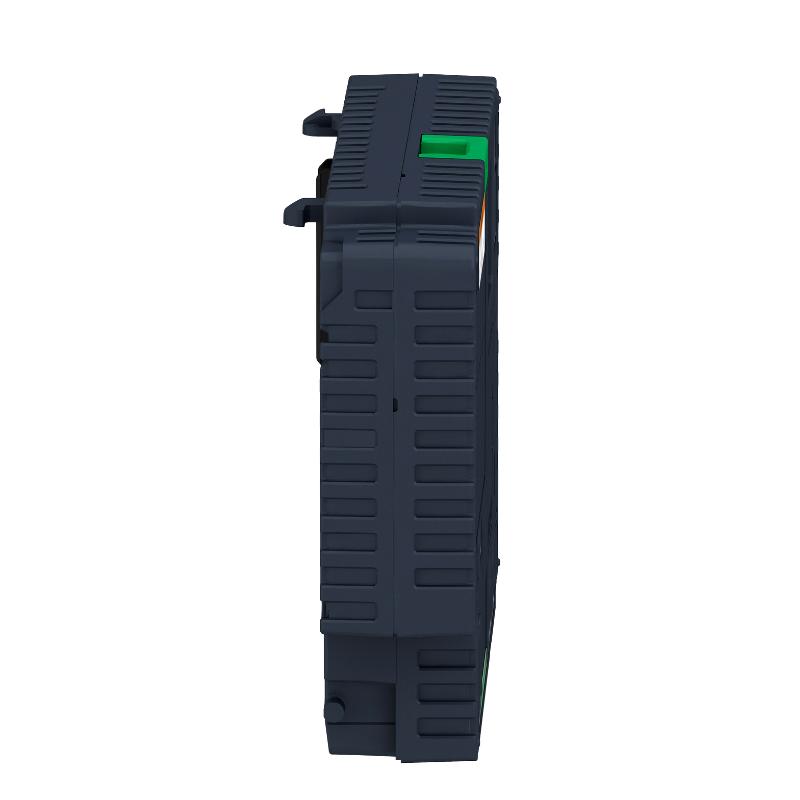

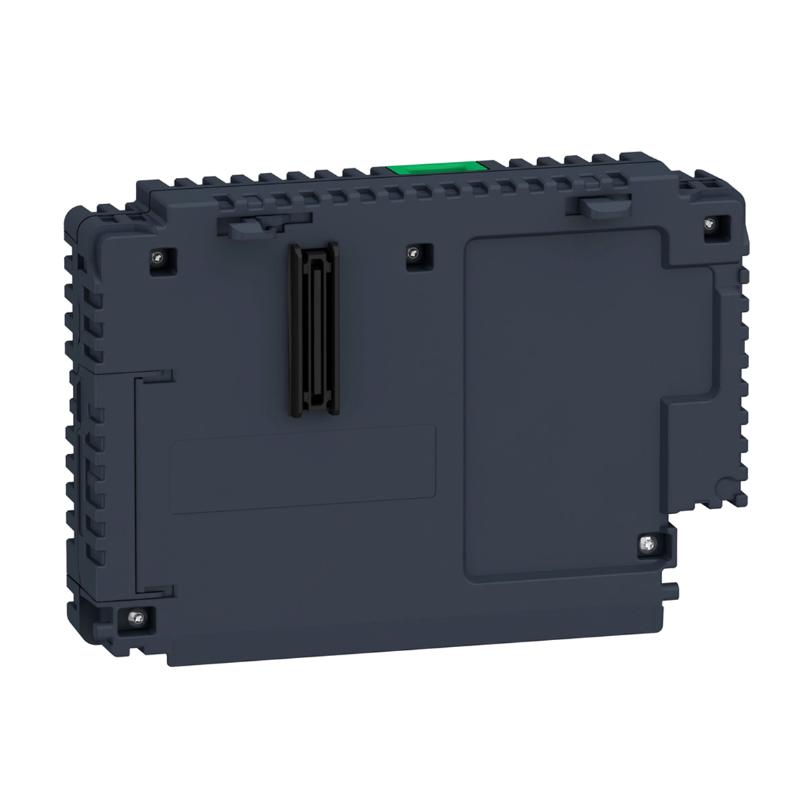

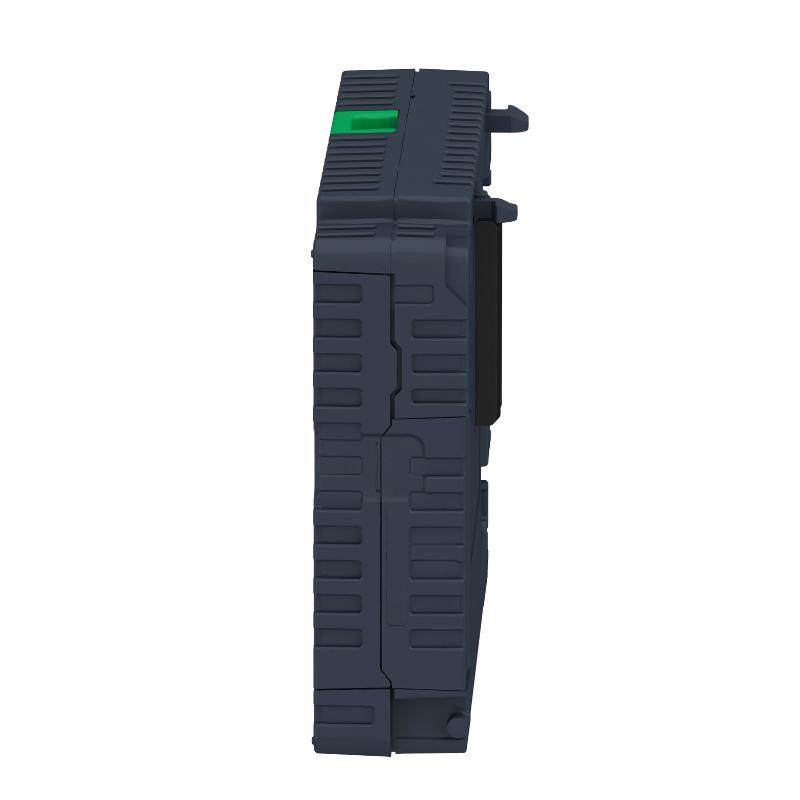

Schneider HMIG2U Standard Universal Panel Box
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMIG2U |
| Product Name | Standard Universal Panel Box |
| Product Series | Harmony GTU |
| Product Type | HMI Base Unit / Standard Box |
| Operating System | Harmony |
| Processor | RISC CPU, 600 MHz |
| Operating Software | Vijeo Designer Runtime |
| Supported Variables | Up to 8,000 |
| Rated Supply Voltage | 12–24 V DC |
| Built-in Flash Memory | 1 GB |
| RAM | 256 MB |
| Backup Memory | 512 KB NVRAM |
| Ethernet Interface | 2 × RJ45, 10/100 Mbps Ethernet TCP/IP |
| Serial Interface COM1 | 1 × 9-pin D-Sub RS-232C |
| Serial Interface COM2 | 1 × RJ45 RS-485 |
| USB Interfaces | 2 × USB 2.0 Type-A, 1 × USB 2.0 Mini-B |
| Memory Card Slot | 1 × SD card slot |
| Supported Communication Protocols | Modbus, Modbus TCP/IP, Uni-Telway |
| Compatible Display Series | Compatible Harmony GTU display modules; verify the specific model |
| Cooling Method | Natural convection |
| Status Indicators | LED indicators for operating status, startup, power, errors and connection status |
| Dimensions | 188 × 45 × 131 mm |
| Weight | 0.9 kg |
| Typical Applications | Industrial HMI systems, PLC communication, machine operation and process monitoring |
FAQ
Q1: What is the main function of the Schneider HMIG2U Standard Universal Panel Box?
A: The HMIG2U is the base unit of a Harmony GTU modular HMI system. It provides processing, memory and communication functions and works with a compatible display module to form an operator interface for industrial equipment.
Q2: Which display modules are compatible with the HMIG2U?
A: The HMIG2U supports compatible Harmony GTU display modules, but not every display model is supported. Confirm the exact display model and software requirements in the Schneider Electric compatibility documentation before assembly.
Q3: Which communication protocols does the HMIG2U support?
A: The unit supports Modbus, Modbus TCP/IP and Uni-Telway. Communication with a PLC depends on the selected protocol, driver configuration, connection type and settings of the connected controller.
Q4: How can the HMIG2U connect to a PLC?
A: The unit provides Ethernet TCP/IP, an RS-232C serial interface and an RS-485 serial interface. Select the appropriate interface based on the PLC’s available ports and supported protocol, then configure the communication parameters at both ends.
Q5: What should be checked if the HMIG2U cannot communicate with a PLC?
A: Check the communication cable, port selection, PLC address, protocol, baud rate and other relevant settings. For Ethernet connections, also verify the IP address and network configuration. Status LEDs and diagnostic messages can help narrow down the cause.
Q6: Can the HMIG2U operate independently without a display module?
A: The HMIG2U is designed as a base unit for a modular HMI system. Although its processing and communication hardware is contained in the box, normal operator interaction requires a compatible display module and a properly configured application.
Q7: How is an HMI application transferred to the HMIG2U?
A: Applications are developed using compatible Vijeo Designer software and transferred using a supported connection method. Verify the project version and target hardware before downloading, and back up the existing application before making changes.
Q8: What maintenance is recommended for the HMIG2U?
A: Inspect the connectors, power wiring and ventilation area regularly. Keep the unit free from dust accumulation, moisture and excessive heat. If an error indicator appears or communication becomes unstable, check the power supply, connection status and diagnostic information before replacing the unit.
Schneider HMIG2U Standard Universal Panel Box is in stock. Please contact us for a quick quote and competitive pricing.
