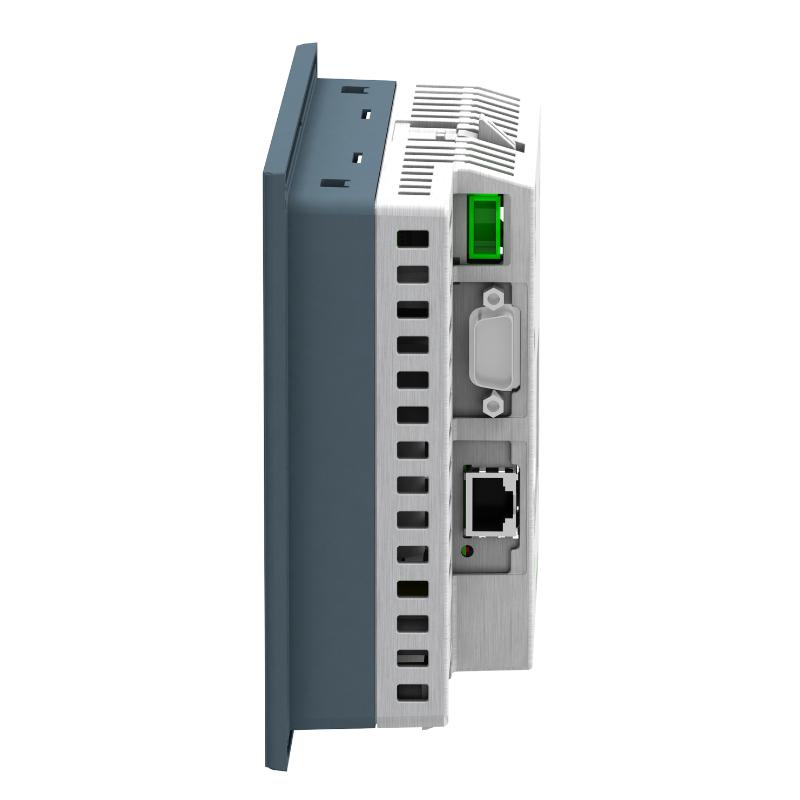

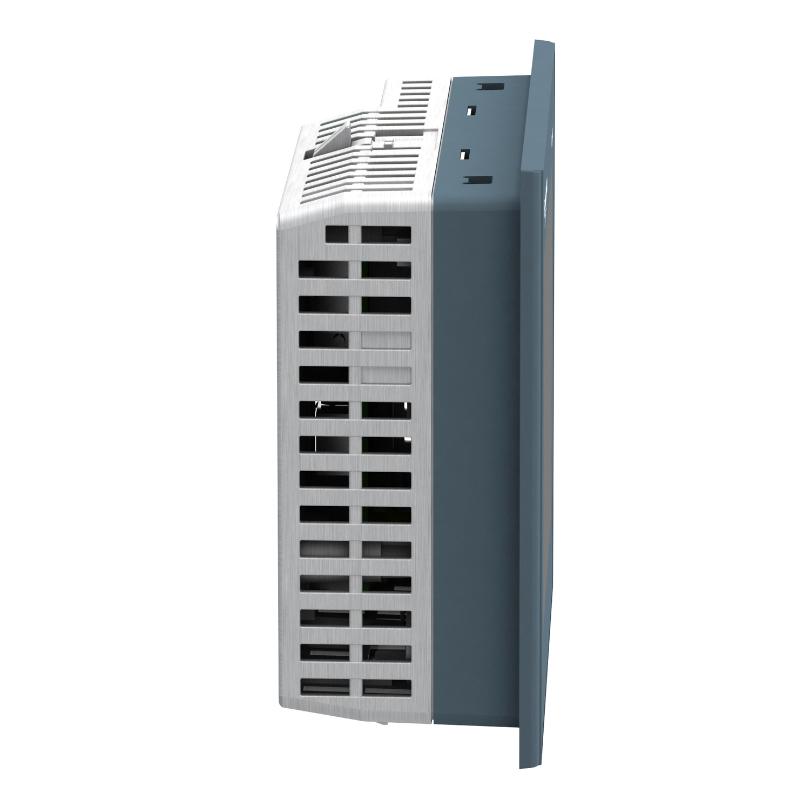

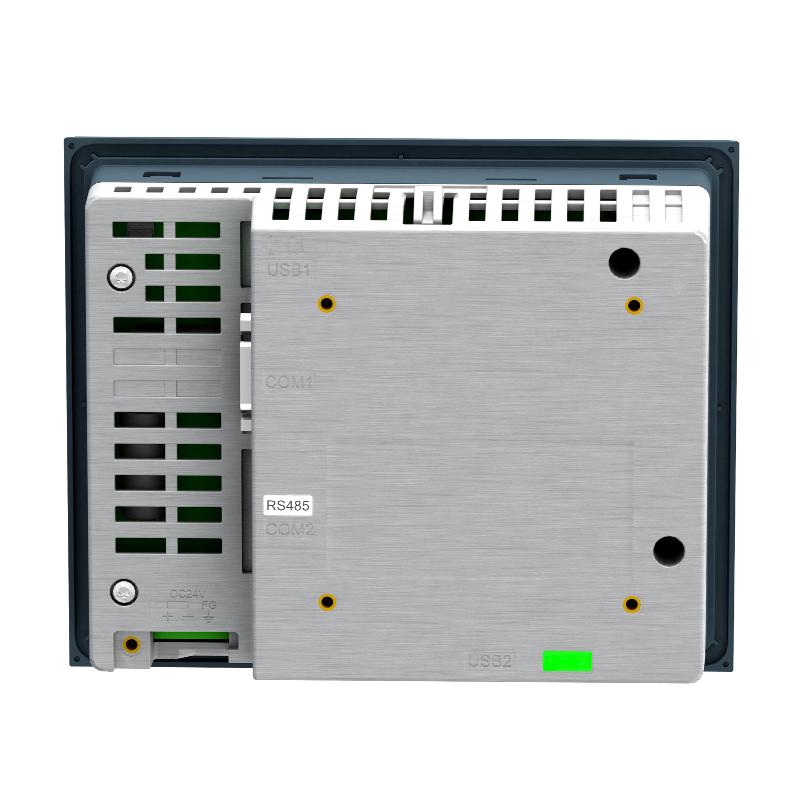

Schneider HMIGTO2310 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGTO2310 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony GTO |
| Display Type | Backlit Color TFT LCD |
| Display Size | 5.7 inches |
| Display Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Touchscreen Type | Analog Resistive Touchscreen |
| Touch Resolution | 1024 × 1024 |
| Touch Panel Service Life | 1 million operations or more |
| Application Memory | 96 MB Flash EPROM |
| Application Run Memory | 128 MB DRAM |
| Data Backup Memory | 512 KB SRAM with lithium battery backup |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Power Consumption | 10.5 W |
| Power Consumption with Backlight Off | 4.5 W |
| Backlight Lifespan | Approximately 50,000 hours at 25°C |
| Serial Interface COM1 | RS-232C, 9-pin D-Sub connector |
| Serial Interface COM2 | RS-485, RJ45 connector |
| Ethernet Interface | 10BASE-T/100BASE-TX, RJ45 |
| USB Interfaces | USB 2.0 Type-A and Mini-B |
| Memory Card Interface | SD/SDHC card slot, up to 32 GB |
| Configuration Software | Vijeo Designer |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Front Panel Protection | IP65 when correctly installed |
| Rear Panel Protection | IP20 |
| Cooling Method | Natural air convection |
| Mounting Type | Flush panel mounting |
| Panel Cutout Dimensions | 156 × 123.5 mm |
| Dimensions | 169.5 × 59.5 × 137 mm |
| Weight | 0.8 kg |
FAQ
1. What is the main function of the Schneider HMIGTO2310 Advanced Touchscreen Panel?
The HMIGTO2310 is an industrial human-machine interface (HMI) used to connect operators with PLC-based automation systems. It displays machine status, process values, alarms, and operating parameters, allowing operators to monitor equipment and enter control commands.
2. Which software is used to configure the HMIGTO2310?
The HMIGTO2310 is configured using Schneider Electric’s Vijeo Designer software. Confirm that the installed software version supports the existing project and target hardware before editing or transferring an application.
3. What communication interfaces does the HMIGTO2310 support?
The panel provides an RS-232C serial interface, an RS-485 serial interface, Ethernet, and USB 2.0 interfaces. It also includes an SD/SDHC card slot for supported storage and data-transfer tasks. The selected interface must match the PLC and the configured communication driver.
4. Can the HMIGTO2310 communicate with different PLC brands?
It can communicate with supported PLC systems when the appropriate protocol and driver are available in the configuration software. Compatibility depends on the PLC model, communication interface, protocol, and project configuration. Verify these details before commissioning.
5. What should be checked if the HMI cannot communicate with the PLC?
Check the communication cable, connectors, selected interface, and PLC operating status. Verify the protocol, baud rate, parity, station address, IP address, and other relevant settings. Also confirm that the HMI project uses the correct driver and PLC device addresses.
6. How can an HMIGTO2310 application be backed up before maintenance?
Use the supported Vijeo Designer project-transfer and backup procedures to preserve the original application. Where appropriate, save a separate copy of the project and retain the PLC communication settings. Verify that the backup can be opened and restored before making changes to the running system.
7. What environmental conditions are required for reliable operation?
The specified operating temperature range is 0–55°C, with relative humidity of 10–90% without condensation. Install the panel in a suitable enclosure, provide adequate natural airflow, and protect the rear of the unit from dust, moisture, and conductive debris. Correct panel installation is necessary to maintain the front protection rating.
8. What should be checked when replacing an HMIGTO2310?
Confirm that the replacement model is compatible with the existing HMI project, PLC communication interfaces, and wiring. Back up the original application, record communication parameters, and inspect the power connections before installation. After replacement, test the display, touch input, communications, alarms, and operating commands before returning the machine to service.
Schneider HMIGTO2310 Advanced Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
