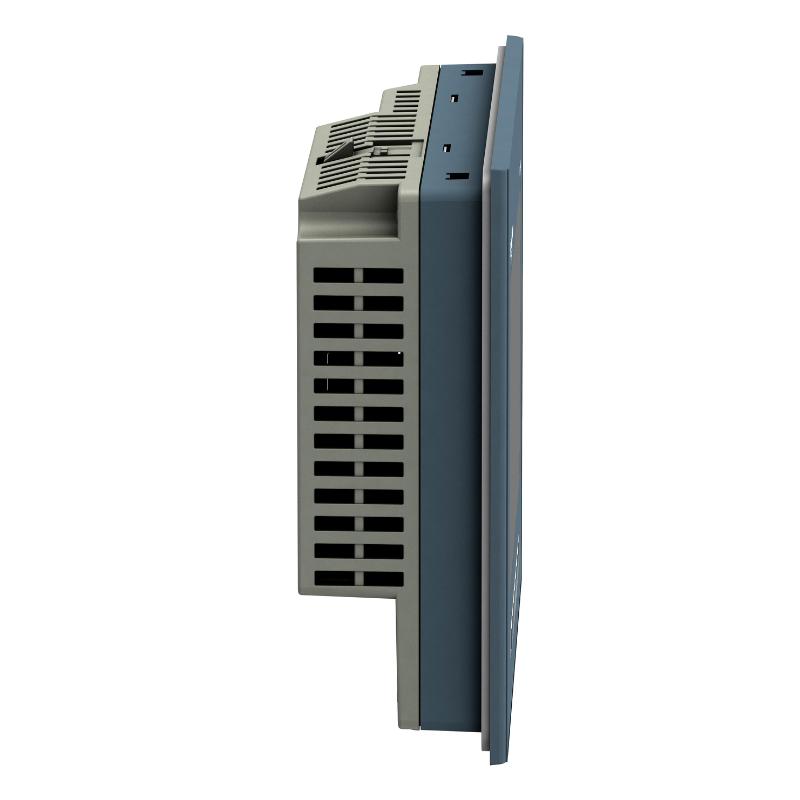

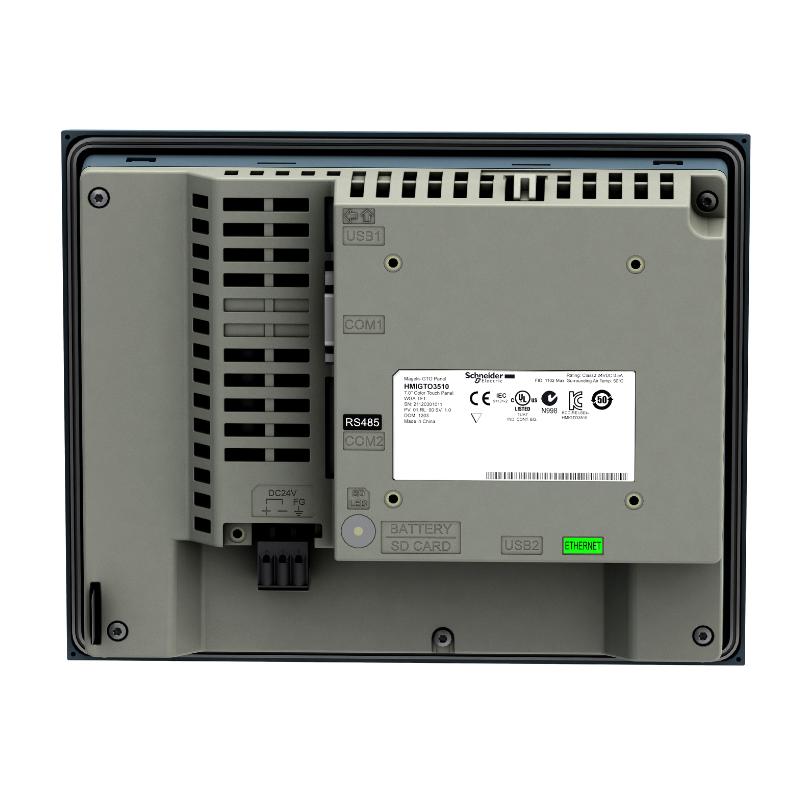

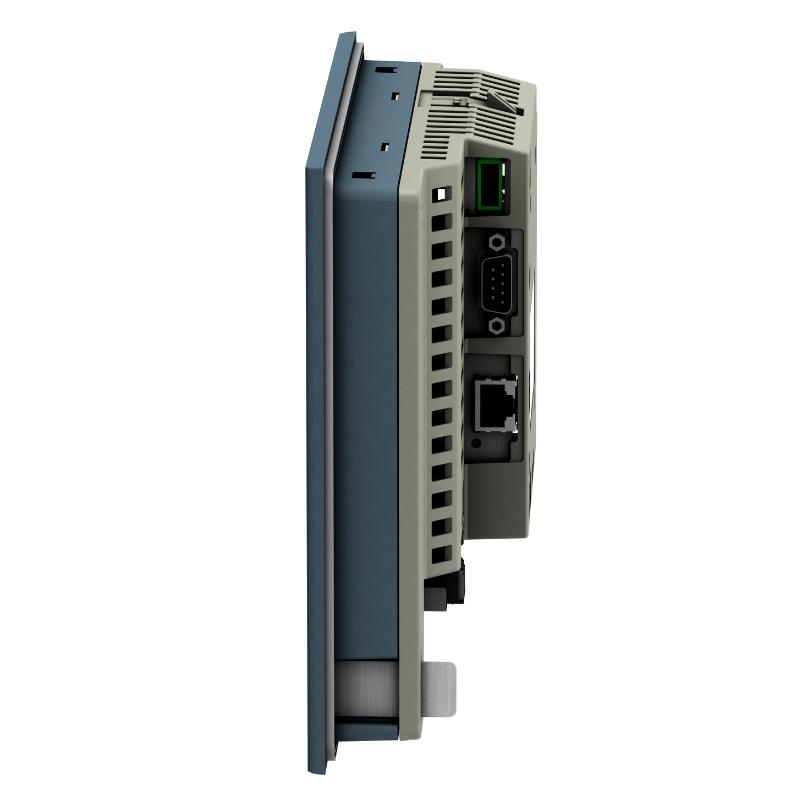

Schneider HMIGTO3510 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGTO3510 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony GTO |
| Display Type | Backlit Color TFT LCD |
| Display Size | 7.0 inches |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Colors | 65,536 colors |
| Touchscreen Type | Resistive Touchscreen |
| Touch Resolution | 1024 × 1024 |
| Touch Panel Service Life | Approximately 1 million operations |
| Application Memory | 96 MB Flash Memory |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Power Consumption | 12 W |
| Power Consumption with Backlight Off | 5 W |
| Power Consumption with Backlight Dimmed | 5.5 W |
| Inrush Current | 30 A maximum |
| Backlight Lifespan | Approximately 50,000 hours at 25°C |
| Function Keys | 8 configurable function keys (F1–F8) |
| Serial Interface COM1 | RS-232C, 9-pin D-Sub connector |
| Serial Interface COM2 | RS-485, RJ45 connector |
| Ethernet Interface | 10BASE-T/100BASE-TX, RJ45 |
| USB Interfaces | USB 2.0 Type-A and Mini-B |
| Memory Card Interface | SD/SDHC card slot |
| Configuration Software | Vijeo Designer |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Front Panel Protection | IP65 when correctly installed in an enclosure |
| Rear Panel Protection | IP20 |
| Cooling Method | Natural air convection |
| Mounting Type | Flush Panel Mounting |
| Panel Cutout Dimensions | 204.5 × 159.5 mm |
| Dimensions | 218 × 60 × 173 mm |
| Weight | 1.2 kg |
FAQ
1. What is the main function of the Schneider HMIGTO3510 Advanced Touchscreen Panel?
The HMIGTO3510 is an industrial human-machine interface (HMI) designed for monitoring and operating automation equipment. It displays process data, machine status, alarms, and operating parameters, allowing operators to interact with PLC-based control systems through the touchscreen and configurable function keys.
2. Which software is used to configure the HMIGTO3510?
The HMIGTO3510 uses Schneider Electric’s Vijeo Designer software. Before creating or modifying an HMI project, verify that the installed software version supports the HMIGTO3510 and the required communication drivers.
3. What communication interfaces are available on the HMIGTO3510?
The panel supports RS-232C, RS-485, Ethernet, and USB 2.0 connections. An SD/SDHC card slot is also available for supported storage and data-transfer functions. The interface used depends on the connected PLC, communication protocol, and application requirements.
4. Can the HMIGTO3510 communicate with Siemens, Mitsubishi, or other PLC systems?
The HMIGTO3510 can communicate with supported PLC systems when a compatible protocol and driver are available. Supported communication options include selected Siemens, Mitsubishi, Rockwell Automation, Omron, and Schneider Electric PLC protocols. Confirm the specific PLC model and driver compatibility before commissioning.
5. What should be checked if the HMIGTO3510 loses communication with a PLC?
Inspect the communication cable, connectors, and selected interface. Check the PLC status, protocol, baud rate, parity, station address, and Ethernet settings where applicable. Confirm that the HMI project uses the correct driver and that the configured device addresses match the PLC program.
6. What is the purpose of the eight function keys on the HMIGTO3510?
The F1–F8 function keys can be assigned to application-specific operations through Vijeo Designer. Depending on the project configuration, they can be used for screen navigation, opening menus, acknowledging alarms, or triggering predefined operator actions. Their actual functions depend on the downloaded application.
7. What installation conditions are required for reliable operation?
Install the panel in a suitable control cabinet and maintain an operating temperature of 0–50°C with relative humidity between 10% and 90%, without condensation. Provide adequate natural airflow, protect the rear panel from dust and moisture, and ensure the installation gasket is correctly fitted to maintain the specified front-panel protection.
8. What should be checked before replacing an HMIGTO3510?
Back up the existing HMI project and record PLC communication settings, function-key assignments, wiring, and application versions. Confirm that the replacement unit is compatible with the existing system. After installation, test the display, touchscreen, function keys, PLC communication, alarms, and control commands before returning the equipment to service.
Schneider HMIGTO3510 Advanced Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
