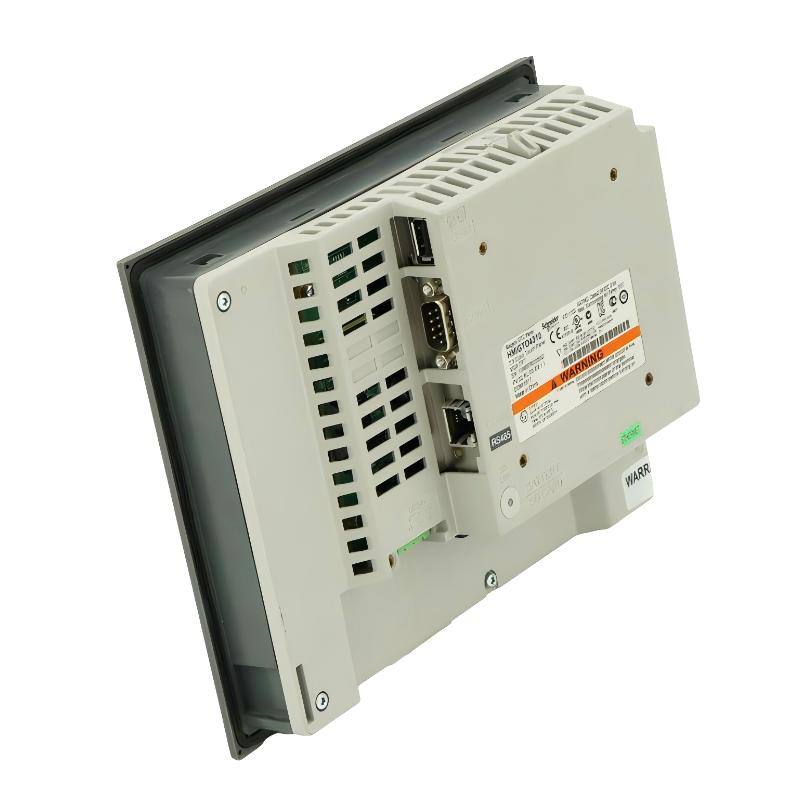

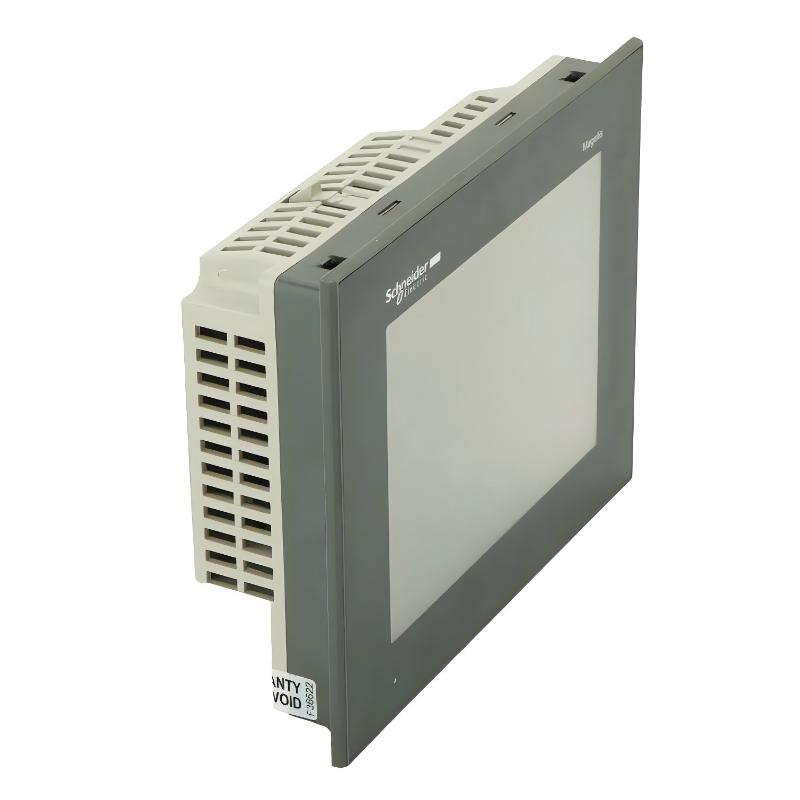

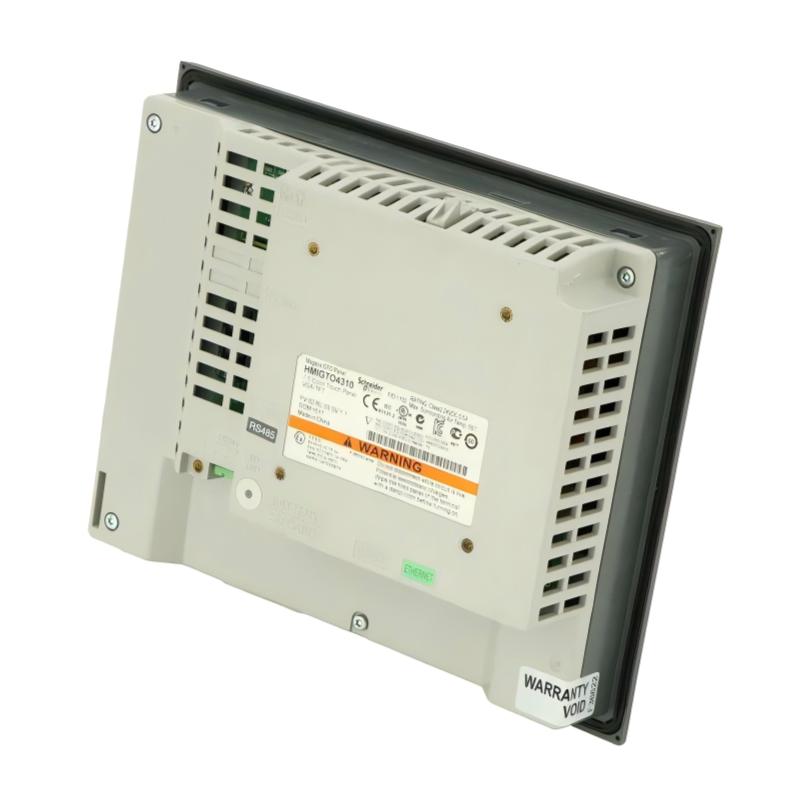

Schneider HMIGTO4310 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGTO4310 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony GTO |
| Display Type | Backlit Color TFT LCD |
| Display Size | 7.5 inches |
| Display Resolution | 640 × 480 pixels (VGA) |
| Display Colors | 65,536 colors |
| Effective Display Area | 153.7 × 115.8 mm |
| Touchscreen Type | Resistive Touchscreen |
| Touch Resolution | 1024 × 1024 |
| Touch Panel Service Life | Approximately 1,000,000 operations |
| Application Memory | 96 MB Flash Memory |
| Data Backup Memory | 512 KB SRAM |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Power Consumption | 12 W |
| Power Consumption with Backlight Off | 5 W maximum |
| Power Consumption with Backlight Dimmed | 5.5 W maximum |
| Inrush Current | 30 A maximum |
| Backlight Lifespan | Approximately 50,000 hours at 25°C |
| Brightness Adjustment | 16 levels |
| Serial Interface COM1 | RS-232C, 9-pin D-Sub |
| Serial Interface COM2 | RS-485, RJ45 |
| Ethernet Interface | 10BASE-T/100BASE-TX, RJ45 |
| USB Interfaces | USB 2.0 Type-A and Mini-B |
| Memory Card Interface | SD card slot |
| Configuration Software | Vijeo Designer |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Front Panel Protection | IP65 when correctly installed |
| Cooling Method | Natural air convection |
| Mounting Type | Flush Panel Mounting |
| Panel Cutout Dimensions | 204.5 × 159.5 mm |
| Dimensions | 218 × 60 × 173 mm |
| Weight | 1.2 kg |
FAQ
1. What is the main function of the Schneider HMIGTO4310 Advanced Touchscreen Panel?
The HMIGTO4310 is an industrial human-machine interface (HMI) designed for monitoring and operating automated equipment. It displays process data, machine status, alarms, and operating parameters, enabling operators to interact with PLC-based control systems through the touchscreen.
2. Which software is required to configure the HMIGTO4310?
The HMIGTO4310 is configured using Schneider Electric Vijeo Designer software. Verify that the installed version supports the HMIGTO4310 hardware and the communication drivers required by the application before creating or downloading a project.
3. What communication interfaces does the HMIGTO4310 support?
The panel provides RS-232C, RS-485, Ethernet, and USB 2.0 interfaces. An SD card slot is also available for supported storage and data-transfer operations. The appropriate interface depends on the connected PLC, communication protocol, and application requirements.
4. Can the HMIGTO4310 communicate with different PLC brands?
The HMIGTO4310 supports communication with compatible PLC systems through the protocols and drivers available in Vijeo Designer. Depending on the configuration, supported systems may include Schneider Electric, Siemens, Mitsubishi, Omron, and Rockwell Automation PLCs. Confirm the exact PLC model and driver compatibility before commissioning.
5. How can communication faults between the HMIGTO4310 and a PLC be diagnosed?
Check the communication cable, connectors, selected interface, and PLC operating status. Verify the protocol, baud rate, parity, station address, and Ethernet settings where applicable. Confirm that the correct driver is selected and that the device addresses configured in the HMI project match the PLC program.
6. What should be done if the HMIGTO4310 touchscreen becomes unresponsive?
Check the power supply, startup status, and application operation first. Inspect the touchscreen for damage or contamination and clean it with a suitable non-abrasive method. If the problem continues, check for application errors and arrange hardware diagnostics if a touch-panel fault is suspected.
7. What environmental conditions are required for reliable operation?
The panel’s specified operating temperature range is 0–50°C, with relative humidity of 10–90% without condensation. Install it in a suitable control cabinet, provide adequate natural ventilation, and protect the rear of the unit from moisture, dust, and conductive debris. Correct mounting and gasket installation are important for maintaining front-panel protection.
8. What should be checked before replacing an HMIGTO4310?
Back up the existing HMI project and record the PLC communication settings, wiring, and application version. Confirm that the replacement unit is compatible with the existing control system. After installation, test the display, touchscreen, communication interfaces, alarms, and operator commands before returning the equipment to service.
