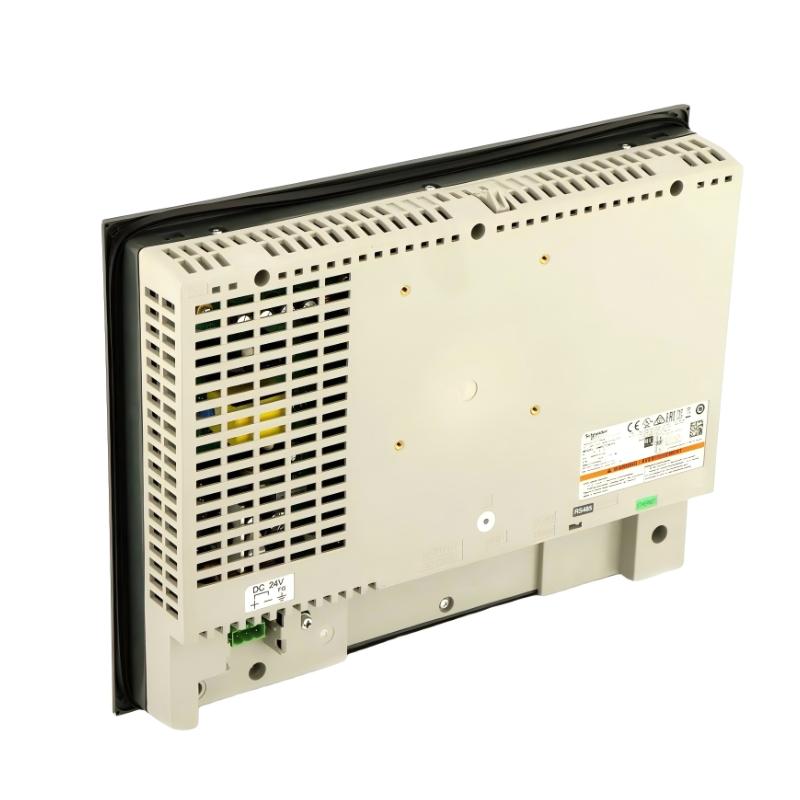

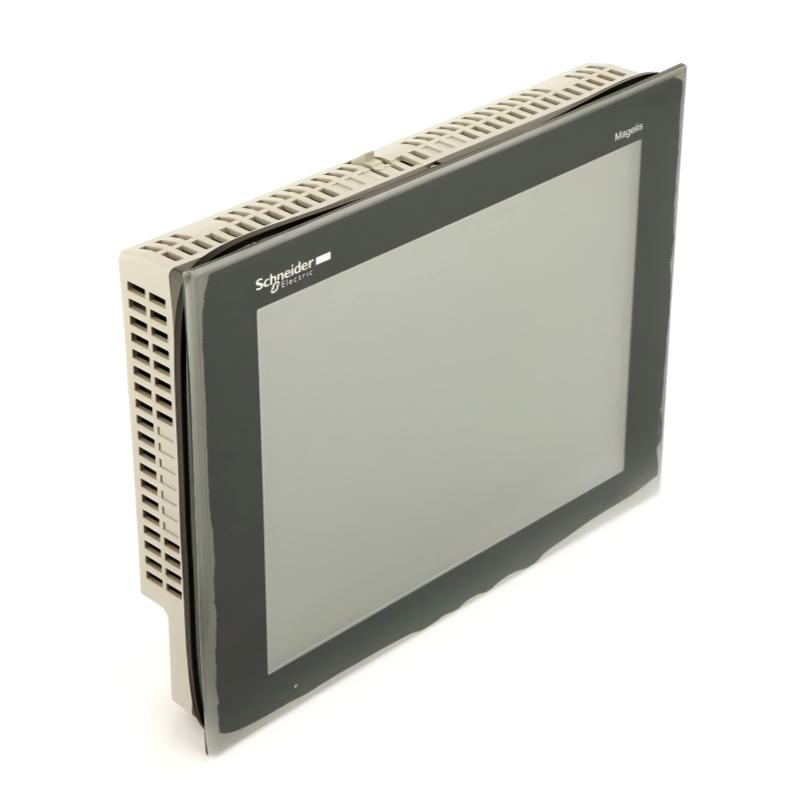

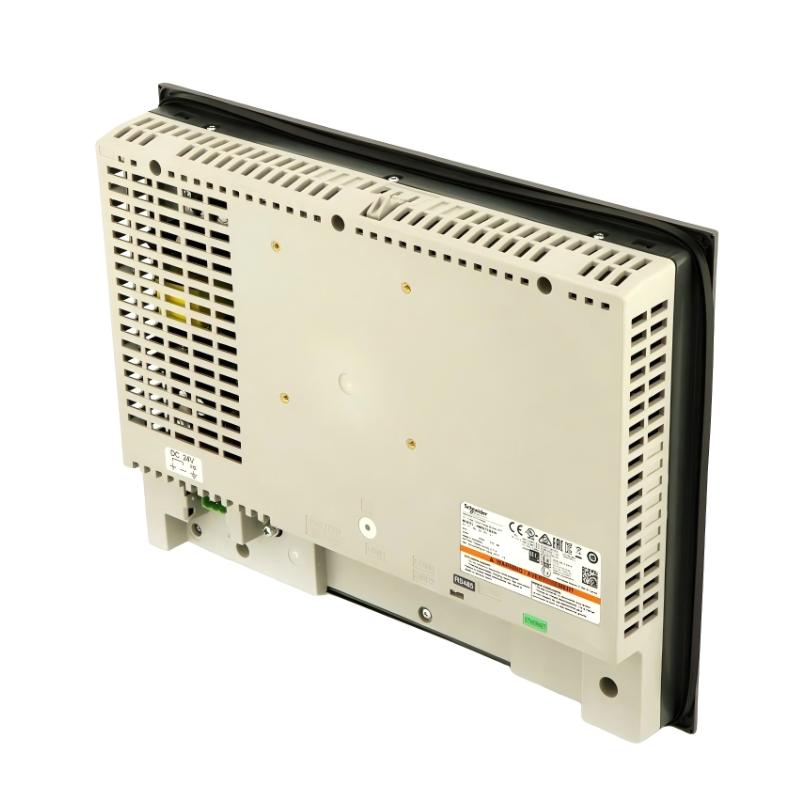

Schneider HMIGTO6310 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGTO6310 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony GTO |
| Display Type | Backlit Color TFT LCD |
| Display Size | 12.1 inches |
| Display Resolution | 800 × 600 pixels (SVGA) |
| Display Colors | 65,536 colors |
| Touch Panel Type | Resistive touch panel |
| Touch Resolution | 1024 × 1024 |
| Touch Panel Life | Approximately 1,000,000 operations |
| Internal Flash Memory | 96 MB |
| Backup Memory | 512 KB internal SRAM |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Power Consumption | 17 W |
| Power Consumption with No External Device Supply | 12 W or less |
| Power Consumption with Backlight Off | 7 W or less |
| Power Consumption with Dimmed Backlight | 8 W or less |
| Inrush Current | 30 A or less |
| Backlight Life | Approximately 50,000 hours at 25°C |
| Brightness Adjustment | 16 levels via touch panel or software |
| Serial Interface COM1 | RS-232C, 9-pin D-Sub connector |
| Serial Interface COM2 | RS-485, RJ45 connector |
| Ethernet Interface | 10BASE-T/100BASE-TX, RJ45 |
| USB Interfaces | USB 2.0 Type-A and Mini-B |
| Memory Card Support | SD/SDHC card, up to 32 GB |
| Configuration Software | Vijeo Designer V6.1 or later |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Front Panel Protection | IP65f, when correctly installed in an enclosure |
| Cooling Method | Natural air circulation |
| Mounting Type | Flush panel mounting |
| Panel Cutout Size | 301.5 × 227.5 mm |
| Dimensions | 315 × 56 × 241 mm |
| Weight | 2.5 kg |
FAQ
1. What is the main function of the Schneider HMIGTO6310 Advanced Touchscreen Panel?
The HMIGTO6310 is an industrial human-machine interface (HMI) designed for monitoring and controlling automated equipment. It allows operators to view machine status, process data, alarms, and operating parameters while interacting with compatible PLC-based control systems.
2. Which software is used to configure the HMIGTO6310?
The HMIGTO6310 is configured using Schneider Electric Vijeo Designer software, version 6.1 or later. The software version and communication drivers should be checked for compatibility before developing or transferring an HMI application.
3. Which communication interfaces does the HMIGTO6310 support?
The panel provides an RS-232C serial interface, an RS-485 serial interface, a 10/100 Mbps Ethernet port, and USB 2.0 connections. These interfaces support communication with compatible PLCs, engineering computers, and other industrial devices.
4. Can the HMIGTO6310 communicate with PLCs from different manufacturers?
Yes, it can communicate with supported third-party PLCs when the appropriate driver and protocol are available in the configuration software. Compatibility depends on the PLC model, communication interface, protocol, and software version. These details should be confirmed before commissioning.
5. How can communication faults between the HMIGTO6310 and a PLC be diagnosed?
Start by checking the communication cable, connectors, PLC operating status, and selected interface. Verify serial settings such as baud rate, parity, and station address, or check the IP address and network configuration for Ethernet connections. Review the HMI driver configuration and PLC device addresses before testing communication again.
6. What should be checked if the HMIGTO6310 touchscreen does not respond correctly?
Check whether the panel has completed startup and whether the displayed application is operating normally. Inspect the screen for contamination or physical damage, and confirm that touch-related settings and application controls are configured correctly. If the problem continues, consult the service documentation to determine whether the touch panel requires repair or replacement.
7. What power supply and environmental conditions are required for the HMIGTO6310?
The panel requires a nominal 24 V DC supply, with an allowable range of 19.2–28.8 V DC. The operating temperature range is 0–55°C, and relative humidity should remain between 10% and 90% without condensation. Proper grounding and protection against conductive debris, liquids, and corrosive chemicals are also important.
8. What should be done before replacing an HMIGTO6310 panel?
Back up the existing HMI application and record the communication settings, PLC addresses, and connected cables. Confirm that the replacement unit is compatible with the existing system and that the correct project can be transferred to it. After installation, test the display, touch operation, PLC communication, alarms, and control commands before returning the equipment to service.
Schneider HMIGTO6310 Advanced Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
