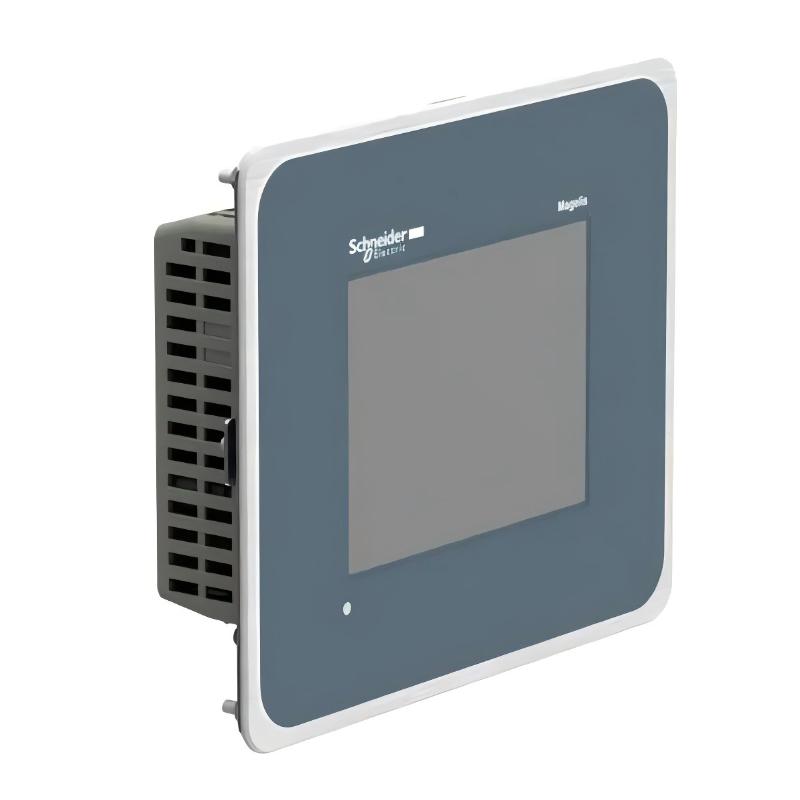

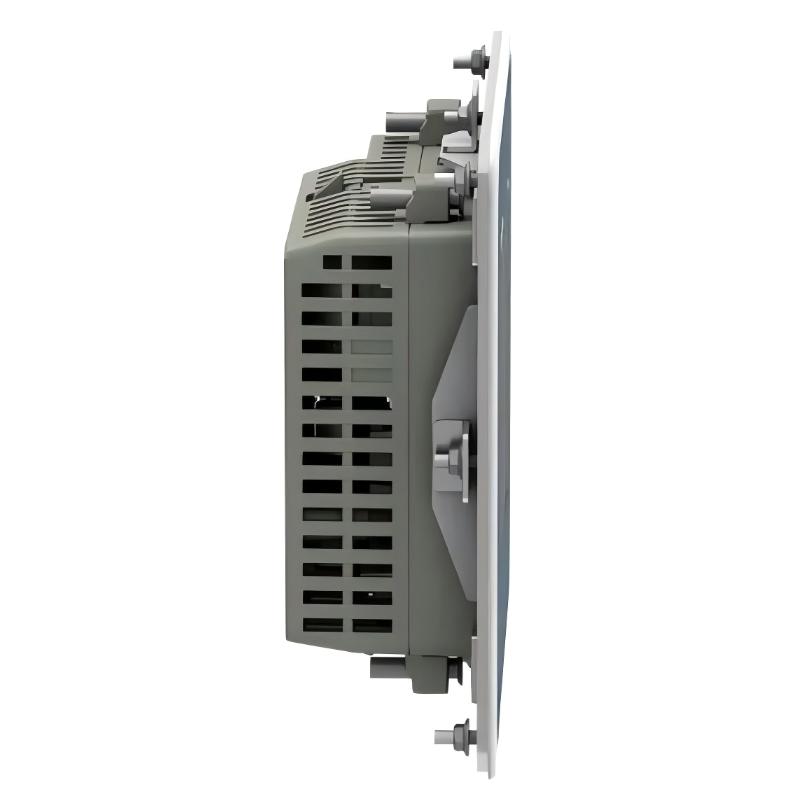

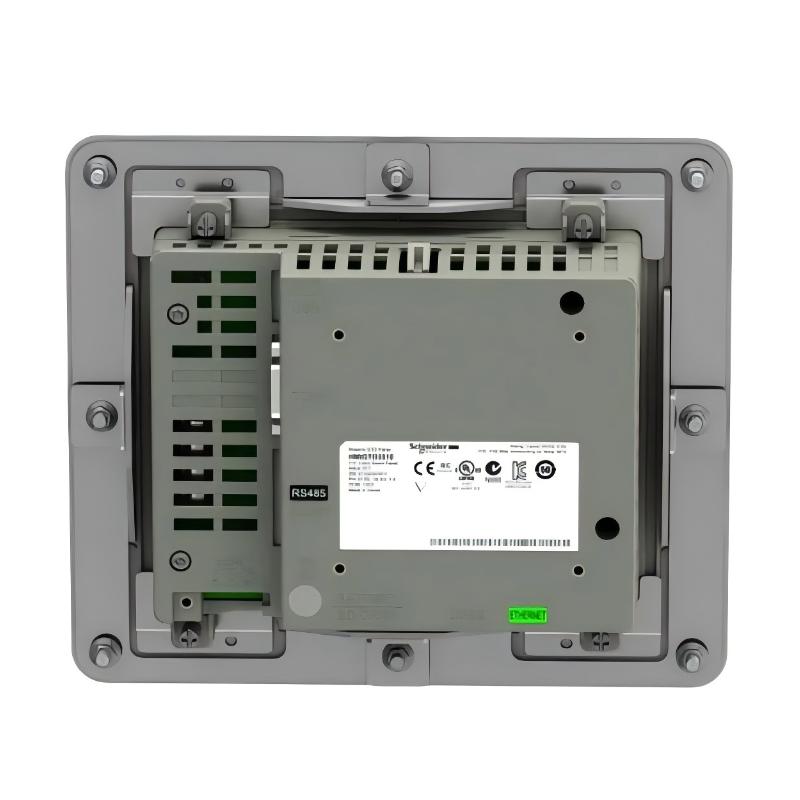

Schneider HMIGTO6315 Advanced Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | HMIGTO6315 |
| Product Type | Advanced Touchscreen Panel |
| Product Series | Harmony GTO |
| Display Type | Backlit Color TFT LCD |
| Display Size | 12.1 inches |
| Display Resolution | 800 × 600 pixels (SVGA) |
| Display Colors | 65,536 colors |
| Touch Panel Type | Resistive touch panel |
| Touch Resolution | 1024 × 1024 |
| Touch Panel Life | Approximately 1,000,000 operations |
| Internal Flash Memory | 96 MB |
| Processor | ARM926EJ-S |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2–28.8 V DC |
| Maximum Power Consumption | 17 W |
| Power Consumption with Backlight Off | Approximately 7 W |
| Power Consumption with Dimmed Backlight | Approximately 8 W |
| Inrush Current | 30 A or less |
| Backlight Life | Approximately 50,000 hours at 25°C |
| Brightness Adjustment | 16 levels via touch panel or software |
| Serial Communication | RS-232C and RS-485 |
| Ethernet Interface | 10BASE-T/100BASE-TX |
| USB Interfaces | USB Type-A and Mini-B |
| Memory Card Support | SD/SDHC, up to 32 GB |
| Configuration Software | Vijeo Designer V6.1 or later |
| Operating Temperature | 0–55°C |
| Storage Temperature | -20–60°C |
| Relative Humidity | 10–90%, non-condensing |
| Front Panel Protection | IP66K when correctly installed in an enclosure |
| Rear Panel Protection | IP20 |
| Front Panel Material | Stainless steel |
| Cooling Method | Natural air circulation |
| Mounting Type | Flush panel mounting |
| Panel Cutout Size | 340.5 × 266.5 mm |
| Dimensions | 359 × 56 × 285 mm |
| Weight | 3 kg |
FAQ
1. What is the main function of the Schneider HMIGTO6315 Advanced Touchscreen Panel?
The HMIGTO6315 is an industrial human-machine interface (HMI) designed for monitoring and operating automated machinery. It allows operators to view process data, machine status, alarms, and operating parameters, while providing a touch interface for interacting with compatible PLC control systems.
2. Which software is used to configure the HMIGTO6315?
The HMIGTO6315 uses Schneider Electric Vijeo Designer configuration software, version 6.1 or later. Before creating or transferring an application, confirm that the installed software version supports the panel and the communication drivers required by the connected PLC.
3. Which communication interfaces are available on the HMIGTO6315?
The HMIGTO6315 supports RS-232C, RS-485, Ethernet, and USB connections. These interfaces can be used for PLC communication, project transfer, and connection to compatible engineering equipment. The required interface depends on the communication protocol and the configuration of the connected devices.
4. Can the HMIGTO6315 communicate with third-party PLC systems?
Yes, provided the selected PLC and communication protocol are supported by Vijeo Designer. Compatibility depends on the PLC model, available driver, communication interface, and software version. Verify these requirements before integrating the panel into an existing automation system.
5. How do you troubleshoot communication failures between the HMIGTO6315 and a PLC?
Check the communication cables, connectors, PLC status, and interface selection first. For serial connections, verify baud rate, parity, data bits, and station address. For Ethernet, check IP addresses, subnet settings, and network connectivity. Also confirm that the HMI project uses the correct driver and device addresses.
6. What should be checked if the HMIGTO6315 touchscreen becomes unresponsive?
Confirm that the panel has completed startup and that the HMI application is running. Check the screen for contamination or damage, and verify that the application has been configured correctly. If the display works but touch input remains unreliable, consult the service documentation to determine whether further diagnosis or touch panel replacement is required.
7. What are the installation and environmental requirements for the HMIGTO6315?
The panel requires a 24 V DC power supply within the specified range of 19.2–28.8 V DC. The operating temperature should remain between 0°C and 55°C, with relative humidity between 10% and 90% without condensation. Install the unit in a suitable enclosure, ensure proper grounding and sealing, and provide sufficient clearance for natural air circulation.
8. What should be done before replacing an HMIGTO6315 in an operating control system?
Back up the existing HMI project and record the PLC communication settings, network configuration, and terminal connections. Confirm that the replacement unit is compatible with the application and connected equipment. After installation, test the display, touch input, PLC communication, alarms, and control commands before returning the machine to normal operation.
Schneider HMIGTO6315 Advanced Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
