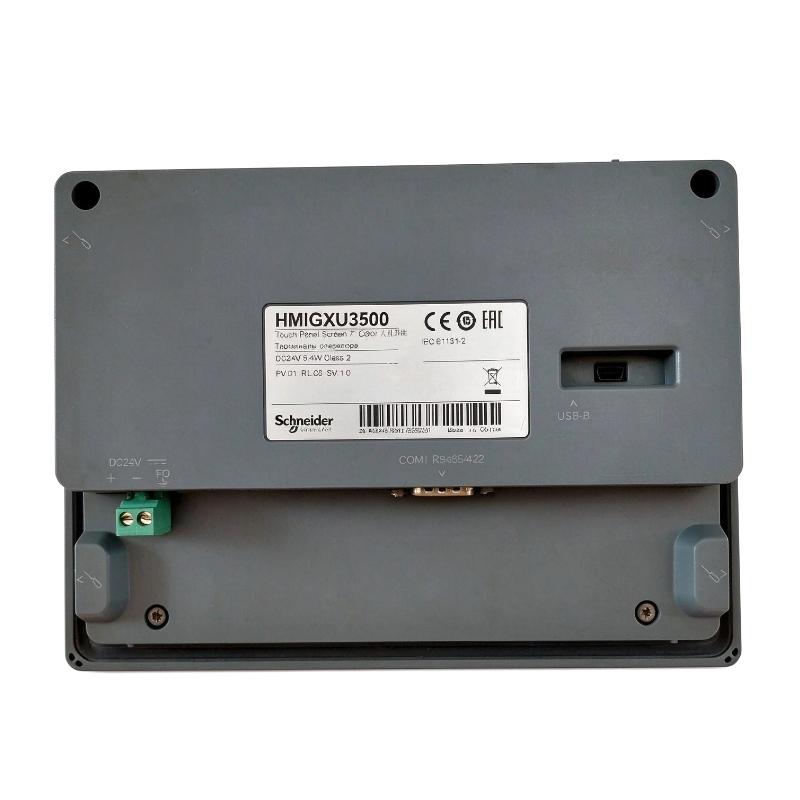

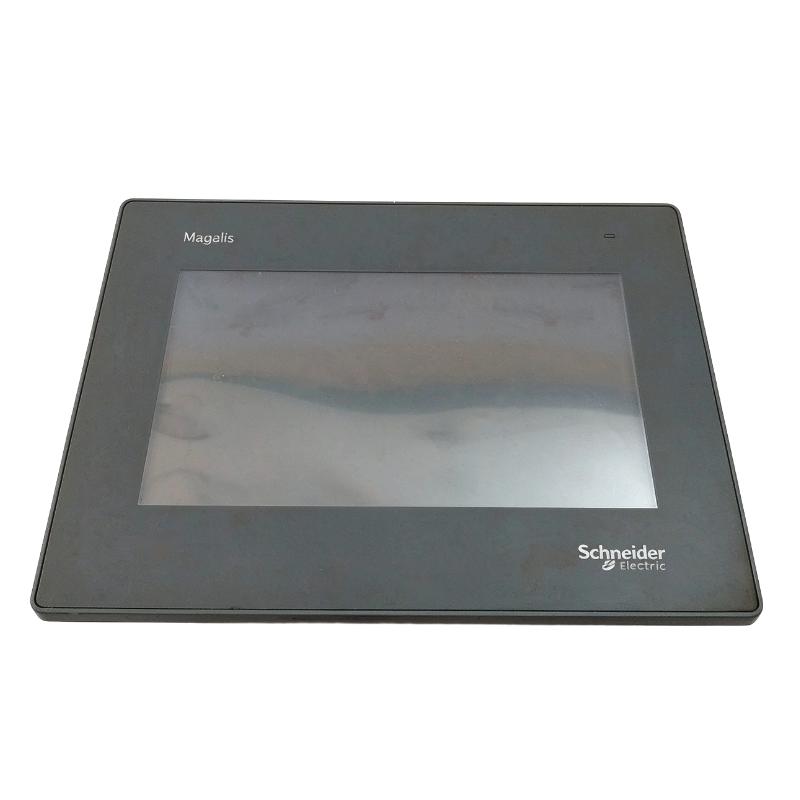

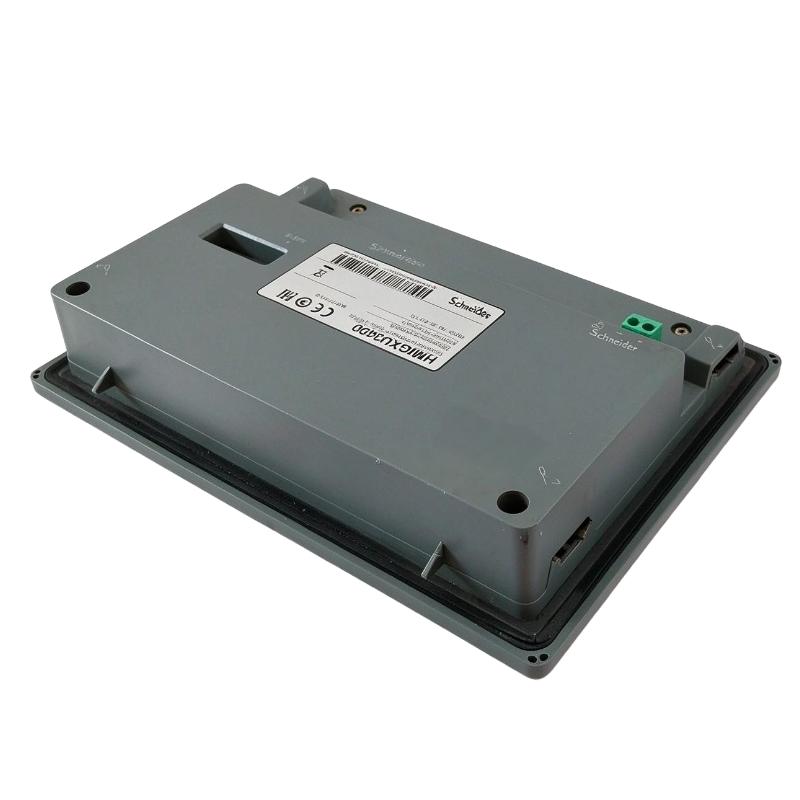

Schneider HMIGXU3500 Touchscreen Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMIGXU3500 |
| Product Name | Touchscreen Panel |
| Product Series | Harmony Easy GXU / Magelis Easy GXU |
| Product Type | Industrial HMI Touchscreen Panel |
| Display Type | LCD Touchscreen |
| Display Size | 7 inches |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Display Colors | 65,536 colors |
| Rated Supply Voltage | 24 V DC |
| Serial Communication Interface | COM1, 9-pin male SUB-D connector |
| Serial Communication Protocol | RS-422 / RS-485 |
| USB Interface | Mini USB Type-B |
| Application Memory | 32 MB |
| Internal DDR Memory | 128 MB |
| Backup Memory | 128 kB |
| Configuration Software | Vijeo Designer Basic |
| Embedded Functions | Real-Time Clock (RTC) |
| Backlight Service Life | Approximately 20,000 hours |
| Front Panel Protection | IP65 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 60°C |
| Panel Cutout Dimensions | 190 × 135 mm |
| Dimensions | 207 × 38.2 × 152.3 mm |
| Weight | 0.24 kg |
| Typical Applications | Industrial machine operation, process monitoring, equipment status display, and operator control |
FAQ
1. What is the primary function of the Schneider HMIGXU3500 Touchscreen Panel?
The HMIGXU3500 is a human-machine interface (HMI) designed to provide operators with a visual interface for monitoring equipment status, viewing process data, and controlling compatible industrial machines. Its touchscreen allows users to interact with configured screens, alarms, and operating parameters.
2. Which configuration software is used for the HMIGXU3500?
The HMIGXU3500 uses Vijeo Designer Basic for HMI project development and configuration. The software is used to create screen layouts, configure communication settings, define operator controls, and transfer supported projects to the panel.
3. What communication protocols does the HMIGXU3500 support?
The panel provides a COM1 serial interface supporting RS-422 and RS-485 communication. The actual protocol used depends on the connected PLC or controller, the device driver selected in the project, and the communication settings configured at both ends.
4. Can the HMIGXU3500 communicate with a PLC?
Yes. It can communicate with compatible PLCs through its serial interface when the correct communication driver, protocol, wiring, and parameters are configured. Before commissioning, verify the PLC model, communication port, baud rate, data format, station address, and supported protocol.
5. What should be checked if the HMIGXU3500 cannot communicate with a PLC?
First, verify the communication cable and connector pin assignments. Then check the selected PLC driver, communication protocol, baud rate, parity, data bits, stop bits, and station address. Also confirm that the PLC communication port is enabled and that the project matches the connected equipment.
6. What power supply is required for the HMIGXU3500?
The panel requires a rated 24 V DC supply. Confirm the supply polarity, voltage stability, grounding arrangement, and wiring before powering up the device. An unstable supply or incorrect wiring may cause startup failures, screen resets, or intermittent operation.
7. What should be done if the touchscreen does not respond correctly?
Check whether the panel is receiving stable power and whether the displayed application is operating normally. Inspect the screen for contamination or physical damage, then restart the panel if permitted by the operating procedure. If the problem persists, investigate the touchscreen hardware and application configuration before replacing the unit.
8. What should be considered when replacing an HMIGXU3500 with another HMI model?
Confirm the replacement panel’s mounting requirements, power supply, communication interfaces, protocol support, and compatibility with the existing PLC program. The original HMI project may require conversion or modification. The HMIGXU3500 has been discontinued, so verify replacement availability and technical compatibility before planning a retrofit.
Schneider HMIGXU3500 Touchscreen Panel is in stock. Please contact us for a quick quote and competitive pricing.
