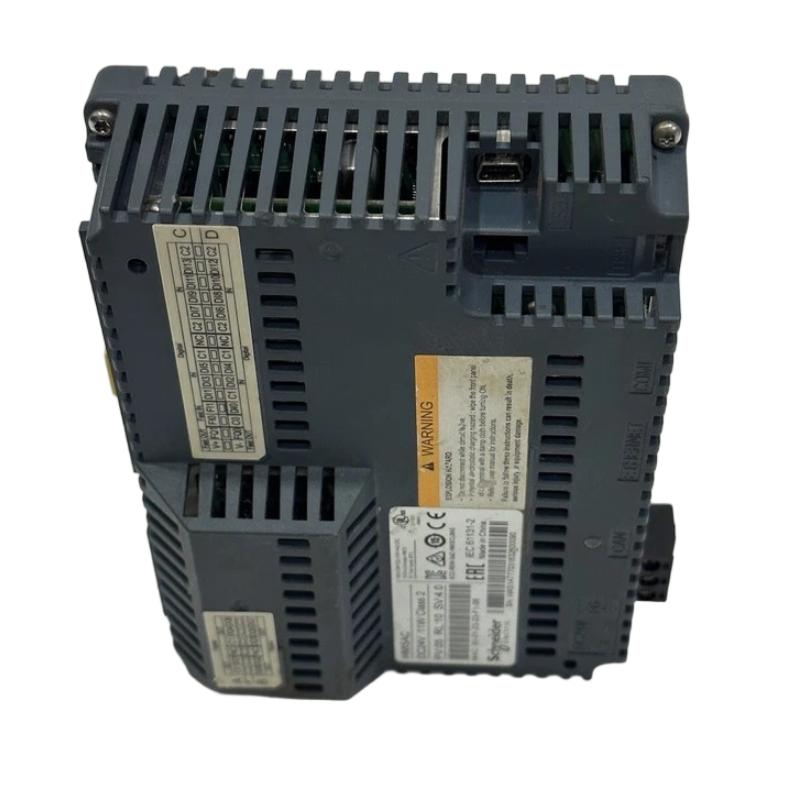

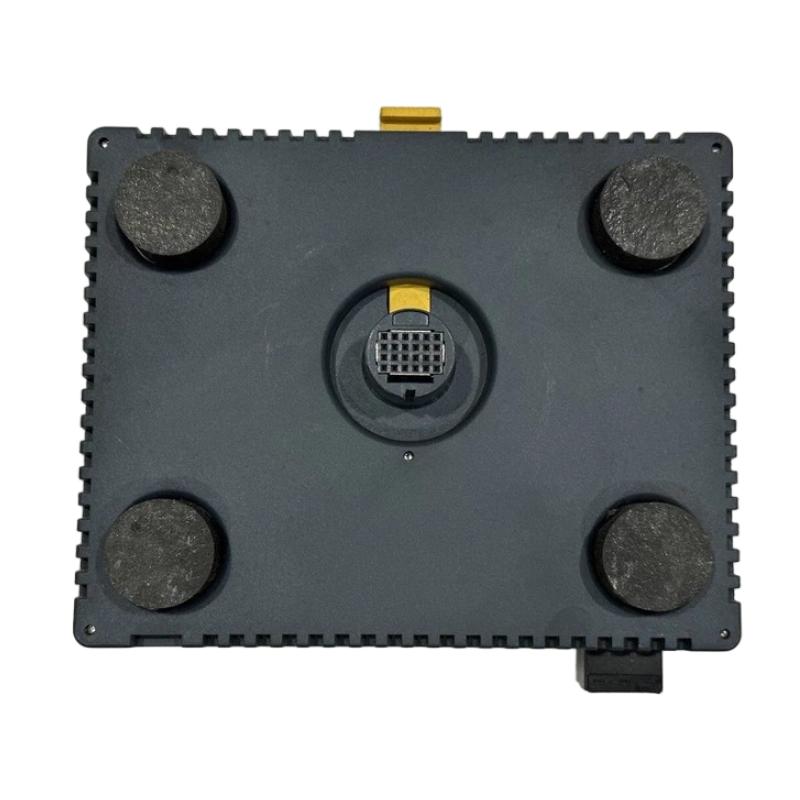

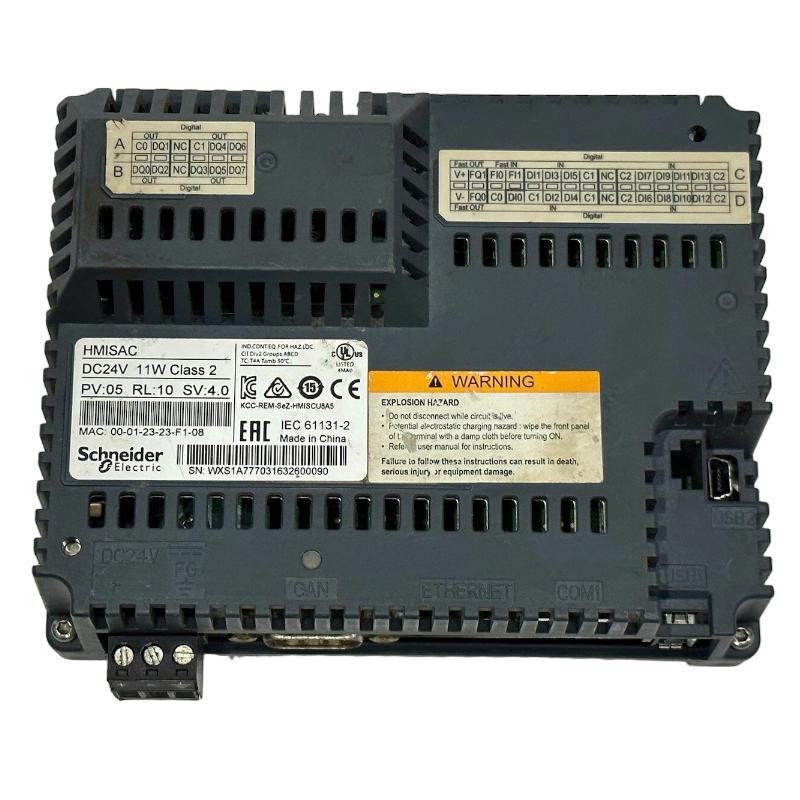

Schneider HMISAC Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISAC |
| Product Name | Controller Module |
| Product Series | Harmony SCU |
| Product Type | HMI Controller Rear Module |
| Main Function | Industrial machine control and process monitoring |
| Digital Inputs | 16 |
| Digital Outputs | 10 |
| Rated Supply Voltage | 24 V DC |
| Acceptable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 15 W |
| Processor Type | RISC CPU |
| Processor Frequency | 333 MHz |
| Flash Memory | 128 MB NAND Flash |
| Application Memory | 128 MB DRAM |
| Internal Data Storage | 128 kB FRAM |
| Serial Communication | 1 × RJ45 serial port, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45 Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Communication Protocols | Modbus, Modbus TCP/IP, CANopen |
| Real-Time Clock | Built-in |
| Configuration Software | SoMachine |
| Operating System | Harmony |
| Mounting Type | Rear module for compatible Harmony SCU display |
| Compatible Display Modules | HMIS65, HMIS85 |
| Dimensions | 50.65 × 128 × 102 mm |
| Weight | 0.359 kg |
| Typical Applications | Small industrial machines, simple process control, equipment monitoring |
FAQ
1. What is the main function of the Schneider HMISAC Controller Module?
The HMISAC is a controller rear module in the Schneider Electric Harmony SCU product range. It combines HMI control functions with digital I/O, allowing it to manage machine operations, exchange data with connected devices, and support simple industrial automation applications.
2. How many digital inputs and outputs does the HMISAC provide?
The HMISAC provides 16 digital inputs and 10 digital outputs. These channels can be used for signals from sensors, switches, actuators, and other field devices. Check the wiring diagram and electrical ratings before connecting field equipment.
3. What power supply does the HMISAC require?
The controller operates on a nominal 24 V DC supply, with an acceptable input range of 20.4–28.8 V DC. Use a suitable industrial power supply and verify polarity, grounding, and wiring before energizing the module.
4. Which communication interfaces are available on the HMISAC?
The HMISAC includes an RJ45 serial interface supporting RS-232/RS-485, an Ethernet TCP/IP port, USB Type-A and Mini-B interfaces, and a 9-pin SUB-D CANopen Master interface. The available functions depend on the application configuration and connected equipment.
5. Which communication protocols does the HMISAC support?
Supported protocols include Modbus, Modbus TCP/IP, and CANopen. Correct operation requires compatible device settings, appropriate communication drivers, and matching parameters such as baud rate, network addressing, and serial communication format.
6. Which display modules are compatible with the HMISAC?
The HMISAC is designed to work with compatible Harmony SCU display modules, including the HMIS65 3.5-inch display and HMIS85 5.7-inch display. The display and controller modules together form a complete HMI unit. Verify hardware compatibility and project requirements before replacing either module.
7. What software is used to configure and program the HMISAC?
The HMISAC is associated with Schneider Electric’s SoMachine software environment. The programming project is used to configure controller logic, I/O behavior, communication settings, and HMI functions. Confirm software version and project compatibility before downloading an application to the controller.
8. What should be checked if the HMISAC fails to communicate with connected equipment?
Check the module’s 24 V DC supply, connector seating, cable wiring, and communication settings. For serial connections, verify the selected RS-232 or RS-485 mode and communication parameters. For Ethernet or CANopen, check network addressing, topology, and device configuration. If the problem persists, review controller diagnostics and the application program before replacing hardware.
Schneider HMISAC Controller Module is in stock. Please contact us for a quick quote and competitive pricing.
