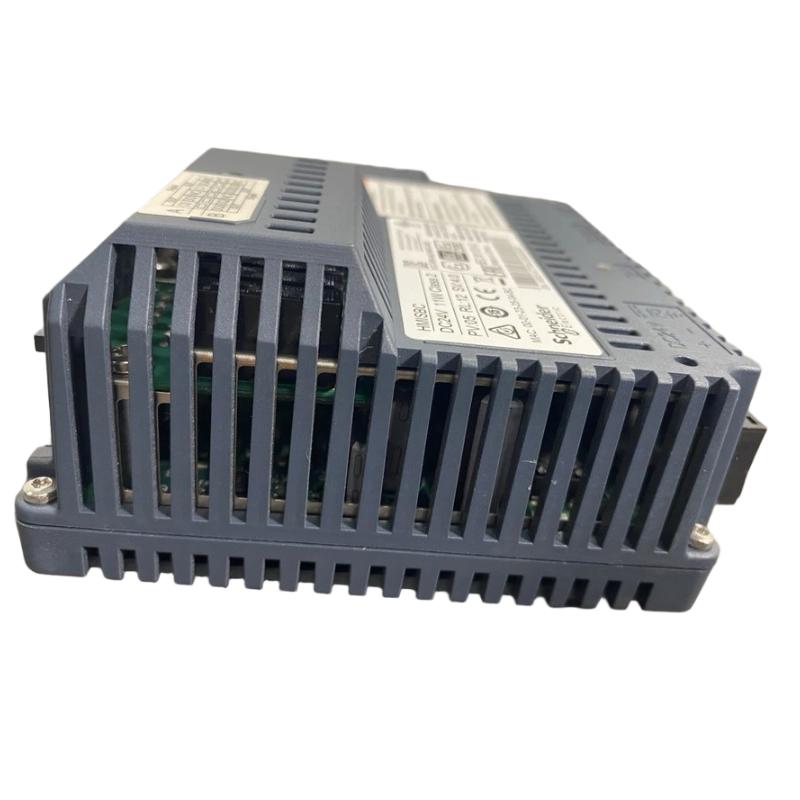

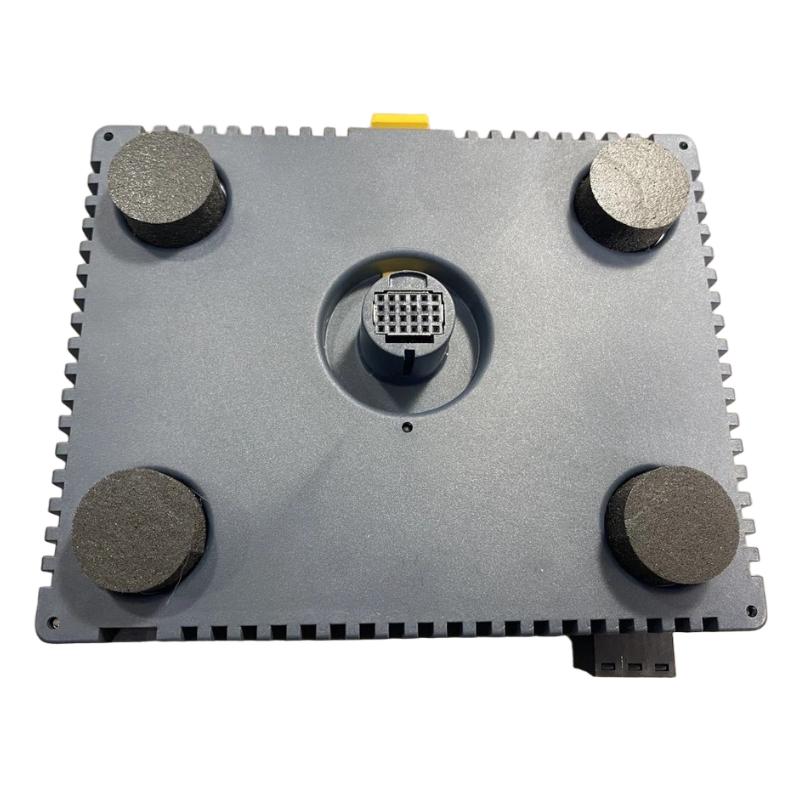

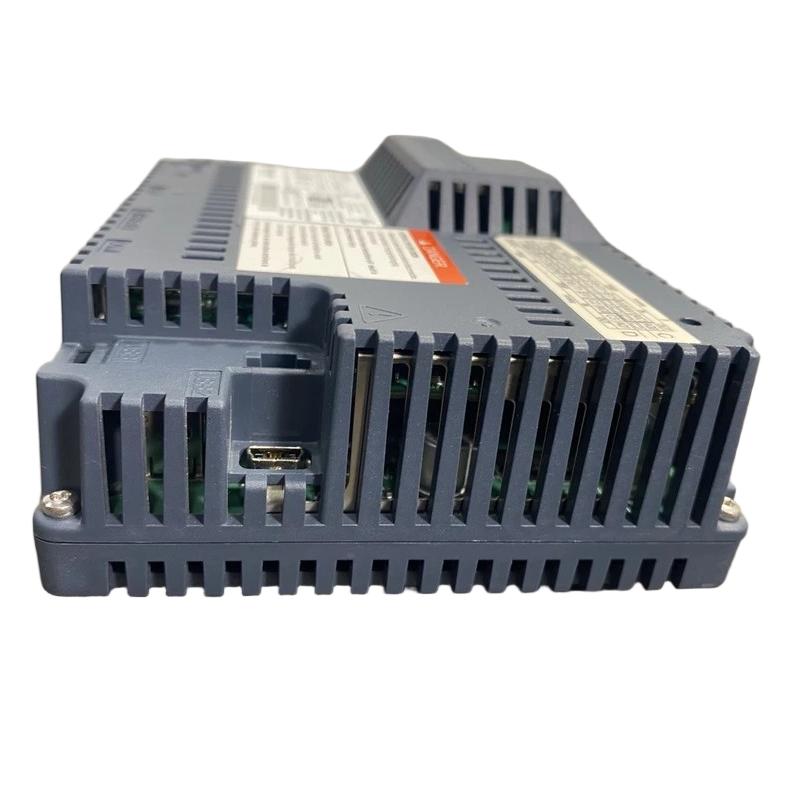

Schneider HMISBC Controller Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISBC |
| Product Name | Controller Module |
| Product Series | Harmony SCU |
| Product Type | Industrial HMI Controller Rear Module |
| Main Function | Machine control, process monitoring, and data processing |
| Digital Inputs | 8 |
| Digital Outputs | 8 |
| Analog Inputs | 4 |
| Analog Outputs | 2 |
| Rated Supply Voltage | 24 V DC |
| Allowable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 15 W |
| Inrush Current | Up to 30 A |
| Processor Type | RISC CPU |
| Processor Frequency | 333 MHz |
| Flash Memory | 128 MB NAND Flash |
| Application Memory | 128 MB DRAM |
| Internal Data Storage | 128 kB FRAM |
| Serial Communication Interface | 1 × RJ45, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45, Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Communication Protocols | Modbus, Modbus TCP/IP, CANopen |
| Real-Time Clock | Built-in |
| Configuration Software | SoMachine |
| Operating System | Harmony |
| Compatible Display Modules | HMIS65 (3.5-inch), HMIS85 (5.7-inch) |
| Mounting Type | Rear controller module for Harmony SCU |
| Dimensions | 50.65 × 128 × 102 mm |
| Weight | 0.398 kg |
FAQ
1. What is the main function of the Schneider HMISBC Controller Module?
The HMISBC is a controller module in the Schneider Electric Harmony SCU range, designed for simple industrial process control. It combines controller functions with digital and analog I/O, allowing it to acquire field signals, process application logic, and control connected equipment.
2. How many input and output channels does the HMISBC provide?
The HMISBC provides 8 digital inputs, 8 digital outputs, 4 analog inputs, and 2 analog outputs. These channels support the connection of compatible sensors, switches, actuators, and analog instruments. Check the applicable wiring diagram and signal specifications before connecting field devices.
3. What power supply is required for the HMISBC?
The module uses a nominal 24 V DC supply and supports an input range of 20.4–28.8 V DC. The power supply should be appropriately rated for the controller and connected devices. Verify polarity, grounding, and wiring before energizing the system.
4. Which communication interfaces and protocols are supported?
The HMISBC provides an RS-232/RS-485 serial interface, an Ethernet TCP/IP interface, USB Type-A and Mini-B ports, and a CANopen Master interface. Supported protocols include Modbus, Modbus TCP/IP, and CANopen. Actual communication depends on compatible devices and correct configuration.
5. Which display modules are compatible with the HMISBC?
The HMISBC is designed to work with the Schneider Electric Harmony SCU HMIS65 3.5-inch display module and HMIS85 5.7-inch display module. The controller and display form a complete HMI unit. Confirm compatibility and project requirements before replacing either component.
6. Which software is used to configure the HMISBC?
The HMISBC is associated with Schneider Electric SoMachine software. It is used to develop and configure controller logic, I/O behavior, communication settings, and application functions. Confirm the installed software version and project compatibility before downloading or modifying the program.
7. What should be checked if the HMISBC analog inputs provide incorrect readings?
Check the sensor type, signal range, terminal wiring, grounding, and configured input channel settings. Verify whether the application expects voltage, current, or temperature signals, and confirm that the selected configuration matches the connected instrument. If readings remain incorrect, test the sensor and wiring independently before suspecting a controller fault.
8. How can communication or I/O faults on the HMISBC be diagnosed?
Start by checking the 24 V DC supply, terminal connections, and wiring. For communication faults, verify network addressing, serial settings, protocol selection, and device configuration. For I/O faults, compare actual field signals with the configured channel types and application logic. Review controller diagnostics and test connected devices before replacing the module.
