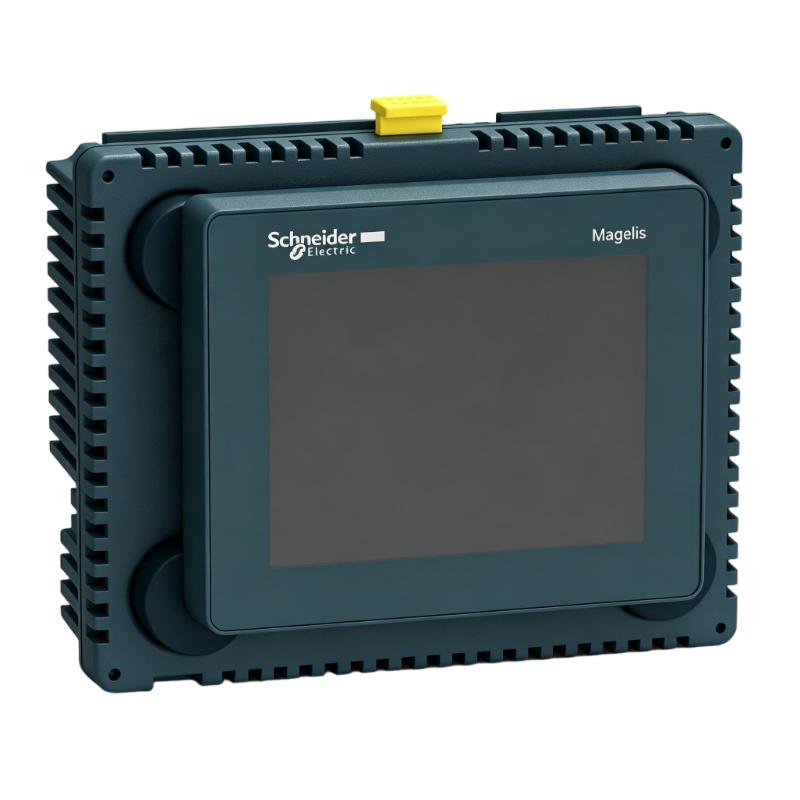

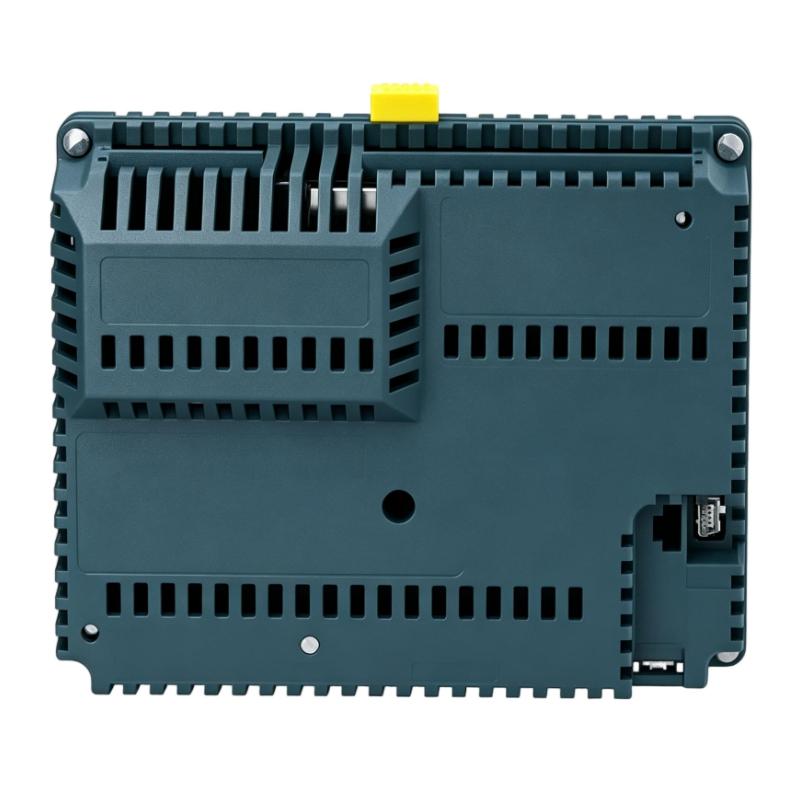

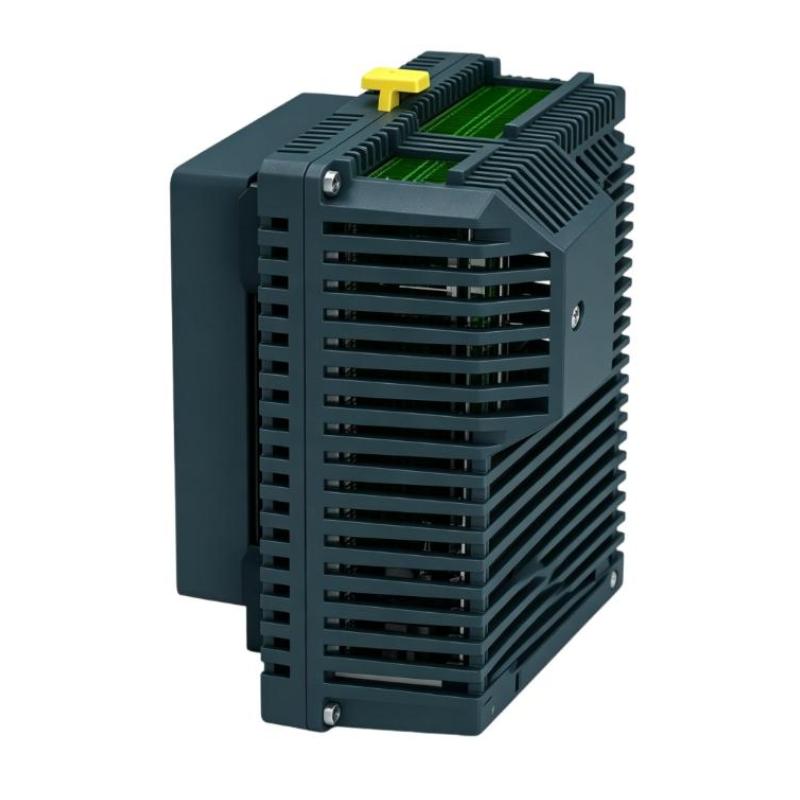

Schneider HMISCU6A5 3.5-Inch Touch Control Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISCU6A5 |
| Product Name | 3.5-Inch Touch Control Panel |
| Product Series | Harmony SCU |
| Product Type | Integrated HMI Controller with Touchscreen |
| Display Type | Backlit LED Color TFT LCD |
| Display Size | 3.5 inches |
| Display Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Touch Technology | Analog Touch Panel |
| Backlight Service Life | Approximately 50,000 hours |
| Brightness Adjustment | 16 levels via touchscreen |
| Processor | RISC CPU |
| Processor Frequency | 333 MHz |
| Application Memory | 128 MB DRAM |
| Flash Memory | 128 MB NAND Flash |
| Internal Data Memory | 128 kB FRAM |
| Digital Inputs | 16 total: 14 standard inputs and 2 high-speed inputs |
| Digital Outputs | 10 total: 8 standard outputs and 2 high-speed outputs |
| High-Speed Input Function | High-speed counter (HSC), up to 100 kHz |
| High-Speed Output Function | Pulse train output (PTO) and pulse-width modulation (PWM), depending on configuration |
| Rated Supply Voltage | 24 V DC |
| Allowable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 15 W |
| Serial Communication | 1 × RJ45, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45, Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Protocols | Modbus, Modbus TCP/IP, CANopen |
| Configuration Software | SoMachine; verify software compatibility for the project |
| Operating System | Harmony SCU platform |
| Real-Time Clock | Built-in |
| Front Panel Protection | IP65 / NEMA 4X when correctly installed |
| Operating Temperature | Depends on mounting orientation: 0–50°C horizontally; 0–40°C vertically |
| Installation Type | Panel-mounted |
| Dimensions | 74.95 × 128 × 102 mm |
| Weight | 0.512 kg |
FAQ
1. What is the main function of the Schneider HMISCU6A5 Touch Control Panel?
The HMISCU6A5 combines a 3.5-inch touchscreen HMI with a programmable controller. It allows operators to monitor machine conditions, view alarms and process values, and control connected equipment without requiring a separate HMI and controller for basic applications.
2. How many digital inputs and outputs does the HMISCU6A5 provide?
The controller provides 16 digital inputs, including 14 standard inputs and 2 high-speed inputs, as well as 10 digital outputs, including 8 standard outputs and 2 high-speed outputs. Check the terminal assignments and electrical specifications before connecting field devices.
3. What power supply is required for the HMISCU6A5?
The HMISCU6A5 uses a nominal 24 V DC power supply, with an allowable input range of 20.4–28.8 V DC. Select a supply with sufficient capacity for the controller and connected loads, and verify polarity and grounding before startup.
4. Which communication interfaces and protocols are supported?
The unit provides an RS-232/RS-485 serial interface, Ethernet TCP/IP, USB Type-A, USB Mini-B, and a CANopen Master interface. It supports protocols including Modbus, Modbus TCP/IP, and CANopen. The required protocol and communication parameters must match the connected equipment.
5. Can the HMISCU6A5 be used for high-speed counting and pulse control?
Yes. Its high-speed inputs support high-speed counter functions, with input frequencies up to 100 kHz under specified configurations. The high-speed outputs can support pulse train output (PTO) and PWM functions. Check the hardware configuration, wiring, and application settings to confirm the operating mode and limits.
6. Which software is used to program the HMISCU6A5?
The HMISCU6A5 is associated with Schneider Electric SoMachine software. Depending on the project and software generation, compatibility with the relevant development environment should be confirmed before editing or downloading a program. Back up the existing project before making changes.
7. What should be checked if the touchscreen works but the controller I/O does not respond?
Check the controller’s power supply, I/O terminal wiring, common connections, and input/output status in the application. Confirm that the program is running and that the configured logic matches the connected sensors and actuators. For high-speed channels, also verify the selected function and frequency settings.
8. What should be considered when replacing an HMISCU6A5?
Confirm the exact model, terminal assignments, I/O types, communication interfaces, and application compatibility. Back up the original program and configuration before removing the unit. After installation, verify the power supply, communication links, touchscreen operation, I/O response, and safety-related functions before returning the machine to service.
