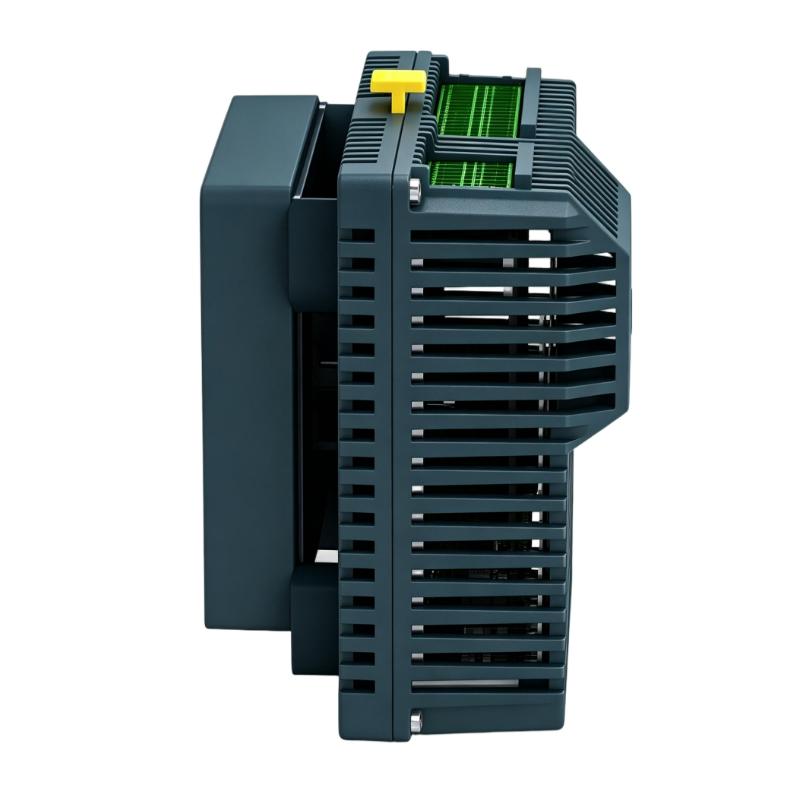

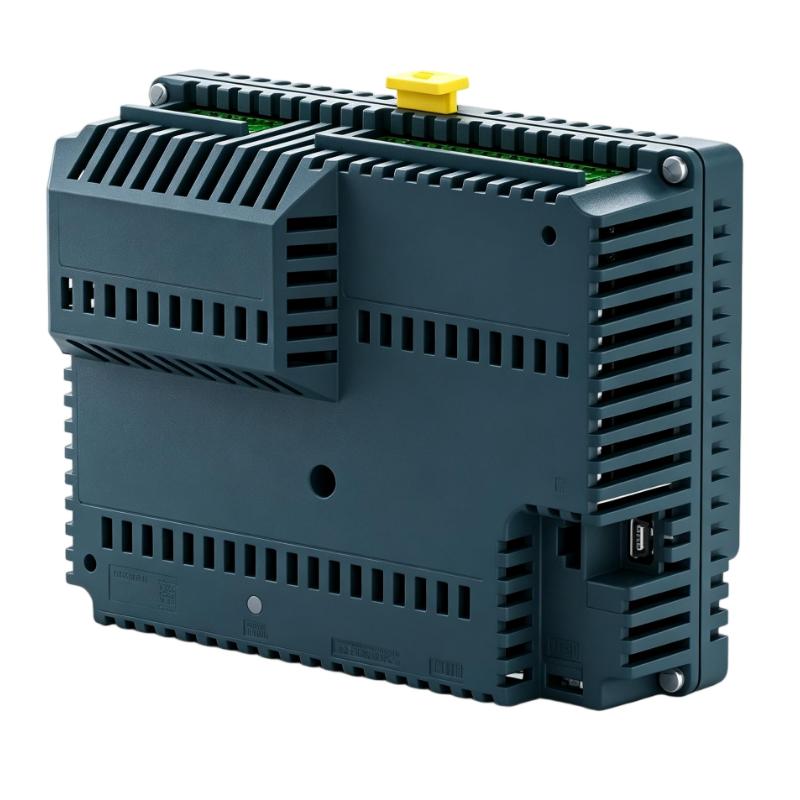

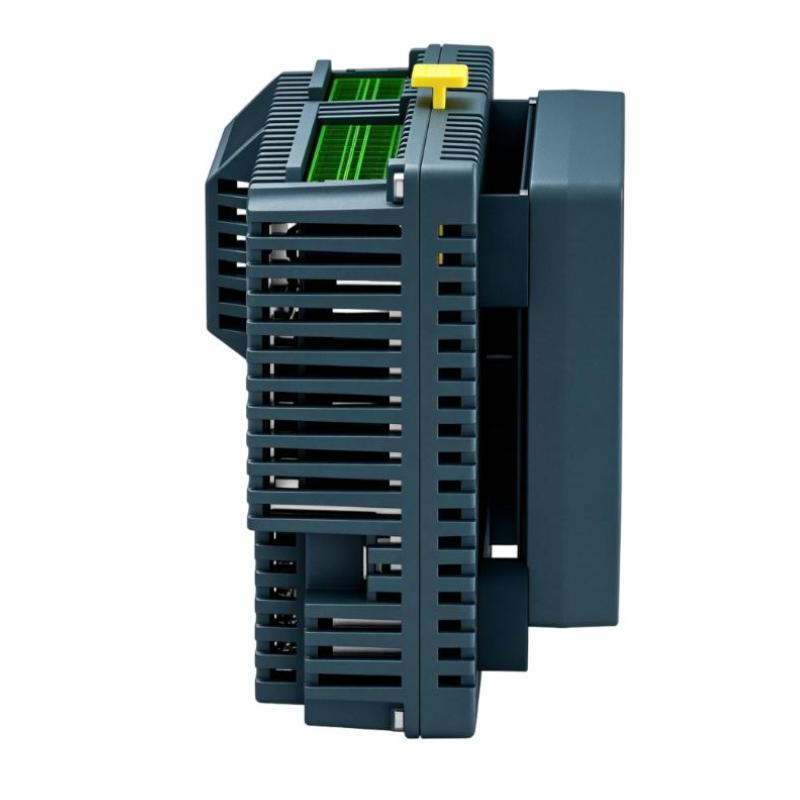

Schneider HMISCU6B5 3.5-Inch Touch Control Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model Number | HMISCU6B5 |
| Product Name | 3.5-Inch Touch Control Panel |
| Product Series | Harmony SCU |
| Product Type | Integrated HMI Touchscreen and Controller |
| Display Type | LED-Backlit Color TFT LCD |
| Display Size | 3.5 inches |
| Display Resolution | 320 × 240 pixels (QVGA) |
| Display Colors | 65,536 colors |
| Touch Technology | Analog Touch Panel |
| Backlight Service Life | Approximately 50,000 hours |
| Brightness Adjustment | 16 levels via touchscreen |
| Viewing Angle | 60° left, 60° right, 40° top, 60° bottom |
| Processor | RISC CPU |
| Processor Frequency | 333 MHz |
| Digital Inputs | 8 total: 6 standard inputs and 2 high-speed inputs |
| Digital Outputs | 8 total: 6 standard outputs and 2 high-speed outputs |
| Analog Inputs | 4 channels, including standard analog and temperature measurement inputs |
| Analog Outputs | 2 channels, 12-bit resolution |
| Rated Supply Voltage | 24 V DC |
| Allowable Supply Voltage | 20.4–28.8 V DC |
| Power Consumption | 15 W |
| Inrush Current | 30 A |
| Flash Memory | 128 MB NAND Flash |
| Application Memory | 128 MB DRAM |
| Internal Data Memory | 128 kB FRAM |
| Serial Communication | 1 × RJ45, RS-232/RS-485 |
| Ethernet Interface | 1 × RJ45, Ethernet TCP/IP |
| USB Interfaces | 1 × USB 2.0 Type-A; 1 × USB 2.0 Mini-B |
| Fieldbus Interface | CANopen Master, 9-pin SUB-D |
| Supported Protocols | Modbus, Modbus TCP/IP, CANopen |
| Configuration Software | SoMachine; verify compatibility with the project and software version |
| Operating System | Harmony SCU platform |
| Real-Time Clock | Built-in |
| Installation Type | Panel-mounted |
| Dimensions | 74.95 × 128 × 102 mm |
| Weight | 0.551 kg |
FAQ
1. What is the main function of the Schneider HMISCU6B5 Touch Control Panel?
The HMISCU6B5 combines a 3.5-inch touchscreen with a programmable controller. It enables operators to monitor machine status, display process values and alarms, and control connected equipment. Its integrated design is suitable for compact industrial machines and applications requiring both HMI and controller functions.
2. How many digital and analog I/O channels does the HMISCU6B5 provide?
The HMISCU6B5 provides 8 digital inputs, 8 digital outputs, 4 analog input channels, and 2 analog output channels. The digital channels include high-speed inputs and outputs. The analog inputs support applicable analog and temperature measurement functions, so the sensor type and signal range must be checked before wiring.
3. What power supply is required for the HMISCU6B5?
The panel requires a nominal 24 V DC supply, with an allowable range of 20.4–28.8 V DC. The power supply should have sufficient capacity for the controller and connected loads. Check polarity, grounding, wiring, and circuit protection before energizing the system.
4. Which communication interfaces are available on the HMISCU6B5?
The unit provides an RS-232/RS-485 serial interface, Ethernet TCP/IP, USB Type-A, USB Mini-B, and a CANopen Master interface. These connections support communication with compatible PLCs, drives, instruments, and other automation devices when the required drivers and parameters are configured correctly.
5. Can the HMISCU6B5 be used for temperature measurement?
Yes. Its analog input configuration includes temperature measurement capability. Before connecting a temperature sensor, verify the supported sensor type, terminal assignment, wiring method, and channel configuration in the applicable technical documentation. Incorrect sensor selection or wiring can result in inaccurate readings or input faults.
6. Which software is used to program the HMISCU6B5?
The HMISCU6B5 is associated with Schneider Electric SoMachine software. The available development environment depends on the project’s history and software compatibility. Before modifying the controller program or HMI screens, back up the existing project and confirm that the selected software version supports the device.
7. What should be checked if an analog input gives an incorrect value?
Check the sensor’s output type, configured signal range, wiring, common terminals, and grounding. Confirm that the application uses the correct input channel and measurement mode. For temperature inputs, also verify the selected sensor type. If the reading remains incorrect, test the sensor and wiring independently before concluding that the controller is defective.
8. What should be considered when replacing an HMISCU6B5?
Confirm the exact model, I/O configuration, terminal assignments, communication interfaces, and compatibility with the existing control program. Back up the application and configuration before removing the unit. After installation, test the touchscreen, communication links, digital and analog I/O, alarms, and relevant machine safety functions before returning the equipment to service.
Schneider HMISCU6B5 3.5-Inch Touch Control Panel is in stock. Please contact us for a quick quote and competitive pricing.
